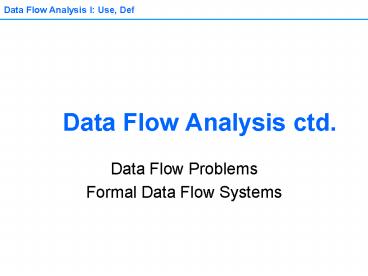

Data Flow Analysis ctd.

• Data Flow Problems
• Formal Data Flow Systems

2
Dead Code Elimination

• Code is useless if it can never be executed
• If we cannot reach a node from start of flowgraph
  it is useless
• It wont be executed, but removing it reduces
  size of object code
• Code is dead if it does not contribute to the
  results of the program in any way.
• Dead code may be inadvertently written, produced
  as a result of code modification (upgrades) or
  generated by the compiler during optimizations.
• Dead code elimination optimization attempts to
  recognize and eliminate dead code in a program.
• We look at a strategy for doing so in next slides

3
Dead Code Elimination

• Goal Remove all statements that do not
  contribute to the output (or interact with the
  environment) in any way. We only consider WRITE
  statements in the following.
• Strategy to mark useful statements
• Let STAT be the set of statements, OUTPUT be the
  set of WRITE statements in STAT, and the sets
  UD(S,v) for all S ? STAT and v ? VAR, with v ?
  USE(S) be available.
• Let KEEP be the set of useful statements
• Set mark to FALSE for each statement
• Initialize KEEP OUTPUT

This is a somewhat simplistic definition of dead
code.
4
Dead Code Elimination

• While KEEP is not empty, select and remove an
  arbitrary statement S from KEEP
• mark(S) TRUE
• for all v in USE(S) do
• for all S in UD(S, v) do
• if mark(S) FALSE, add S to KEEP
• end for
• end for
• end while

Idea work backwards from data output and keep
all calculations that contribute to their
computation.
5
Live Variables Problem

• Recall A variable v is live at the exit of a
  basic block n iff there is a path from n to some
  basic block n such that there is an outward
  exposed use of v in n, and the path is
  definition free for v.
• v . .
  .. v
• The live variables problem is to determine, for
  each node n in the flowgraph, the set of live
  variables at the exit of n.

6
Live Variables Problem

• If a variable is live, then it is used
  subsequently.
• This supports register allocation If a variable
  is not live, then its value does not need to be
  saved in a register.
• We require a single-exit flowgraph to solve this
  problem, since we need to track variable uses
  back to their definitions.
• So we start at the exit node

7
Modeling Data Flow Problems

• We can save considerable programming effort by
  using a framework to solve all of the dataflow
  problems needed in a compiler.
• Dataflow frameworks require a representation of
  the program and a strategy for saving data flow
  information associated with this representation.
• We assume that a program is represented by the
  flowgraph (as well as the IR ?).
• Since there is a flowgraph for each individual
  procedure, data flow information is gathered on a
  per-procedure basis.

8
Modeling Data Flow Problems

• Our general strategy for modeling data flow
  problems expects a flowgraph and the following
• specification of the data flow problem to be
  solved
• availability of the initial information required

• specification of the effect of individual basic
  blocks on the information, and
• the effect of a join in the flowgraph (i.e. what
  happens when several paths in the flowgraph meet)

The idea we gather data flow information
systematically for all the statements in the
procedure.
9
Modeling Data Flow Problems

• Given these, we can propagate information
  through the flowgraph.
• updated info
• what
  info?
• start info
• updated info

10
Example Reaching Definitions Problem
RD(n) S DEF(S) is not empty and S reaches
n, a set of statements that define variables.

• Start info begin with empty sets for each basic
  block
• Effect of a basic block If S1 is set of reaching
  definitions that enters n, then any statement in
  S1 that is preserved in n will be a reaching
  definition for successor blocks.
• In addition, all outward exposed definitions in
  n will be reaching definitions for successor
  blocks.
• S1 S v ..
  Sv ...
• Sa .. S a
  Sa...

11
Example Reaching Definitions Problem
RD(n) S DEF(S) is not empty and S reaches
n, a set of statements that define variables.

• Effect of a join if two nodes n1 and n2 join at
  n, where S1 is the set of reaching definitions of
  n1 and S2 is the set of reaching definitions of
  n2, then
• the definitions in S1 and the definitions in S2
  all reach n. So we form S1 U S2
• S a
• Sa..
• Sb ..

• S b ...

12
Example Reaching Definitions Problem

• Solution of problem
• Propagate information through flowgraph
  iteratively.
• Terminate when no new information is created for
  any node in graph.
• This means we have found all definitions in
  program that reach a given node
• Longest path from start node to end node is upper
  bound on number of iterations required

13
Monotone Data Flow System

• A uniform framework for modeling almost all data
  flow problems is a Monotone Data Flow System
  (MDS)
• Unifies and simplifies implementation of a
  variety of data flow problems
• construct monotone data flow system,
• use iterative algorithm to propagate information
  in the flowgraph
• To use this framework we must define
• functions that describe the effect of a basic
  block on the solution
• the effect of a join in the flowgraph.

14
Semi-Lattices
MDS based on a semi-lattice Actually, a bounded
semi-lattice with 0 and 1 elements

• Set L with binary meet operation such that for
  all a,b,c L
• a a a ( idempotent )
• a b b a ( commutative )
• a ( b c ) ( a b ) c
  ( associative )
• A semilattice has a
• zero element iff for some element 0, a 0
  0 for all a L
• one element iff for some element 1, a 1
  a, for all a L

15
Partial Order in a Semi-Lattice

• We may define a partial order on a semi-lattice
  as follows
• Given a semi-lattice ( L, ) and arbitrary
  elements a, b L.
• a b ?? a b a
• is a partial order on L.
• We use gt and lt in the usual way.

16
Bounded Semi-Lattice

• Let a1, a2, , an be a sequence of elements from
  semilattice L.
• This sequence is a chain iff aj gt aj1 for 1
  j n-1
• A semi-lattice is bounded iff for every a L,
  there is some natural number ca such that the
  length of every chain beginning with a is at most
  ca.
• Thus each chain is of finite length.

17
Bounded Semi-Lattices

• We may extend the meet operation to an arbitrary
  number of elements of a semi-lattice
• j m aj a1 a2 am
• We may further extend to countably
  infinite sets.
• If L is bounded, the limit exists and is equal to
  that of a finite set of elements.

18
Bounded Semi-Lattices Example

• For a set M, (P (M), ) is a bounded
  semi-lattice with a 0 and a 1 element.
• In this case, is the set-theoretic relation
  .
• For a set M, (P (M), ) is a bounded
  semi-lattice with a 0 and a 1 element.
• In this case, is the set-theoretic relation
  -1

U
U
19
Bounded Semi-Lattices Example

• For a set M, (P (M), ) is a bounded
  semi-lattice with a 0 and a 1 element.
• In this case, is the set-theoretic relation
  .
• For a set M, (P (M), ) is a bounded
  semi-lattice with a 0 and a 1 element.
• In this case, is the set-theoretic relation
  -1

U
B
A B iff A B A
U
A
A
A B iff A B A
U
B
U
20
Bounded Semi-Lattices Example

• Natural numbers and the meet operation given by
  min is also a bounded semi-lattice.
• We can use the usual definition of , since
• a b iff min(a,b) a.
• If we use max as the meet operation, then we
  would need to use the ordering instead.

21
Monotone Data Flow System

• A monotone data flow system is founded on a
  bounded semi-lattice (L, ) with a 0 and a 1
  element.
• It has functions that model the effect of a basic
  block on data flow information.
• Most data flow problems operate on semi-lattices
  where sets (of statements, variables) are the
  elements, and
• the meet operation is the union or intersection
  of such sets.
• We use the properties of such semi-lattices to
  write algorithms with known behavior.

22
Effects of a Basic Block

• These are modeled by a function f L ? L. We
  require such functions in a monotone data flow
  system to be monotonic.
• A total function f L ? L is monotonic if and
  only if
• for all a, b L, f ( a b ) f (
  a ) f ( b )
• Alternatively, a function is monotonic iff
• for all a, b L, a b ? f(a) f(b)

23
Effects of a Basic Block

• The iterative algorithm will produce precise
  results if the functions are distributive.
  Otherwise, they may not be precise.
• A total function f L ? L is distributive if and
  only if
• for all a, b L, f ( a b ) f (
  a ) f ( b )

If we know that our problem is distributive, the
algorithm will find all the available data flow
information. Otherwise, it might not.
24
Fixpoint of Monotone Data Flow System

• Our plan is to repeatedly apply monotone
  functions to update the effect of a basic block
  upon data flow information associated with nodes
• So we must be sure that this process terminates.
• This is guaranteed by the greatest fixpoint
  theorem.
• A fixpoint of a monotonic function f L ? L is a
  value
• a L such that f ( a ) a.

25
Greatest Fixpoint Theorem

• The theorem
• let L be a bounded semi-lattice with 0 and 1
  elements, and
• let f L ? L be a monotonic function.
• Then there is a t 0 such that ft1(1)
  ft(1).
• ft(1) is the greatest fixpoint of f.
• The proof see next slide

26
Greatest Fixpoint Theorem

• 1 f(1), since 1 x for all x L
• Since f is monotonic, f( 1 ) ( f (1) )
• So 1 f (1) f ( f (1) ) ... is a
  chain which is bounded, and for some t, f ( ft (
  1 )) ft (1)
• Hence ft ( 1 ) is a fixpoint of f
• Now assume a is an arbitrary fixpoint of f.
• Then f ( a ) a
• Since a 1, f(a) f(1), we repeatedly apply
  monotonicity definition a ft ( a ) ft( 1
  )
• Thus ft ( 1 ) is the greatest fixpoint of f

27
Computing Greatest Fixpoint

• Given a bounded semi-lattice (L, ) with 0 and
  1, and a monotonic function f L ? L, the
  greatest fixpoint of f is computed as follows
• a 1
• while f ( a ) lt a
• a f ( a )
• end while
• fixpoint a
