Java Streams: Input and Output

1

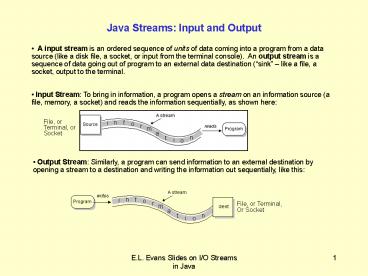

Java Streams Input and Output

• A input stream is an ordered sequence of units
  of data coming into a program from a data source
  (like a disk file, a socket, or input from the
  terminal console). An output stream is a
  sequence of data going out of program to an
  external data destination (sink like a file,
  a socket, output to the terminal.

• Input Stream To bring in information, a program
  opens a stream on an information source (a file,
  memory, a socket) and reads the information
  sequentially, as shown here

File, or Terminal, or Socket

• Output Stream Similarly, a program can send
  information to an external destination by opening
  a stream to a destination and writing the
  information out sequentially, like this

File, or Terminal, Or Socket
2
Stream I/O Paradigm

• No matter where the data is coming from or going
  to and no matter what its type, the algorithms
  for sequentially reading and writing data are
  basically the same
• Reading
• open an input stream (setting up some stream
  object to represent the source)
• while more information (in the stream)
• read a unit of information from the stream object
• close the stream
• Writing
• open an output stream (setting up some stream
  object to represent the destination)
• while more information needs to be sent to stream

• write a data unit of information to the stream
  object
• close the stream
• Generally, I/O proceeds serially through the
  stream, though some methods allow resetting
  position. Generally, you pass through the data
  in order, one unit at a time, starting at the
  first unit, and proceeding until you get past the
  last unit.

3
Stream Taxonomy

• Streams can be for input (InputStreams or
  Readers) or streams can be for output
  (OutputStreams or Writers)
• The data units of a stream can be oriented as
• Bytes (raw data 8 bits each)
• Characters (Text Unicode characters)
• The stream can be either
• Directly associated with the data source or data
  sink
• Usually provide very basic data reading/writing
  methods
• Provide some filtering property above and beyond
  just getting the data from the source or to the
  sink.
• Filter streams usually provide buffering or
  better methods for reading/writing data.
• Filter streams are built atop existing streams
  to add extra capabilities to the pre-existing
  stream. As in
• BufferedInputStream bis new
  BufferedInputStream(new FileInputStream(myfile.tx
  t))
• NOTE almost all stream IO constructors and
  methods throw IOExceptions or subclasses of
  IOException. You NEED TO handle these.

4
Java Byte Streams

• Most raw data in files, sockets, or coming from
  terminals is in plain byte form (in groups of 8
  bits) must be processed with Java byte streams
• Used when byte-by-byte reading or writing is
  needed as with files that are just lists of raw
  bits of data like image file, MS Word documents.
  Or anything that has its own secret non-text
  formatting.
• Input Abstract Java class InputStream, with
  very simple methods
• int read( ) // reads next byte from stream and
  returns byte value as an int
• (returns -1 if no more data!) puts the byte as
  the rightmost octet in the word
• void close( ) // method you call to close the
  stream
• Two key non-abstract subclasses of InputStream
• FileInputStream(String filename) associated
  with data source file
• DataInputStream(InputStream) filter allows
  input of formatted data. Example
• void readDouble()
• Output Abstract class OutputStream, with simple
  methods
• void write(int byteData) // writes the byte,
  stored in the int byteData, to the stream (the
  byte that is written is the rightmost byte in the
  word)
• Void close( ) // method you call to close the
  stream
• Two key non-abstract subclasses of OutputStream
• FileOutputStream(String filename) associated
  with the data sink (can create it or append to
  it!)
• DataOutputStream filter allows input of
  formatted data. Example
• double writeDouble(double db)

5
Reading in a Picture File Byte Oriented Data
import java.io. public class
ReadPicture public static void main(String
args ) FileInputStream finsnull int
inbyte 0xff int bytecount 0 //
number of bytes read in if( args.length 0
) System.out.println("Usage\n\t java
readPicture filename\n") System.exit(0)
String filename args0 try fins new
FileInputStream(filename) catch(
FileNotFoundException e ) System.out.print(
"File Not found - no such file " filename)
System.exit(0) // now read in and display
the bytes - 24 at a time System.out.println("
Raw Byte Data of File ") try while(
(inbyte fins.read()) ! -1 )
System.out.print(Integer.toHexString(inbyte) "
") bytecount if( (bytecount24) 0
) System.out.println() fins.close()
catch( IOException e) System.out.printl
n("Got IO Exception Reading - byte number "
bytecount "\nCLOSING UP") System.ou
t.println("\n END OF DATA " bytecount "
bytes ")
6
Byte-Oriented Output to a File Byte-wise File
Copy
import java.io. public class
CopyPicture public static void main(String
args ) FileInputStream finsnull
FileOutputStream fouts null int inbyte
0xff if( args.length lt 2 )
System.out.println("Usage\n\t java
CopyPicture sourcefile destfile\n")
System.exit(0) String sourcefile
args0 String destfile args1 try
fins new FileInputStream(sourcefile)
catch( FileNotFoundException e )
System.out.print("Source File Not found - no
such file " sourcefile) System.exit(0)
try fouts new FileOutputStream(destfile)
catch( FileNotFoundException e )
System.out.print("dest File Not opened "
destfile) System.exit(0) // now read
in and copy the bytes from fins to fouts try
while( (inbyte fins.read()) ! -1 )
fouts.write(inbyte)
fins.close() fouts.close() catch(
IOException e) System.out.println("Got IO
Exception Reading " "\nCLOSING
UP") System.exit(0)
7
Using a Filtered Byte Stream To Save double Data
import java.io. public class SaveFibs int
numfibs 0 double fibs new
double50 public SaveFibs(int count) if(
count lt 2 ) System.exit(0) numfibs count
fibs0 0. fibs1 1. for( int i2 i lt
count i ) fibsi fibsi-1
fibsi-2 for(int i0 iltnumfibs i)
System.out.println("INIT fibs" i " "
fibsi) public static void main(String
args ) FileInputStream finsnull
FileOutputStream fouts null DataInputStream
dis null DataOutputStream dos
null if( args.length lt 1 ) System.out.p
rintln("Usage\n\t java SaveFibs
how-many-fibs\n") System.exit(0) Sav
eFibs me new SaveFibs(Integer.parseInt(args0)
) // create a file /temp/fibsx.dat (where x is
the count) // save the first x Fibonacci
numbers in this file as sequential //
doubles String filename "C\\temp\\fibs"
String.valueOf(me.numfibs) ".dat" System.out.
println("File Name is " filename) // code
continues on next slide
8
Conclusion - Using a Filtered Byte Stream To
Save double Data
try fouts new FileOutputStream(filename
) dos new DataOutputStream(fouts) //
now write the numbers to the file for(int i0
i lt me.numfibs i) dos.writeDouble(me.fi
bsi) dos.close() catch(IOExcepti
on e) e.printStackTrace()
System.exit(0) // now check if it worked
by reading them in and printing // them
out try fins new FileInputStream(filename
) dis new DataInputStream(fins) // read
the number from the file int fibcount
0 while( true )
System.out.println("ReadBack fib" fibcount
" " dis.readDouble() )
fibcount catch( EOFException e)
System.out.println("EOF Encountered")
catch( IOException e) e.printStackTra
ce() System.exit(0) // end main( )
// end class SaveFibs
9
Java Character Streams

• Units of data in streams are individual Unicode
  characters. All processing is in characters.
• Usually character-by-character reading or
  writing, but can also be line-oriented (using a
  filter stream).
• Applies to text-oriented files and sockets (like
  .txt, .html, source code files, sockets talking
  text-protocols like HTTP, SMTP, SIP, etc.).
• Input abstract Java class Reader, with very
  simple method
• int read( ) // reads next character from stream
  and returns value as an int
• (returns -1 if no more data!) throws
  IOException
• Character returned in placed in rightmost two
  octets of the returned int
• void close( ) // method you call to close the
  stream
• Three key non-abstract subclasses of Reader
• InputStreamReader(InputStream) converts byte
  stream to character stream
• FileReader( String filename) extends
  InputStreamReader - associated with data source
  file. Disk file storage is byte oriented.
• BufferedReader(Reader) filtered stream, allows
  line-oriented input with method
• String readLine( ) // reads next line of
  character input, returns null at EOF

10
Unicode Character IO Problems
Outside JVM Characters treated as 7 0r 8 bit
bytes via some coding scheme (ASCII, ISO, UTF
versions) This includes data in Disk files,
data on sockets, and terminal input or output
InputStreamReader
InputStream
Inside JVM Characters treated as Unicode special
16 bit storage
OutputStream
OutputStreamWriter
11
Java Character Streams for Output

• Output Abstract class Writer, with simple
  methods
• void write(int data) // writes the character,
  stored in the int data, to the stream
• Void close( ) // method you call to close the
  stream
• Three key non-abstract subclasses of Reader
• OutputStreamWriter(OutputStream) converts
  character stream to byte stream
• FileWriter( String filename) extends
  OutputStreamWriter - associated with data
  destination (sink) file. Disk file storage is
  byte oriented.
• PrintWriter(Writer) filtered stream, allows
  line-oriented output with method
• void println( datatype arg ) // writes next line
  of character output
• void print(datatype arg ) // writes formatted
  character data to output stream
• Example given that pw is a PrintWriter, we can
  say pw.println(Hello)

Output Stream of Unicode Characters from program
OutputStreamWriter(S) write( )
Output Stream of bytes to Data sink S
Unicode characters being output from program
FileWriter( FN ) write( )
Stream of bytes to disk file FN
12
Reading a Text File into a Program
// Reading a text file - character IO import
java.io. public class ReadTextFile public
static void main(String args) FileReader
fr null BufferedReader bfr null String
inline null // open the file given in the
command line and display it String filename
args0 try fr new FileReader(filename)
// could have used fr new
InputStreamReader(new FileOutputStream(filename))
// could read this file a character at a time
with fr.read(), but let's // read it a whole
line at a time bfr new BufferedReader(fr)
System.out.println(" Display of Text File
" filename " ") while((inline
bfr.readLine()) ! null) // display the
line read in System.out.println(inline)
System.out.println(" END OF FILE
") bfr.close() catch(
IOException e ) System.out.println("Got
another IO Exception opening/reading file "
filename) e.printStackTrace()
System.exit(0)
13
Converting Bytes from Terminal Into Line-Oriented
Character Input

• Note that input typed into the terminal console
  is byte-oriented.
• To read in Strings (lines) from the terminal,
  need to convert input into a character stream.
• import java.io.
• public class TerminalEcho
• public static void main(String args ) throws
  IOException
• String inline null
• InputStreamReader isr BufferedReader bfr
• isr new InputStreamReader( System.in )
• bfr new BufferedReader(isr)
• try
• while( (inlinebfr.readLine()).length() ! 0 )
• System.out.println("ECHO " inline)

14
Saving Input from the Terminal Into a Text
(Character) File

• Using println( ) to write to file
• import java.io.
• public class SaveInputToFile
• public static void main(String args ) throws
  IOException
• String inline null
• InputStreamReader isrnull BufferedReader
  bfrnull
• FileWriter fwnull PrintWriter pwnull
• isr new InputStreamReader( System.in )
• bfr new BufferedReader(isr)
• try
• String unique String.valueOf(System.currentTi
  meMillis())
• System.out.println("unique " unique)
• fw new FileWriter("C\\temp\\saveit"
  unique ".txt")
• pw new PrintWriter(fw)
• catch( IOException e)

15
Advice on Text and Other IO

• Text IO Applies if you are dealing with any
  source or sink that is textual in nature. This
  applies if you have a socket that talks an ASCII
  oriented protocol (like HTTP, FTP, etc.), or any
  file.txt or file.html, or characters from the
  terminal, etc.
• Store the internal data (that you deal with for
  this source or sink) as Unicode characters, using
  data type char.
• For input from the text oriented source
• For files use FileReader fr new
  FileReader(myfile.txt) // file had better
  exist
• int c fr.read( )
  (reads next character from file into location c)
• BufferedReader br
  new BufferedReader(fr)
• String s
  br.readLine( ) (reads whole line of text from
  file into s)
• Terminal input Note that System.in is an
  InputStream. So we make an InputStreamReader out
  of it and then wrap that in a BufferedReader (if
  you want to read a line at a time
  InputStreamReader isr new InputStreamReader(Syst
  em.in)
• int c
  isr.read( ) // brings in the next character
  from the terminal
•
  BufferedReader br new BufferedReader(isr)
•
  String s br.readLine( ) // reads next line of
  text from terminal into s
• Socket input Given that you have a socket sock,
  you need to get an input stream for that socket.
  To do this use
• InputStream sis sock.getInputStream( )
• InputStreamReader isr new
  InputStreamReader( sis )
• int c isr.read( ) // brings next
  character from socket into the variable c
• BufferedReader br new BufferedReader(
  isr )
• String s br.readLine( ) // reads next
  line of text from socket into s

16
Advice on Text and Other IO - Continued

• For output to a text oriented stream
• For files use FileWriter fw new
  FileWriter(myfile.txt) // file can be created
• fw.write(int c) (Writes the character
  stored in c to the file)
• PrintWriter pw new PrintWriter(fw)
• pw.println(String s) (Writes all
  characters of the string s to the file)
• Terminal output Just use System.out and its
  print( ) and println( ) methods!
• Socket output Given that you have a socket sock,
  you need to get an output stream for that socket.
  To do this use
• OutputStream sos sock.getOutputStream( ).
• To write a character at a time, to the
  socket OutputStreamWriter osw new
  OutputStreamWriter(sos)
• then say osw.write(int c) to write the
  character stored in c to the socket
• To write a line-at-a-time of text to that
  socket PrintWriter pw new PrintWriter(osw)
• then use pw.println(String s)
• Non Text IO
• This applies to sources and sinks that have
  non-textually formatted data, like bit-streams of
  a JPEG, or of a GIF encoding a picture, or a
  Microsoft Word or Excel document, or raw
  bit-streams on a socket, etc.
• Best to simply group 8 bits-at-a-time as a byte
  and do your IO with byte-oriented streams.
  Internal data best stored as byte or as int.
  Use the basic InputStream and OutputStream and
  their file counterparts. You can put a buffered
  stream over it for more efficiency. As for the
  actual IO, use basic read( ) and write( ) and do
  it one byte at a time.
• Slide 6 has an example you should try to extend
  that program to use Buffered Streams, using
  fins new BufferedInputStream(new
  FileInputStream(sourcefile)) and
  fouts new
  BufferedOutputStream( new FileOutputStream(destfil
  e)
