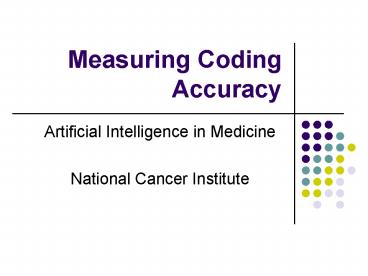

Measuring Coding Accuracy

1
Measuring Coding Accuracy

• Artificial Intelligence in Medicine
• National Cancer Institute

2
Project

• This project was funded in part by Contract
  Number 263-MQ-514922 from the National Cancer
  Institute
• Participating registries
• Kentucky Cancer Registry
• Los Angeles Cancer Registry
• Atlanta Cancer Registry
• New Jersey Cancer Registry

3
Objective

• Develop a software tool that measures the
  accuracy of an automated coding system against a
  reference data set.
• Sub-tasks
• Define a coding accuracy model.
• Create a software tool that accepts input from
  any automated coding system to produce accuracy
  data.

4
Automated coding
CLINICAL HISTORY/MACROSCOPY Right mastectomy and
axillary tissue. A right mastectomy specimen
with overlying skin measuring 220mm x 85mm and
underlying breast tissue measuring 220mm x 100mm
x 70mm. The axillary tail measures 125 x 60mm.
The nipple is slightly retracted and located
centrally. The superior margin is painted red,
the inferior margin painted green and the deep
cut margin is painted blue. Cut sections of the
underlying breast tissue shows an ill-defined
grey white yellow lesion with patchy areas of
haemorrhage measuring 35 x 35 x 35mm located
immediately below the nipple, 20mm from the
inferior margin, 45mm from the deep cut margin,
50mm from the superior margin, 85mm from the
medial margin and 100mm from the lateral cut
margin. A1 - nipple, B1 - upper outer quadrant,
C1 - upper inner quadrant, D1 - lower outer
quadrant, E1 - lower inner quadrant, F1, G1 -
tumour composite blocks, H1, I1 - tumour
composite blocks, J1 - deep cut margin, K1 -
superior margin, L1 inferior margin, M4 - lymph
nodes, N4 - lymph nodes, O - 3 serial slices,
lymph node, P - 3 lymph nodes.   MICROSCOPY This
right mastectomy specimen demonstrates an
invasive ductal carcinoma with the following
pathological features   TUMOUR HISTOLOGY
GRADE The tumour is of an infiltrating poorly
differentiated ductal carcinoma of non-otherwise
specified type. The tumour is poorly defined and
extremely infiltrative, comprising poorly-formed
tubules, nests or strands of cuboidal tumour
cells displaying high grade nuclei. The tumour
cells are set within fibrotic desmoplastic
stroma. Many lactiferous ducts are entrapped
within the tumour. Frequent tumour mitoses are
seen. Microcalcification is seen in some
neoplastic tubules.   Tumour grade (Modified
Bloom-Richardson Scoring System) Tubular
formation 3 Nuclear atypia
3 Tumour mitoses 2 Total
score 8 (Grade III)   TUMOUR
LOCATION, SIZE AND EXTENT The tumour is located
5mm below the nipple and has a macroscopic size
of 35mm across. The border of the tumour is
poorly circumscribed and infiltrative.   INTRA-LYM
PHOVASCULAR OR PERINEURAL TUMOUR PERMEATION Focal
intralymphatic tumour permeation is noted. No
perineural tumour invasion is seen in sections
submitted.
M-80103 M-85003 M-80003 C50.9 C77.9
5
What is measured?

• Sensitivity, specificity, reducibility and
  confidence
• Of a single code, either (topography) or
  (morphology)
• Of a pair of codes (topography, morphology)

6
Notation Adenocarcinoma M-81403 as the subject
code
6 Possibilities
7
Definitions
Venn Diagram
8
Definitions
Venn Diagram
9
Definitions
Venn Diagram
10
Definitions
Venn Diagram
11
Definitions
Venn Diagram
12
Definitions
Venn Diagram
13
Definitions
Venn Diagram
14
Definitions
Coding accuracy measures
Sensitivity (AC) / (ABC) How often is the
reference code returned in those reports where it
is the subject code.
Specificity Q / (QRS) How often is the
subject code not returned in those reports where
it is not the reference code.
Reducibility (AR) / (ARCS) How often is
the subject code the only code identified when
the code is identified.
Confidence A / (AR) How much confidence can
we place in the result.
15
Definitions
Coding accuracy measures
Sensitivity (AC) / (ABC) How often is
the reference code returned in those reports
where it is the subject code.
Specificity Q / (QRS) How often is the
subject code not returned in those reports where
it is not the reference code.
Reducibility (AR) / (ARCS) How often is
the subject code the only code identified when
the code is identified.
Confidence A / (AR) How much confidence can
we place in the result.
16
Definitions
Coding accuracy measures
Sensitivity (AC) / (ABC) How often is
the reference code returned in those reports
where it is the subject code.
Specificity Q / (QRS) How often is the
subject code not returned in those reports where
it is not the reference code.
Reducibility (AR) / (ARCS) How often is
the subject code the only code identified when
the code is identified.
Confidence A / (AR) How much confidence can
we place in the result.
17
Definitions
Coding accuracy measures
Sensitivity (AC) / (ABC) How often is
the reference code returned in those reports
where it is the subject code.
Specificity Q / (QRS) How often is the
subject code not returned in those reports where
it is not the reference code.
Reducibility (AR) / (ARCS) How often is
the subject code the only code identified when
the code is identified.
Confidence A / (AR) How much confidence can
we place in the result.
18
Data Flow
19
Software inputs
20
CODAC Front End
21
Software description

• Written in C, uses latest .NET technology
• Runs on Standard Pentium workstation
• Imports and exports (CSV). Files can be edited
  with use text editor or Excel
• Optional Links to SQL database engine
• The performance of any automated coding system
  can be measured by using the specified data
  format

22
Software operation

• We ran 17128 pathology reports through the
  software.
• Software automatically calculates accuracy
  parameters by comparing reference data to test
  data.

23
Example of high confidence

• M-81403 (Adenocarcinoma)
• Sensitivity 0.82
• Specificity 0.90
• Reducibility 0.08
• Confidence 0.87
• Reference count 264715

24
Example of high confidence

• M-81403 ,C61.9 (Adenocarcinoma, Prostate)
• Sensitivity 0.87
• Specificity 0.99
• Reducibility 0.06
• Confidence 1.00
• Reference count 10086

25
Example of low confidence

• C44.9 (Skin)
• Sensitivity .57
• Specificity .76
• Reducibility .05
• Confidence .03
• Reference count 67 .4

26
Morphology Accuracy Plots
27
Code Pairs
28
An Experiment

• Modify AutoCode to produce output as follows
• Take the largest morphology value
• Take the smallest topography value
• Example
• Reduce
• M-82403 M-80001 C17.0 C16.9 C17.9
• To
• M-82403 C16.9

29
Morphology MinMax rule
30
Morphology Before After
31
Code Pairs Before After
32
Wrap Up

• Created a coding accuracy measurement system
• Applied to AIMs AutoCode, but can be used to
  measure any coding system.
• Software available to public domain

33
Topography
34
Code Pairs Min Max Rule
