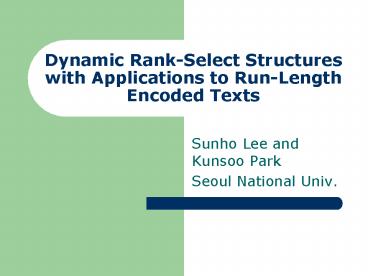

Dynamic Rank-Select Structures with Applications
to Run-Length Encoded Texts

• Sunho Lee and Kunsoo Park
• Seoul National Univ.

2
Contents

• Introduction
• Rank/select problem
• Relations to compressed full-text indices
• Dynamic rank-select structure
• Extensions of the structure
• For a large alphabet text
• For a run-length encoded text

3
Rank-select problem

• For a given text T over s-size alphabet, our
  structures support
• rankT(c, i) gives the number of character cs up
  to position i in T
• selectT(c, k) gives the position of the k-th c
• E.g. Tacabbc
• rankT(a, 5) 2
• selectT(a, 2) 3

4
Rank-select problem

• Our structures support additional update
  operations
• insertT(c, i) inserts character c between Ti
  and Ti1
• deleteT(i) deletes Ti from T
• E.g. Tacabbc aababc
• rankT(a, 5) 2 ? rankT(a, 5) 3
• selectT(a, 2) 3 selectT(a, 2) 2

5
Why rank-select problem?

• In compressed full-text index
• Rank-select structures are built on
  Burrows-Wheeler Transform (BWT)
• Rank backward search (Ferragina Manzini)
• Select Psi-function in CSA (Grossi Vitter)
• Dynamic BWT
• Index for a collection of texts (Chan, Hon Lam)
• Add or remove a text from the collection

6
Example of select on BWT

• Tmississippi

• Psi function
• Order of the suffix at next position
• E.g.. Psi4 11, the order of ssippi

7
Example of select on BWT

• Tmississippi

• Psi function
• Order of the suffix at next position
• E.g. Psi4 11, the order of ssippi
• Duality between Psi-function and BWT
• (Hon, Sadakane Sung)
• BWTi TSAi 1
• Psii selectBWT(Ci, i FCi)
• Ci TSAi
• Fc The number of x lt c

8
Our results

• Dynamic rank-select on texts over a small
  alphabet (s lt log n)
• Improve the binary-alphabet version by Makinen
  Navarro
• O(log n) time and nlogs o(nlogs) bits
• Dynamic rank-select for a large alphabet (s lt n)
• Use wavelet trees to extend our small-alphabet
  structure
• O(log n logs / loglog n) time and nlogs
  o(nlogs) bits
• Application to RLE texts

9
Static rank-select
10
Dynamic rank-select
11
Dynamic rank-select preliminary

• We assume RAM model with
• Word size w ?(log n) bits
• , -, , / and bitwise operations in O(1) time
• We process a word-size text of ?(log n/log ?)
  characters in O(1) time

12
Dynamic rank-select preliminary

• Partition of text
• Blocks of sizes from ½ log n words to 2log n
  words
• Bit vector representation, I
• Give block number b and offset r for position i
• Employ binary rank-select by Makinen Navarro
• O(log n) time O(n) bits
• E.g.
• T babc abab abca ? b rankI(1, 10) 3
• I 1000 1000 1000 r 10 -
  selectI(1, 3) 1 2

13
Dynamic rank-select preliminary

• Over-block/in-block operation
• rankT(c, i)
• rank-overT(c, b) The number of cs before the
  b-th block
• rankTb(c, r) The number of cs up to position r
  in Tb
• E.g.
• T babc abab abca rankT(a,10)
  rank-overT(a, 3)
• I 1000 1000 1000
  rankT3(a, 2)

14
Dynamic rank-select preliminary

• Over-block/in-block operation
• selectT(c, k)
• select-overT(c,k) The block number containing
  the k-th c
• selectTb(c,k) The offset of the k-th c in Tb
• Update operation
• In-block update change the text itself
• Over-block update change the statistics of the
  text

15
Over-block structures

• Sorted character-block pair
• Character-block pair (Ti, b) Ti in the b-th
  block
• E.g. T babc abab abca
• (b,1)(a,1)(b,1)(c,1) (a,2)(b,2)(a,2)(b,2)
  (a,3)(b,3)(c,3)(a,3)

16
Over-block structures

• Sorted character-block pair
• Character-block pair (Ti, b) Ti in the b-th
  block
• Sorted pairs partially non-decreasing
• (Hon, Sadakane Sung)
• E.g. T babc abab abca
• (b,1)(a,1)(b,1)(c,1) (a,2)(b,2)(a,2)(b,2)
  (a,3)(b,3)(c,3)(a,3)
• (a,1)(a,2)(a,2)(a,3)(a,3) (b,1)(b,1)(b,2)(b,2)(b,
  3) (c,1)(c,3)

17
Over-block structures

• Differential encoding of sorted pairs
• A bit vector B of O(n) bits
• For each distinct pair
• 1 the difference of block number
• 0 the number of the same pairs
• E.g.
• T ... babc abab bbbb abcc
• (c,5)(c,8)(c,8) ? 11111011100

18
Over-block structures

• Differential encoding of sorted pairs
• A bit vector B of O(n) bits
• For each distinct pair
• 1 the difference of block number
• 0 the number of the same pairs
• E.g.
• T babc abab abca
• B 10100100 10010010 10110

b group
19
Over-block rank-select

• rank-overT(c, b)
• Find the position of the b-th 1 in the group of
  c
• Count 0s representing c up to the position
• E.g.
• T babc abab abca
• B 10100100 10010010 10110
• rank-overT(b, 3) count 0s up to 3rd 1 in
  b group

20
Over-block updates

• If the number of blocks is fixed
• Insert or delete 0s at the b-th block in I and B
• Rank-select remains correct
• E.g.
• T babc abab abca ? babc aabaaabb abca
• I 1000 1000 1000 ? 1000 100000000 1000
• B 10100100 10010010 10110
• ? 10100000100 100100010 10110

21
Over-block updates

• If the number of blocks is changing
• Split or merge the b-th block in I and B
• Call O(?) queries on B ? amortized (? lt log n)
• E.g.
• T babc aabaaabb abca ? babc aaba aabb abca
• I 1000 10000000 1000 ? 1000 1000 1000 1000
• B 10100000100 1001000010 10110
• ? 101000100100 10010100010 10110

22
In-block structures

• We use the hierarchy as Makinen Navarros
  word, sub-block and block
• Rank/select on word-size texts w
• Convert w to a bit vector representing
  occurrences of c
• E.g. w abaacbab, mask bbbbbbbb (log?)
• w XOR mask x0xxx0x0 (log?) ?
  01000101(2)
• O(1) time rank-select by tables of o(n) bits size

23
In-block structures

• Linked list over sub-blocks
• A block contains ½log n to 2log n words
• A sub-block contains vlog n words
• One extra sub-block is a buffer for updates
• Red-black tree over blocks
• Leaf node pointer to block, list of sub-blocks
• Internal node the number of blocks in its subtree

24
In-block rank-select

• RankTb(c, r) in O(log n) time
• Traverse the tree to find the b-th block
• Scan the b-th block of ?(log n) words

25
In-block updates

• Update words in the list in O(log n) time
• Process carry characters using the extra space in
  a block

26
In-block updates

• Split or merge the block of out of the range
• Update tree nodes from leaf to root

5
3
2
2
ab
bc
ac
ba
bc
27
In-block updates

• Split or merge the block of out of the range
• Update tree nodes from leaf to root

6
2
4
2
2
ab
bc
ac
ba
bc
28
Extension of our structure

• Dynamic rank-select on plain texts over a large
  alphabet, s lt n
• Use k-ary wavelet trees
• O(log n logs /loglog n) time nlogs O(nlogs
  /loglog n) bits
• Application to run-length encoded texts
• Start from RLFM (Makinen Navarro)
• Support dynamic BWT

29
Application to RLE

• Run-Length Encoding (RLE) of T
• Character of runs text T
• Length of runs bit vector L
• E.g. T aaabbaacccc ? Tabac, L10010101000
• RLE of BWT (Makinen Navarro)
• Run-Length based FM-index
• The number of runs in BWT(T) min(n, nHk) sk

30
Application to RLE

• Assume rank/select on L and T
• Total size of structure O(n nlogs)
• Operation time O(log n log n logs/loglog n)
• Some additional vectors
• Sorted length vector L
• Frequency table F count characters in T
• E.g.
• T bb aa bbbb cc aaa aa aaa bb bbbb
  cc
• L 10 10 1000 10 100 ? L 10 100 10 1000 10
• T babca F 001 001 01

31
Conclusion

• Rank-select structure is an essential ingredient
  of compressed full-text indices
• We propose dynamic rank-select for a small
  alphabet and its large-alphabet version
• We can apply our structures to indices that uses
  BWT, such as RLFM and index for texts collection
