PeertoPeer and GRID Computing, 2G1526 Lecture 03

1

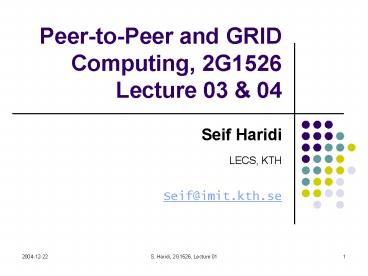

Peer-to-Peer and GRID Computing, 2G1526Lecture
03 04

• Seif Haridi
• LECS, KTH
• Seif_at_imit.kth.se

2
Formal Models for Message Passing Systems
Asynchronous Systems Synchronous Systems
3
Formal Models for Message Passing Systems

• Synchronous and asynchronous message passing
  systems
• No failure
• Basic complexity measures
• Pseudocode conventions for describing message
  passing algorithms

4
Systems

• Processors
• Communication channels
• Bidirectional between two processors
• Topology
• Pattern of connection
• Undirected graph where each node is processor,
  and an edge is a communication channel
• Algorithm for a message passing system
• Local program on each processor
• Processor performs local computation, send and
  receive messages to/from each of its neighbors

5
System (formal)algorithm

• An algorithm/system
• n processors, p0,,pn-1 i is the index of
  processor pi
• Each pi is modeled as a (possibly infinite) state
  machine, with state set Qi
• A subset Ii of Qi contains all initial states
• The edges incident on pi are labeled with
  integers 1,,r where r is the degree of the node
  pi
• Each state of pi contains 2r special components,
  outbufil and inbufil, for every l, 1lr

6
System (formal)algorithm

• An algorithm/system (continued)
• outbufil holds messages that pi sent to its
  neighbor over the lth channel but have not yet
  been delivered to the neighbor
• inbufil holds messages that has been delivered
  to pi on its lth channel but have not yet been
  processed with an internal computation step
• In an initial state every inbufil is empty,
  outbufil may not be

7
System (formal)algorithm

• Accessible state of pi
• Internal variables/registers
• inbufi. components (not outbuf. components)
• pis transition function (pis computation step)
• Takes as input the accessible state of pi
• Produces a value for the accessible state of pi,
  in which all inbufi. are empty
• Produces at most one message for each outbufi.

8
System (formal)algorithm

• Message previously sent by pi cannot influence
  pis current computation step
• Each step processes all the messages waiting to
  be delivered to pi
• Results in a state change and at most one message
  to be sent to each neighbor

9
Configurations

• A configuration
• Describes a state of the whole system
• Is a vector C(q0,,qn-1)
• qi is a state of pi
• The states (values) of outbuf variables represent
  messages in transit on the communication channels
• An initial configuration is C(q0,,qn-1) where
  each qi ? Ii is an initial state of pi

10
Events

• Events are actions that take place in a
  distributed system/algorithm
• Computation event
• comp(i) a computation step of pi where pis
  transition function is applied on its current
  accessible state
• Delivery event
• del(i, j, m) the delivery of message m from pi
  to pj

11
Executions

• The behavior of a system is modeled as an
  execution
• Execution
• An sequence of alternating configurations and
  events
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• Ck is a configuration
• ?k is an event
• The sequence must satisfy a variety of conditions
  (called safety and liveness conditions)

12
Executions (Continued)

• An execution
• A sequence that satisfies all required safety
  conditions for a particular system type under
  study
• An admissible execution
• In addition the sequence satisfied all required
  liveness conditions
• System types
• Asynchronous message passing
• Synchronous message passing

13
Asynchronous Systems

• An asynchronous system
• No fixed time bound on how long it takes for a
  message to be delivered
• No fixed time bound on how much time elapses
  between to consecutive steps of a processor
• Example (Internet)
• An email message can take days to arrive, but
  normally it takes few seconds
• In real system, there are upper bounds on message
  delays and processor step times, but sometimes
  very large, and change over time

14
Asynchronous SystemsExecution Segments

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• Ck is a configuration
• ?k is an event
• If ? is finite it must end in a configuration
• An execution is an execution segment where C0 is
  an initial configuration

15
Asynchronous SystemsExecution Segments

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• If ?k del(i,j,m)
• m must be in outbufil in Ck-1
• l is the pis label for the channel pi,pj
• Changes from Ck-1 to Ck
• m is removed from outbufil
• M is added to inbufjh
• h is the pjs label for the channel pi,pj

16
Asynchronous Systemsdel(i,j,m)

• Example del(3,0,m)
• A message m from p3 to p0
• m is in outbuf31
• m is removed from outbuf31 and placed in
  inbuf03

17
Asynchronous SystemsExecution Segments

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• If ?k comp(i)
• Changes from Ck-1 to Ck
• pi changes state according to its transition
  function and its accessible state in Ck-1
• inbufi. variables are emptied
• The set of output messages (according to the
  transition function) are added to outbufi.
  variables

18
Asynchronous Systems (AS)Executions

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• In AS there are multiple executions depending on
• The choice of ?k at Ck-1
• A unique execution is determined by the choice of
  the sequence
• ?1, ?2, ?3,
• This sequence is called a schedule

19
Asynchronous Systems (AS)Schedules

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• An execution is uniquely determined by the
  initial configuration C0 and a schedule ?
• Denoted by exec(C0, ?)

20
Asynchronous Systems (AS)Admissible Executions

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• In AS an execution is admissible if
• Each processor has infinite number of computation
  events
• Every message sent is eventually delivered
• A schedule is admissible if it is the schedule of
  admissible execution

21
Asynchronous Systems (AS)Admissible Executions

• Remarks, the requirement
• Each processor has infinite number of computation
  events
• Models that processors do not fail
• Processor termination is modeled by
• Having the transition function not changing the
  processors state after reaching certain point in
  an execution
• Performing dummy steps

22
Asynchronous Systems (AS)Complexity Measures

• The number of messages
• The amount of time
• We are looking at worst-case performance
• We need a notion of termination of a
  system/algorithm
• The system has terminated if
• All processors are in terminated states
• No messages are in transit

23
Asynchronous Systems (AS)Message Complexity

• Message complexity of an algorithm A in AS is the
  maximum, over all admissible executions of A, of
  the total number of messages sent

24
Asynchronous Systems (AS)Time Complexity

• The time an AS algorithm takes is less obvious
• We make ideal assumptions with the following
  intuition
• The message delay in any execution is one unit
  time
• Independent computation events at different
  processors happen simultaneously
• Calculate time until termination

25
Asynchronous Systems (AS)Timed Execution

• Each event has an associated nonnegative integer
• Models the time at which the event occurs
• comp(i) event occurs at pi
• del(i,j,m) occurs at pi and pj
• The times starts at 0, and are nondecreasing, but
  strictly increasing for each processor
• Several events can happen at the same time if
  they occur on different processors

26
Asynchronous Systems (AS)Timed Execution

• Message delay for m is the amount of time m waits
  in the senders outbuf together with the amount
  of time m waits in the recipients inbuf
• Time complexity in AS is the maximum time until
  termination (among all admissible timed
  executions) in which message delay is one

27
Asynchronous Systems (AS)Algorithm Descriptions

• Algorithms will be described in an event-driven
  fashion
• The effect of each message is described
  individually
• upon receiving ?M? ?some action?
• Processors can be triggered by other events
• upon event ?a? ?some action?

28
Synchronous Systems

• In synchronous system
• Processors execute in lockstep
• Execution is partitioned into rounds
• At each round
• Each processor can send a message to each
  neighbor
• Messages are delivered
• Each processor compute based on received messages
• This means that message delivery delays are
  predictable, and have an upper bound
• This model is simpler for constructing
  distributed algorithms

29
Synchronous SystemsExecution Segments

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• Ck is a configuration
• ?k is an event
• The execution sequence is constrained
• Partitioned into disjoint rounds
• A round consists of a delivery event for every
  message in an outbuf variable
• Followed by one computation step for every
  processor

30
Synchronous Systems (SS)Admissible Executions

• Execution segment ?
• C0, ?1, C1, ?2, C2, ?3, (possibly infinite)
• In SS an execution is admissible if it is
  infinite
• Implies that every message sent is eventually
  delivered
• There is only one single execution for any
  initial configuration
• This is in contrast to asynchronous systems
  (multiple executions for a given initial
  configuration)

31
Spanning Tree Algorithms

• Multicast
• Convergecast

32
Broadcast and Convergecast on a Spanning Tree

• What is a spanning tree?
• Broadcast
• Convergecast

33
BackgroundGraphs and Spanning Trees

• An undirected graph is a pair (V,E)
• V is the node set of G
• E is a collection of unordered pairs from V
• An element of E is v, u with u, v ? V
• The edge v, u is incident on u (and v)
• The degree of a node is the number of its
  neighbors
• A path of length k between v0 and vk is a
  sequence ? v0,, vk?, such that for each iltk,
  vi,vi1?E

34
BackgroundGraphs and Spanning Trees

• The distance between u, v ? V, d(u, v) is the
  length of the shortest path between u and v
• The diameter of a graph is the largest distance
  between any two nodes
• An undirected graph is connected if there is a
  path between every pair

35
BackgroundGraphs and Spanning Trees

• A cycle is a path ? v0,, vk? in which v0 vk
• A cycle is simple if the nodes v1 through vk are
  all different
• An undirected graph is acyclic if it contains no
  simple cycle of length three or more

36
BackgroundGraphs and Spanning Trees
b
a
A graph withsimple cycle ?a,b,a? An acyclic graph
b
a
An acyclic graph
c
37
BackgroundGraphs and Spanning Trees
b
a
This graph isundirected and cyclic
c
e
d
38
BackgroundGraphs and Spanning Trees
G

• G (V,E) is a subgraph of G if V?V and E?E
• G is a spanning subgraph if VV

39
BackgroundGraphs and Spanning Trees
G
b

• G (V,E) is a subgraph of G if V?V and E?E
• G is a spanning subgraph if VV

a
c
e
d
40
BackgroundSpanning Trees

• A tree is a graph that contains a minimal number
  of edges connecting its nodes
• Computations on trees have a low message
  complexity
• A tree is
• an undirected
• connected
• acyclic graph
• A spanning tree T of a graph G is a spanning
  subgraph that is a tree

G is a spanning tree
b
a
c
e
d
41
BackgroundTrees

• The following is equivalent for an undirected
  graph G
• G is a tree
• Between any two nodes there is a unique simple
  path
• G is connected and EN-1
• G is acyclic and EN-1
• G is acyclic but becomes cyclic if any edge is
  added

G is a spanning tree
b
a
c
e
d
42
BackgroundRooted Trees

• A tree T is rooted if there is unique node r
  called the root
• If u is a node on the path between v and r, u is
  an ancestor of v, and v is a descendant of u
• If u and v are neighbors then u is the father of
  v, and v is a child of u
• The depth of a tree is the maximal simple path
  from r to any node

G is a spanning tree
b
a
c
e
d
43
Broadcast and Convergecast on a Spanning Tree

• What is a spanning tree?
• Broadcast
• Convergecast

44
Broadcast on a Spanning Tree
Pr
M

• A spanning tree of a network is given
• A distinguished processor pr wants to disseminate
  a message ?M? to all processors
• The tree is rooted at pr
• Each processor has a channel to its parent and a
  set of channels to children

M
45
Broadcast on a Spanning Tree
Pr
M

• pr sends ?M? on all channels leading to its
  children and terminates
• When a processor receives ?M? from its parent
  channel, it send it on all its children channels

M
M
46
Spanning Tree Broadcast Algorithm (Pseudo Code)

• Code for pr
• Upon receiving no message
• send ?M? to all children
• terminate
• Code for pi, 0?i?n-1, i ? r
• Upon receiving ?M? from parent
• send ?M? to all children
• terminate

47
Spanning Tree Broadcast Algorithm (State
Transition Level)

• The state of each pi contains the variables
• parenti contains either a processor index or nil
• childreni contains a set of processor indices
• terminatedi a Boolean initially false
• Initially the values of parent and children
  variables form a spanning tree rooted at pr,
  outbuf and inbuf variables are empty

48
Spanning Tree Broadcast Algorithm (State
Transition Level)

• The results of comp(pr) in the initial
  configuration is that
• ?M? is placed in outbufrj for each j in
  childrenr
• terminatedr is set to true
• The only thing that can happen after that is at
  least one del(r,j, ?M?) where pj is a child or pr
• comp(pi), s.t. i?r is similar to comp(pr)

49
Broadcast on a Spanning TreeMessage complexity
pr

• ?M? is sent exactly once on each channel that is
  an edge in the spanning tree rooted at pr
• The number of messages is equal to the number of
  edges in the spanning tree
• Which is n-1

M
M
M
M
M
M
M
50
Broadcast on a Spanning TreeTime Complexity
pr
M
M

• Think of the timed execution model where message
  delay in 1 for all del(m,i,j), and comp(i) for
  all pi, takes 0 time
• That is we ignore comp(i) times

M
M
M
M
M
51
Broadcast on a Spanning TreeTime Complexity
(time0)
pr
M
M

• At time 0, M is in outbufs of pr

52
Broadcast on a Spanning TreeTime Complexity
(time1)
pr

• At time 1, M is delivered to all children
• The children perform a computation step and M is
  now in the outbufs of the children

M
M
M
53
Broadcast on a Spanning TreeTime Complexity
(time2)
pr

• At time 2, M is delivered to all children
• The children perform a computation step and M is
  now in the outbufs of the children

M
M
54
Broadcast on a Spanning TreeTime Complexity
pr

• In every admissible execution of the broadcast
  algorithm in AS, every processor at distance t
  from pr in the spanning tree receives ?M? by time
  t

M
M
M
M
M
M
M
55
Broadcast on a Spanning TreeTime Complexity
pr
M
M

• At time 1 processors at distance 1 from pr
  receive and process ?M?
• Assume at t-1 processors at distance t-1 receives
  and processes ?M?
• Since message delay is one, processors at time t
  processors at distance t receives ?M?

M
M
M
M
M
56
Broadcast on a Spanning TreeTime Complexity
pr
M
M

• The time complexity is d where d is the depth of
  the spanning tree root at pr

M
M
M
M
M
57
Convergecast on a Spanning Tree
pr

• Collecting information from the nodes of the tree
  to the root
• We consider an instance where is maximum of n
  variables is forwarded to the root
• xi is stored on pi
• The algorithm is initiated by the leaves

x2
p2
x1
p1
58
Convergecast on a Spanning TreeAlgorithm
pr

• If a node pi is a leaf, it sends its value xi to
  its parent
• A non-leaf node pj with k children waits to
  receive messages containing vj1,,vjk from its
  children pj1,,pjk
• Pj computes vjmax(xj,vj1,,vjk) and sends vj to
  its parent

p4 x2,x4
Max(x3,x1)
p3
p2
p1
59
Convergecast on a Spanning TreeAlgorithm

• There is an asynchronous convergecast algorithm
  with message complexity n-1 and time complexity
  d, when a rooted spanning tree with depth d is
  known
• Broadcast and convergecast can be combined, so
  that the broadcast initiates a request to perform
  a convergecast when a leaf receives the request
  it starts the convergecast

60
Next Lecture

• The synchronous model
• Spanning tree constructions and flooding
• Revisiting election algorithms

61
Flooding and Building a Spanning Tree
62
BackgroundCliques

• In cliques, or complete graphs, each pair of
  nodes is directly connected by an edge
• The following is equivalent for an undirected
  graph G
• G is a clique
• E u,v u,v?V and u?v
• E 1/2n(n-1)
• Each node has a degree n-1

Clique
b
a
c
e
d
63
Flooding

• The problem
• Broadcast without preexisting spanning tree,
  starting from a distinguished processor pr
• In the asynchronous system
• In the synchronous system

64
Flooding (Asynchronous)

• The algorithm (outline)
• pr sends the message ?M? to all its neighbors
• When a processor pi receives ?M? for the first
  time from some neighbor pj, it sends ?M? to all
  neighbors except pj

65
Execution of the flooding algorithms (two steps)
pr
pr
M
M
M
M
M
66
Execution of the flooding algorithms (steps 3 4)
pr
pr
M
M
M
M
M
M
M
M
M
67
Flooding (Asynchronous)

• The algorithm induces a spanning tree rooted at
  pr
• The parent of pi is the processor from which pi
  received its first message
• If pi receives multiple messages before a
  comp(i), parent is chosen arbitrarily among the
  senders
• The spanning tree is implicit
• Each processor knows the parent, but does not
  know the children

68
Spanning Tree Construction (informal algorithm
1/2)

• Pr sends ?M? to all its neighbors
• When pi receives ?M? for the first time from,
  say, pj
• pi denotes pj as its parent and sends a ?parent?
  message to pj
• pi sends ?M? to all neighbors except pj
• When pi receives ?M? later on from, say, any
  processor pj
• pi sends ?already? to pj (indicating it is in the
  tree)

69
Spanning Tree Construction (informal algorithm
2/2)

• After sending ?M? to all other neighbors pi waits
  for either ?parent? or ?already?
• ?parent? from pj pj is denoted as a pis child
• ?already? from pj pj is denoted as other
• When all recipients of pis ?M? responded
  (?parent? or ?already?) pi terminates

70
Spanning Tree Construction (informal algorithm)

• Pr sends ?M? to all its neighbors
• When pi receives ?M? for the first time from,
  say, pj
• pi denotes pj as its parent and sends a ?parent?
  message to pj
• pi sends ?M? to all neighbors except pj
• When pi receives ?M? later on from, say, any
  processor pj
• pi sends ?already? to pj (indicating it is in the
  tree)
• After sending ?M? to all other neighbors pi waits
  for either ?parent? or ?already?
• ?parent? from pj pj is denoted as a pis child
• ?already? from pj pj is denoted as other
• When all recipients of pis ?M? responded
  (?parent? or ?already?) pi terminates

71
Flooding to Construct Spanning Tree (Pseudo Code)
for Processor pi, 0in-1

• Initially parent ?, children ?, others ?
• Upon receiving no message
• if pi pr and parent ? then // root did
  not send ?M?
• send ?M? to all neighbors
• parenti pi

72
Flooding to Construct Spanning Tree (Pseudo Code)
for Processor pi, 0in-1

• Initially parent ?, children ?, others ?
• Upon receiving ?M? from neighbor pj
• if parent ? then
• parent pj
• send ?parent? to pj
• send ?M? to all neighbors except pj
• else send ?already? to pj

73
Flooding to Construct Spanning Tree (Pseudo Code)
for Processor pi, 0in-1

• Initially parent ?, children ?, others ?
• Upon receiving ?parent? from neighbor pj
• add pj to children
• if children ? others contains all neighbors
  except parent then
• terminate
• Upon receiving ?already? from neighbor pj
• add pj to others
• if children ? others contains all neighbors
  except parent then
• terminate

74
Two Steps in the Construction of the Spanning Tree
pr
pr
M
parent
M
M
parent
M
M
M
parent
M
M
75
Spanning Tree Construction (AS)

• In every admissible execution in the asynchronous
  model, the algorithm constructs a spanning tree
  of the network rooted at pr
• Once a parent variable is set, it never changes
• The set of children of a processor never
  decreases
• If pj is a child of pi, then pi is pjs parent
• The resulting graph G is a directed spanning tree
  rooted at pr

76
Spanning Tree Construction (AS)

• There is an asynchronous algorithm to find a
  spanning tree of a network (graph) of m edges and
  a diameter D, given a distinguished node, with
  message complexity O(m) and time complexity O(D)

77
BackgroundTypes of Spanning Trees
r

• BFS (Breadth First Search) tree
• In a BFS spanning tree with a root r, any node v
  reachable from r, the path from r to v is a
  shortest path from r to v in the graph G

78
BackgroundTypes of Spanning Trees
frond edges
r

• DFS (Depth First Search) tree
• A spanning tree is a DFS if each frond edge
  connects a node and its descendant

79
Spanning Tree Construction on the Synchronous Case

• The same algorithm
• But the spanning tree is constructed is
  guaranteed to be BFS tree
• In a SS a round is
• Delivery of all messages
• Followed by one computation step of all processors

80
Spanning Tree Construction on the Synchronous
Case 1/2
pr
pr
M
M
P
P
M
M
M
M
M
round 1
round 2
81
Spanning Tree Construction on the Synchronous
Case 2/2
pr
pr
P
P
P
M
M
M
M
M
M
M
P
P
M
M
round 3
round 4
82
Constructing a Depth First spanning Tree for a
Specified Root
r

• DFS (depth-first search) tree
• Adding on node at a time

83
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, children ?, unexplored
  all neighbors of pi// root wakes up
• Upon receiving no message
• if pi pr and parent ? then
• parent pi
• explore()

84
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, children ?, unexplored
  all neighbors of pi
• procedure explore()
• if unexplored ? ? then
• let pk be a processor in unexplored
• remove pk from unexplored
• send ?M? to pk
• else
• if parent ? pi then send ?parent? to
  parent
• terminate

85
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, children ?, unexplored
  all neighbors of pi Upon receiving ?M? from
  neighbor pj
• if parent ? then
• parent pj
• remove pj from unexplored
• explore()
• else
• send ?already? to pj
• remove pj from unexplored

86
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, children ?, unexplored
  all neighbors of pi
• Upon receiving ?parent? from neighbor pj
• add pj to children
• explore()
• Upon receiving ?already? from neighbor pj
• explore()

87
Constructing a Depth First Spanning Tree for a
Specified Root

• Message complexity
• Number of edges is m
• Each processor sends ?M? at most once on each
  adjacent edge
• We get 2m messages
• Each processor sends at most either ?parent? or
  ?parent? on each adjacent edge
• We get here too 2m messages
• Thus total is 4m messages
• Time complexity is O(m)

88
Constructing DFS Spanning Tree without a
Specified Root

• We assume that nodes have unique identifiers
  (natural numbers)
• Each processor that wakes up attempts to build a
  DFS tree with itself as root
• If two DFS trees try to connect to the same node,
  the node will join the DFS tree whose root has
  the higher identifier

89
Constructing DFS Spanning Tree without a
Specified Root

• Each node keeps the maximal identifier it has
  seen so far in a variable leader
• When a node wakes up, it sets leader to its own
  identifier
• When a node receives a DFS message with
  identifier y
• If y gt leader, the node changes leader to y, and
  set parent to node from which the message is
  received
• If y leader, the node belongs to this spanning
  tree
• If y lt leader, no messages are sent

90
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, leader -1, children ?,
• unexplored all neighbors of pi//
  wakes up spontaneously
• Upon receiving no message
• if parent ? then
• leader id
• parent pi
• explore()

91
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, leader -1, children ?,
• unexplored all neighbors of pi
• procedure explore()
• if unexplored ? ? then
• let pk be a processor in unexplored
• remove pk from unexplored
• send ?leader, leader? to pk
• else
• if parent ? pi then send ?parent, leader?
  to parent
• else terminate as root of spanning tree

92
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, leader -1, children ?,
  unexplored all neighbors of pi
• Upon receiving ?leader, newId? from neighbor pj
• if leader lt newId then
• leader newId
• parent pj children ?
• unexplored all neighbors of pi
  except pj
• explore()
• elseif leader newId then
• send ?already, leader? to pj
• remove pj from unexplored

93
Flooding to Construct DFS Spanning Tree (Pseudo
Code) for Processor pi, 0in-1

• Initially parent ?, leader -1, children ?,
  unexplored all neighbors of pi
• Upon receiving ?parent, newId? from neighbor pj
• if newId leader then
• add pj to children
• explore()
• Upon receiving ?already, newId? from neighbor pj
• if newId leader then explore()

94
Next Lecture

• Consensus problems
