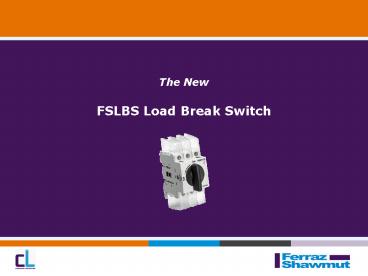

The New FSLBS Load Break Switch

1
The New FSLBS Load Break Switch
2
FSLBS - Introduction
The FSLBS replaces our current line of LBS and
competes directly with the competition.

• Three Main Competitive Advantages
• Modularity Snap-on accessories
• Versatility Front and Side Operation
• Economics Competitively Priced!

3
FSLBS - Introduction

• Advantages
• Terminals rated for two wires
• Front and side operation
• Modular design with snap-on accessories
• NEMA 4X, defeatable handles
• Easy door-mounting
• Competitive price!

4
FSLBS - Introduction

• Differences
• Ferraz Shawmut branded!
• 16A to 40A units are 45mm wide
• 100A and 125A applications SCV100U and SCV200U
• New shafts and handles will work with old LBS and
  vice versa
• Competitive price!

5
FSLBS Features and Functions
UL 508 file E196672, CSA 22.2 14, IEC 60947-3
6
Front and Side Operation
FSLBS Features and Functions

• Innovative, patented technology!

or the side!
Operated from the front
Double-break silver-plated contacts
7
FSLBS Features and Functions
Rated for two wires per terminal

• Enables daisy chaining!
• Can reduce bending radius

8
Handles
FSLBS Features and Functions
FS150 Shaft
FSHD Direct Rotary Handle
FSH00BR External Handle
9
Handles External
FSLBS Features and Functions
FSH00RR
FSH0BR
FSH0BR4

• Two Sizes
• 00 for 16A to 40A
• 0 for 63A and 80A

• Two Colors
• B for Blue/Black
• R for Red/Yellow

• Two NEMA ratings
• Blank for 3R, 12
• 4 for 4, 4X

• HSPB-style handles cannot be used with the FSLBS.
• A longer handle such as the HSPB can apply more
  torque than the FSH series. The torque must be
  limited to avoid over-powering a switch that
  may have welded contacts, thereby falsely
  indicating an open circuit.

10
Handles External
FSLBS Features and Functions

• Shafts
• 5mm x 5mm
• Will work with old LBS
• FS150 150mm
• FS200 200mm
• FS320 320mm

Chamfered corners orient the shaft
11
Lockable, Defeatable
FSLBS Features and Functions
Switch Hasp extends in Off position Handle
accepts 3 locks Recessed button defeater allows
opening when On
12
Accessories
FSLBS Features and Functions

• Auxiliary contact modules are 2 in 1
• Either NO/NO or NO/NC
• Up to 8 contacts per switch
• 2 modules per side
• 2 additional poles
• Switched or unswitched, neutral or ground
• Terminal shields Provide finger safety

13
Accessories
FSLBS Features and Functions
Door Mounting Kit

• Easy and secure
• Enables access to the terminals

14
Cross Reference
FSLBS Sales Tools
15
