Title: Dynamic attention and predictive tracking


1

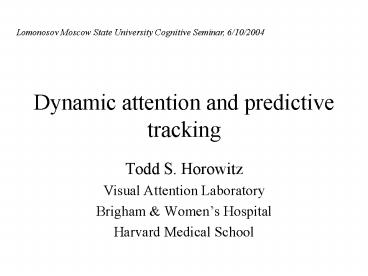

Dynamic attention and predictive tracking
Lomonosov Moscow State University Cognitive
Seminar, 6/10/2004
  • Todd S. Horowitz
  • Visual Attention Laboratory
  • Brigham Womens Hospital
  • Harvard Medical School

2
lab photo
David Fencsik
Randy Birnkrant
Jeremy Wolfe
Linda Tran (not pictured)
3
Multi-element visual tracking task (MVT)
  • Devised by Pylyshyn Storm (1988)
  • Method for studying attention to dynamic objects

4
Multi-element visual tracking task (MVT)
  • Present several (8-10) identical objects
  • Cue a subset (4-5) as targets
  • All objects move independently for several
    seconds
  • Observers asked to indicate which objects were
    cued

5
Demo
demo
mvt4
6
Interesting facts about MVT
  • Can track 4-5 objects (Pylyshyn Storm, 1988)
  • Tracking survives occlusion (Scholl Pylyshyn,
    1999)
  • Involves parietal cortex (Culham, et al, 1998)
  • Clues to objecthood - Scholl

7
Accounts of MVT performance
  • FINSTs (Pylyshyn, 1989)
  • Virtual polygons (Yantis, 1992)
  • Object files (Kahneman Treisman, 1984)
  • Object-based attention

8
These are all (partially) wrong
  • FINSTs (Pylyshyn, 1989)
  • Virtual polygons (Yantis, 1992)
  • Object files (Kahneman Treisman, 1984)
  • Object-based attention

9
Common assumptions
  • Low level (1st order) motion system updates
    higher-level representation
  • FINST
  • Object file
  • Virtual polygon
  • Continuous computation in the present

10
Overview
  • MVT and attention
  • Tracking across the gap
  • Tracking trajectories

11
MVT and attention
  • Clearly a limited-capacity resource
  • Attentional priority to tracked items (Sears
    Pylyshyn)
  • Hypothesis MVT is mutually exclusive with other
    attentional tasks

George Alvarez, Helga Arsenio, Jennifer DiMase,
Jeremy Wolfe
12
MVT and attention
  • Clearly a limited-capacity resource
  • Attentional priority to tracked items (Sears
    Pylyshyn)
  • Hypothesis MVT is mutually exclusive with visual
    search

13
MVT and attention
  • Clearly a limited-capacity resource
  • Attentional priority to tracked items (Sears
    Pylyshyn)
  • Hypothesis MVT is mutually exclusive with visual
    search
  • Method Attentional Operating Characteristic (AOC)

14
AOC Theory
15
General methods - normalization
  • Single task 100
  • Chance 0
  • Dual task performance scaled to distance between
    single task performance and chance

16
General methods - staircases
  • Up step (following error) 2 x down step
  • Asymptote 66.7 accuracy
  • Staircase runs until 20 reversals
  • Asymptote computed on last 10 reversals

17
General methods - tracking
  • 10 disks
  • 5 disks cued
  • Speed 9/s

18
AOC Theory
19
AOC reality
  • Tasks can interfere at multiple levels
  • Interference can occur even when resource of
    interest (here visual attention) is not shared
  • How independent are two attention-demanding
    tasks which do not share visual attention
    resources?

20
Gold standard tracking vs. tone detection
21
Gold standard method
  • Tracking
  • Duration 6 s
  • Tone duration
  • 10 600 Hz tones
  • Onset t 1 s
  • ITI 400 ms
  • Distractor duration 200 ms
  • Task target tone longer or shorter?
  • Target duration staircased (?31 ms)
  • Dual task priority varied

N 10
22
Gold standard AOC
23
Tracking search method
  • Tracking
  • Duration 5 s
  • Search
  • 2AFC E vs. N
  • Distractors rest of alphabet
  • Set size 5
  • Duration staircased (mean 156 ms)
  • Onset 2 s

N 9
24
Tracking search method
25
Tracking search AOC
26
Tracking search AOC
27
Does tracked status matter?
L
L
L
28
method
  • Tracking
  • Duration 3 s
  • Search
  • 2AFC left- or right-pointing T
  • Distractors rotated Ls
  • Set size 5
  • Duration staircased (mean 218 ms)
  • Onset 1 s

N 9
29
search inside tracked set
L
L
T
L
L
30
search outside tracked set
L
L
L
T
L
L
31
(No Transcript)
32
inside vs. outside AOC
33
Does spatial separation matter?
P
E
H
F
V
34
method
  • Tracking
  • Duration 5 s
  • Search
  • 2AFC E vs. N
  • Distractors rest of alphabet
  • Set size 5
  • Duration 200 ms
  • Onset 2 s

N 9
35
spatial separation AOC
36
search v track summary
37
MVT and search
  • Clearly not mutually exclusive
  • Not pure independence
  • Close to gold standard
  • MVT and search use independent resources?

38
Two explanations
  • Separate attention mechanisms
  • Time sharing

39
Predictions of time sharing hypothesis
  • Should be able to leave tracking task for
    significant periods with no loss of performance
  • Should be able to do something in that interval

40
Track across the gap method
41
Track across the gap method
  • Track 4 of 8 disks
  • Speed 6/s
  • Blank interval onset 1, 2, or 3 s
  • Trajectory variability 0, 15, 30, or 45
    every 20 ms
  • Blank interval duration staircased (dv)
  • N 11

42
track across the gap asymptotes
43
Predictions of time sharing hypothesis
  • Should be able to leave tracking task for
    significant periods with no loss of performance
    (see also Yin Thornton, 1999) - confirmed
  • Should be able to do something (e.g. search) in
    that interval

44
search during gap method
  • AOC method
  • Tracking task same as before
  • Search task in blank interval
  • Target rotated T
  • Distractors rotated Ls
  • Set size 8
  • 4AFC Report orientation of T
  • Duration of search task staircased (326 ms)

45
search during gap AOC
46
(No Transcript)
47
Predictions of time sharing hypothesis
  • Should be able to leave tracking task for
    significant periods of time with no loss of
    performance (see also Yin Thornton, 1999) -
    confirmed
  • Should be able to do something (e.g. search) in
    that interval - confirmed

48
Summary
  • MVT and visual search can be performed
    independently in the same trial
  • May support independent visual attention
    mechanisms
  • May support time-sharing

49
Summary
  • Tracking across the gap data support time sharing
  • Tracking across the gap data raise new questions

50
What is the mechanism?
  • Not a continuous computation in the present
  • Not first order motion mechanisms
  • Not apparent motion

Randall Birnkrant, Jennifer DiMase, Sarah
Klieger, Linda Tran, Jeremy Wolfe
51
None of these theories fit
  • FINSTs (Pylyshyn, 1989)
  • Virtual polygons (Yantis, 1992)
  • Object files (Kahneman Treisman, 1984)

52
What is the mechanism?
  • Some sort of amodal perception? (e.g. tracking
    behind occluders, Scholl Pylyshyn, 1999)
  • but there are no occlusion cues!

53
(No Transcript)
54
(No Transcript)
55
Scholl Pylyshyn, 1999
56
Maybe the gap is just an impoverished occlusion
stimulus
  • No occlusion/disocclusion cues
  • Synchronous disappearance

57
Predictions of impoverished occlusion hypothesis
  • Occlusion cues will improve performance
  • Asynchronous disappearance will improve
    performance

58
Method
  • Track for 5 s
  • Speed 12/s
  • Track 4 of 10 disks
  • Independent variables (blocked)
  • Gap duration107 ms, 307 ms, 507 ms
  • Occlusion cues absent, present
  • Disappearances synchronous, asynchronous
  • N 15

59
synchronous disappearance
60
synchronous disappearance occlusion
61
Occlusion/Disocclusion
62
asynchronous disappearance
63
asynchronous disappearance occlusion
64
comparing cue types
65
Occlusion hypothesis fails
  • Occlusion cues dont help
  • Asynchronous disappearance doesnt help

66
Method
  • Track for 5 s
  • Speed 12/s
  • Synchronous condition only
  • Independent variables (blocked)
  • Gap duration107 ms, 307 ms, 507 ms
  • Occlusion cues absent, present
  • Track 4, 5, or 6 of 10 disks
  • N 11

67
comparing cue types
68
Occlusion hypothesis fails
  • Occlusion cues dont help
  • Occlusion cues can actually harm performance
  • Asynchronous disappearance doesnt help

69
What is the mechanism?
  • Not a continuous computation in the present
  • Not first order motion mechanisms
  • Not apparent motion
  • Not amodal perception (occlusion)

70
How do we reacquire targets?
  • remember last location (backward)
  • store trajectory (forward)

David Fencsik, Sarah Klieger, Jeremy Wolfe
71
location-matching account
Memorized pre-gap target location.
Nearest to memorized location identified as
target.
First Post-Gap Frame
72
trajectory-matching account
Memorized pre-gap target trajectory.
On target trajectory identified as target.
First Post-Gap Frame
73
Shifting post-gap location
74
shifting post-gap location predictions
75
Shifting post-gap location methods
  • track for 5 s
  • speed 8/s
  • track 5 of 10 disks
  • gap duration 300 ms
  • post-gap location condition blocked
  • stimuli continue to move after gap

76
shifting post-gap location
77
Location vs. trajectory-matching
  • support for location-matching
  • see also Keane Pylyshyn 2003 2004
  • but advantage for -1 is suspicious

78
Location vs. trajectory-matching



79
shift stop methods
  • track for 4-6 s
  • speed 9/s
  • track 2 or 5 of 10 disks
  • gap duration 300 ms
  • post-gap location condition blocked
  • stimuli stop after gap

80
moving vs. static after gap
81
moving vs. static after gap
82
2 vs. 5 targets
83
Location vs. trajectory-matching
  • support for location-matching
  • However...
  • conditions are blocked
  • observers might see their task not as tracking
    across the gap, but learning which condition
    theyre in
  • might not tell us about normal target recovery

84
Location vs. trajectory-matching
  • can subjects use trajectory information?
  • always have items move during gap
  • vary whether trajectory information is available
    or not

85
moving condition
86
static condition
87
manipulate pre-gap information methods
  • track for 4 s
  • speed 9/s
  • track 1 to 4 of 10 disks
  • gap duration 300 ms

88
manipulate pre-gap information
89
manipulate pre-gap information
90
Location vs. trajectory-matching
  • observers can use trajectory information
  • unlimited (or at least gt 4) capacity for
    locations
  • smaller (1 or 2) capacity for trajectories

91
Conclusions
  • Flexible attention system allows rapid switching
    between MVT and other attention-demanding tasks
  • Some representation allows recovery of tracked
    targets after 300-400 ms gaps
  • This representation includes location and
    trajectory information

92
Speculation
  • MVT reveals two mechanisms, rather than just one
  • Frequently (but perhaps not continuously) updated
    location store
  • Attention to trajectories
Write a Comment
User Comments (0)
About PowerShow.com
