Title: CR2BK04 GLS Multiphase Reactors Content


1

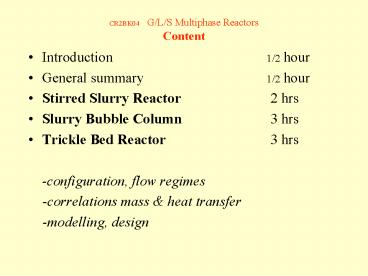

CR2BK04 G/L/S Multiphase Reactors Content
  • Introduction
    1/2 hour
  • General summary 1/2 hour
  • Stirred Slurry Reactor 2 hrs
  • Slurry Bubble Column 3
    hrs
  • Trickle Bed Reactor 3
    hrs
  • -configuration, flow regimes
  • -correlations mass heat transfer
  • -modelling, design

2
CR2BK04 G/L/S Multiphase Reactors
Introduction, applications
  • Functional difference
  • Ggas scrubber, reactant e.g.oxidation,
    hydrogenation, reactive destillation,
  • inert for flotation, mixing etc.
  • Lsolvent, reactant, heat removal
  • Sinert contact surface, catalyst,
  • reactant, dissolution, crystallization

3
CR2BK04 G/L/S Multiphase Reactors
Introduction, applications
  • Three-phase catalytic reactors, Ramachandran and
    Chaudhari WenST BIBL. JNR 83 RAM,
    chap. 1 12
  • fat hardening
  • hydrodesulfurisation
  • hydrocracking
  • Fischer-Tropsch synthesis
  • glucose hydrogenation
  • fine-chemical oxidations
  • etc. etc. etc.

4
CR2BK04 G/L/S Multiphase Reactors
Introduction, configurations
Thousands of possible combinations
5
CR2BK04 G/L/S Multiphase Reactors Introduction
  • Reactors NOT treated
  • 3-phase fluidised bubble column
  • bubble column with downward flow
  • loop reactors
  • structured packings for GL
  • counter-current fixed bed reactors
  • spray towers
  • tray columns
  • membrane reactors
  • electrochemical reactors
  • centrifugal reactors
  • . etc.

6
CR2BK04 G/L/S Multiphase ReactorsIntroduction
  • Important design parameters for a
    gas-liquid-solid reactor (Shah 1979)
  • Flow regime, directions and uniformity
  • (co-current, counter-current, cross flow)
  • Pressure drop
  • Holdups of various phases
  • Residence-time distribution and axial mixing
  • Gas-liquid mass and heat transfer
  • Liquid-solid mass and heat transfer
  • Intraparticle mass and heat transfer
  • Wall heat transfer
  • Intrinsic kinetics

7
CR2BK04 G/L/S Multiphase ReactorsIntroduction
8
CR2BK04 G/L/S Multiphase ReactorsIntroduction
Trambouze
9
CR2BK04 G/L/S Multiphase ReactorsIntroduction
Trambouze
10
CR2BK04 G/L/S Multiphase ReactorsIntroduction
  • Goal
  • global design of
  • -STR or SBC (home work)
  • -TBR (final assignment)
  • catalytic oxidation of glucose
  • mass transfer ? volume
  • heat transfer ? surface
  • energy dissipation ? power

11
CR2BK04 G/L/S Multiphase ReactorsIntroduction
  • Economical optimisation
  • (in case of mass transfer controlled reaction)
  • Minimize costs for
  • Catalyst (more catalyst ? lower volume)
  • Power (more power ? lower volume)
  • Equipment (lower volume ? lower cost)
