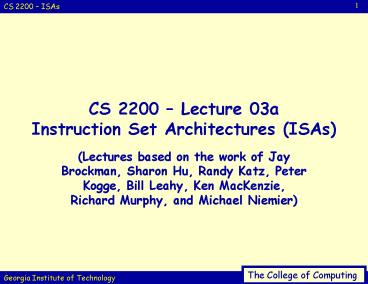

CS 2200 Lecture 03a Instruction Set Architectures ISAs

1
CS 2200 Lecture 03aInstruction Set
Architectures (ISAs)

• (Lectures based on the work of Jay Brockman,
  Sharon Hu, Randy Katz, Peter Kogge, Bill Leahy,
  Ken MacKenzie, Richard Murphy, and Michael
  Niemier)

2
Types of instructions and how theyre used
3
Instruction Classes

• Weve talked lots about instructions, instruction
  counts, but what are they really?
• Lets look at some basic instruction classes
• Arithmetic/Logical AND, OR, add, sub
• Data Transfer Loads/Stores, move inst.
  (machines
• w/addressable memory)
• Control Branch, jump, procedure call return,
  traps
• System OP Sys. calls, virtual memory management
• Floating Point Floating point ops multiply and
  divide
• Decimal Dec. add, multiply dec.-to-char.
  conversions
• String String move, compare, search
• Graphics Pixel ops, compression/decompression

4
What instructions are really used?

• Usually the most commonly executed instructions
  are the simple ones
• For example consider this Intel 80x86 mix

These 10 instructions make up 96 of all those
executed!
One could consider this to be more than 1
instruction
5
How does code translate to instuctions?

• g h A8
• load s0,8(s3)
• actually
• lw s0,8(s3) lw dest, offset(base)
• add s1, s2, s0 add dst, src1, src2
• Notice Registers contain data or addresses!!

6
Perception Check

• What exactly are we doing?
• HLL (C) ? Assembler
• Assembler ? Machine Instructions
• Goals
• See how HLL translate to Assembler
• Understand hardware designs, constraints, goals,
  etc.

7
Slightly more complex

• A12 h A8
• Compile it?
• lw s0, 8(s3)
• add s0, s2, s0
• sw s0, 12(s3)

Can reuse it though
(its a good thing to save registers in HLL
code you may not, but compiler will translate it
for you)
8
Historical Note

• Early machines often had a register called an
  index register
• load addr(index)
• Address space was small
• Today
• lw s1, offset(base)
• Base address are much larger...need to be in a
  register
• Often offsets are small but if not...

9
Variable Array Index?

• g h Ai
• add a0, s2, s3 i addr(A)
• lw a1, 0(a0) a1 ? Ai
• add s0, s1, a1 g ? h Ai

10
Flashback How many registers?

• Early machines had about 1 (Accumulator)
• PDP-11 series had 8
• Typical 32 bit processors today have 32.
• Why not more?
• What happens when there are more variables than
  registers?
• Spillage Putting less commonly used variables
  back into memory.

11
Factoid

• accumulator Archaic term for a register. On-line
  use of it as a synonym for register is a fairly
  reliable indication that the user has been around
  for a while.
• Eric Raymond, The New Hackers Dictionary, 1991

12
Note the speed

• Register ops access two regs and perform an
  operation
• Memory ops access one location and dont do
  anything to it!
• What do you think about the speed of memory
  versus registers?

13
Mips Registers
Name
R
Usage
zero
0
The constant value 0
at
1
Reserved for assembler
v0-v1
2-3
Values for results expression eval.
a0-a3
4-7
Arguments
t0-t7
8-15
Temporaries
s0-s7
16-23
Saved
t8-t9
24-25
More temporaries
k0-k1
26-27
Reserved for use by operating system
gp
28
Global pointer
sp
29
Stack pointer
fp
30
Frame pointer
ra
31
Return address
14
LC2200 Registers
Name
R
Usage
zero
0
The constant value 0
at
1
Reserved for assembler
v0
2
Return value
a0-a4
3-7
Argument or temporary
s0-s3
8-11
Saved general purpose registers
k0
12
Reserved for OS/traps
sp
13
Stack pointer
fp
14
Frame pointer
ra
15
Return address
15
Decisions, decisions...

• What distinguishes a computer from a simple
  calculator is its ability to make decisions.
  Some smart guy.
• The affects of branch instructions are a big
  source of research (read headaches) in computer
  architecture
• In this class
• Jump will refer to unconditional changes in
  control
• Branch will refer to conditional changes in
  control
• And there are 4 main types of control-flow
  change
• Conditional branches (most frequent)
• Jumps
• Procedure calls
• Procedure returns

A function call just like a HLL but, we have to
get to it, get back from it, and preserve state
16
which break down like this
s for benchmark Suite on load/store machine
Side note if you didnt know, int x int y xy
vs. double x, double y, xy results in different
types of instructions Why?
17
Conditional branch instructions
18
Where jumps and branches go

• Always to some specified destination address
• Most often, address is specified in instruction
• Procedure return in an exception however
• (Return target is not known at compile time)
• Usually, address specified relative to the PC
• PC Program Counter indexes executing
  instructions
• Control instructions specified as such are
  PC-relative
• Good b/c target is often near current instruction
  (indexed by PC) and specified by fewer bits
• Allows for position independence program can
  run independently of where its loaded

19
Target Unknown

• So what about these unknown addresses?
• Target NOT known at compile time
• Cant use PC relative must specify target
  dynamically so we can change it at runtime
• Some options
• Put target address in a register
• Let jump permit any addr. mode to supply target
  address
• Register indirect jumps useful for following
  constructs
• Case/Switch select among one of several
  alternatives
• Dynamically shared libraries library loaded
  when invoked
• No compile time target load from memory with
  register indirect jump

20
Some basic branch facts

• Branches usually use PC-relative addressing
• But how far is target from instruction?
• The answer to this question will tell us
• Which branch offsets to support
• How long an instruction is/how it should be
  encoded
• Note the gory interdependencies!!!
• Most branches are in the forward direction and
  only 4-7 instructions away
• Short displacement should suffice
• Gives us increased code density w/shorter
  instructions
• What would you want to design a datapath to
  handle?

21
How do we know where to go?
Often branch is simple inequality test or
compares with 0 architectures make this is a
special case and make it fast! (b/c you want to
spend time computing, not comparing)
22
Lets look at some branch examplesand how they
map to statements from a high-level
language(using LC 2200 register conventions)
23
LC2200 Registers
Recall
Name
R
Usage
zero
0
The constant value 0
at
1
Reserved for assembler
v0
2
Return value
a0-a4
3-7
Argument or temporary
s0-s3
8-11
Saved general purpose registers
k0
12
Reserved for OS/traps
sp
13
Stack pointer
fp
14
Frame pointer
ra
15
Return address
24
if statement

• if (i j) goto L1
• f g h
• L1 f f - i
• beq s3, a4, L1 if ij goto L1
• add s0, s1, s2 f g h
• L1 sub s0, s0, s3 f f - i

if i ! j, we want to add g h and store it in f
before we calculate f f - i
how is this compare actually done?
25
Recall example MIPS machine
26
Anddid we just use a go to???
27
if statement

• if (i ! j)
• f g h
• f f - i
• beq s3, a4, L1
• add s0, s1, s2
• L1 sub s0, s0, s3

28
if-then-else

• if (i j)
• f g h
• else
• f g
• beq s3, a4, Then if i j we want to
  add
• add s0, s1, zero f g h (the else
  part)
• beq zero, zero, Exit
• Then add s0, s1, s2 f g h
• Exit

reg
contents
Note The LC2200 has no BNE
s0
f
s1
g
s2
h
s3
i
a4
j
29
Loop with Variable Array Index

• Loop g g Ai
• i i j
• if (i ! h) goto Loop

reg
contents
s0
g
s1
h
s2
i
s3
j
Loop add a1, s2, a0 lw a1,
0(a1) add s0, s0, a1 add
s2, s2, s3 beq s2, s1, Exit
beq zero, zero, Loop Exit
a0
addr of A
Plus some temps
30
While Loop
reg
contents

• while (savi k)
• i i j
• Loop add a1, s1, s0
• lw a2, 0(a1)
• beq a2, s3, Skip
• beq zero, zero, Exit
• Skip add s1, s1, s2
• beq zero, zero, Loop
• Exit

s0
addr(sav)
s1
i
s2
j
s3
k
a1
temp
a2
temp
31
Case/Switch

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break
• slt t3, s5, zero If k lt 0
• bne t3, zero, Exit Exit
• slt t3, s5, t2 If k gt 4
• beq t3, zero, Exit Exit
• add t1, s5, s5 mpy k by 4
• add t1, t1, t1

Mips
32
Case/Switchcontinued

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break

Jmptbl Address(L0) Address(L1) Address(L2)
Address(L3)
33
Case/Switchcontinued

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break

add t1, t1, t4 t1 Jmptabk lw t0,
0(t1) jr t0 jump based
on reg t0 L0 add s0, s3, s4 j
Exit etc...
34
Procedures (the previous examples were just
if statements, case statements, and loops what
about something like a function call)
35
More detail (lots more detail actually!)
36
Procedures

• Procedural abstraction
• What is the programmers model?

37
Procedures

• Procedure abstraction
• What is the programmers model?
• What does the compiler have to do?
• Remember functions are not compiled at the same
  time

38
Procedures

• Procedure abstraction
• What is the programmers model?
• What does the compiler have to do?
• Remember functions are not compiled at the same
  time
• Simple hardware to support procedures?

39
What do we need?

• What do we need to support procedure calls in
  assembly language?
• Nested modules/Recursion
• Pass values to modules
• Return value(s) from module
• Asynchronous compilation
• Need to do things in a uniform way
• Continue execution after module finishes

40
Another way to look at it

• What does a programmer expect?
• 1. arguments bound to formal parameters
• 2. space for local variables
• 3. means to return a value (or values)
• 4. arbitrary nesting of procedure invocations
• e.g. for recursion

foo() bar(int a)
bar(42) int temp 3
... return(temp a)

41
Procedure Issues

• Hardware instructions to support this model?
• Call/return
• Remember where we are in the program. Why?
• Program counter (PC)
• What should happen on every instruction
  execution?
• Would we need a PC if there were no procedure
  abstraction?
• Load/store
• Stack
• Push and pop
• Stack pointer (sp)
• Stack frames
• What do we store and restore on call/return?

42
More procedure issues

• Software conventions (Why?)
• Reserve some number of registers for parameters,
  return values, and return address
• e.g. LC2200
• 5 for params, 1 for return values, one for return
  address
• JALR ltproc-addr in reggt, ra ra is
  return-addr
• JALR ra, zero Where does this go?
• What if we have more params or return values?
• Common use stack/memory
• Registers used in procedures
• Temporary registers
• Caller does not expect value to be preserved upon
  return
• LC2200 a0 to a4
• Saved registers
• Caller does expect value to be preserved on
  return
• LC2200 s0 to s3 (simplifies amount of state to
  be saved)

43
MIPS Registers
FYI
44
LC2200 Registers
Recall
45
A simple example
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi s0, zero, 3
temp 3 add v0, a0, s0 a
temp jalr ra, zero return!
46
A Tale of Two Closets
A
S
My Closet
Renters Closet
47
A Tale of Two Closets
A
S
My Closet
Renters Closet
48
A Tale of Two Closets
A
S
My Closet
Renters Closet
49
Procedure calls

• Now its not just a matter of going somewhere else
  but we also may need to save state
• At least return address must be saved (the PC)
• Some architectures provide a mechanism to save
  registers, others make compiler do it
• Two basic conventions used
• Caller saving The calling procedure must save
  the registers it wants to use after the return
• Callee saving Called procedure must save the
  registers it wants to use
• Most compilers conservatively caller save any
  variable that might be accessed during a call

50
Procedure call issues to think about

• Assume procedure P1 calls procedure P2
• Both procedures need to manipulate global
  variable x
• If P1 put x in a register, it needs to tell P2
  about it
• But what if P2 calls P3 which uses a register
  where x was put by P1? And P3 shouldnt touch
  x.
• Some programs may work more efficiently with the
  caller saved procedure but others might benefit
  from the callee saving procedure.
• Most sophisticated compilers use a combination of
  both for maximum efficiency

51
In detail

• how do we handle an arbitrary nesting of
  procedure invocations?
• Hmmm this means we need to save a bunch of
  registers somewhere so we can restore state upon
  return.

52
Questions to consider

• Compiling simple procedures
• Just need to save/restore registers used by
  called procedure
• Who should do this? caller? callee?
• What regs in the LC2200 example?

53
Question

• Caller has values in s1 and a4
• Callee will need (to destroy) s1 and a4 to
  perform its operations.
• Who should save s1?
• How many people say Caller?
• How many people say Callee?
• How many people say either?

54
Another question

• Caller has values in s1 and a4
• Callee will need (to destroy) s1 and a4 to
  perform its operations.
• Who should save a4?
• How many people say Caller?
• How many people say Callee?
• How many people say either?

55
Stacks

• Why a stack?

56
Using Stacks

• Basic stack definition
• grows up, grows down
• next empty or last full
• Who saves (caller or callee?)
• Mechanics
• caller at call time
• callee at entry
• callee at exit
• caller after the return

57
Stacks

• Stack grows up? down?
• sp points to next empty? or last full?
• Example
• stack grows up (in addresses)
• points to next empty slot
• PUSH(x)
• POP(x)

1000
full items
1001
1002
sp 1003
1003
1004
1005
1006
ADDI sp, sp, 1 SW x, -1(sp)
LW x, -1(sp) ADDI sp, sp, -1
58
Stack Conventions
Unix memory layout stack grows down, heap grows
up
4GB-1
stack
unused
heap
data
code
0
59
Stack Conventions
4GB-1
stack
unused
64KB-1
unused
LC-2200 layout? no heap. stack grows up. keeps
memory together
heap
data
stack
data
code
code
0
0
60
Stack Usage

• RISC machines dont have PUSH/POP instructions,
  you have to do it manually.
• Usually, you dont synthesize PUSH/POP but rather
  do alloc-use-dealloc, e.g
• note this is a feature...

foo addi sp, sp, 2 sw ra, -2(sp)
sw s0, -1(sp) ... lw
s0, -1(sp) lw ra, -2(sp)
addi sp, sp, -2 jalr ra, zero
61
Aside Leaf Procedures

• If a procedure calls no subroutines, its a
  leaf in the call tree.
• Leaf procedures dont need to save ra. In fact,
  they may not need to save anything or even
  allocate stack space!
• another optimization enabled by RISC

62
Example Leaf Procedure

• int leaf_example(int g, int h, int i, int j)
• int f
• f (g h) - ( i j)
• return f

63
Example Leaf Procedure

• int leaf_example(int g, int h, int i, int j)
• int f
• f (g h) - ( i j)
• return f

?
What will be where?
(i.e. how the heck do we do this)
?
64
Example Leaf Procedure

• int leaf_example(int g, int h, int i, int j)
• int f
• f (g h) - ( i j)
• return f

For educational purposes, we'll use the s
registers for temporary storage of values. Where
can we put the existing values that are in the s
registers?
65
Example Leaf Procedure

• leaf_example
• addi sp, sp, -3 Make room for 3 items
• sw s0, 2(sp) Push them onto stack
• sw s1, 1(sp)
• sw s2, 0(sp)
• add s2, a0, a1 Do the calc... gh
• add s1, a2, a3 ij
• sub s0, s2, s1 (gh) - (ij)
• add v0, s0, zero Move!
• lw s2, 0(sp) Pop everything off
• lw s1, 1(sp) stack and put back
• lw s0, 2(sp) into regs
• addi sp, sp, 3 Adjust stack pointer
• jalr ra, zero return

66
Question

• Class question
• What just happened on the last slide?
• Hint
• Think about information and conventions that
  were discussed in previous slides

67
Trivial procedure call revisited
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi sp, sp, 2 alloc
sw ra, -1(sp) save RA sw
s0, -2(sp) save temp addi
s0, zero, 3 temp 3 add v0,
a0, s0 a temp lw s0, -2,(sp)
restore temp lw ra, -1,(sp)
restore RA addi sp, sp, -2
dealloc jalr ra, zero
return!
68
Trivial procedure call revisited
2
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi sp, sp, 2 alloc
sw ra, -1(sp) save RA sw
s0, -2(sp) save temp addi
s0, zero, 3 temp 3 add v0,
a0, s0 a temp lw s0, -2,(sp)
restore temp lw ra, -1,(sp)
restore RA addi sp, sp, -2
dealloc jalr ra, zero
return!
69
A-type vs. S-type Temporaries

• s0..s3 temporaries
• s for saved
• callee-saved gotta save em before you can use
  em
• a0..a4 arguments or temporaries
• caller-saved they dont survive a procedure call
  so you save them (as a caller) if you want them
  to survive.
• Why two types? When would you use each type?

70
A-type vs. S-type

• Crudely
• S-type for long-lifetime temporaries
• A-type for short-lifetime temporaries
• Ex
• Aside MIPS has T-type as well

void baz() int i, total 0 for (i 0 i
lt 1000 i) total qux(i)
return(total)
int qux(int x) return(2 x 1)
71
Trivial procedure call revisited ?
2
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi sp, sp, 2 alloc
sw ra, -1(sp) save RA sw
s0, -2(sp) save temp addi
s0, zero, 3 temp 3 add v0,
a0, s0 a temp lw s0, -2,(sp)
restore temp lw ra, -1,(sp)
restore RA addi sp, sp, -2
dealloc jalr ra, zero
return!
S-type was a poor choice!
72
Trivial procedure call revisited ?
3
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi sp, sp, 2 alloc
sw ra, -1(sp) save RA sw
s0, -2(sp) save temp addi
s0, zero, 3 temp 3 add v0,
a0, s0 a temp lw s0, -2,(sp)
restore temp lw ra, -1,(sp)
restore RA addi sp, sp, -2
dealloc jalr ra, zero
return!
S-type was a poor choice!
73
Sidebar on "IN" parameters

• The alert student may note that in the preceding
  example the values of g, h, i and j were in the
  a0 thru a3 registers.
• If we made a change to any of those values
  wouldn't that change persist (I hear you say).
• Well, sort of but not really...

74
What Really Happens?

• The calling program would be required to take the
  values from memory and copy them into the a
  registers
• The called module does it's thing.
• Upon return the values in the a registers are
  ignored! They are absolutely not guaranteed to be
  valid!!!

75
Questions?if not, a long example
76
Caller/Callee Mechanics
who does what when?

• Four places

foo() bar(int a)

int temp 3 bar(42)
... ...
return(temp a)

2. callee at entry
1. caller at call time
4. caller after return
3. callee at exit
77
But first, strategy
do most work at callee entry/exit

• Caller at call time
• put arguments in a0..a4
• jalr ..., ra
• Callee at entry
• Callee at exit
• put return value in v0
• Caller after return
• retrieve return value from v0

78
Good Strategy
do most work at callee entry/exit

• Caller at call time
• put arguments in a0..a4
• jalr ..., ra
• Callee at entry
• allocate all stack space
• save ra s0..s3 if necessary
• Callee at exit
• restore ra s0..s3 if used
• deallocate all stack space
• put return value in v0
• Caller after return
• retrieve return value from v0

most of the work
79
Good Strategy
do most work at callee entry/exit

• Caller at call time
• put arguments in a0..a4
• save any caller-save temporaries
• jalr ..., ra
• Callee at entry
• allocate all stack space
• save ra s0..s3 if necessary
• Callee at exit
• restore ra s0..s3 if used
• deallocate all stack space
• put return value in v0
• Caller after return
• retrieve return value from v0
• restore any caller-save temporaries

most of the work
80
MIPS Registers
Recall
81
Example Factorial(!)

• int fact(int n)
• if (n lt 1)
• return 1
• else
• return (n fact(n-1))

82
Factorial Again!

• int fact(int n)
• if (n lt 1)
• return 1
• else
• return (n fact(n-1))

fact n 0
fact n 1
fact n 2
fact n 3
fact n 4
caller fact(4)
83
Factorial Again!

• fact sub sp, sp, 8 adjust stack for 2
• sw ra, 4(sp) save the return addr
• sw a0, 0(sp) save arg n
• slt t0, a0, 1 test for n lt 1
• beq t0, zero, L1 if n gt 1, goto L1
• add v0, zero, 1 return 1
• add sp, sp, 8 pop 2 off stack
• jr ra return to caller
• L1 sub a0, a0, 1 n gt 1 arg gets n-1
• jal fact call fact w/ (n-1)
• lw a0, 0(sp) ret frm jal restr n
• lw ra, 4(sp) restore ret addr
• add sp, sp, 8 adj stk ptr (pop 2)
• mul v0, a0, v0 ret n fact(n-1)
• jr ra return to caller

(Assembly code that we REALLY have to go through
in detail)
