Title: Control,Instrumentation,and Design


1

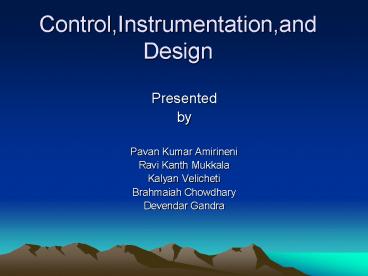

Control,Instrumentation,and Design
  • Presented
  • by
  • Pavan Kumar Amirineni
  • Ravi Kanth Mukkala
  • Kalyan Velicheti
  • Brahmaiah Chowdhary
  • Devendar Gandra

2
Presentation outline
  • Introduction
  • Control system architecture
  • Digital control
  • Signal classification in control systems
  • Feedforward control
  • Instrumentation and design

3
Introduction.
  • Controller
  • It is a functional unit which makes system to
    respond in a desired manner.
  • Types of controllers
  • Analog controllers
  • Digital controllers

4
Analog controllers
  • How analog controlling is done?
  • On/Off switches controller acts like a
    conventional switch
  • PID actions
  • Lead and lag compensation networks

5
Analog controllers contd..
  • Limitations
  • Cost factor
  • Noisy
  • Complex circuitry
  • Reliability
  • Adaptability
  • Accuracy
  • Data storage
  • Linear assumptions

6
Control system architecture

Ref signal
O/P signal
Components of a typical analog system
7
Architecture contd..
  • Signal conditioning block
  • The main function of signal condition block is to
    suppress the unwanted noise present in the signal
    and reduce the error
  • Methods amplifying, modulation and filtering
  • Lock in amplifiers, charge amplifiers, power
    amplifiers, linear amplifiers, tracking filters,
    low pass and high pass filters etc are present in
    SCB
  • Actuators
  • Actuator actuates signals to the plant
  • Dc motors, stepper motors, relays and valves

8
contd
  • Sensors
  • Sensors are used for measuring process response
  • Ex Thermocouples, potentiometers, differential
    transformers
  • Additional components
  • Power supplies
  • surge protection units

9
Digital Control
  • In digital control processing has to be
    synchronized with plant operation and actuation
    requirements.
  • Digital control computers consists of
  • Processor
  • Memory
  • Input/output devices
  • Digital control systems make use of digital
    instruments and additional processors for
    actuating , signal-conditioning, or measuring
    functions as well.

10
Contd
  • For example
  • Stepper motor that responds with incremental
    motion
  • steps when driven by pulse signals can be
    considered
  • a digital actuator.
  • A two position solenoid is a digital (binary)
    actuator.

11
Block diagram of direct digital control system
Ref signal
O/P signal
DAC
plant
Drive system
ADC
address
12
Description
  • Analog measurements and reference signals have to
    be sampled and encoded prior to digital
    processing with in the controller.
  • The drive system of a plant typically takes in
    analog signals.
  • If more than one output signal is measured , each
    signal will have to be conditioned and processed
    separately.
  • For complex processes with a large number of
    input/output variables and with various operating
    requirements, direct digital control is difficult
    to implement.

13
Advantages
  • Less susceptible to noise or parameter variation
    in instrumentation .
  • Very high accuracy and speed.
  • Repetitive tasks can be handled well.
  • Complex control laws and signal conditioning
    methods can be programmed.
  • Large amounts of data can be stored .

14
Advantages contd
  • Data can be stored or maintained for longer
    periods .
  • Fast data transmission is possible over long
    distances.
  • Easy and fast data retrieval capabilities.
  • Uses low operational voltages.
  • Low overall cost.

15
Signal classification
  • A digital control system can be loosely
    interpreted as one that uses a digital computer
    as a controller.
  • Analog signals are continuous in time. They are
    represented as functions of the continuous time
    variable.
  • Sampled data are pulse amplitude-modulated
    signals. A pulse amplitude-modulated signal is
    generated through a sample and hold operation.

16
Signal classification contd.
  • An important advantage of sampling is that
    expensive equipment can be shared among many
    signals.
  • Sampled data consist of sequence of numbers.
  • Digital data are coded numerical data. The code
    itself determines the actual value of a
    particular unit of digital information.

17
Identifying control system types
Signal category Description
Analog signals Sampled data Digital data continuous in time. Pulse amplitude-modulated signals. Information carried by pulse amplitude. Coded numerical data. Typically generated by digital processors, digital transducers and counters.
18
Significance of the sampling period
  • Sampling period has to be sufficiently large so
    that required processing and data transfer can be
    done during that time for each control step.
  • On the other hand, sampling period should be
    small enough to meet control band-width and
    process dynamic requirements.
  • Shannons sampling theorem states that in a
    sampled signal, the Nyquist frequency fc , is
    given by half the sampling rate.
  • fc 1/(2?T)

19
Feedforward Control
  • Def- Feedforward control system is defined as
    the process variables are measured, and
    anticipated disturbances are compensated for
    without waiting for changes in the controlled
    variable to be visible.
  • Feedforward control suits better for tracking
    rapid changes in the reference.

20
Feedforward Vs Feedback control systems
  • In feedback control unknown outputs are measured
    and compared with known inputs to generate
    control signal.
  • In feedforward control, unknown inputs are
    measured and that information along with desired
    inputs is used to generate control signals that
    can reduce errors due to these unknown inputs or
    variations in them.

21
A Feedback Loop That Uses Feedforward Control


  • Disturbance input
  • Ref

  • I/P

    O/P

Measurment For Feed forward
Controller
Plant
Measurment For Feedback
22
A Natural Gas Home Heating System
23
Block Diagram Representation
  • w1
    w2 w3
  • Temp set point

    room temp
  • I/P

    O/P

Controller
Furnace
Sensor-Transducer
24
Contd
  • W1 Water flow rate.
  • W2 Temperature of cold water into the furnace.
  • W3Temperature outside room temperature.

25
Advantages of feedforward control
  • Feedforward control signal can be introduced
    gradually to improve existing controller.
  • Improves rapid reference tracking

26
Instrumentation and Design
  • Basic constituents of a control system
  • Plant
  • Signal measurement
  • Drive system
  • Signal Conditioning
  • Controller
  • Instrumentation, means identification of various
    instruments or hardware components with respect
    to their functions, operation, and interaction
    with each other and the proper selection and
    interfacing of these components for a given
    application.

27
Design
  • Design is the process of
  • Selecting suitable equipment to accomplish
    various functions in the control system.
  • Developing the system architecture.
  • Matching Interfacing these devices.
  • Selecting the parameter values, depending on the
    system characteristics to achieve desired
    objectives.
  • Identification of key design parameters, modeling
    of various components, and analysis are often
    useful in the design process.

28
Future Discussions
  • Sensors and actuators
  • Analog and digital devices
  • Applications such as automated manufacturing and
    robotics, transit vehicles
  • Dynamic testing and process control

29
Questions
30
  • Thank you
