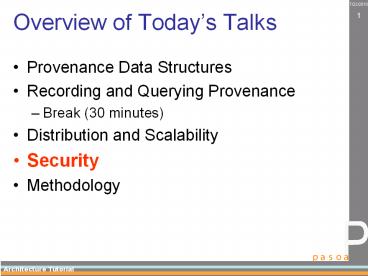

Overview of Todays Talks

• Provenance Data Structures
• Recording and Querying Provenance
• Break (30 minutes)
• Distribution and Scalability
• Security
• Methodology

2
Security in a Provenance System

• Victor Tan vhkt_at_ecs.soton.ac.uk

3
Security Where does it fit in ?

• All data processing related activities in
  industrial environments will incorporate security
  concerns
• Recording and querying are two main activities in
  the provenance system for which a security
  architecture needs to be developed
• Scalability and distribution requires further
  extensions to a basic security architecture

4
Primary security issues

• Integrity and non-repudiation of p-assertions
• Access control to provenance store
• Delegation of identity / access control
• Federated security

5
Integrity and non-repudiation of p-assertions

• P-assertion is a subjective view of actor
• Need to establish accountability for the creation
  of an assertion (non-repudiation)
• Ensure that p-assertions are not altered after
  being created (integrity)
• Directly implemented by signing p-assertions

6
Signed actor state p-assertion
7
Signed relationship p-assertion
8
Signed interaction p-assertion
9
Access control to provenance store

• Mutual authentication between actors and
  provenance store
• Secured communication link (encryption,
  signatures)
• Appropriate authorisation scheme expressed in
  suitable authorisation policy language

10
(No Transcript)
11
PS
12
Remote security domain
Security architecture of hosting system
13
Delegation of identity / access control

• Various components interact with each other in
  the logical architecture during a workflow run
• Need to be authenticated or authorised to perform
  an action or access a resource on behalf of
  another component
• Requires delegation of identity / access control

14
(No Transcript)
15
Hospital Actors
User Interface
Donor Data Collector
Brain Death Manager
16
Delegation of identity / access control
Presentation UI
Provenance store
17
Federated security

• Provenance stores can be distributed for
  scalability reasons
• Stores may be located in different security
  domains
• Federation of identity may be required for actors
  in a given domain to interact securely with
  stores in separate domains.

18
Remote security domain
Security architecture of hosting system
19
Provenance Store Distribution
- Bandwidth - Access Control - Storage
PS
PS
PS
20
Federated security / Single sign on Approach 1
Provenance store Security domain 1
Provenance store Security domain 2
21
Federated security / Single sign on approach 2
Provenance store Security domain 1
Provenance store Security domain 2
22
Secondary security issues

• Checking asserter identity
• Documentation style signing, anonymous,
  encryption and reference digest
• Integrity of referenced data
• Setting authorization assertions for p-assertions

23
Checking asserter identity

• Asserter identity is given in view of a
  p-structure
• This should match with identity on verified
  signature on associated p-assertions

24
P-structure view
25
Signed actor state p-assertion
26
Documentation style

• In the simplest case, creation of a p-assertion
  from original message exchanged involves copying
  the message content verbatim
• Creation of a p-assertion from original message
  can also involve transformation of contents of
  original message for various reasons

27
Documentation style Security relevant
transformations

• Encryption
• Uses a secret key to encrypt parts of message
  that becomes the content of the created
  p-assertion
• Querying actors with access to the secret key can
  retrieve the p-assertion and decrypt the
  encrypted portion
• Anonymous
• Some parts of the message are replaced by
  anonymous identifiers
• Particularly relevant in environments where
  privacy is critical (e.g. patientID in hospital
  records)

28
Documentation style Security relevant
transformations

• Signing
• An asserting actor may receive proxy certificates
  from other actors
• The keys in these proxy certificates can be used
  to sign parts of p-assertion by the asserting
  actor
• Referenced-digest
• P-assertions may contain references to data
  rather than the actual data
• To ensure that the data that the reference is
  eventually resolved to was the original data, a
  digest of the original data is included along
  with the reference in p-assertion

29
Interaction in the Organ Transplant Process
Request healthcare record for patient PID1
Donor Data Collector
Electronic Healthcare Management System
30
Request Message Contents

• ltsoapenvelopegt
• ltsoapheadergtlt/soapheadergt
• ltsoapbodygt
• ltechrsrequestgt
• ltechrspatientgt PID1 lt/echrspatientgt
• lt/echrsrequestgt
• lt/soapbodygt
• lt/soapenvelopegt

31
Documentation style Anonymous

• ltpsinteractionPAssertiongt
• ltpslocalPAssertionIdgt1lt/pslocalPAssertionIdgt
• ltpsdocumentationStylegt
• http//www.pasoa.org/.../stylesAnonymisedPa
  tient
• lt/psdocumentationStylegt
• ltpscontentgt
• ltsoapenvelopegt
• ltsoapheadergtlt/soapheadergt
• ltsoapbodygt
• ltechrsrequestgt
• ltechrsanoymisedPatientgtx78df2 lt/
  echrsanoymisedPatientgt
• lt/echrsrequestgt
• lt/soapbodygt
• lt/soapenvelopegt
• lt/pscontentgt
• lt/psinteractionPAssertiongt

32
Setting authorisation statements

• Newly created p-assertions must have
  authorisation statements associated with them
• These can be
• set statically by provenance store system
  administrator
• provided by the recording actor submitting the
  p-assertion
• The appropriate use depends on application
  dependent requirements

33
Summary

• Primary security issues
• Integrity and non-repudiation of p-assertions
• Access control to provenance store
• Delegation of identity / access control
• Federated security
• Secondary security issues
• Checking asserter identity
• Documentation style
• Integrity of referenced data
• Setting authorisation assertions for p-assertions

34
Questions ?
Victor Tan vhkt_at_ecs.soton.ac.uk
