Title: HOW ARE SAPS CREATED?


1

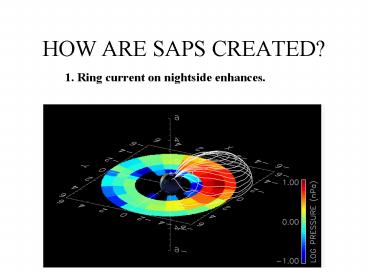

HOW ARE SAPS CREATED?
  • 1. Ring current on nightside enhances.

2
HOW ARE SAPS CREATED?
  • 2. Region 2 FAC enhances.

3
HOW ARE SAPS CREATED?
  • 3. Conductance gap between the auroral region and
    the region 2 FAC is created ? Strong poleward
    (Pedersen) currents are driven through the
    low-conductance gap.

4
HOW ARE SAPS CREATED?
  • 4. Strong poleward E-fields are created ? Strong
    sunward flows and uplifted (ExB) plasma.

5
HOW ARE SAPS CREATED?
  • 5. Poleward E-fields in the ionosphere ? Radially
    outward E-fields at the inner edge of the ring
    current.

6
(No Transcript)
7
17 APRIL 2002
8
WHAT CAN GLOBAL IMAGING CONTRIBUTE?
  • Foks CRCM needs
  • R2C FAC (no R1C in CRCM)
  • Conductance (auroral)
  • HENA can provide R2C FACs.
  • SuperDarn, FUV and DMSP can provide conductance.
  • Plug in resulting SAPS into Jerrys model.
