Title: 200910 CEGEG046 GEOG3051 Principles


1

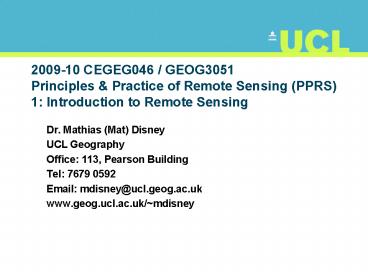

2009-10 CEGEG046 / GEOG3051Principles Practice
of Remote Sensing (PPRS)1 Introduction to
Remote Sensing
  • Dr. Mathias (Mat) Disney
  • UCL Geography
  • Office 113, Pearson Building
  • Tel 7679 0592
  • Email mdisney_at_ucl.geog.ac.uk
  • www.geog.ucl.ac.uk/mdisney

2

Format of the course
  • Term 1
  • Radiometric principles and data collection
    (Disney)
  • Mapping science (Dowman, Iliffe, Haklay, Backes,
    Smith, Cross)
  • Computing for image analysis (Lewis)
  • Analytical methods (Ziebart, Iliffe)
  • Image processing GIS (Liu)
  • Organisations (Harris)
  • Global Monitoring of Environment Security
    (Muller, Disney,Laxon etc.)
  • Seminars (Thurs afternoons, 5-6 pm dates TBC,
    room 304 3rd floor Pearson BUT north entrance!)

3

Format of the course
  • Term 2
  • Advanced Modules
  • Geomatics for coastal zone/Geomatics for ocean
    management (Oceans 2) (Simons, Morley, Iliffe)
  • Topographic mapping/Terrestrial laser
    scanning(Dowman, Backes, Robson)
  • Airborne laser scanning/Digital mapping (Dowman,
    Backes,Lewis)
  • Renewable natural resources (Lewis, Wooster)
  • Term 3
  • Research project

4

Miscellaneous
  • Remote Sensing and Photogrammetry Society
  • http//www.rspsoc.org/
  • 19 for students get 1 yr RSE for 83
  • student meeting 10-11 Mar 2008, New Forest,
    organised by Tina Thomson from GE
  • travel bursaries
  • NERC National Centre for Earth Observation (NCEO)
  • involvment in several themes at UCL
  • Solid Earth (Centre for the Observation and
    Modelling of Earthquakes Tectonics) _at_ GE
    http//comet.nerc.ac.uk/
  • NERC National Centre for Earth Observation (NCEO
    http//www.nceo.ac.uk/)
  • Cryosphere (Centre for Polar Observation and
    Modelling) _at_ Earth Sciences http//www.cpom.org/
  • Carbon Theme (formerly Carbon Centre for
    Terrestrial Carbon Dynamicshttp//ctcd.nerc.ac.uk)
    _at_ Geography

5
Reading and browsing
  • Remote sensing
  • Campbell, J. B. (1996) Introduction to Remote
    Sensing (2nd Ed), LondonTaylor and Francis.
  • Harris, R. (1987) "Satellite Remote Sensing, An
    Introduction", Routledge Kegan Paul.
  • Jensen, J. R. (2000) Remote Sensing of the
    Environment An Earth Resource Perspective, 2000,
    Prentice Hall, New Jersey. (Excellent on RS but
    no image processing).
  • Jensen, J. R. (2005, 3rd ed.) Introductory
    Digital Image Processing, Prentice Hall, New
    Jersey. (Companion to above) BUT mostly available
    online at http//www.cla.sc.edu/geog/rslab/751/ind
    ex.html
  • Lillesand, T. M., Kiefer, R. W. and Chipman, J.
    W. (2004, 5th ed.) Remote Sensing and Image
    Interpretation, John Wiley, New York.
  • Mather, P. M. (1999) Computer Processing of
    Remotely-sensed Images, 2nd Edition. John Wiley
    and Sons, Chichester.
  • W.G. Rees, 1996. "Physical Principles of Remote
    Sensing", Cambridge Univ. Press.
  • General
  • Monteith, J. L. and Unsworth, M. H. (1990)
    Principles of Environmental Physics, 2nd ed.
    Edward Arnold, London.
  • Hilborn, R. and Mangel, M. (1997) The Ecological
    Detective Confronting models with data,
    Monographs in population biology 28, Princeton
    University Press, New Jersey, USA.

6

Reading and browsing
  • Moodle www.geog.ucl.ac.uk/mdisney/pprs.html
  • Web
  • Tutorials
  • http//rst.gsfc.nasa.gov/
  • http//earth.esa.int/applications/data_util/SARDOC
    S/spaceborne/Radar_Courses/
  • http//www.crisp.nus.edu.sg/research/tutorial/ima
    ge.htm
  • http//www.ccrs.nrcan.gc.ca/ccrs/learn/tutorials/f
    undam/fundam_e.html
  • http//octopus.gma.org/surfing/satellites/index.ht
    ml
  • Glossary of alphabet soup acronyms!
    http//www.ccrs.nrcan.gc.ca/ccrs/learn/terms/gloss
    ary/glossary_e.html
  • Other resources
  • NASA www.nasa.gov
  • NASAs Visible Earth (source of data)
    http//visibleearth.nasa.gov/
  • European Space Agency earth.esa.int
  • NOAA www.noaa.gov
  • Remote sensing and Photogrammetry Society UK
    www.rspsoc.org
  • IKONOS http//www.spaceimaging.com/
  • QuickBird http//www.digitalglobe.com/

7

Lecture outline
  • General introduction to remote sensing (RS),
    Earth Observation (EO).......
  • definitions of RS
  • Why do we do it?
  • Applications and issues
  • Who and where?
  • Concepts and terms
  • remote sensing process, end-to-end

8

What is remote sensing?
  • The Experts say "Remote Sensing is...
  • ...techniques for collecting image or other forms
    of data about an object from measurements made at
    a distance from the object, and the processing
    and analysis of the data (RESORS, CCRS).
  • ...the science (and to some extent, art) of
    acquiring information about the Earth's surface
    without actually being in contact with it. This
    is done by sensing and recording reflected or
    emitted energy and processing, analyzing, and
    applying that information.
  • http//www.ccrs.nrcan.gc.ca/ccrs/learn/tutorials/f
    undam/chapter1/chapter1_1_e.html

9

What is remote sensing (II)?
  • The not so experts say "Remote Sensing is...
  • Advanced colouring-in.
  • Seeing what can't be seen, then convincing
    someone that you're right.
  • Being as far away from your object of study as
    possible and getting the computer to handle the
    numbers.
  • Legitimised voyeurism
  • (more of the same from http//www.ccrs.nrcan.gc.ca
    /ccrs/eduref/misc)

10
Remote Sensing Examples
  • First aerial photo credited to Frenchman Felix
    Tournachon in Bievre Valley, 1858.
  • Boston from balloon (oldest preserved aerial
    photo), 1860, by James Wallace Black.

11
Remote Sensing Examples
  • Kites (still used!) Panorama of San Francisco,
    1906.
  • Up to 9 large kites used to carry camera weighing
    23kg.

12
Remote Sensing Examples
13
Remote Sensing scales and platforms
  • Not always big/expensive equipment
  • Individual/small groups
  • Calibration/validation campaigns

14
Remote Sensing scales and platforms
  • Both taken via kite aerial photography
  • http//arch.ced.berkeley.edu/kap/kaptoc.html
  • http//activetectonics.la.asu.edu/Fires_and_Floods
    /

15
Remote Sensing scales and platforms
  • Platform depends on application
  • What information do we want?
  • How much detail?
  • What type of detail?

16
Remote Sensing scales and platforms
  • E.g. aerial photography
  • From multimap.com
  • Most of UK
  • Cost? Time?

17
Remote Sensing scales and platforms
  • Many types of satellite
  • Different orbits, instruments, applications

18
Remote Sensing Examples
  • Global maps of vegetation from MODIS instrument

19
Remote Sensing Examples
  • Global maps of sea surface temperature and land
    surface reflectance from MODIS instrument

20
Remote sensing applications
  • Environmental climate, ecosystem, hazard mapping
    and monitoring, vegetation, carbon cycle, oceans,
    ice
  • Commercial telecomms, agriculture, geology and
    petroleum, mapping
  • Military reconnaissance, mapping, navigation
    (GPS)
  • Weather monitoring and prediction
  • Many, many more

21

EO process in summary.....
  • Collection of data
  • Some type of remotely measured signal
  • Electromagnetic radiation of some form
  • Transformation of signal into something useful
  • Information extraction
  • Use of information to answer a question or
    confirm/contradict a hypothesis

22
Remote sensing process I
Formulate hypothesis
Hypothesis testing
23
The Remote Sensing Process II
  • Collection of information about an object without
    coming into physical contact with that object

24
The Remote Sensing Process III
  • What are we collecting?
  • Electromagnetic radiation (EMR)
  • What is the source?
  • Solar radiation
  • passive reflected (vis/NIR), emitted (thermal)
  • OR artificial source
  • active - RADAR, LiDAR

25
Electromagnetic radiation?
  • Electric field (E)
  • Magnetic field (M)
  • Perpendicular and travel at velocity, c (3x108
    ms-1)

26
  • Energy radiated from sun (or active sensor)
  • Energy ? 1/wavelength (1/?)
  • shorter ? (higher f) higher energy
  • longer ? (lower f) lower energy
  • from http//rst.gsfc.nasa.gov/Intro/Part2_4.html

27
Information
  • What type of information are we trying to get at?
  • What information is available from RS?
  • Spatial, spectral, temporal, angular,
    polarization, etc.

28
Spectral information vegetation
29
Spectral information vegetation
30
Colour Composites spectral
  • Real Colour composite

Approximates real colour (RGB colour
composite) Landsat TM image of Swanley, 1988
31
Colour Composites spectral
  • False Colour composite (FCC)
  • NIR band on red
  • red band on green
  • green band on blue

32
Colour Composites spectral
  • False Colour composite
  • NIR band on red
  • red band on green
  • green band on blue

33
Colour Composites temporal
  • False Colour composite
  • many channel data, much not comparable to RGB
    (visible)
  • e.g. Multi-temporal data
  • but display as spectral
  • AVHRR MVC 1995
  • April
  • August
  • September

34
Temporal information
  • Change detection

http//earth.jsc.nasa.gov/lores.cgi?PHOTOSTS046-0
78-026 http//www.yale.edu/ceo/DataArchive/brazil.
html
35
Colour Composites angular
  • False Colour composite
  • many channel data, much not comparable to RGB
    (visible)
  • e.g. MISR -Multi-angular data (August 2000)

0o 45o -45o
Real colour composite (RCC)
Northeast Botswana
36
Always bear in mind.....
  • when we view an RS image, we see a 'picture BUT
    need to be aware of the 'image formation process'
    to
  • understand and use the information content of the
    image and factors operating on it
  • spatially reference the data

37
Why do we use remote sensing?
  • Many monitoring issues global or regional
  • Drawbacks of in situ measurement ..
  • Remote sensing can provide (not always!)
  • Global coverage
  • Range of spatial resolutions
  • Temporal coverage (repeat viewing)
  • Spectral information (wavelength)
  • Angular information (different view angles)

38

Why do we study/use remote sensing?
  • source of spatial and temporal information (land
    surface, oceans, atmosphere, ice)
  • monitor and develop understanding of environment
    (measurement and modelling)
  • information can be accurate, timely, consistent
  • remote access
  • some historical data (1960s/70s)
  • move to quantitative RS e.g. data for climate
  • some commercial applications (growing?) e.g.
    weather
  • typically (geo)'physical' information but
    information widely used (surrogate - tsetse fly
    mapping)
  • derive data (raster) for input to GIS (land
    cover, temperature etc.)

39
Caveats!
  • Remote sensing has many problems
  • Can be expensive
  • Technically difficult
  • NOT direct
  • measure surrogate variables
  • e.g. reflectance (), brightness temperature
    (Wm-2 ? oK), backscatter (dB)
  • RELATE to other, more direct properties.

40
Colour Composites polarisation
  • False Colour composite
  • many channel data, much not comparable to RGB
    (visible)
  • e.g. Multi-polarisation SAR
  • HH Horizontal transmitted polarization and
    Horizontal received polarization
  • VV Vertical transmitted polarization and
    Vertical received polarization
  • HV Horizontal transmitted polarization and
    Vertical received polarization

41
Back to the process....
  • What sort of parameters are of interest?
  • Variables describing Earth system....

42
Information extraction process
After Jensen, p. 22
43
Example Vegetation canopy modelling
  • Develop detailed 3D models
  • Simulate canopy scattering behaviour
  • Compare with observations

44
Output above/below canopy signal
  • Light environment below a deciduous (birch) canopy

45
LIDAR signal single birch tree
  • Allows interpretation of signal, development of
    new methods

46

EO and the Earth System
From Ruddiman, W. F., 2001. Earth's Climate past
and future.
47
Example biophysical variables
After Jensen, p. 9
48
Example biophysical variables
Good discussion of spectral information
extraction http//dynamo.ecn.purdue.edu/landgreb
/Principles.pdf
After Jensen, p. 9
49
Remote Sensing Examples
Ice sheet dynamics Wingham et al. Science, 282
(5388) 456.
50
Electromagnetic spectrum
  • Zoom in on visible part of the EM spectrum
  • very small part
  • from visible blue (shorter ?)
  • to visible red (longer ?)
  • 0.4 to 0.7?m (10-6 m)

51
Electromagnetic spectrum
  • Interaction with the atmosphere
  • transmission NOT even across the spectrum
  • need to choose bands carefully!

52
Interesting stuff..
  • http//www.spaceimaging.com/gallery/zoomviewer.asp
    ?zoomifyImagePathhttp//www.spaceimaging.com/gall
    ery/zoomify/london_08_08_03/zoomifyX0zoomifyY0
    zoomifyZoom10zoomifyToolbar1zoomifyNavWin1l
    ocationLondon,20England
  • http//www.digitalglobe.com/images/katrina/new_orl
  • http//www.spaceimaging.com/gallery/tsunami/defaul
    t.htm
  • http//www.spaceimaging.com/gallery/9-11/default.h
    tm
Write a Comment
User Comments (0)
About PowerShow.com
