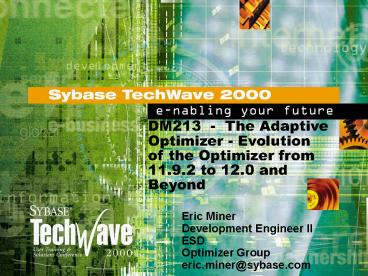

DM213 - The Adaptive Optimizer - Evolution of
the Optimizer from 11.9.2 to 12.0 and Beyond
Eric Miner Development Engineer II ESD Optimizer
Group eric.miner_at_sybase.com
2
Objectives

• Review the evolution of the optimizer from ASE
  11.9.2 to ASE 12.0, and to introduce planned
  changes in the Galaxy optimizer
• Provide an opportunity for you to give input on
  features and functionality youd like to see
  included in the optimizer

3
Assumptions

• General knowledge of what the optimizer is and
  how it works
• Experience in tuning the optimizer and/or
  analyzing optimizer issues
• Curiosity about future features and functionality
  of the optimizer
• Input on changes and features youd like to see
  included in future versions of the optimizer

4
Why Should The Optimizer Evolve?

• The optimizer changes in order to perform new and
  different task
• The optimizer will always be evolving
• It must be flexible enough to deal with different
  types of work loads
• Features and functionality important to Customers
  need to be implemented as quickly at possible
• Changes in optimization theory in the academic
  world need to be examined and incorporated if
  found useful

5
The11.9.2 Adaptive Optimizer

• Major changes for the optimizer
• Major changes in the statistics
• New statistics used in costing
• New costing methods and enhancement of existing
  costing
• Tool added to allow reading,writing and
  simulating of the statistics

6
The11.9.2 Adaptive Optimizer

• The Statistics Project
• Major changes to the accuracy, storage and use of
  the optimizer statistics
• Optimizer statistics stored in two system tables
• sysstatistics - Column level statistics
• systabstats - table/index level statistics
• Column Level (distribution) statistics are no
  longer associated with an index - now associated
  with a column
• Table/Index level statistics are centralized in
  systabstats

7
The11.9.2 Adaptive Optimizer The Statistics
Project cont.

• sysstatistics - The column level statistics
• The histogram cell boundary values and associated
  weights.These are the distribution values
• The weight for each cell makes them more accurate
  than in previous versions
• Two cell types - range and frequency count cells
• The range cell and total density values
• The date/time of last modification to the column
  statistics
• The default selectivity values (formerly the
  magic numbers)
• Column level statistics can be written directly

8
The11.9.2 Adaptive Optimizer The Statistics
Project cont.

• systabstats - The table and Index level
  statistics
• Row and page counts of the table and leaf of
  indexes
• The number of deleted and forwarded rows
• The number of empty datapages and index leaf
  pages
• height of an index.
• The Datapage, Index page and Data row cluster
  ratios
• Dynamically updated - in memory structure flushed
  to systabstats by a number of actions - cant be
  written

9
Changes to Update Statistics

• Update statistics has been extended to allow for
  placement of statistics on columns
• update statistics table_name (col_name)
• update index statistics table_name ind_name
• update all statistics table_name
• Specify the requested number of steps (cells) to
  use when building the columns histogram
• update statistics table_name (col_name) using 200
  values

10
Optdiag

• Utility allows you read, write and simulate
  statistics
• Displays all statistics used by the optimizer
  (sysstatistics and systabstats)
• Output files can be edited and read in to write
  the column level statistics or output files can
  be used to
• Outputs can be used to go back to a previous
  set of statistics
• Only column level statistics can be written with
  optdiag - exception is simulate mode

11
Optdiag cont.

• Output files very useful when you need to examine
  a dataset, table or its indexes
• Optdiag simulate mode can be used to simulate the
  effect of changes to any statistical value and/or
  a number of configuration values on the optimizer
• Simulate writes the column level statistics but
  not the table level - table level stats for
  simulate are stored in special area of
  sysstatistics and used to optimize query when set
  statistics simulate is on
• Optdiag outputs may be requested by TS

12
Cluster Ratios and Large I/O Costing

• Cluster ratios are used by the optimizer to cost
  large I/O and NC access
• Three cluster ratios - Data Page, Index Page and
  Data Row - Cluster ratio of 1 perfect clusting
• Data Page and Index Page measure the degree of
  clustering of their respective page type within
  extents
• Used in costing large I/O access
• Data Row measures the clustering of index leaf
  rows in relation to data rows
• Used to cost NC/PI access

13
Other Costing - Directional Index Scan

• Used by the optimizer to avoid sorts for ORDER BY

• If index order matches ORDER BY sort can be
  avoided.
• The optimizer will do a sort avert costing if
  possible
• If the sort avert plan is found cheapest it will
  be used

14
Other Costing - Updateable Cursors and Isolation
Level 0

• For DOL tables unique index no longer required
• It is no longer necessary for the optimizer to
  use only a unique index
• More indexes available, more likely an efficient
  plan will be chosen
• Uses fixed row ids as identifiers

15
Other Costing - Forwarded Row Costing

• Forwarded rows exist only on DOL tables
• A read of a forwarded row requires two reads -
• One to read the pointer on the home page
• One to read the actual row
• The optimizer takes the presence of forwarded
  rows in to account when costing.
• Check optdiag for a count of forwarded rows in
  the table
• Use reorg to move forwarded rows back to their
  home pages - remove fragmentation

16
Traceon 302 Rewritten

• Traceon 302 rewritten for ease of use and to
  incorporate new statistics
• Five distinct blocks of information
• Each block describes different areas of costing
• Obscure wording rewritten, plain English
• All new statistics are displayed when used in
  costing

17
The ASE 12.0 Adaptive Optimizer

• ASE 12.0 introduces some enhancements and
  expanded functionality
• Many involve both optimization and query
  processing
• Sort Merge Joins
• Join Transitive Closure
• Predicate Factoring and Transformation
• Like optimization enhancements
• 50 Table Limit
• Abstract Query Plans

18
The ASE 12.0 Adaptive OptimizerSort Merge Joins
(SMJ)

• New join method designed primarily for DSS
  queries
• SMJ can be more efficient in many DSS/DW queries
  than nested loop. May be less efficient for OLTP
• Ordered joins provide clustered access to joining
  rows result in less logical and physical I/Os.
• Can exploit indexes that pre-order rows on
  joining columns.
• All aspects of performing an SMJ are costed by
  the optimizer
• SMJ can be done in parallel

19
Example
select from part, partsupp, lineitem where
p_partkey ps_partkey and ps_partkey
l_partkey and ps_orderkey l_orderkey and
p_type CD
Unsorted Accessto innermost table
Part Clustered on p_partkey
Partsupp Clustered on ps_partkey
Lineitem Clustered on l_orderkey
Part Clustered on p_partkey
Partsupp Clustered on ps_partkey
Sorted Accessto innermost table
Lineitem Sorted on l_partkey
20
Example
Table T1
Table T2
where T1.pk T2.pk
R E A D N E X T
R E A D N E X T
77
77
78
79
79
81
80
84
81
87
82
90
83
91
84
94
21
The ASE 12.0 Adaptive OptimizerSort Merge Joins
(SMJ) cont

• By default SMJ is off in ASE 12
• SMJ may not be efficient for all queries, to set
  it on server wide - sp_configure enable
  sort-merge join and JTC,1
• Or, boot with trace 384
• At the session level - set sort_merge on

22
The ASE 12.0 Adaptive Optimizer Join Transitive
Closure (JTC)

• Provides the optimizer with more possible join
  orders
• More join orders will result in more join plans
  costed and may result in more efficient plan
  being chosen
• select A.a from A,B,C where A.AB.b and B.bC.c
• Adds join and A.aC.c and four extra orders
• JTC makes this possible for equi-joins
• JTC off by default to set it on server wide-
• sp_configure enable sort-merge join and JTC,1
• Or, boot with trace 334
• At the session level - set JTC on

23
The ASE 12.0 Adaptive OptimizerPredicate
Factoring Transformation

• PFT can add easily optimized AND clauses to
  queries containing OR clauses
• PFT aids optimization by extracting optimizable
  clauses from predicates linked with ORs and
  substitutes them with clauses linked with ANDs
• PFT makes more access methods available for
  optimization - the more possible methods to cost
  the more likely an efficient plan will be chosen
• Occurs before entering the optimizer
• Will not alter the original query semantics

24
The ASE 12.0 Adaptive OptimizerPFT continued

• Cant be turned off
• Traceon 302 will print clauses in the clause info
  block that dont appear in the query
• Example query
• select from lineitem, part where (p_partkey
  l_partkey and l_quantity gt 10)or (p_partkey
  l_partkey and l_quantity lt 20)
• Above query is transformed to the following
• select from lineitem, partwhere ((p_partkey
  l_partkey and l_quantity gt 10)or (p_partkey
  l_partkey and l_quantity lt 20) )and (p_partkey
  l_partkey)and (l_quantity gt 10 or
  l_quantity lt 20)

25
The ASE 12.0 Adaptive OptimizerLIKE Optimization
Enhancement

• Costing of LIKE predicates with a leading
  wildcard has been improved
• Previously the optimizer could not cost such a
  query selectivity of 1.0 was all that was
  possible
• A pattern match search of histogram boundary
  values is done.
• If a match is found the weight(s) of the cells
  are added to get selectivity
• If no match is found selectivity is 1/of steps -
  If 20 steps selectivity would be 0.05

26
The ASE 12.0 Adaptive Optimizer 50 Table Limit

• Number of user tables in a query has increased
• 50 user tables and 14 worktables
• Designed to allow for a queries with a large
  number of of non-flattened subqueries
• Requires more scan descriptors be configured
• Short circuiting employed - as the number of
  tables increases the number of tables costed at a
  time by join processing decreases
• 2-25 4, 26-37 3, 38-50 2 - Plans may be
  overlooked

27
The ASE 12.0 Adaptive Optimizer 50 Table Limit
cont.

• Not designed for 50 tables in a join- however.
• If you use a large number of tables in a join
  expect optimization to be slower due the the
  plans that must be costed.
• If possible set tablecount to 4 if short
  circuiting likely
• Consider using an Abstract Plan if possible

28
The ASE 12.0 Adaptive Optimizer Abstract Query
Plans

• A persistent readable, editable and reusable
  description of a query plan
• Associated with a query, not syntactically part
  of the query - no special syntax, can be included
  in query if desired
• Can be captured and stored when a query is run
• Capture mode
• Can be created manually - new T-SQL extensions
• Can be used by a query when it is re-running
• Can be edited

29
The ASE 12.0 Adaptive Optimizer Abstract Query
Plans cont.

• Designed as a method to temporarily work around
  optimizer issues with upgrade or bugs while fixes
  are made - In most cases wont be needed
• Stored in sysquerplans
• When captured will contain the entire query plan
• Full plan - bypasses the optimizer
• Possible to specify part of the plan and let the
  optimizer complete the plan
• Partial plan - Allows fine control of the
  optimizer

30
The ASE 12.0 Adaptive Optimizer Abstract Query
Plans cont.

• Far more granular and flexible control than the
  force options offer
• Can be used as a super force option

31
The Future

• Caveats
• Future features and functionality may change
  before the release of a new ASE
• In depth details are not presented at this time -
  this is a high level discussion
• Your input and suggestions are welcome and
  important to us

32
The Future Adaptive Optimizer

• Project code name - Galaxy - DSS/DW oriented
• The optimizer will be rewritten - some of the
  planned new features and functionality include -
• New search engine - more accesses possible, star
  join support
• Parallel Optimization - better optimization of
  PLL queries
• New join costing method - more accurate join
  optimization
• On-Line Statistics - a method to allow column
  level statistics to be gathered quickly

33
The Future Adaptive Optimizer -New Search Engine

• New search engine - flexible and configurable
• The search engine needs to be flexible in order
  to allow different levels of optimization for
  different needs - DSS vs. OLTP
• The search engines levels of optimization will
  be configurable
• Youll be able to set the amount of searching
  (plan costing) you want done
• Useful when ASE is doing OLTP vs. DSS
• Exhaustive vs. restrictive search degree of
  pruning of plans

34
The Future Adaptive Optimizer -New Search Engine
cont.

• Index selection for joins is currently done in
  the prep phase- indexes costed before join
  costing is done.
• Predicates on columns of a composite index are
  costed separately to use the index either for the
  join or the SARG
• Index selection for joins will now be done while
  join plans are being costed (permuted)
• Predicates (joins and SARGs) on the columns of a
  composite index will be costed together, making
  join index costing more granular

35
The Future Adaptive Optimizer -New Search Engine
cont.

• More join plans possible
• Number of plans costed will be controllable
• Star joins supported -
• optimizer will look for and cost star joins when
  found
• May want to use a high level of optimization to
  examine all star join plans

36
The Future Adaptive Optimizer - Parallel
Optimization

• New optimization for costing parallel queries
• Parallel optimization is a critical factor in a
  DSS/DW system
• Parallel optimization will be better able to
  balance response time and resource utilization
• Will find an efficient PLL plan based on resource
  utilization
• Will take into account that I/O can be done in
  parallel and cost it accordingly - cost resource
  usage rather than simple I/O
• Resources include - disks, CPUs, memory and
  network

37
The Future Adaptive Optimizer - Parallel
Optimization cont.

• Parallel optimization is configurable
• Activate or inhibit parallel optimization phases
  based on operating requirements
• Levels of parallel optimization can be set
• Configurable unit costs of each resource type
• Includes disk speed, CPU, network, memory

38
The Future Adaptive Optimizer - New Join Costing
Method

• New method will result in more accurate costing
  of joins
• By merging histograms on the fly rows that will
  not participate in the join will not effect
  costing
• More accurate estimate of the number of rows that
  will join
• SARG values will be used to restrict the portion
  of original and join histograms to be used in
  costing

39
The Future Adaptive Optimizer - New Join Costing
Method cont.

• Boundary values are merged, weights are more
  granular , those values not qualified by SARG
  values will be eliminated
• Data skew (many values with few rows - a few
  values with many rows) has a direct effect on the
  total density value and thus on join costing
• New costing method does not use the Total Density
  value
• Unless it participates in the join - a highly
  duplicated value will not effect the join costing

• Must have statistics on the joining columns

40
The Future Adaptive Optimizer - On-Line Statistics

• Designed to gather column level statistics
  quicker and when you want
• Sampling is at the heart of on-line statistics
• A full read of all rows of the column not
  required - fewer reads, fewer I/O
• Can set pages or extents to be read for sampling
• Reading pages/extents is more efficient than
  sampling rows
• Can specify percentage (degree) of sampling to do
  - 10 - 0.1 expected range - percentage will be
  persistent for a column

41
The Future Adaptive Optimizer - On-Line
Statistics cont.

• Manual or automatic?
• Sampling can be specified at create index or
  update statistics
• Degree of sampling will not change unless you
  specify another value
• Set on-line statistics to gather stats on its own
• Based on the DML stream?
• Based on the number of rows in a column that
  change?

42
Conclusion

• The optimizer will always be evolving
• The optimizer will be flexible enough to handle
  new demands on it
• It will better handle DSS/DW tasks
• Customer input on new features and functionality
  must be weighed and implemented
• New theories in optimization must be examined and
  incorporated if found useful
• The optimizer can not stand still

43
Portal-Ready

Integration
Availability

• Access Analysis Corporate Information
• Plugn Play with Standard
• Internet Technologies

• Continuous Database Availability
• Realtime Database Maintenance Tuning

Database Requirements
Productivity

• Portal Productivity Technologies
• Web Transaction Management

44
Questions/Answers and Input

• Come up and get a business card
• or
• eminer_at_sybase.com
