Title: Hashing: Collision Resolution Schemes


1

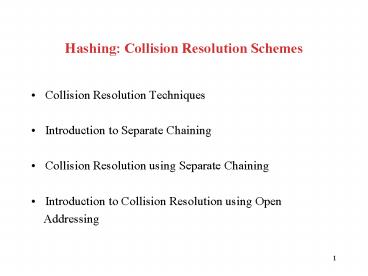

Hashing Collision Resolution Schemes
  • Collision Resolution Techniques
  • Introduction to Separate Chaining
  • Collision Resolution using Separate Chaining
  • Introduction to Collision Resolution using Open
  • Addressing

2
Collision Resolution Techniques
  • There are three broad ways of collision
    resolution
  • 1. Separate Chaining A linked list-based
    implementation.
  • 2. Open Addressing Array-based implementation.
  • (i) Linear probing (linear search)
  • (ii) Quadratic probing (nonlinear search)
  • (iii) Random increments/decrements
  • (iv) Rehashing (double hashing)
  • 3. Buckets methods Usually a combination of (1)
    (2)

3
Introduction to Separate Chaining
  • The hash table is implemented as an array of
    linked lists.
  • Inserting an item, r, at index i is simply
    insertion into the linked list at position i.
  • Synonyms are chained in the same linked list.
  • Retrieval of an item, r, with hash address, i, is
    simply retrieval from the linked list at position
    i.
  • Deletion of an item, r, with hash address, i, is
    simply deleting r from the linked list at
    position i.

4
Separate Chaining with String Keys
  • Recall that search keys can be numbers, strings
    or some other object.
  • The following Java method implements such
    technique
  • public static int hash(String key, int
    tableSize)
  • int hashVal 0
  • for (int i 0 i lt key.length() i)
  • hashVal key.charAt(i)
  • return hashVal tableSize
  • The following class which describes commodity
    items
  • class CommodityItem
  • String name // commodity name
  • int quantity // commodity quantity needed
  • double price // commodity price

5
Example 1 Separate Chaining
  • Devise an appropriate hash function and use it to
    load the information about the following
    commodity items into a hash table of size 13
    using separate chaining.
  • onion 1 10.0
  • tomato 1 8.50
  • cabbage 3 3.50
  • carrot 1 5.50
  • okra 1 6.50
  • mellon 2 10.0
  • potato 2 7.50
  • Banana 3 4.0
  • olive 2 15.0
  • salt 2 2.50
  • cucumber 3 4.50
  • mushroom 3 5.50
  • orange 2 3.00

6
Example 1 Separate Chaining (cont'd)
okra
potato













0 1 2 3 4 5 6 7 8 9 10 11 12
onion
carrot
  • Item Qty Price h(key)
  • onion 1 10.0 1
  • tomato 1 8.50 10
  • cabbage 3 3.50 4
  • carrot 1 5.50 1
  • okra 1 6.50 0
  • mellon 2 10.0 10
  • potato 2 7.50 0
  • Banana 3 4.0 11
  • olive 2 15.0 10
  • salt 2 2.50 7
  • cucumber 3 4.50 9
  • mushroom 3 5.50 6
  • orange 2 3.00 12

cabbage
mushroom
salt
cucumber
mellon
tomato
olive
banana
orange
7
Introduction to Open Addressing
  • In this method the entries are placed inside the
    array itself.
  • The probe sequence is essentially a sequence of
    functions
  • h0, h1, h2, , hn-1
  • where,
  • hi K -gt 0, 1, , n-1
  • To insert item r, we examine array locations
  • h0(r), h1(r), h2(r), ...,
  • Similarly, to find item r, we examine the same
    sequence of
  • locations in the same order.

8
Introduction to Open Addressing (cont'd)
  • The most common probe sequences are of the form
  • hi(r) (h(r) c(i)) mod n, i 0, 1, ,
    n-1.
  • The function c(i) is required to have the
    following two properties
  • Property 1
  • c(0) 0.
  • Property 2 The set of values
  • c(0) mod n, c(1) mod n, c(2) mod n, ,
    c(n-1) mod n
  • must contain every integer between 0 and n-1
    inclusive.

9
Open Addressing Linear Probing
  • Linear Probe Here the function c(i) is a linear
    function
  • in i
  • c(i) ai b
  • Property 1 requires that c(0) 0. Therefore, b
    must be
  • zero.
  • For c(i) ai to satisfy Property 2, a and n
    must be relatively prime.
  • The linear probing sequence that is usually used
    is
  • hi (r) (h(r) i) mod n, i0,1,2,, n-1
  • Insert record at first empty slot and if no empty
    slot is found then the hash table is full and
    insertion fails.

10
Example 2 Linear Probing
  • Use the hash function h(r) r.id 13 to load
    the following records into an array of size 13.
  • Al-Otaibi Ziyad 1.73 985926
  • Al-Turki, Musab Ahmad Bakeer 1.60 970876
  • Al-Saegh, Radha Mahdi 1.58 980962
  • Al-Shahrani, Adel Saad 1.80 986074
  • Al-Awami, Louai Adnan Muhammad 1.73 970728
  • Al-Amer, Yousuf Jauwad 1.66 994593
  • Al-Helal, Husain Ali AbdulMohsen 1.70 996321
  • Then insert the following records using
    linear probing to
  • resolve collisions, if any.
  • Al-Najjar, Khaled Ziyad 1.69 987615
  • Al-Ali, Amr Ali Zaid 1.79 987630
  • Al-Ramadi, Husam Yahya 1.58 987602

11
Example 2 Introduction to Hashing (cont'd)
0 1 2 3 4 5 6
7 8 9 10 11 12

Husain
Yousuf
Khalid
Radha
Amr
Musab
Adel
Husam
Louai
Ziyad
12
Linear Probing Some Notes
  • Notice from this table that a large cluster has
    already been formed.
  • In general, empty cells following the cluster
    have higher
  • chance of being hashed into.
  • The probability of taking longer probe sequences
    is much
  • higher with clusters.
  • This is one disadvantage of linear probing. Other
    methods
  • attempt to improve on this.

13
Introduction to Retrieval Deletion
  • Retrieval To search for a record we
  • Calculate its hash value.
  • Check that location of the array for the record.
  • If found, return the record.
  • If not, keep searching until you find the
    record or you
  • reach an empty table location.
  • Attempting to retrieve a non-existent record is
    very expensive.
  • Deletion
  • In open addressing, where a record is stored is
    not ecessarily its home position.
  • We cannot just set the location of a deleted
    record to empty.
  • A special flag or key value is needed to mark
    deleted records
  • locations.

14
Example 3 Retrieval Deletion
  • Consider the following hash table constructed in
    Example 2

0 1 2 3 4 5 6
7 8 9 10 11 12

Husain
Yousuf
Khalid
Radha
Amr
Musab
Adel
Husam
Louai
Ziyad
Delete Khalid's record (id 987615) and then
retrieve the records for Amr and then that of
Husam.
15
Example 3 Retrieval Deletion
0 1 2 3 4 5 6
7 8 9 10 11 12

?
Husain
Yousuf
Radha
Amr
Musab
Adel
Husam
Louai
Ziyad
16
Exercises
  • 1.Given that,
  • c(i) ai,
  • for c(i) in linear probing, we discussed that
    this equation
  • satisfies Property 2 only when a and n are
    relatively prime. Explain what the
  • requirement of being relatively prime means in
    simple plain language.
  • 2.Consider the general probe sequence,
  • hi (r) (h(r)
    c(i))mod n.
  • Are we sure that if c(i) satisfies Property 2,
    then hi(r) will cover all n hash table
  • locations, 0,1,...,n-1? Explain.
  • 3.Suppose you are given k records to be loaded
    into a hash table of
  • size n, with k lt n using linear probing. Does the
    order in which these
  • records are loaded matter for retrieval and
    insertion? Explain.
  • 4.A prime number is always the best choice of a
    hash table size. Is this
  • statement true of false? Justify your answer
    either way.
