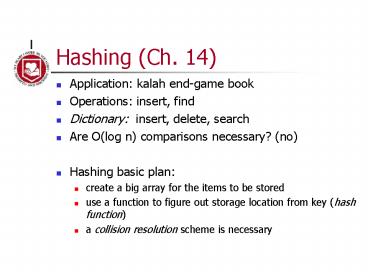

Hashing (Ch. 14)

1
Hashing (Ch. 14)

• Application kalah end-game book
• Operations insert, find
• Dictionary insert, delete, search
• Are O(log n) comparisons necessary? (no)
• Hashing basic plan
• create a big array for the items to be stored
• use a function to figure out storage location
  from key (hash function)
• a collision resolution scheme is necessary

2
Hashing Example

• Simple Hash function
• Treat the key as a large integer K
• h(K) K mod M, where M is the table size
• let M be a prime number.
• Example
• Suppose we have 101 buckets in the hash table.
• abcd in hex is 0x61626364
• Converted to decimal its 1633831724
• 1633831724 101 11
• Thus h(abcd) 11. Store the key at location
  11.
• dcba hashes to 57.
• abbc also hashes to 57 collision. What to
  do?
• If you have billions of possible keys and
  hundreds of buckets, lots of collisions are
  possible!

3
Hashing Strings

• h(aVeryLongVariableName)?
• Instead of dealing with very large numbers, you
  can use Horners method
• 256 97 86 24918 101 72
• 256 72 101 18533 101 50
• 256 50 114 12914 101 87
• Scramble by replacing 256 with 117

int hash(char v, int M) int h, a117 for
(h0 v v) h (ah v) M
return h
4
Collisions

• How likely are collisions?
• Birthday paradox
• M sqrt(p M/2) (about 1.25 sqrt(M))
• 100 12
• 1000 40
• 10000 125
• 1.25 sqrt(365) is about 24
• Experiment generate random numbers 0..100
• 84 35 45 32 89 1 58 16 38 69 5 90 16 16 53 61
• Collision at 13th number, as predicted
• What to do about collisions?

5
Separate Chaining

• Build a linked list for each bucket
• Linear search within list
• 01 L A A A2 M X3 N C45 E P E E6 7
  G R8 H S9 I10
• Simple, practical, widely used
• Cuts search time by a factor of M over sequential
  search

6
Separate Chaining 2

• Insertion time?
• O(1)
• Average search cost, successful search?
• O(N/2M)
• Average search cost, unsuccessful?
• O(N/M)
• M large CONSTANT average search time
• Worst case N (probabilistically unlikely)
• Keep lists sorted?
• insert time O(N/2M)
• unsuccessful search time O(N/2M)

7
Linear Probing

• Or, we could keep everything in the same table
• Insert upon collision, search for a free spot
• Search same (ifyou find one, fail)
• Runtime?
• Still O(1) if tableis sparse
• But as table fills,clustering occurs
• Skipping c spotsdoesnt help

8
Clustering

• Long clusters tend to get longer
• Precise analysis difficult
• Theorem (Knuth)
• Insert cost approx. (1 1/(1-N/M)2)/2
• (50 full ? 2.5 probes 80 full ? 13 probes)
• Search (hit) cost approx. (1 1/(1-N/M))/2
• (50 full ? 1.5 probes 80 full ? 3 probes)
• Search (miss) same as insert
• Too slow when table gets 70-80 full
• How to reduce/avoid clustering?

9
Double Hashing

• Use a second hash function to compute increment
  seq.
• Analysis extremely difficult
• About like ideal (random probe)
• Thm (Guibas-Szemeredi)
• Insert approx 11/(1-N/M)
• Search hit ln(1N/M)/(N/M)
• Search miss same as insert
• Not too slow until the table isabout 90 full

10
Dynamic Hash Tables

• Suppose you are making a symbol table for a
  compiler. How big should you make the hash
  table?
• If you dont know in advance how big a table to
  make, what to do?
• Could grow the table when it fills (e.g. 50
  full)
• Make a new table of twice the size.
• Make a new hash function
• Re-hash all of the items in the new table
• Dispose of the old table

11
Table Growing Analysis

• Worst case insertion Q(n), to re-hash all items
• Can we make any better statements?
• Average case?
• O(1), since insertions n through 2n cost O(n) (on
  average) for insertions and O(2n) (on average)
  for rehashing ? O(n) total (with 3x the constant)
• Amortized analysis?
• The result above is actually an amortized result
  for the rehashing.
• Any sequence of j insertions into an empty table
  has O(j) average cost for insertions and O(2j)
  for rehashing.
• Or, think of it as billing 3 time units for each
  insertion, storing 2 in the bank. Withdraw them
  later for rehashing.

12
Separate Chaining vs.Double Hashing

• Assume the same amount of space for keys, links
  (use pointers for long or variable-length keys)
• Separate chaining
• 1M buckets, 4M keys
• 4M links in nodes
• 9M words total avg search time 2
• Double hashing in same space
• 4M items, 9M buckets in table
• average search time 1/(1-4/9) 1.8 10 faster
• Double hashing in same time
• 4M items, average search time 2
• space needed 8M words (1/(1-4/8) 2) (11 less
  space)

13
Deletion

• How to implement delete() with separate chaining?
• Simply unlink unwanted item
• Runtime?
• Same as search()
• How to implement delete() with linear probing?
• Cant just erase it. (Why not?)
• Re-hash entire cluster
• Or mark as deleted?
• How to delete() with double hashing?
• Re-hashing cluster doesnt work which
  cluster?
• Mark as deleted
• Every so often re-hash entire table to prune
  dead-wood

14
Comparisons and summary

• Separate chaining advantages
• idiot-proof (degrades gracefully)
• no large chunks of memory needed (but is this
  better?)
• Why use hashing?
• constant time search and insert, on average
• easy to implement
• Why not use hashing?
• No performance guarantees
• Uses extra space
• Doesnt support pred, succ, sort, etc. no
  notion of order
• Where did perl hashes get their name?

15
Hashing Summary

• Separate chaining easiest to deploy
• Linear probing fastest (but takes more memory)
• Double hashing least memory (but takes more time
  to compute the second hash function)
• Dynamic (grow) handles any number of inserts
• Curious use of hashing early unix spell checker
  (back in the days of the 3M machines)

Construction Search
Miss RB Chain Probe Dbl Grow RB Chain
Probe Dbl Grow 5k 6 1 4 4 3
2 1 0 1 0 50k 74 18 11
12 22 36 15 8 8 8 100k 182
35 21 23 47 84 45 23 21
15 190k 79 106 59 155 144
2194 261 30 200k 407 84 159
186 156 33
