Chapter 12: Indexing and Hashing

1

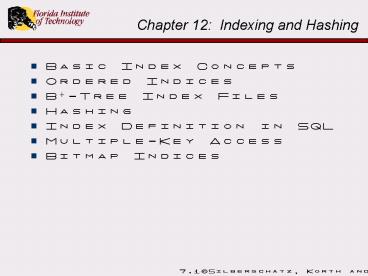

Chapter 12 Indexing and Hashing

• Basic Index Concepts
• Ordered Indices
• B-Tree Index Files
• Hashing
• Index Definition in SQL
• Multiple-Key Access
• Bitmap Indices

2
Basic Index Concepts

• Indexes speed up access to data in a table.
• card catalog in a library (author, title,
  subject)
• A set of one or more attributes used to look up
  records in a table is referred to as a search
  key.
• In the simplest case, an index file consists of
  records of the form
• Each such record is referred to as an index entry.

3
Basic Index Concepts, Cont.

• An index file is a file, and suffers from many of
  the same problems as a data file.
• Index files are typically much smaller than the
  original file.
• 10 - 25
• Two kinds of indices, primarily
• Ordered indices - index entries are stored in
  sorted order, based on the search key.
• Hash indices - search keys are distributed
  uniformly across buckets using a hash
  function.

4
Index Evaluation Metrics

• Insertion time (OLTP)
• Deletion time (OLTP)
• Space overhead
• Access time (DSS) for
• Point Queries - Records with a specified value in
  an attribute.
• Range Queries - Records with an attribute value
  in a specified range.

5
Ordered Indices

• An index whose search key specifies the
  sequential order of the data file is a primary
  index.
• Also called clustering or clustered index.
• Search key of a primary index is frequently the
  primary key.
• An index whose search key does not specify the
  sequential order of the data file is a secondary
  index.
• Also called a non-clustering or non-clustered
  index.
• An ordered sequential file with a primary index
  is an index-sequential file.

6
Dense Index Files

• An index that contains an index record for every
  search-key value in the data file is a dense
  index.

7
Dense Index Files, Cont.

• To locate the record(s) with search-key value K
• Find index record with search-key value K.
• Follow pointer from the index record to the data
  record(s).
• To delete a record
• Locate the record in the data file, perhaps using
  the above procedure.
• Delete the record from the data file.
• If the deleted record was the only one with that
  search-key value, then delete the search-key from
  the index (similar to data record deletion)
• To insert a record
• Perform an index lookup using the records
  search-key value.
• If the search-key value does not appear in the
  index, insert it.
• Insert the record into the data file (exactly
  where depends).
• Assign a pointer to the data record from the
  index entry.

8
Sparse Index Files

• An index that contains index records but only for
  some search-key values in the data file is a
  sparse index.
• Typically one index entry for each data file
  block.
• Only applicable when records are sequentially
  ordered on search-key, i.e., the index is a
  primary index.

9
Sparse Index Files, Cont.

• To locate a record with search-key value K
• Find the index record with largest search-key
  value lt K.
• Search file sequentially from the record to which
  the index record points.
• To delete a record
• Locate the record in the data file, perhaps using
  the above procedure.
• Delete the record from the data file.
• If the deleted record was the only record with
  its search-key value, and if an entry for the
  search key exists in the index, then replace the
  index entry with the next search-key value in the
  data file (in search-key order). If the next
  search-key value already has an index entry, the
  entry is simply deleted.
• To insert a record
• Perform an index lookup using the records
  search-key value suppose that the index stores
  an entry for each block of the data file.
• If the index entry points to a block with free
  space, then simply insert the record in that
  block.
• If the index entry points to a full block, then
  allocate a new block and insert the first
  search-key value appearing in the new block into
  the index

10
Sparse Index Files, Cont.

• In general, sparse indices
• Require less space and maintenance for insertions
  and deletions.
• Are generally slower than dense indices for
  locating records, especially if there is more
  than one block per index entry.

11
Multilevel Index

• If an index does not fit in memory, access
  becomes expensive.
• To reduce the number of disk accesses to index
  records, treat it as a sequential file on disk
  and build a sparse index on it.
• outer index a sparse index
• inner index sparse or dense index
• If the outer index is still too large to fit in
  main memory, yet another level of index can be
  created, and so on.

12
Multilevel Index, Cont.

• Indices at all levels might require updating upon
  insertion or deletion.
• Multilevel insertion, deletion and lookup
  algorithms are simple extensions of the
  single-level algorithms.

13
Secondary Indices

• Frequently a table is searched using a search key
  (i.e., a set of columns) other than the one on
  which the table is sorted.
• Suppose account is sorted by account number.
• Searching based on branch, or searching for a
  range of balances.
• Although the table is not sorted based on the
  search key, an index can nonetheless be
  constructed on the search key.
• As noted previously, such an index is called a
  secondary index, i.e., an index whose search key
  does not specify the sequential order of the data
  file.

14
Secondary Indices

• A secondary index will contain an entry for each
  search-key value.
• Each index entry will point to either a
• Single entry containing the search key value
  (candidate key).
• Bucket that contains pointers to all records with
  that search-key value (non-candidate key).
• All previous algorithms and data structures can
  be modified to apply to secondary indices.

15
Secondary Indexon balance field of account

• Note that secondary indices have to be dense
  (why?)

16
Primary and Secondary Indices

• Indices improve performance
• Primary Indices
• Point queries
• Range queries
• Secondary Indices
• Point queries
• Indices can also hurt performance
• All indices must be updated upon insertion or
  deletion.
• Scanning a file sequentially in secondary
  search-key order can be expensive.
• Worst case - each record access may fetch a new
  block from disk
• Thus, the number of tuples retrieved is an upper
  bound on the number of data blocks retrieved when
  scanning a secondary index for a range query.
• The same upper bound applies to a primary index,
  however in that case the upper bound is not
  tight (we will return to this in query
  optimization)

17
B-Tree Index Files

• B-tree indices are a type of multi-level index.
• Disadvantage of traditional sparse and dense
  index files
• Performance degrades as the index file grows,
  since many overflow blocks get created in the
  index file.
• Periodic reorganization of entire index file is
  required.
• Advantage of B-tree index files
• Automatically reorganizes itself with small,
  local, changes.
• Index reorganization is not required as
  frequently.

18
Example of a B-tree

• Disadvantage of B-trees - extra insertion,
  deletion and space overhead.
• Advantages of B-trees outweigh disadvantages,
  and they are used extensively.

B-tree for account file (n 3)
19
B-Tree Index Files (Cont.)
A B-tree is a rooted tree satisfying the
following properties

• All paths from root to leaf are of the same
  length
• Each node that is not a root or leaf must be at
  least half full
• Between ?n/2? and n children
• Between ?n/2? 1 and n 1 search key values.
• A leaf node has between ?n/2? 1 and n 1 search
  key values.
• Special cases
• If the root is not a leaf, it can have as few as
  2 children.
• If the root is a leaf (that is, there are no
  other nodes in the tree), it can have as few as 1
  value and no children.

20
B-Tree Node Structure

• Node structure (leaf or internal)
• Ki are the search-key values
• Pi are pointers to children (for non-leaf nodes)
  or pointers to records or buckets of records (for
  leaf nodes).
• The search-keys in a node are ordered
• K1 lt K2 lt K3 lt . . . lt Kn1

21
Leaf Nodes in B-Trees
Properties of a leaf node

• For i 1, 2, . . ., n1, pointer Pi either
  points to a file record with search-key value Ki,
  or to a bucket of pointers to file records, each
  record having search-key value Ki.
• Only need bucket structure if search-key does not
  form a primary key.
• If Li, Lj are leaf nodes and i lt j, Lis
  search-key values are less than Ljs search-key
  values
• Pn points to next leaf node in search-key order

22
Non-Leaf Nodes in B-Trees

• Non-leaf nodes form a multi-level sparse index on
  the leaf nodes.
• For a non-leaf node with n pointers
• All the search-keys in the subtree to which P1
  points are less than K1
• For 2 ? i ? n 1, all the search-keys in the
  subtree to which Pi points have values greater
  than or equal to Ki1 and less than Ki
• All the search-keys in the subtree to which Pn
  points are greater than Kn-1

23
Example of B-tree
B-tree for account file (n 5)

• Leaf nodes must have between 2 and 4 values
  (?n/2? 1 and n 1, with n 5).
• Non-leaf nodes other than root must have between
  3 and 5 children (?n/2? and n, with n 5).
• Non-leaf notes other than the root must have
  between 2 and 4 values.
• Root must have at least 2 children.

24
Observations about B-trees

• A B-tree contains a relatively small number of
  levels - logarithmic in the number of search keys
  appearing in the main file, thus searches can be
  conducted efficiently.
• Insertions and deletions to the index file can be
  handled efficiently, as the index can be
  restructured in logarithmic time (as we shall
  see).
• Each node is typically a disk block
• logically close blocks need not be physically
  close.

25
Queries on B-Trees

• Searching a B tree for a given search key value
  is a straight-forward generalization of searching
  a binary search tree.
• Find all records with a search-key value of k
  (see page 492)
• Start with the root node
• Examine the node for the smallest search-key
  value gt k.
• If such a value exists, call it is Kj, then
  follow Pj to the child node
• Otherwise k ? Km1, where there are m pointers in
  the node. Then follow Pm to the child node.
• If the node is not a leaf, repeat the above
  procedure on that node.
• Eventually reach a leaf node.
• If for some i, key Ki k, follow pointer Pi to
  the desired record or bucket.
• Otherwise no record with search-key value k
  exists.

26
Queries on B-Trees (Cont.)

• In processing a query, a path is traversed in the
  tree from the root to some leaf node.
• If there are K search-key values in the file, the
  path is no longer than ? log?n/2?(K)?.
• Since a node is generally the same size as a disk
  block, typically 4 kilobytes, n is typically
  around 100 (assuming 40 bytes per index entry).
• With 1 million search key values and n 100, at
  most log50(1,000,000) 4 nodes are accessed in
  a lookup.
• Contrast this with a balanced binary free with 1
  million search key values around 20 nodes,
  i.e., blocks, are accessed.

27
Updates on B-Trees Insertion

• Find the leaf node in which the search-key value
  would appear
• If the search-key value is already in the leaf
  node
• The record is added to data file, and
• If necessary a pointer is inserted into the
  bucket.
• If the search-key value is not in the leaf node
• Add the record to the data file, and
• Create a bucket if necessary.
• If there is room in the leaf node, insert the
  (key-value, pointer) pair.
• Otherwise, split the node as discussed in the
  next slide.

28
Updates on B-Trees Insertion (Cont.)

• Splitting a node
• Examine the n (search-key value, pointer) pairs
  (including the one being inserted) in sorted
  order.
• Place the first ?n/2? in the original node, and
  the rest in a new node.
• Let the new node be p, and let k be the least key
  value in p.
• Insert (k,p) in the parent of the node being
  split (recursively).
• If the parent is full, split it and propagate the
  split further up.
• Splitting nodes continues up the tree until a
  node is found that is not full.
• In the worst case the root node is split
  increasing the height of the tree.

29
Updates on B-Trees Insertion (Cont.)
B-Tree before and after insertion of Clearview
30
Updates on B-Trees Deletion

• Find the record to be deleted, and remove it from
  the data file and from the bucket (if present).
• Remove (search-key value, pointer) from the leaf
  node if there is no bucket or if the bucket has
  become empty
• If the node has too few entries, and the entries
  in the node and a sibling fit into a single node,
  then
• Insert all search-key values in the two nodes
  into a single node (the one on the left), and
  delete the other node.
• Delete the pair (Ki1, Pi), where Pi is the
  pointer to the deleted node, from its parent,
  recursively using the above procedure.

31
Updates on B-Trees Deletion

• Otherwise, if the node has too few entries, but
  the entries in the node and a sibling do not fit
  into a single node, then
• Redistribute the pointers between the node and a
  sibling so that both have more than the minimum
  number of entries.
• Update the corresponding search-key value in the
  parent node.
• Node deletions may cascade upwards until a node
  with ?n/2? or more pointers is found, or
  redistribution with a sibling occurs.
• If the root node has only one pointer after
  deletion, it is deleted and the sole child
  becomes the root.

32
Examples of B-Tree Deletion

• Before and after deleting Downtown
• Note that the removal of the leaf node containing
  Downtown did not result in its parent having
  too few pointers, so the deletions stopped.

33
Examples of B-Tree Deletion (Perryridge)
Should be Perryridge, based on the code.

• Node with Perryridge becomes underfull
  (actually empty, in this special case) and merged
  with its sibling.
• As a result the Perryridge nodes parent became
  under-full, and was merged with its sibling (and
  an entry was deleted from their parent).
• Root node then had only one child, and was
  deleted.

34
Example of B-tree Deletion (Perryridge)

• Parent of leaf containing Perryridge became
  under-full, and borrowed a pointer from its left
  sibling.
• Search-key value in the parents parent changes
  as a result.

35
B-Tree File Organization

• Index file degradation problem is solved by using
  B-Tree indices.
• Data file degradation is eliminated by using
  B-Tree File Organization.
• The leaf nodes in a B-tree file organization
  store the actual records.
• Since records are larger than pointers, the
  maximum number of records that can be stored in a
  leaf node is less than the number of pointers in
  a non-leaf node.
• Leaf nodes are still required to be half full.
• Insertion and deletion are handled in the same
  way as insertion and deletion of entries in a
  B-tree index.

36
B-Tree File Organization (Cont.)
Example of B-tree File Organization

• Good space management is needed since records use
  more space than pointers.
• To improve space utilization, involve more
  siblings in merge and split redistribution.
• Involving 2 siblings in redistribution (to avoid
  split / merge where possible) results in each
  node having at least entries

37
B-Tree Index Files

• A B-tree is similar to a B tree, but it only
  allows search-key values to appear only once.
• Search keys in non-leaf nodes appear nowhere else
  in the B-tree an additional pointer field for
  each search key in a non-leaf node is included.
• Generalized B-tree leaf node
• Non-leaf node pointers Bi are the bucket or file
  record pointers.

38
B-Tree Index File Example

• B-tree and corresponding B-tree on the same data

39
B-Tree Index Files, Cont.

• Advantages of B-Tree indices
• May use fewer tree nodes than a corresponding
  B-Tree.
• Sometimes possible to find search-key value
  before reaching leaf node.
• Disadvantages of B-Tree indices
• Only a small fraction of all search-key values
  are actually found early.
• Non-leaf nodes contain more data, so fan-out is
  reduced, and thus, B-Trees typically have greater
  depth than corresponding B-Tree.
• Insertion and deletion more complicated than in
  B-Trees.
• Implementation is harder than B-Trees.
• Typically, advantages of B-Trees do not out weigh
  disadvantages.

40
Static Hashing

• A bucket is a unit of storage containing one or
  more records.
• In the simplest and ideal case a bucket is a disk
  block.
• Every bucket has an address.
• A hash function h is a function from the set of
  all search-key values K to the set of all bucket
  addresses B.
• Typically quick and easy to compute.
• In a hash file organization we obtain the bucket
  of a record directly from its search-key value
  using a hash function.
• Used to locate, insert and delete records.
• Records with different search-key values are
  typically mapped to the same bucket.
• Thus an entire bucket has to be searched
  sequentially to locate a record.

41
Example of Hash File Organization

• Consider a hash file organization of the account
  table (next page)
• 10 buckets (more typically, this is a prime
  number)
• Search key is branch-name
• Typically a hash function performs a computation
  on the internal binary representation of the
  search-key.
• Example
• Let the binary representation of the ith
  character be integer i
• Return the sum of the binary representations of
  the characters modulo 10
• h(Mianus) is (1391142119) 77 mod 10 7
• h(Perryridge) 5
• h(Round Hill) 3
• h(Brighton) 3

42
Example of Hash File Organization
43
Hash Functions

• Ideal hash function is uniform - each bucket is
  assigned the same number of search-key values
  from the set of all possible search keys.
• Ideal hash function is random - on average each
  bucket will have the same number of records
  assigned to it irrespective of the actual
  distribution of search-key values in the file.
• Only possible if each search key value is in a
  small fraction of records.
• See the book for an example hash function that is
  uniform but not random.
• Worst case the hash function maps all
  search-key values to the same bucket this makes
  access time proportional to the number of
  search-key values in the file.
• Extensive research on hash functions has been
  done over the years.
• Other textbooks cover hash functions to a much
  greater degree.

44
Bucket Overflows

• Goal one block per bucket.
• Bucket overflow occurs when a bucket has been
  assigned more records than it has space for.
• Bucket overflow can occur because of
• Insufficient buckets - lots of records
• Skew in record distribution across buckets
• multiple records have same search-key value
• bad hash function (non-random distribution)
• non-prime number of buckets
• The probability of bucket overflow can be
  reduced, but not eliminated.
• Overflow is handled by using overflow buckets.

45
Handling of Bucket Overflows

• Overflow Chaining overflow blocks of a given
  bucket are a linked.
• This is called closed hashing.
• An alternative, called open hashing, which does
  not use overflow buckets, is not suitable for
  database applications.

46
Hash Indices

• Hashing can be used not only for file
  organization, but also for index-structure
  creation.
• A hash index organizes the search keys, with
  their associated record pointers, into a hash
  file structure.
• The term hash index is typically used to refer to
  both a separate hash-organized index structure
  and hash organized files.

47
Example of a Hash Index
Data blocks probably sorted on some attribute
other than account number

• Index blocks

48
Hash Indices, Cont.

• The book says that strictly speaking, hash
  indices are always secondary indices.
• This raises the following question
• Would a hash index make sense on an attribute on
  which the table is sorted?
• If so, then, by definition that index would be a
  primary index, thereby contradicting the above.
• Why the heck not?
• Perhaps the point the authors were trying to make
  is
• If data records are assigned to blocks using
  hashing, then the table is not sorted by the
  search key, so it cant be referred to as a
  primary index.

49
Deficiencies of Static Hashing

• In static hashing h maps search-key values to a
  fixed set of buckets.
• If initial number of buckets is too small,
  performance will degrade due to overflows as the
  database grows.
• If file size in the future is anticipated and the
  number of buckets allocated accordingly,
  significant amount of space will be wasted
  initially.
• If the database shrinks, again space will be
  wasted.
• One option is periodic re-organization of the
  file with a new hash function, but this can be
  expensive.
• These problems can be avoided by using techniques
  that allow the number of buckets to be modified
  dynamically.

50
Dynamic Hashing

• Good for databases that grow and shrink in size.
• The hash function and number of buckets change
  dynamically.
• Extendable hashing is one form of dynamic
  hashing.
• An extendable hash table has three parts
• Hash function
• Buckets
• Bucket address table

51
Dynamic Hashing Hash Function

• Hash function
• Generates values over a large range
• Typically b-bit integers, with b 32.
• At any time only a prefix of the hash function is
  used.
• The length of the prefix used is i bits, 0 ? i ?
  b.
• i is referred to as the global depth
• The value of i, will grow and shrink along with
  the hash table.
• i is used to index into the bucket address table

52
Dynamic HashingBucket Address Table

• Bucket address table contains 2i entries,
  initially i 0.
• Each entry contains a pointer to a bucket.
• Multiple entries in the bucket address table may
  point to the same bucket.
• Thus, actual number of buckets is lt 2i

53
Dynamic HashingBuckets

• As insertions and deletions take place buckets
  are merged and split.
• Each bucket has an associated value (address)
  called the local depth.
• The local depth is equal to the number of bits
  that distinguish values in the bucket from the
  values in all other buckets.
• Bucket chaining may still occur.

54
General Extendable Hash Structure
Global depth
Local depth

• Note that it is always the case that ij lt i

55
Use of Extendable Hash Structure

• Throughout the following
• i is the global depth
• ij is the local depth for bucket j.
• To locate the bucket containing search-key Kj
• 1. Compute h(Kj) X
• 2. Use the first i bits of X as a displacement
  into bucket address table, and follow the pointer
  to appropriate bucket
• To insert a record with search-key value Kj
• Follow the above procedure to locate the bucket,
  say j.
• If there is room in the bucket then insert the
  record.
• Otherwise split the bucket and re-attempt
  insertion (next slide).

56
Updates in Extendable Hash Structure
To split a bucket j when inserting record with
search-key value Kj

• If i gt ij (more than one pointer to bucket j)
• Allocate a new bucket z, and set ij and iz to ij
  1.
• Make the second half of the bucket address table
  entries currently pointing to j point to z.
• Remove and reinsert each record in bucket j.
• Re-compute the new bucket for Kj and insert the
  record in the bucket (further splitting is
  required if the bucket is still full)
• If i ij (only one pointer to bucket j)
• Increment i and double the size of the bucket
  address table.
• Replace each entry in the table by two entries
  pointing to the same bucket.
• Re-compute new bucket address table entry for
  KjNow i gt ij so use the first case above.

57
Updates in Extend. Hash Structure (Cont.)

• When inserting, if a bucket is still full after
  several splits create an overflow bucket instead
  of splitting the bucket further.
• To delete a record
• Locate the record and remove it from its bucket.
• The bucket itself can be removed if it becomes
  empty (with appropriate updates to the bucket
  address table).
• Buckets can be coalesced.
• Decreasing bucket address table size is also
  possible.
• Note
• Can only coalesce a bucket with a buddy bucket
  having same local depth (value of ij) and same ij
  1 prefix, if it is present.
• Decreasing bucket address table size might be an
  expensive operation and should only be done if
  the number of buckets becomes much smaller than
  the size of the table.

58
Use of Extend. Hash Structure (Example)
Initial Hash structure, bucket size 2
59
Example (Cont.)

• Hash structure after insertion of one Brighton
  and two Downtown records

60
Example (Cont.)
Hash structure after insertion of Mianus record
61
Example (Cont.)
Hash structure after insertion of three
Perryridge records
62
Example (Cont.)

• Hash structure after insertion of Redwood and
  Round Hill records

63
Extendable Hashing vs. Other Schemes

• Benefits of extendable hashing
• Hash performance does not degrade with file
  growth.
• Minimal space overhead.
• Disadvantages of extendable hashing
• Extra level of indirection to find desired
  record.
• Bucket address table may itself become larger
  than memory.
• Could impose a tree (or other) structure to
  locate an index entry.
• Changing the size of bucket address table can be
  an expensive operation.
• Linear hashing is an alternative mechanism which
  avoids these disadvantages at the possible cost
  of more bucket overflows.

64
Comparison of Ordered Indexing and Hashing

• What are the expected type of queries?
• Hashing is generally better for point queries.
• If range queries are common, ordered indices are
  preferred.
• Is it desirable to optimize average access time
  at the expense of worst-case access time?
• What is the cost and frequency of insertions and
  deletions?
• What is the cost and frequency of periodic
  re-organization?

65
Index Definition in SQL

• Creating an index
• create index ltindex-namegt on ltrelation-namegt
  (ltattribute-listgt)
• Example
• create index b-index on branch(branch-name)
• To drop an index
• drop index ltindex-namegt
• Indices can also be used enforce the condition
  that a search key is a candidate key
• create unique index

66
Multiple-Key Access

• Multiple indices can be used for certain queries
• select account-number
• from account
• where branch-name Perryridge and balance
  1000
• Possible strategies using single-attribute
  indices
• 1. Use index on branch-name to find accounts with
  branch-name Perryridge test balance 1000
  in memory.
• Use index on balance to find accounts with
  balances of 1000 test branch-name
  Perryridge in memory.
• Use three steps
• Use branch-name index to find pointers to all
  records pertaining to the Perryridge branch.
• Similarly use index on balance.
• Take intersection of both sets of pointers
  obtained.

67
Indices on Multiple Attributes

• An index can be created on more than one
  attribute.
• A key requirement for ordered indices is the
  ability to compare search keys for , lt and gt.
• Suppose a multi-attribute index is created on the
  attributes (branch-name, balance) in the branch
  relation.
• How do comparisons work?
• , lt, gt, etc.

68
Indices on Multiple Attributes, Cont.

• A multi-attribute index can support queries such
  as
• where branch-name Perryridge and balance
  1000
• Using separate indices is likely to be less
  efficient many records (or pointers) could be
  retrieved that satisfy only one of the
  conditions.
• The multi-attribute index is helpful for queries
  such as
• where branch-name Perryridge and balance lt
  1000
• The multi-attribute index is not helpful for
  queries such as
• where branch-name lt Perryridge and balance
  1000
• May fetch many records that satisfy the first
  but not the second condition.

69
Bitmap Indices

• Bitmap indices are a special type of index
  designed for efficient querying on multiple
  search keys.
• Not particularly useful for single attribute
  queries
• Typically used in data warehouses
• Applicable on attributes having a small number of
  distinct values
• Gender, country, state,
• Income-level (0-9999, 10000-19999, 20000-50000,
  50000-infinity)
• Bitmap assumptions
• Records in a relation are numbered sequentially
  from, say, 0
• Given a number n it must be easy to retrieve
  record n
• Particularly easy if records are of fixed size

70
Bitmap Indices (Cont.)

• A bitmap index on an attribute has a bitmap for
  each attribute value.
• A bitmap is simply an array of bits
• Bitmap has as many bits as there are records in
  the file.
• In a bitmap for value v, the bit for a record is
  1 if the record has the value v for the
  attribute, and is 0 otherwise

71
Bitmap Indices (Cont.)

• Queries on multiple bitmap-indexed attributes use
  bitmap operations
• Intersection (and) 100110 AND 110011 100010
• Union (or) 100110 OR 110011 110111
• Complementation (not) NOT 100110 011001
• Example - Retrieve records for males with income
  level L1
• 10010 AND 10100 10000
• Resulting bitmap is then used to retrieve
  satisfying tuples
• Counting the number of satisfying tuples is even
  faster

72
Bitmap Indices (Cont.)

• How big is a bitmap index?
• Bitmap indices are generally very small compared
  with relation size.
• Example
• number of records is n
• record size 100 bytes, i.e., 800 bits (somewhat
  conservative)
• total table size is n 800 bits
• bitmap size is n bits
• space for a single bitmap is 1/800 of space used
  by the relation.
• If the number of distinct attribute values is 8,
  then bitmap index is only 1 of relation size.
• Exercise (do the math) - What happens if each
  record is 32 bits and there are 64 distinct
  attribute values? Where is the cut-off point?

73
Bitmap Indices (Cont.)

• How does a bitmap change if a record is deleted?
• Could we simply put a 0 in all bitmaps for the
  record?
• No! Consider
• not(Av)
• An existence bitmap could be used to indicate if
  there is a valid record at a specific location
  for negation to work properly.
• (NOT bitmap-A-v) AND ExistenceBitmap
• Bitmaps need to be maintained for all values,
  including null
• To correctly handle SQL (3 value) null semantics
  for NOT(Av)
• Intersect the above result with (NOT
  bitmap-A-Null)

74
Efficient Implementation of Bitmap Operations

• Bitmaps are packed into words.
• A single word and operation (a basic CPU
  instruction) computes the and of 32 or 64 bits at
  once.
• The conjunction (and) of two bitmaps containing
  1-million-bits can be done with just 31,250
  instructions.
• Counting the number of 1s can be done fast by a
  trick
• Use each byte to index into a pre-computed array
  of 256 elements each storing the count of 1s in
  the binary representation.
• Add up retrieved counts
• Bitmaps can be used instead of Tuple-ID lists at
  leaf levels of B-trees, for values that have a
  large number of matching records
• If a tuple-id is 64-bits, then this saves space
  if gt 1/64 of the records have a specific value
  (as an exercise, do the math).
• This technique merges benefits of bitmap and
  B-tree indices..

75
End of Chapter
76
Partitioned Hashing

• Hash values are split into segments that depend
  on each attribute of the search-key.
• (A1, A2, . . . , An) for n attribute search-key
• Example n 2, for customer, search-key being
  (customer-street, customer-city)
• search-key value hash value (Main,
  Harrison) 101 111 (Main, Brooklyn) 101
  001 (Park, Palo Alto) 010 010 (Spring,
  Brooklyn) 001 001 (Alma, Palo Alto) 110 010
• To answer equality query on single attribute,
  need to look up multiple buckets. Similar in
  effect to grid files.

77
Grid Files

• A grid file is an index that supports multiple
  search-key queries involving one or more
  comparison operators.
• The grid file consists of
• a single n-dimensional grid array, where n is the
  number of search key attributes.
• n linear scales, one for each search-key
  attribute.
• Multiple cells of grid array can point to same
  bucket.

78
Example Grid File for account
79
Queries on a Grid File

• A grid file on two attributes A and B can handle
  queries of all following forms with reasonable
  efficiency
• (a1 ? A ? a2)
• (b1 ? B ? b2)
• (a1 ? A ? a2 ? b1 ? B ? b2)
• During insertion (Similar to extendable hashing,
  but on n dimensions)
• If a bucket becomes full then it can be split if
  more than one cell points to it.
• If only one cell points to the bucket, either an
  overflow bucket can be created or the grid size
  can be increased
• During deletion (Also similar to extendable
  hashing)
• If a bucket becomes empty, the bucket can be
  merged with other buckets
• Or the grid pointer can be set to null, etc.

80
Grid Files (Cont.)

• Linear scales must be chosen to uniformly
  distribute records across cells.
• Otherwise there will be too many overflow
  buckets.
• Periodic re-organization to increase grid size
  will help.
• But reorganization can be very expensive.
• Space overhead of grid array can be high.
• R-trees (Chapter 23) are an alternative
