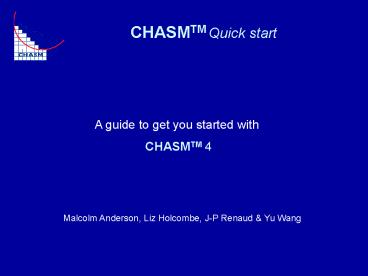

CHASMTM Quick start

1
CHASMTM Quick start
A guide to get you started with CHASMTM 4
Malcolm Anderson, Liz Holcombe, J-P Renaud Yu
Wang
2
CHASMTM Quick start
Welcome to CHASMTM 4 Quick start
3
CHASMTM Quick start

• CHASMTM 4 Quick start contains 4 basic steps
  which show you how to
• Create save the slope geometry file
• Update edit slope input files
• Run CHASMTM
• View output files

4
CHASMTM Quick start
Click on Graphics/Define in the hydrology
dialogue box .

• Geometry
• Stability Grid
• Water table
• Save file

5
CHASMTM Quick start
The define window will now open. Click Change
profile/Zoom to zoom in or out of the x and
y-axes metres according to the size of the
slope

• Geometry
• Stability Grid
• Water table
• Save file

6
CHASMTM Quick start
Position the mouse at the top left highest slope
position. To fix this point, click left mouse
button then drag the mouse right, to the required
point and left click again.

• Geometry
• Stability Grid
• Water table
• Save file

7
CHASMTM Quick start
Repeat this until the slope geometry is defined.
Click right mouse button to draw the vertical
line through the x-axis.

• Geometry
• Stability Grid
• Water table
• Save file

8
CHASMTM Quick start
Left click again at the bottom right location to
define the base of the slope and the intersect
with the y-axis

• Geometry
• Stability Grid
• Water table
• Save file

9
CHASMTM Quick start
Place the slip grid by clicking Stability/Slip
grid location.

• Geometry
• Stability Grid
• Water table
• Save file

10
CHASMTM Quick start
Click on the diagram to place the default grid.
Ideal placement should be towards the top right
of the defined slope...

• Geometry
• Stability Grid
• Water table
• Save file

11
CHASMTM Quick start
For computational purposes the initial radius
and radius increment should be changed so that
the slip circle intersects with the slope after
only a few searches. .use Define grid to
achieve this Similarly, the grid increment
should be changed for both the x and y axes until
the slip grid is approximately a quarter the size
of the defined slope

• Geometry
• Stability Grid
• Water table
• Save file

12
CHASMTM Quick start
To draw water table access Hydrology/Water table
option

• Geometry
• Stability Grid
• Water table
• Save file

13
CHASMTM Quick start
Draw water table by positioning mouse at left
hand edge and clicking the left mouse button.
Drag the cursor to next desired position and left
click to fix..

• Geometry
• Stability Grid
• Water table
• Save file

14
CHASMTM Quick start
Right click mouse to fix final point at right
hand side of profile. Note water table has to
reach the vertical side of right hand slope and
cannot intersect the actual slope surface

• Geometry
• Stability Grid
• Water table
• Save file

15
CHASMTM Quick start
At any stage in the Define window the last action
can be cancelled by clicking on Undo last.on
the toolbar. This will undo the last set of
clicks, for instance the entire water table, or
the whole slope outline

• Geometry
• Stability Grid
• Water table
• Save file

16
CHASMTM Quick start
The file created in the define window can be
saved go to File/Save as

• Geometry
• Stability Grid
• Water table
• Save file

17
CHASMTM Quick start
Clicking on Save as allows navigation through the
drive and save files

• Geometry
• Stability Grid
• Water table
• Save file

18
CHASMTM Quick start
The default extension for CHASM401 is .chr or
.CHR. It is advisable to keep this extension
otherwise CHASM401 might not find the saved file
at a later stage. The default save folder is
C\Program Files\CHASM4\Data Files on Windows XP.
CHASM might not find this folder and you will
have to navigate to it. CHASM401 is a 16 bit
application compatible with older versions of
Microsoft and filenames cannot have more than 8
characters plus the extension. The directory
file names might be truncated for instance
Program Files will be displayed as PROGRA1

• Geometry
• Stability Grid
• Water table
• Save file

19
CHASMTM Quick start
A wide range of slope and hydrology data can be
updated using the Update data .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

20
CHASMTM Quick start
This window allows changes to be made to
evaporation rate, surface detention capacity and
to achieve a visualisation of the configured
slope profile. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

21
CHASMTM Quick start
Edit slip search parameters by going to
Update values/Slip data. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

22
CHASMTM Quick start
In this window all the Bishop circular grid
search parameters can be edited. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

23
CHASMTM Quick start
To edit initial conditions go to Update
values/Initial conditions. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

24
CHASMTM Quick start
To define the surface pore pressure initial
condition, select Imposed pore pressure and enter
an appropriate value. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

25
CHASMTM Quick start
To define the surface pore pressure initial
condition defined by hydrostatic conditions above
the defined water table select Hydrostatic
conditions and enter an acceptable minimum soil
surface pore pressure .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

26
CHASMTM Quick start
To edit boundary conditions go to Update
values/Boundary conditions .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

27
CHASMTM Quick start
In this window the upslope recharge can be
defined, surface leakage flux can be imposed on
any column and the height of the water table
immediately downslope of the defined slope can be
specified. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

28
CHASMTM Quick start
To impose a set of surface leakage conditions
specify the desired columns using the dropdown
and enter the appropriate flux rate. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

29
CHASMTM Quick start
To edit storm characteristics go to Update
values/Storm. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

30
CHASMTM Quick start
To set the same rainfall throughout the entire
storm period, set the storm start and stop times
to 0, enter the hourly rainfall and then enter
the storm stop time. .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

31
CHASMTM Quick start
To edit soil characteristics go to Update/Soil
properties make appropriate changes to both the
soil physics and geotechnical properties.

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

32
CHASMTM Quick start
To edit vegetation characteristics go to Update/
Vegetation.

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

33
CHASMTM Quick start
.select Using vegetation model..

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

34
CHASMTM Quick start
then select the desired column for the
vegetation..

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

35
CHASMTM Quick start
..then select desired vegetation depth..

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

36
CHASMTM Quick start
..then select desired vegetation species..

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

37
CHASMTM Quick start
..then change the storm time to check vegetation
effect..

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

38
CHASMTM Quick start
To confirm the slope locations where vegetation
has been selected return to the hydrology summary
window .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

39
CHASMTM Quick start
and tick vegetation. The columns will be
highlighted and the vegetation depth displayed .

• Hydrology
• Slip data
• Initial conditions
• Boundary conditions
• Storm
• Soil properties
• Vegetation

40
CHASMTM Quick start
You are now ready to RUN CHASMTM
41
CHASMTM Quick start
Run CHASM by selecting Analyse/Run Model
42
CHASMTM Quick start
the main output window will appear showing
factor of safety slip search data, mass of
material above the slip surface and landslide
runout distance .
43
CHASMTM Quick start
.the simulation ends with a confirmed End of
simulation
44
CHASMTM Quick start
Now exit the output window by selecting File/Exit
45
CHASMTM Quick start
To view graphical pore pressure output go to
Graphics/Hydrology.
46
CHASMTM Quick start
Scroll through simulation to view changes in pore
pressure..point and click to cell of interest,
or enter column and cell number
47
CHASMTM Quick start
.Illustration of another cell at a different
time step..
48
CHASMTM Quick start
To view critical slip surface output go to
Graphics/Cross section
49
CHASMTM Quick start
Scroll through simulation to view critical slip
surface at each hour

50
CHASMTM Quick start
To view runout prediction go to
Graphics/Runout

51
CHASMTM Quick start
To view gravitational acceleration required to
induce instability go to Graphics/Seismicity
52
CHASMTM Quick start
A new file can be created having completed a
simulation. File/New resets all data to deafult
values. This means that you will need to redraw a
slope after clicking New
53
CHASMTM Quick start
To open an existing file that has been previously
saved click on File/Open
54
CHASMTM Quick start
the main Hydrology summary window will then
appear based on that file data. NOTE it is NOT
possible to return to the Define windowdoing
so will erase all information and a new
simulation will have toi be created
55
CHASMTM Quick start
Adding additional features within the define
window Reinforcement can be added by going to
Reinforcemnet/Geotextile in the Define window

• Reinforcement
• Soil strata

56
CHASMTM Quick start
To draw a geotextile position the cursor on the
slope, left click, move cursor to desired within
slope position to end geotextile left click and
right click to end.

• Reinforcement
• Soil strata

57
CHASMTM Quick start
To add soil strata go to Slope properties/Add
soil strata

• Reinforcement
• Soil strata

58
CHASMTM Quick start
left clicks draw the strata, right click to
finish in exactly the same manner as configuring
the water table NOTE soil strata cannot
intersect and soil lenses cannot be defined this
way

• Reinforcement
• Soil strata

59
CHASMTM Quick start
Now the slip search grid can be added
60
CHASMTM Quick start
and returning to the Hydrology summary window
will show there are two soils present
61
CHASMTM Quick start
..values can now be updated once again. So for
example go to Update values/Reinforcement
62
CHASMTM Quick start
.in the Reinforcement window the strength and
related reinforcement parameters can be edited.
63
CHASMTM Quick start
..by entering the appropriate values in the
designated boxes within the window
64
CHASMTM Quick start
..in the same window, reinforcement can be ticked
off if it is desired toi run a simulation
without incorporating the effect of reinforcement
65
CHASMTM Quick start
To change a soil type associated with a
particular cell in the Hydrology summary window,
click on the desired\cell. The cell will be
highlighted in yellow. The click on the change
soil icon
And select the relevant soil
66
CHASMTM Quick start
now select the relevant soil..in this case soil
1 NOTE this is a useful way of defining soil
lenses that cannot be drawn in the Define window
67
CHASMTM Quick start
Click to return to the hydrology
window..
68
CHASMTM Quick start
.and enter the desired simulation runtime NOTE
depending on memory characteristics the maximum
runtime may be of the order of 200 hours.
69
CHASMTM Quick start
The storm duration can be changed in the same
window, by changing the figure entered in the
storm stop time box
70
CHASMTM Quick start
and the hourly rainfall values for the storm can
be edited by use of the drop down for Storm hour
, and entering the appropriate value of
precipitation in the Precipitation box
71
CHASMTM Quick start
Icon summary
Hydrology summary
New simulation
Open Chasm data fiel
Soil properties
Vegetation
Save Chasm data file
72
CHASMTM Quick start
Initial conditions
Rainfall data
Bishop slip search
Boundary conditions
73
CHASMTM Quick start
Reinforcement
Run simulation
Quit
Results
Static analysis
74
CHASMTM Quick start
Cancel
Vegetation
Help
Storm event
Boundary conditions
Change soil
75
CHASMTM Quick start
Help pull down menu
NOTE the Help menu is currently under construction
