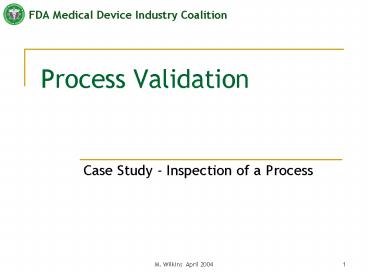

Process Validation

1
Process Validation

• Case Study - Inspection of a Process

2
Objectives

• Overview of Regulation
• FDA 483 Trends specific to Process Validation
• Inspection Process

3
Process Validation

• 820.3(z) Validation
• Means confirmation by examination and provision
  of objective evidence that the particular
  requirements for a specific intended use can be
  consistently fulfilled

4
Process Validation

• 820.3(z)(1) Process Validation
• Means establishing by objective evidence that a
  process consistently produces a result or product
  meeting its predetermined specifications

5
Process Validation

• 820.75(a)
• Where the results of a process cannot be fully
  verified by subsequent inspection and test, the
  process shall be validated with a high degree of
  assurance and approved according to established
  procedures

6
When is 820.75(a) Applicable?

• The initial validation of a process
• Destructive testing is required to demonstrate
  the manufacturing process produced product
  meeting specifications
• All quality attributes of a device cannot be
  analyzed by routine testing

7
Question

• If you have a process validation in place, does
  this mean you cannot be cited for an observation
  under 820.75(a)?

8
Process Validation

• 820.75(b)
• Each manufacturer shall establish and maintain
  procedures for monitoring and control of process
  parameters for validated processes to ensure that
  the specified requirements continue to be met

9
Process Validation

• 820.75(b)(2)
• For validated processes, the monitoring and
  control methods and data, the date performed,
  and, where appropriate, the individual(s)
  performing the process or the major equipment
  used shall be documented

10
When is 820.75(b) Applicable?

• Applies to the performance of a process after the
  process has been validated
• Routine monitoring
• Manufacturer uses multiple manufacturing lines or
  equipment to produce the product

11
Question

• Must a manufacturer continuously monitor a
  validated process?

12
Preamble Comment 145

• Monitoring can be accomplished at a determined
  interval and frequency
• The interval and frequency should be periodically
  evaluated for adequacy, especially during any
  evaluation or revalidation that occurs in
  accordance with the requirements under 820.75(c)

13
Process Validation

• 820.75(c)
• When changes or process deviations occur, the
  manufacturer shall review and evaluate the
  process and perform revalidation where appropriate

14
When is 820.75(c) Applicable?

• Process changes
• Equipment changes
• Product (design) changes
• Process deviations

15
Question

• Do the requirements under 820.70 (Production and
  process controls) apply to a validated process?

16
Preamble Comment 125

• 820.70(b), Production and process changes,
  addresses the requirement for production and
  process changes to be verified or where
  appropriate validated according to 820.75
• The agency notes that whenever changes may
  influence a validated process, the process must
  be revalidated as described in 820.75

17
Preamble Comment 4

• The regulation is less prescriptive and gives the
  manufacturer the flexibility to determine the
  controls that are necessary commensurate with
  risk
• The burden is on the manufacturer, however, to
  describe the types and degree of controls and how
  those controls were decided upon

18
Question

• What type of processes require validation?
• Do these processes require validation?
• Bonding
• Cutting
• Dipping
• Test Methods
• Cleaning
• Assembly

19
Process Changes

• When do changes to a process require
  re-validation?
• Changes to the process could impact or influence
  the device
• Specifications
• Performance
• Functionality
• Chemical Properties
• Physical Properties

20
FDA-483 Trends

• Process Validation Observations 352

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Process Validation Observations

• 21 CFR 820.75(a) 175
• General
• A process whose results cannot be fully verified
  by subsequent inspection and test has not been
  adequately fully validated and approved
  according to established procedures

25
Process Validation Observations

• 21 CFR 820.75(a) 88
• Documentation - general
• Process validation activities and results have
  not been fully documented

26
Process Validation Observations

• 21 CFR 820.75(b) 40
• Monitoring and control
• Procedures were not established defined
  documented complete implemented for
  monitoring and control of process parameters for
  validated processes

27
Process Validation Observations

• 21 CFR 820.75(b)(2) 16
• Documentation of validated process performance
• There is no documentation of monitoring and
  control methods and data the major equipment
  used for a validated process

28
Process Validation Observations

• 21 CFR 820.75(c) 13
• Documentation review in response to changes
• There is no documentation of the review and
  evaluation of a process revalidation of a
  process conducted in response to changes or
  process deviations

29
Process Validation Observations

• 21 CFR 820.75(c) 11
• Process changes review, evaluation and
  revalidation
• A validated process was not reviewed and
  evaluated revalidated when changes or process
  deviations occurred

30
Process Validation Observations

• 21 CFR 820.75(a) 6
• Documentation specific items
• Documentation of process validation activities
  and results does not include the date and
  signature of the individuals approving the
  validation the major equipment validated

31
Process Validation Observations

• 21 CFR 820.75(b)(1) 3
• Performed by qualified individual
• A validated process was not performed by a
  qualified individual

32
Process Validation Observations

• 21 CFR 820.70(b) 120
• Changes to a specification method process
  procedure were not verified or validated
• Procedures for changes to specification
  methods processes were not established
  defined documented complete implemented
• Established procedures were not followed in
  making changes to specifications methods
  processes procedures
• Changes were not documented followed

33
Process Validation

• Case Study Inspection of a Packaging Process

34
Packaging Process Validation

• The package of a sterile medical device serves to
  protect the product and maintain sterility of the
  product until the package is opened by the user
• Why validate the packaging process?
• Maintain package integrity
• Assure the integrity of the seal
• Maintain microbial barrier

35
Inspection Process

• The packaging materials ability to be sterilized
  and maintain its sterility is determined by
• Material selection
• Package design
• Process development
• Procedures
• Packaging process validation
• Package testing

36
Inspection Process

• Indicators from other subsystems may guide the
  investigator to cover the packaging process under
  the PPC subsystem.

37
Management Controls Subsystem

• Management controls over the sterile device
  packaging development and operations
• Quality audits
• Employee training
• Adequate resources
• Knowledge of the nature of the product/package
  and its limitations during sterilization,
  handling, and storage
• Quality System Procedures

38
Design Control Subsystem

• Materials selected must
• Compatible with the product, manufacturing
  method, and sterilization method
• Maintain product sterility until time of use
• Provide product protection
• Consider biocompatibility for the intended use

39
Package Materials and Design

• Requirements to consider
• Permeability
• Microbial barrier properties
• Formation of toxins during processing
• Interaction between products and package
  materials
• Chemical properties pH value, chloride and
  sulfate content
• Labeling of package

40
Package Materials Design

• Requirements to consider
• Physical properties tensile strength, thickness
  variation, tear variation, burst strength
• Adhesive, coated materials coating patterns,
  minimum specified seal strength

41
Design Control Subsystem

• Design control requirements for the development
  of physical specifications of the packaging
  materials
• Physical requirements
• Dimensions
• Tolerances
• Description of raw materials, components
• Thickness
• Coatings required
• Graphic treatment
• Colors, type of ink, type of printing process

42
Design Control Subsystem

• Design control requirements for the development
  of performance specifications of the packaging
  materials
• Performance requirements
• Porosity
• Bursting strength
• Seal strength
• Peel strength
• Tensile and elongation properties
• Permeability to gases and moisture

43
Corrective Preventive Actions (CAPA) Indicators

• Complaints
• Open packages
• Poor seal
• Tears
• Loss of sterility
• Infections
• Foreign objects

44
CAPA Indicators

• Medical Device Reports
• Toxins formed during processing
• Infections
• Recalls-Packaging Problems/Loss of Sterility
• Holes in packaging
• Unknown/unspecified packaging complaints
• Seams or seals
• Design or process
• Packaging/labeling mix-ups

45
CAPA Indicators

• Returned Goods Authorization
• Open package
• Poor seals
• Tears
• Non-conformances
• In-process failures
• Receiving inspection non-conformances
• Finished testing non-conformances

46
Inspection Process - PPC

• Review the procedures
• Methods for controlling and monitoring the
  packaging process
• Review device history records
• Non-conformances
• Review of process or material changes
• Training records

47
Inspection Process

• Purchasing controls
• Supplier evaluation and approval
• Material specifications/changes
• Packaging process validation
• Installation Qualification
• Operational Qualification
• Performance Qualification

48
Validation Deficiencies

• Lack of operational qualification data to support
  the parameters/ranges used in the process
• Failure to define the process parameters prior to
  the performance of the qualification runs
• Sampling sizes not based on statistical rationale

49
Validation Deficiencies

• Failure to demonstrate consistent results over
  time through successful runs
• Failure to validate test methods
• Failure to perform shipping or environmental
  stress testing
• Failure to include product in package seal
  testing
• Lack of data to demonstrate reproducibility

50
Packaging Process Deficiencies

• Lack of written procedures for the inspection of
  incoming packaging materials
• Failure to establish sealing parameters
• Failure to perform finished product seal
  integrity testing
• Samples collected for testing are not
  representative of the packaging run

51
Packaging Process Deficiencies

• Failure to document results and maintain records
  of the packaging inspections
• Failure to maintain and/or calibrate equipment
• Failure to monitor the temperature, pressure, and
  dwell time for the heat sealers

52
Packaging Process Deficiencies

• Lack of a supplier evaluation/qualification
• Failure to monitor or control the product
  received from suppliers
• Failure to establish or reference the specified
  requirements

53
Questions
