Annex

1

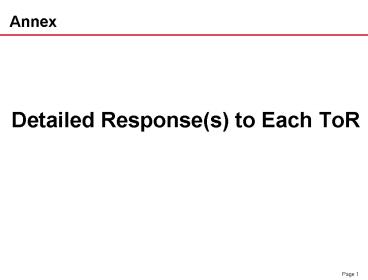

Annex

• Detailed Response(s) to Each ToR

2
SGSN ToR

• Review the current definitions, visions and
  requirements for target applications of Sensor
  Networks within JTC1 and outside JTC1 in
  connection with different application areas (e.g.
  home, medical informatics, transport informatics,
  industrial communications, RFID etc) as well as
  JTC 1 SCs roles in these application areas
• Review and identify
• 2.1 the unique characteristics of Sensor Networks
  and the commonalities and differences with other
  networks
• 2.2 the system architectures of Sensor Networks
  in terms of functionalities
• 2.3 the entities that together comprise Sensor
  Networks and their characteristics
• 2.4 existing protocols that can be used for
  Sensor Networks and the elements of protocols
  that are unique to Sensor Networks
• 2.5 the scope of infrastructure that can be
  considered to be a Sensor Network
• 2.6 the types of data that need to be handled
  (acquired, processed, transported, stored,
  rendered etc) by Sensor Networks and any specific
  QoS attributes required by those categories
• 2.7 the interfaces that need to be supported by
  Sensor Networks
• 2.8 the services that need to be supported by
  Sensor Networks
• 2.9 aspects such as security, privacy,
  identification that may be relevant to specific
  Sensor Networks
• Monitor other activities in international
  standardisation bodies and consortia and fora
  where specifications related to Sensor Networks
  are being developed.
• Produce a report covering 1) and 2) above and
  information on other relevant standardisation
  activities
• In the light of published SC scopes and work
  programmes and the results of 1) to 3) recommend
  potential areas of work to JTC 1 and appropriate
  SCs to ensure that all necessary aspects of
  Sensor Networks within the scope of JTC 1 are
  standardised.
• Recommend how the work on Sensor Networks can be
  efficiently coordinated in JTC 1.
• Hold workshops to gather requirements or
  publicise the results.
• Meetings of the group may be physical or via
  electronic means.

3
SGSN ToR 1

• ToR 1 was intensively studied except detailing
  the JTC 1 SCs role in these Sensor Networks
  application areas.
• Market segments and application areas are
  identified (TD Section 4).
• 19 market segments and 86 application areas are
  identified.
• 11 application areas are discussed in detail
  including their top level architectures and
  requirements.
• The current definitions are revisited and
  updated vision and mission statements is
  composed (TD Section 2).
• Scope is also described (TD Section 3).
• Requirements for the 11 applications are recorded
  (TD Section 4).
• Generic sensor network requirements are
  identified (TD Section 5.2)
• Additional detailed inputs from industry experts
  in other sensor network application areas will be
  requested in 2009.
• Inputs from SCs in their potential roles in the
  sensor network application areas will also be
  requested in 2009.

4
ToR 2 Review and Identify

• ToR 2.1 Characteristics, Commonalities, and
  Differences
• Unique sensor network characteristics are
  captured (TD Section 5.1).
• End-user service models depend on end users and
  change dynamically according to user
  requirements.
• Different sensor network applications inter-work
  each other, forming a multi-domain communication
  relationship.
• End users of sensor network applications and
  services could be arbitrary users as well as
  dedicated users.
• Wired/wireless sensor networks are the extension
  of Internet towards the physical environment.
• Main objective of a sensor network implementation
  is to gather and pre-process sensor data.
• For many wired/wireless sensor network
  applications, sensor data has to be associated
  with sensors location data.
• In most cases, the nodes have to work
  collaboratively in order to solve complex sensing
  problems.
• The nodes have to communicate with each other
  without an existing communication infrastructure.
• Computing has to be resource-aware due to the
  limited resources within the wireless sensor
  network.
• Topology has to adapt to availability of
  communication, to changing positions, energy
  levels and roles of nodes.
• Wireless sensor network has to work for a long
  time without maintenance.
• Sensor networks are application-oriented/focused
  networks ultimately for human users.
• Above unique characteristics are derived from the
  commonalities and differences identified from the
  applications studied (TD Section 4) thus the
  commonalities and differences are implicitly
  included in the unique characteristics.
• Details of the commonalities and differences will
  additionally identified when the sensor networks
  system/reference architecture study is completed
  in 2009.

5
ToR 2 Review and Identify (continued)

• ToR 2.2 System architectures in terms of
  functionalities
• Each of the 11 applications described in detail
  include its hardware and software systems
  architectures (TD Section 4.2).
• System architectures in general are introduced
  (TD Section 6.1)
• Reference/systems Architecture development
  procedure is described (TD Section 6.2)
• Sensor networks reference architecture (SNRA) has
  been developed and described (TD Section 6.3)
• The SNRA, which describes generic
  applications/services, is the representation of
  the functionality, activities, and roles of
  sensor nodes and gateway systems in terms of
  operation layer and functional and interoperation
  interfaces.
• High-level operational SNRA graphics, node
  connectivity diagrams, system description and
  architecture, services functionality in terms
  of network layers, operational layer view for
  functional elements (applications and services),
  service access points, and interfaces and
  relevant data types are developed and described.
• Additional SGSN work is to be carried out to
  complete the SNRA and system architecture in 2009.

6
ToR 2 Review and Identify (continued)

• ToR 2.3 Entities that comprise sensor networks
  (SN) and characteristics
• Sensor network entities are introduced while
  discussing the definitions (TD Sections 2.3 and
  2.4)
• Hardware entities
• Sensor, actuator, sensor node, and sensor network
  gateway
• Soft entities
• Sensor networks services, sensor network
  applications and user services
• Application-specific entities
• Device management entity
• Application-specific entities and/or
  structure/topology are also described in sensor
  network applications (TD Section 4.2).
• Information about the entities is also found in
  the sensor network reference architecture (TD
  Section 6.3)

7
ToR 2 Review and Identify (continued)

• ToR 2.4 Existing protocols that can be used for
  SN and the element of protocols unique to SN
• Protocol related discussions appear numerous
  places in the TD. They are summarized below.
• Existing Protocols
• PHY, MAC, DLL, NWK protocols
• PHY protocols-Wired RS-232, RS-422, RS-423,
  RS-485, PLC, HFC, CAN etc.
• PHY protocols-Wireless IEEE802.15.3,
  IEEE802.15.4 (ZigBee protocol stack), Bluetooth,
  Binary CDMA, WLAN, etc.
• MAC protocols CSMA/CA, Dynamic TDMA, S-MAC, etc.
• Analog/digital sensor interface protocols
• 4-20mA, 0-5V, SPI, RS-232, IEEE1451.x, OGC Sensor
  Web, etc.
• Routing
• ZigBees AODV, IETF 6LoWPAN, IETF ROLL, etc.
• Security route protocols DSDV, DSR, and SEAD
• Protocols specific to data transmission of
• Node-to-node data unit IP, ZigBee network layer
• End-to-end unit TCP, UDP, ZigBee application
  layer
• Network management
• SNMP, ZigBee network layer management
• Unique elements
• Unique sensor network characteristics defined in
  ToR 2.1 can be

8
ToR 2 Review and Identify (continued)

• ToR 2.5 Scope of infrastructure considered to
  be a SN
• The scope of sensor networks are discussed (TD
  Section 3 Figure 3-1) from the interface
  perspectives
• Wired/wireless interface between node of sensor
  network
• Interface between sensor network and the rest of
  the world (application domain)
• Interface between the service layer and node
  hardware sensors
• Interface between service layer and the
  application modules on the sensor node
• Infrastructure of SN is also revealed in the SN
  applications (TD Section 4.2)
• Collaboration with other SDOs will be established
  in 2009.

SGSN TDs Figure 3-1. Primary interface and
components for the scope of SN standardization
9
ToR 2 Review and Identify (continued)

• ToR 2.6 Types of data and specific QoS
  attributes
• The types of data is weakly addressed (TD
  Sections 6.3.3 and 7.6)
• QoS is also weakly discussed (TD Section 7.13)
• Additional study and information collection will
  be performed in 2009
• Collaborate with appropriate JTC 1 SCs (e.g., SC
  6) and SDOs (e.g., ITU-T SG 16).
• Solicit contributions from industry experts.

10
ToR 2 Review and Identify (continued)

• ToR 2.7 Interfaces that need to be supported by
  SN
• The interfaces are discussed under the scope of
  SN (TD Section 3), refer to ToR 2.5.
• Various sensor network interfaces and interface
  issues are introduced and discussed in SN
  reference architecture (TD Section 6).
• Detailed description of SN interfaces at various
  hierarchical levels will be discussed and
  developed in 2009 while developing SN reference
  and system architecture.

11
ToR 2 Review and Identify (continued)

• ToR 2.8 Services that need to be supported by
  SN
• Services supported by SN are listed under
  Functional Requirements with their descriptions
  (TD Section 5.2.2)
• Long range communication service Short range
  communication service Clustering service
  Routing service Installation service Security
  service Data storage service Collaborative
  processing service Control service Linkage
  service Orientation detection service
  Self-localization service Monitoring service for
  communication links General sending service
  Time synchronization service Identification
  service Data entry service Indication service
  Display service Sensor interface service
  Identification service High data rate
  communication service Low data rate
  communication service.
• End-user services supported by SN are listed in
  Application Areas categorized by the market
  segments, and each segment has numerous
  application areas providing end-user services (TD
  Section 4.1)
• Market segments are Logistics and supply chain
  management Energy utility distribution
  industry Automation, monitoring, and control of
  industrial production processes Health care and
  medical applications Civil protection and public
  safety Learning, education, and training
  Automation and control of commercial building and
  smart homes Automation and control of
  agricultural process Intelligent transportation
  and traffic Environment observation,
  forecasting, protection Facility management
  Asset management Defense and military
  applications Homeland security Retail
  applications, Active tags and mobile RFID Ship
  airline monitoring and control Space exploration.

12
ToR 2 Review and Identify (continued)

• ToR 2.9 Security, privacy, identification
  relevant to specific SN
• SGSN recognizes the security and privacy are very
  important to sensor networks.
• Security is listed as one of the system
  requirements (TD Section 5.2.1)
• Security management is also listed in Service
  Layer under architecture (TD Section 6.3.2.2)
• Authentication Authorization Encryption
  Privacy protection Key management Security
  routing mechanism.
• Security of SN application and services are also
  discussed under proposed standardization areas
  (TD Section 7.15)
• SGSN is aware of the activities in other JTC 1
  SCs in security/privacy related areas, e.g., SC
  27 (standardization of IT security, etc.) and SC
  37 (standardization of biometrics).
• Increased technical exchanges are expected with
  SCs and SDOs in 2009 on the subject of security,
  privacy and identification.

13
ToR 3 Monitor Other Activities

• SGSN in 2008 collected information from the
  knowledge of individuals (via e-mail discussion),
  documents from JTC 1 SCs, contributions and open
  literatures on other activities in international
  SDOs, consortia and fora.
• The collected information is documented in the
  SGSN TD Section 8.1.
• JTC 1, ISO TC 204, IEC 62026, ITU-T (SG 13, 16,
  17, JCA-NID)
• IEEE 802.15, ZigBee Alliance, IETF, OGC etc.
• For 2009, SGSN requests that JTC 1 SCs and SDOs
  to appoint a representative or a liaison officer
  to SGSN in order to have a better communication
  and information exchange.
• In 2008, SGSN used bulk e-mail to solicit and
  request for information however, this method has
  turned out to be ineffective.
• With a dedicated/appointed individual from the
  organizations, the communication between SGSN and
  SCs/SDOs is expected to improve.

14
ToR 4 Produce a Reporting for ToR 1 2

• The SGSN Technical Document (TD) Version 1 has
  been produced and sent to JTC 1.
• SGSN-N049.pdf (JTC 1 N9359)
• JTC 1 N9359

15
ToR 5 Recommend the Potential Work Areas with
Appropriate SCs

• The potential SN standardization work areas have
  been identified and the appropriate SCs are
  mapped to the work areas as shown in the table.
• This table is also shown in TD Sections 8.2 and
  8.3.

16
ToR 6 Recommend the Coordination in JTC 1 for
SN Standardization Work

• In the TDs Section 8.4, SGSN recommends four
  different options for SN standardization
  coordination within JTC 1. They are
• Let the existing SCs handle the existing work
  items as per their scope
• Creation of a new WG in a leading SC
• Foundation for a new SC
• Transform SGSN to a SN Special Working Group
  under JTC 1 to coordinate the SN standardization
  activities with JTC 1 SCs, SDOs, consortia, fora
  and industry, and also to handle standardization
  of SN need areas that no SC has the work scope.

17
ToR 7 Hold Workshops to Gather Requirements or
Publicize the Results

• SGSN Workshop was held in conjunction with the
  first SGSN meeting, in Shanghai, China, 25 June
  2008.
• Workshop Contributors, June 25, 2008
• Workshop was open to all interested individuals
  and parties.
• Approximately 120 people attended to hear 11
  presentations by the SGSN members.
• Session I Perspective on Sensor Networks
  (Chaired by Dr. Tao Xing)
• Perspective on sensor networks in Germany, Dr.
  Alexander Pflaum (Germany)
• Perspective on sensor networks in China, Dr. Tao
  Xing Dr. Wu Wenquan (China)
• Perspective on IP-Based Sensor Network in Korea,
  Mr. Jaeho Lee (Korea)
• Vision on mobile wireless sensor networks, Dr.
  Jian Ma (China)
• Session II Standardization Issues for SNs
  (Chaired by Dr. Howard Choe)
• Standardization Issues for Sensor Networks, Dr.
  Ho-in Jeon (Korea)
• Applications and Requirements of Convergence of
  WSN and Cellular Network, Dr. Zhou Meng (China)
• Sensor Networks from Systems Architecture
  Perspective, Dr. Howard Choe (JTC 1/SC 36)
• Discussion about Networked Sensor Interface, Dr.
  Wu Zhongcheng (China)
• Security principle and solution for WSN, Dr. Wang
  Hao (China)
• Session III Standardization Activities on SNs
  (Chaired by Dr. Ho-In Jeon)
• Standardization Activities on Sensor Networks of
  JTC 1/SC 6 and other SDOs, Mr. YongWoon Kim -
  (JTC 1/SC 6)
• IEEE 1451 Smart Sensor Networks and Standards,
  Dr. Kang Lee (IEEE 1451)

18
ToR 8 Meeting of the Group

• Prior to the 1st SGSN Meeting, Shanghai, China,
  e-Mail discussions on ToR 1, 2, and 3 were
  carried out by the Ad-Hoc discussion leads
• Ad-hoc Group 1 (led by Dr. Tao Xing) Ad-hoc
  Group 1 activity was for ToR 1 and based on
  contributions (SGSN N008, N009 and N010). His
  summary is contained in SGSN N032.
• Ad-hoc Group 2 (led by Dr. Howard Choe) Ad-hoc
  group 2 activity was for ToR 2 and based on
  contributions (SGSN N008, N011, N012 and N013).
  His Summary in contained in SGSN N033.
• Ad-hoc Group 3 (led by Prof. Ho-in Jeon) Ad-hoc
  group 3 activity was for ToR 3 and based on
  contributions (SGSN N014, N015, N016 and N017).
  His summary is in contained in SGSN N034.
• The e-mail ad-hoc group discussion was open not
  only to the SGSN members but also to the experts
  outside of SGSN members.

19
ToR 8 Meeting of the Group (continued)

• The 1st SGSN Meeting, Shanghai, China, 26-27 June
  2008
• 53 Participants from 5 National Bodies (NB) s and
  4 Liaison Organizations (LOs)
• National Bodies
• China, Germany, Japan, Korea, and UK
• Liaison Organizations
• JTC 1/SC 6, JTC1/SC 36, IEC TC 100, and IEEE
• The Purposes/Accomplishments of the Meeting
• Produced the design specification of SGSN
  Technical Document (TD) for JTC 1 reporting.
• Produced a draft TD answering the ToR following
  the TD design specification (table of contents).
• Approved three resolutions regarding TD and SGSN
  work plan
• Refer to the 1st SGSN meeting report in JTC 1
  N9169.

20
ToR 8 Meeting of the Group (continued)

• The 2nd SGSN Meeting, Nuremburg, Germany, 15-19
  September 2008.
• 17 participants from 5 National Bodies (NBs) and
  2 Liaison Organizations (Los)
• NBs
• China, Germany, Japan, Korea, and Norway
• LOs
• JTC 1/SC 6 and JTC 1/SC 36
• The Purposes/Accomplishments of the Meeting
• Produced the Version 1 of SGSN Technical Document
  (TD) for submission to JTC 1.
• Approved four resolutions for further study.
• Refer to the 2nd SGSN meeting report in JTC 1
  N9277.
