Meshless parameterization and surface reconstruction

1

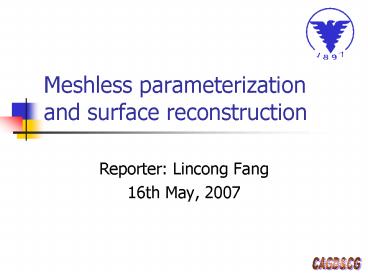

Meshless parameterization and surface
reconstruction

• Reporter Lincong Fang
• 16th May, 2007

2
Parameterization

• Problem Given a surface S in R3, find a
  one-to-one function f D-gt R3, D R2, such
  that the image of D is S.

D
f
S
3
Surface Reconstruction

• Problem Given a set of unorganized points,
  approximate the underlying surface.

4
Related Works

• Surface reconstruction
• Delaunay / Voronoi based
• Implicit methods
• Provable
• Parameterization for organized point set

f
5
Mesh Parameterization

• There are many papers

6
Meshless Parameterization
f
7
Papers

• Meshless parameterization and surface
  reconstruction
• Michael S. Floater, Martin Reimers, CAGD 2001
• Meshless parameterization and B-spline surface
  approximation
• Michael S. Floater, in The Mathematics of
  Surfaces IX, Springer-Verlag (2000)
• Efficient Triangulation of point clouds using
  floater parameterization
• Tim Volodine, Dirk Roose, Denis Vanderstraeten,
  Proc. of the Eighth SIAM Conference on Geometric
  Design and Computing
• Triangulating point clouds with spherical
  topology
• Kai Hormann, Martin Reimers, Proceedings of.
  Curve and Surface Design, 2002
• Meshing point clouds using spherical
  parameterization
• M. Zwicker, C. Gotsman, Eurographics 2004
• Meshing genus-1 point clouds using discrete
  one-forms
• Geetika Tewari, Craig Gotsman, Steven J. Gortler,
  Computers Graphics 2006
• Meshless thin-shell simulation based on global
  conformal parameterization
• Xiaohu Guo, Xin Li, Yunfan Bao, Xianfeng Gu, Hong
  Qin, IEEE ToV and CG 2006

8
Basic Idea

• Given X(x1, x2,, xn) in R3, compute
• U (u1, u2,, un) in R2
• Triangulate U
• Obtain both a triangulation and a
  parameterization for X

9
Compute U

• Assumptions
• X are samples from a 2D surface
• Topology is known
• Desirable property
• Points closed by in U are close by in X

10

• Michael S. Floater
• Professor at the Department of Informatics (IFI)
  of the University of Oslo, and member of the
  Center of Mathematics for Applications(CMA),
  Norway.
• Editor of the journal Computer Aided Geometric
  Design.

11

• Martin Reimers
• Postdoctor
• CMA, University of Olso, Norway

12

• Meshless parameterization and surface
  reconstruction
• Authors
• Michael S. Floater
• Martin Reimers
• Computer Aided Geometric Design 2001
• Main reference Parameterization and smooth
  approximation of surface triangulations, Michael
  S. Floater, CAGD 1997

13
(No Transcript)
14
Convex Contraints

• Boundary condition map boundary of X to points
  on a unit circle
• If xjs are neighbors of xi then require ui to be
  a strictly convex combination of ujs
• Solve resulting linear system Au b

15
Identify Boundary

• Use natural boundary
• (given as part of the data)
• Choose a boundary manually
• Compute boundary
• Identify boundary points
• Order boundary points curve reconstruction

16
Compute Boundary

• Identify boundary points
• Order boundary points

17
Neighbors and Weights

• Ball neighborhoods
• Radius is fixed
• K nearest neighborhoods
• Weights
• Uniform weights
• Reciprocal distance weights
• Shape preserving weights

18
Uniform Weights

• Uniform weights
• (minimizing )
• If Ni ?i Nk ?k, then uiuk

19
Reciprocal Distance Weights

• Weights
• Observation
• Minimizing
• Chord parameterization for curves
• Distinct parameter points
• Well behaved triangulation

20
Shape Preserving Weights
21
Experiments
22
CPU Usage

• Reciprocal distance weights
• Shape preserving weights

23
Effect of Noise
Noise added Reciprocal distance weight
No Noise
24

• Meshless parameterization and B-spline surface
  approximation
• Author
• Michael S. Floater
• in The Mathematics of Surfaces IX, R. Cipolla and
  R. Martin (eds.), Springer-Verlag (2000)

25
Meshless Parameterization
Point set
Meshless parameterization
26
Triangulation
Delaunay triangulation
Surface triangulation
27
Reparameterization
Shape-preserving parameterization
Spline surface
28
Retriangulation
Delaunay retriangulation
Surface retriangulation
29
Example
Point set
Triangulation
Spline surface
30
Example
Point set
Triangulation
Spline surface
31

• Tim Volodine
• PhD student, research assistant
• K.U. Leuven, Belgium

32

• Dirk Roose
• Professor
• Department of Computer Science, Faculty of
  Applied Sciences, Head of the research group
  Scientific Computing
• K.U.Leuven, Belgium

33

• Denis Vanderstraeten
• Director of Research and IPR at Metris
• J2EE Business Analyst / Software Engineer
• Belgium

34

• Efficient triangulation of point clouds using
  Floater Parameterization
• Authors
• Tim Volodine
• Dirk Roose
• Denis Vanderstraeten
• Proc. of the Eighth SIAM Conference on Geometric
  Design and Computing
• Main reference Mean value coordinates, Michael
  S. Floater, CAGD 2003

35
Boundary Extraction
Boundary points
36
Order Boundary Points
37
Mean Value Weight
38
Experiments
39

• Kai Hormann
• Assistant professor
• Department of informatics, Computer graphics
  group
• Clausthal University of Technology, Germany

40

• Triangulating point clouds with spherical
  topology
• Authors
• Kai Hormann
• Martin Reimers
• Proceedings of. Curve and Surface Design 2002

41
Spherical Topology
42
Partition
Shortest path Correspond to the edges of D
12 nearest neighbors
Point set
43
Partition
44
Reconstruction of one subset
45
Optimization
Optimizing 3D triangulations using discrete
curvature analysis Dyn N., K. Hormann, S.-J.
Kim, and D. Levin
46

• Matthias Zwicker
• Assistant Professor
• Computer Graphics Laboratory
• University of California, San Diego, USA

47

• Craig Gotsman
• Professor
• Department of Computer Science
• Harvard University

48

• Meshing point clouds using spherical
  parameterization
• Authors
• Matthias Zwicker
• Craig Gotsman
• Eurographics Symposium on Point-Based Graphics
  2004
• Main references
• Fundamentals of spherical parameterization for 3d
  meshes
• Gotsman C., Gu X., Sheffer A. SiG 2003
• Computing conformal structures of surfaces
• Gu X., Yau S.-T. Communications in Information
  and Systems 2002

49
Spherical parameterization
50
Spherical Parameterization
51
O(n2) Complexity
52

• Geetika Tewari
• Graduate Student
• Computer Science, Division of Engineering and
  Applied Sciences
• Harvard University

53

• Steven J. Gortler
• Co-Director of Undergraduate Studies in Computer
  Science
• Harvard University

54

• Meshing genus-1 point clouds using discrete
  one-forms
• Authors
• Geetika Tewari
• Craig Gotsman
• Steven J. Gortler
• Computers Graphics 2006
• Main references
• Computing conformal structures of surfaces
• Gu X., Yau S.-T. Communications in Information
  and Systems 2002
• Discrete one-forms on meshes and applications to
  3D mesh parameterization
• Gortler SJ, Gotsman C, Thurston D. CAGD 2006

55
(No Transcript)
56
Discrete one-forms
57
Discrete one-forms
58
Seamless local parameterization
59
MCB Minimal Cycle Basis
60
MCB Cycles on a KNNG
One Forms on Arbitrary Graph
MCB Minimal cycle basis
O(E3) time
Trivial cycle
Nontrivial cycle
61
One-forms on the KNNG
62
Parameterize subgraphs
63
Example
64
Summary

• Disk topology
• Fast and efficient
• Complex topology
• Slow
• Other Methods
• More applications
• Surface fitting
• Ect.

65
