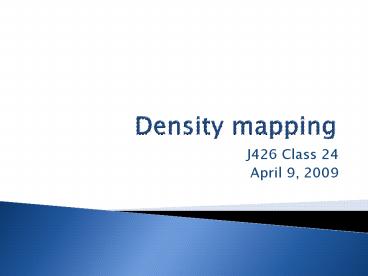

Density mapping

1
Density mapping

• J426 Class 24
• April 9, 2009

2
Overview

• Limitations of point data
• Crime density mapping
• Choices in density mapping

3
Limitations of point pata

• Point maps of crime locations are very useful but
  can have limitations in understanding patterns of
  crime
• Judgments about patterns subjective
• Problems in perception of patterns
• Problem of hidden points

4
Aggravated assaults in 2003
5
Problems in perception of patterns

• Which areas have the highest occurrence (crimes
  per area) of aggravated assaults?
• Can certainly identify areas that are higher and
  lower
• More difficult to say which areas are the
  highest, given the number of points

6
Problems of hidden points

• Can have multiple crimes, points at same location
• 131 locations on map have 2 or more aggravated
  assaults (maximum of 5)
• On smaller scale maps, nearby points can overlap
• 727 out of 1929 aggravated assaults within 250
  feet of another, producing significant overlap at
  this scale (estimate dot size around 500 feet)

7
Locations of multiple aggravated assaults
8
Locations of aggravated assaults within 250 feet
9
Zoom in on section of previous map
10
Crime density maps

• Attempt to portray the overall distribution of
  crimes in the area
• Idea is to estimate the density of crimes per
  unit area at each point on the surface
• Created and displayed using raster (grid cells)
• Estimate crime density for center of each grid
  cell

11
Aggravated assaults in 2003 points
12
Crime density map for aggravated assaults
13
Crime density map with aggravated assault points
14
Creating crime density maps

• Use ArcGIS Spatial Analyst extension
• Creates raster grid
• For center of each grid, counts the number of
  points within specified search radius
• Calculates the densitycrimes per area of circle
• Assigns that value to grid cells
• These are values displayed in graduated color
  thematic map

15
Choice of search radius

• Creating density map involves specification of
  search radius
• Larger radius looks at crimes in larger area
• Results in smoother maps emphasizing broad
  pattern
• Smaller radius looks at crimes in smaller area
• Results in maps emphasizing more localized
  variations in occurrence of crimes

16
Aggravated assaults search radius 2,500 feet
17
Aggravated assaults search radius 5,000 feet
18
Aggravated assaults search radius 10,000 feet
19
Choice of density type

• Manner in which density calculated
• Simple density just counts the total number of
  points within the search radius
• Kernel density gives more weight to crimes closer
  to grid cell center than to those farther away
• Choice of density type
• Kernel usually better for visual display
• Simple sometimes better when using density
  surface for certain types of analysis

20
Aggravated assaults simple density radius 5,000
feet
21
Aggravated assaults kernel density radius 5,000
feet
