Tonight we will look at:

1

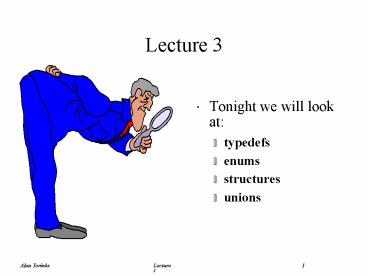

Lecture 3

• Tonight we will look at
• typedefs
• enums
• structures
• unions

2
Making Things More Humanly Readable

• As C/C developed, it was recognized, that it
  might be a good idea to make it easier for
  programmers to read their own and others
  programs.
• Had to find a way to do this without "breaking"
  the language.
• The first feature specifically added to do this
  was the typedef.
• Let's look at an example.
• (lect3_1.cpp lect3_2.cpp)

3
Lect3_1.cpp

• Looking at lect3_1.cpp, the declaration
• int result1, result2
• is not very expressive.
• If we think about it, what are result1 and result
  2?
• Yes, they are of type int - but is there a more
  expressive way to describe them?
• result1 is a sum and result 2 is product.
• Let's look at lect3_2.cpp

4
typedef

• Here we typedef'ed int variables to be a Sum and
  a Product type.
• Essentially, we gave the int type two aliases.
• We didn't change the fact that both Sum and
  Product are ints, we just made the program more
  readable.
• Syntax for typedef
• typedef existingType newTypeAlias
• NOTE
• Our convention The newTypeAlias will begin with
  a capital letter and all others will be lower
  case.
• Normally typedefs are placed in a header file and
  included.

5
enum

• enum is the second item added to C/C to make
  things more readable and "natural".
• It allows us to create our own types, which
  contain a list of values that are members of this
  new type (with an example, this will make
  sense).
• Syntax
• enum OurName enumerator, enumerator, ...
• Example
• enum WeekDay monday, tuesday, wednesday,
  thursday, friday

6
enum Facts

• Enumerators are not strings, but identifiers that
  use the normal naming convention for specifying
  identifiers (names of variables)
• Internally, C/C converts the enumerators to
  integers.
• Ignore this fact - you could treat them as
  integers within you program, but this is not good
  programming practice.
• enum GOTCHA If you print out the value of an
  enum, it will not print the identifier (the
  name), but the integer value that the compiler
  assigned.

7
What Can You Do With enums?

• Create variables of your enum type.
• Test operations.
• Iteration operations - (GOTCHA - can't use
  autoincrement or decrement operators).
• Assignment operations.
• Pass enum variable as a parameter.
• Let's look at some example code - lect3_3.cpp

8
Structures

• In life, It is often convenient to gather
  differing (by type) , but related information in
  one place.
• Example Address book
• Contains name, address, phone number for each
  "entry"
• In computer terms, this one entry that contains a
  collection of types is called a record.
• Each item in a record is called a field
• In C/C a record is called a struct and a field
  is called a struct member - just what you needed,
  more terms.

9
struct

• If you recall, an array only allowed us to build
  a collection of like types.
• The struct is a built-in data structure that
  allows us to mix types in one collection.
• struct AddressBookEntry
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member

10
Defining a new struct "type"

• Here is the syntax for a struct
• struct StructSpecName
• memberList
• where each member of a member list is defined as
• dataType memberIdentifier
• struct AddressBookEntry // this acts like a new
  type
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member

11
Very Important Distinction

• struct AddressBookEntry // this acts like a new
  type
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member
• This defines what an AddressBookEntry looks like,
  it is not an "instance" of an entry. It is a
  structure specfication, description, or template.
• No memory is allocated as a result of this code
• Acts like a "template" for creating instances of
  this type. (Think of it as a cookie cutter).
• Actually creates a new "type".

12
Creating an instance

• When we create an instance of a struct, only then
  is memory allocated (use the cookie cutter to
  create a cookie). Here is a code fragment to
  illustrate this.
• struct AddressBookEntry
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member
• AddressBookEntry addressOfCynthia //
  AddressBookEntry looks like a
  //
  "type"
•
  // addressOfCynthia is a variable
•
  // of type AddressBookEntry

13
What does this like in memory?

• struct AddressBookEntry // this doesn't affect
  memory utilization at run-time.
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member
• AddressBookEntry addressOfCynthia // but this
  statement does

?
Name member
?
addressOfCynthis
Address member
?
Phone number member
14
Initializing a struct with Declaration

• In the previous definition and declaration, we
  created space for an addressBookEntry with the
  name of addressOfCynthia. We did not initialize
  the values within this struct and therefore they
  contain unknown values.
• To assign values within the declaration
  statement, we use a syntax that looks somewhat
  like the one we used for initializing an array
  within a declaration statement.

15
Initializing (continued)

• struct AddressBookEntry
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member
• AddressBookEntry addressOfCynthia
• "Cynthia Suarez",
• "101 AnyStreet, AnyCity, NJ",
• 5555678

16
Memory Picture with Initialized struct

• struct AddressBookEntry
• char name40 // name member
• char address60 // address member
• long phoneNum // phone number member
• AddressBookEntry addressOfCynthia
• "Cynthia Suarez",
• "101 AnyStreet, AnyCity, NJ",
• 5555678

Name member ( array of 40 char)
"Cynthia Suarez"
Address member (array of 60 char)
"101 AnyStreet, AnyCity, NJ"
AddressOfCynthis
5555678
Phone number member (long)
17
Access to struct Members

• With simple types, like int, float, etc. we used
  simple assignment of the name to access the
  value.
• With arrays, we used an index into the array to
  access its members (called array elements).
• To access the members of a struct we use a new
  opertor called the "dot" operator or member
  selector.
• Syntax for member selection
• structIdentifierName.structMemberName
• both are "variable names"

18
Accessing a struct Member (con't)

• What if Cynthia changes her phone number to
  5551234, here is how we would change it in our
  code

struct AddressBookEntry char name40 //
name member char address60 // address
member long phoneNum // phone number
member AddressBookEntry addressOfCynthia
addressOfCynthia.phoneNum 5551234 Let's
look at some code - lect3_4.cpp
19
Nested structs

• A structure can contain any type including
  another struct, array, or simple type..
• A nested struct is a struct contained with a
  struct.
• To access a member of a contained struct we use
  "double dotted" notation.
• Let's extend lect3_4.cpp to illustrate
  (lect3_5.cpp) what we mean by "double dotted"
• Syntax
• outterStructVariable.innerStructVariable.variable
• (ALL VARIABLE NAMES - NOT STRUCT TYPE NAMES)

20
Functions and structs

• We can pass a structure to a function as a
  parameter.
• Implicitly this is done by "call by value"
• copy is made of structure on stack and "passed to
  function"
• Call by reference can be performed explicitly
• we will look at this when we cover pointers and
  references
• We can pass a structure back as a return value
  from a function, since C supports structure
  assignment as an aggregate operation.

21
Syntax For Using structs with Functions

• Function prototype
• returnType funcName( struct StructSpecName)
• If returning a structure
• struct StructSpecNamee funcName(parameter list)
• When calling a function that requires a structure
  parameter with call by value, use a structure
  variable as the parameter.
• Let's extend lect3_5.cpp to lect3_6.cpp to
  illustrate this.

22
Arrays of structs

• Array elements can hold any type as long as
  elements of the array are of the same type.
• Therefore, we can build an array of structures.
• Continuing with our example, we could add both
  Jones and Smith to an array of Employee
  structures, and then use iteration and indexing
  to gain access to each employee's record.

23
Syntax for an Array of structs

• Syntax
• struct StructSpecName arrayNameNUM_ELEMENTS
• Example
• struct Employee widgetCorpWorkers200

struct Employee
Index 0
struct Employee
Index 1
WidgetCorpWorkers
struct employee
Index 2
24
Accessing Information From The Array of Structs

• The array will behave like any other array, with
  the exception that it is holding a struct type
  and not a simple type.
• To gain access to the value of a struct variable
  within the array, we need to combine the indexing
  of the array to get to the correct structure
  variable, and then use dotted notation to get to
  the correct variable within the structure.

25
Some Utilization Examples

• Declare an array of Employee structures
• struct Employee widgetCorpWorkers100
• To assign a specific Employee to one of the
  widgetCorpWorker elements
• widgetCorpWorkers0 jones // jones is
  Employee
• To gain access to jones' first name
• widgetCorpWorkers0.firstName
• widgetCorpWorkers0 resolves to a fully
  qualified Employee structure - Jones
• Let's look at example code, lect3_7.cpp
• Why are there 2 raises as part of the output?

26
Unions

• Unions are rarely used, but we will mention them
  here.
• The declaration of a union looks like a struct,
  but has the keyword union and acts totally
  differently.
• The union below sets aside memory for the largest
  of the types contained within it.
• A union, when invoked will contain only one of
  its items not all of the items like a struct.
• Depending upon the type of value that is assigned
  to the union the union assumes that type. The
  union will be either a 40 character string, a
  float or a long. It always consumes the same
  amount of memory no matter which type it
  currently represents.

union someUnion char name40 // name
member float salary // address member
long phoneNum // phone number member
27
Contrasting Arrays and Structures
