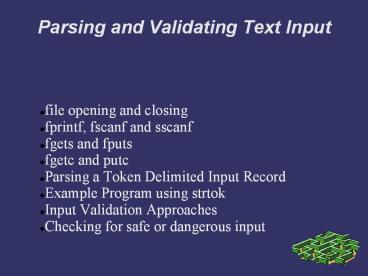

Parsing and Validating Text Input

1
Parsing and Validating Text Input

• file opening and closing
• fprintf, fscanf and sscanf
• fgets and fputs
• fgetc and putc
• Parsing a Token Delimited Input Record
• Example Program using strtok
• Input Validation Approaches
• Checking for safe or dangerous input

2
file opening and closing

• Except for stdin, stdout and stderr, files have
  to be opened before reading or writing. fopen()
  opens a file and returns a filehandle or NULL on
  error. fclose() closes a filehandle.
• Example 1
• include ltstdio.hgt
• define IN "master.txt"
• define OUT "backup.txt"

3
Example 1 continued
4
fprintf and fscanf

• fscanf() and fprintf() work in the same way as
  printf and scanf, the difference being the extra
  first filehandle parameter is used to direct
  input/output to/from an opened file.
• fscanf() has no inbuilt protection against buffer
  overflows, or data in the input file being
  incompatible with the data wanted. It stops
  reading a field on encountering whitespace. What
  if the field contains spaces, tabs or newlines ?

5
sscanf

• With sscanf() the first parameter is the string
  it reads and
• converts. This can be useful if the string has
  been validated e.g. as a number, and string
  fields don't contain embedded whitespace.
• fscanf(stdin, args ... ) is the same as scanf(
  args ... ) .
• fprintf(stdout, args ... ) is the same as
  printf( args ... ) .
• sscanf(string, args ... ) like fscanf but scans
  and parses string
• instead of file.

6
fgets and fputs

• fgets() reads a line of data from a file up to
  and including the newline character '\n' into a
  string and then appends the string terminator
  character '\0' after the newline. fgets()
  returns the value NULL (not EOF !) when
  attempting to read beyond the end of file.
  fgets() requires
• the name of the string ( or any other
  pointer giving the address at which it starts),
• the maximum number of characters to read -
  1 (to leave room for the '\0' end of string
  marker)?
• and the filehandle as parameters.
• fputs() writes a string to a file such that
  fputs(string,out) is the equivalent of
  fprintf(out,"s",string).

7
fgets continued

• The fgets() function is particularly useful for
  robustly reading text files organised into
  records separated using newlines as it contains
  built in buffer overflow protection. Data can be
  input using fgets() into a character string,
  validated to ensure the correct number and types
  of data items are present and then read from the
  string into local program variables of the
  appropriate types using sscanf().

8
fgetc and putc

• These functions are the file-enabled equivalents
  of getchar() and putchar(). They are used to read
  and write single characters from and to files
  respectively. getc() returns EOF if an attempt is
  made to read beyond the end of file. cgetc(in)
  is the equivalent of fscanf(in,"c",c) and
  putc(c,out) is the equivalent of
  fprintf(out,"c",c) .

9
Copying file one character at a time
10
Parsing a Token Delimited Record

• Use of the strtok() function in stdlib.h helps
  make this job a bit easier. The idea is to
  convert field delimiters into '\0' null
  characters. Strtok is passed and returns the
  address of the start of field 1. For fields gt 2
  you can either pass it a NULL instead, when it
  will automatically calculate the address of the
  start of the next string, unless you choose to
  calculate and pass the address of the start of
  the next string and so on. These string addresses
  can be stored in an array of char pointers for
  use later. This technique can be used to input
  fields which include unknown numbers of space and
  tab (\t) characters.

11
Warning concerning strtok

• strtok() modifies the string it parses, by
  replacing field delimiters with '\0' NULL byte
  characters. If this is a problem, clone the
  string first using strcpy() and then parse the
  clone. E.G.
• char clone
• / using malloc() to avoid buffer overrun /
• if( (clone (char)
• malloc(sizeof(char)(strlen(original)1)))?
• NULL )
• exit(1) / error if insufficient memory
• strcpy(clone,original)
• / must remember to free(clone) later /

12
strtok example program
13
strtok program output

• Name Joseph Smith
• Weight 64.300000
• Age 25

14
A thread-safe strtok

• The static pointer variable value used internally
  within strtok() won't survive concurrent use in a
  multi-threaded application. If this is a problem,
  you can use the re-entrant version strtok_r(),
  prototype defined in the POSIX.1-2001 standard as
  follows
• char strtok_r(char str, const char delim, char
  saveptr)
• The saveptr has to be passed the address of a
  pointer variable declared within the caller
  function, which enables the position within the
  string being parsed to be remembered between
  function calls.

15
Input Validation Approaches

• Is input likely to be perfect, clumsy or hostile
  ?
• Perfect input assumes the person entering data
  will never use an incorrect key on the keyboard.
  The program is otherwise allowed to crash.
• Clumsy input is common for a stand-alone
  application. An application is fragile and less
  usable if it crashes e.g. due to casual use of
  the ltentergt key by a user who hasn't read the
  prompt requesting input data correctly.
• Hostile input has to be assumed very likely if
  the application accepts input data from
  non-authenticated users over the Internet. A
  standalone application might later become a
  web-browser plugin.

16
Buffer Overflow Protection

• A buffer overflow occurs when a program writes
  beyond or outside allocated blocks of memory.
  Attackers may attempt to write specific data into
  the executable part of a program, e.g. vectoring
  execution into inserted code by overwriting a
  function return address (stack smashing). The
  allocated block might be an structure or
  character array, or a block allocated dynamically
  using malloc().
• Many network programs are compromised through
  buffer overflows. fgets() allows the programmer
  to specify the maximum buffer size which it will
  overwrite. Careful programming is needed to
  ensure access can only be made within allocated
  memory.

17
Hostile input example

• A web-based calculator program reads data from an
  HTML form expected to be in the format a op b,
  where a and b are numbers and b is an arithmetic
  operation e.g. , -, and / . A naive programmer
  has used a Perl or Python eval() function upon
  this input data and writes the result of the
  calculation to the web browser.
• Mr Evil Cracker tests for this possibility with
  the form input
• open("/etc/shadow").read()
• This results in the output
• Traceback (most recent call last)
• File "", line 1, in ?
• File "", line 0, in ?
• IOError Errno 13 Permission denied
  '/etc/shadow'

18
Hostile input example 2

• This shows that there is some rudimentary
  security on this system, as the webserver program
  is not running with the administrator privileges
  which would allow reading the shadow password
  file.
• Mr Evil Cracker hasn't got a crackable form of
  the password hash file yet, but he now knows that
  he can run any Python code on the target system
  with the permissions of the webserver program. As
  this allows him to create and execute other
  program files on this server, all he now needs is
  to find a local privilege escalation exploit,
  rather than a remote one. His chances of running
  a program giving him full control of this server
  are now much greater.

19
Check safe or dangerous input ?

• The problem with checking for dangerous input is
  that crackers will know things about your system
  that you don't. Therefore you don't really know
  what might be dangerous and what isn't so you
  can't easily check for specifically dangerous
  data. However, safe input is within the range of
  input values which you have designed your program
  to handle.
• If the required data is in the form of a string,
  what are the maximum and minimum string lengths,
  and what characters should be allowed in a string
  e.g. to input someones name or address ? You
  should reject anything not in your allowed
  designed and tested range of values, sending a
  suitable error message to the user so that input
  mistakes can be corrected.

20
Checking safe input numbers

• If you want to input numbers, you need to ensure
  that the data string input can be safely
  converted to a number. You want to consider what
  the range of acceptable numbers suitable for
  input to your program should be
• Minimum and maximum values, avoiding numeric
  overflows.
• Whether integer or floating point.
• What the maximum acceptable string length is for
  each input.
• Numbers should always be input as strings and
  then validated and converted.
