File System Implementation 1

1

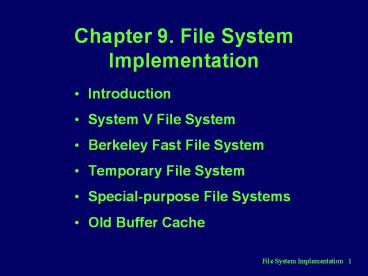

Chapter 9. File System Implementation

• Introduction
• System V File System
• Berkeley Fast File System
• Temporary File System
• Special-purpose File Systems
• Old Buffer Cache

2
Introduction

• Two local general-purpose file systems
• System V file system (s5fs)
• Berkeley fast file system (FFS)
• S5fs
• original UNIX file system
• FFS
• introduced in 4.2BSD
• Vnode/vfs
• integrated version of FFS is known as UNIX file
  system (ufs)

3
System V File System

• On-disk layout

B
S
inode list
data blocks
boot area
superblock

• Boot area
• contains code required to bootstrap
• Superblock
• contains attributes and metadata of the file
  system

4
System V File System (cont)

• Inode list
• linear array of inodes
• one inode for each file
• size of inode is 64 bytes
• inode list has a fixed size
• limits the maximum number of files the partition
  can contain

5
S5fs Directories

• Contains fixed size records of 16 bytes
• First two bytes inode number
• Next fourteen bytes filename
• Limits
• 65535 files per disk partition
• 14 characters per filename

6
S5fs Inodes

• On-disk inode and In-core inode
• struct dinode, struct inode

struct dinode
Field
Size (bytes)
Description
di_mode di_nlinks di_uid di_gid di_size di_addr di
_gen di_atime di_mtime di_ctime
2 2 2 2 4 39 1 4 4 4
File type, permission, etc. number of hard links
to file owner UID owner GID size in bytes array
of block addresses generation number time of last
access time file was last modified time inode was
last changed
7
S5fs Inodes (cont)
sgid
sticky
owner
group
others
di_mode
suid
type (4 bits)
u
g
s
r
w
x
r
w
x
r
w
x
Disk block
disk
inode block array
0

1

2


...

10
indirect
11
double indirect
12
triple indirect
8
S5fs Superblock

• Metadata about the file system
• The kernel reads the superblock when mounting the
  file system and stores it in memory until the
  file system is unmounted
• Contains the following information
• size in blocks of the file system
• size in blocks of the inode list
• number of free blocks and inodes
• free block list, free inode list
• does not keep free list completely in the
  superblock

9
S5fs Kernel Organization

• In-core inodes
• struct inode
• contains all the fields of the on-disk inode, and
  some additional fields, such as
• vnode
• the i_vnode field of the inode contains the vnode
  of the file
• Device ID of the partition containing the file
• Inode number of the file

10
S5fs Kernel Organization (cont)

• Flags for synchronization and cache management
• Pointers to keep the inode on a free list
• Pointers to keep the inode on a hash queue
• The kernel hashes inodes by their inode numbers,
  so as to locate them quickly when needed
• Block number of last block read

11
S5fs Kernel Organization (cont)
inode free list
hash queue 0
i_number 40
i_number 268
i_number 1056
i_number 8
hash queue 1
i_number 73
i_number 17
i_number 593
hash queue 2
i_number 86
hash queue 3
i_number 11
i_number 199
i_number 27
i_number 103
12
S5fs Inode Lookup

• Lookuppn( )
• in the file-system-independent layer
• performs pathname parsing
• parses one component at a time, invoking
  VOP_LOOKUP operation
• when searching an s5fs directory, translates to a
  call to s5lookup( ) function
• s5lookup( )
• Check the directory name lookup cache
• In case of a cache miss, it reads the directory
  one block at a time, searching the entries for
  the specified file name

13
S5fs Inode Lookup (cont)

• If the directory contains a valid entry for the
  file, s5lookup( ) obtains the inode number from
  the entry
• Calls iget( ) to locate that inode and
  initializes the vnode
• Finally, iget( ) returns a pointer to the inode
  to s5lookup( ). s5lookup( ), in turn, returns a
  pointer to the vnode to lookuppn( )

14
S5fs File I/O

• read and write system calls
• accept a file descriptor (the index returned by
  open)
• File descriptor
• used as an index into the descriptor table to
  obtain the pointer to the open file object
  (struct file)
• the kernel obtains the vnode pointer from the
  file structure
• Before starting I/O
• the kernel invokes VOP_WRLOCK operations to
  serialize access to the file

15
S5fs File I/O (cont)

• The kernel then invoke VOP_READ or VOP_WRITE
  operation
• This results in a call to s5read( ) or s5write( )
• In case of s5read( )
• s5read( ) translates the starting offset to the
  logical block number
• it then reads the data one page at a time
• by mapping the block into the kernel virtual
  address space and calling uiomove( ) to copy the
  data into user space

16
S5fs File I/O (cont)

• uiomove( ) calls the copyout( ) routine to
  perform the actual data transfer
• if the page is not in memory, copyout( ) will
  generate a page fault
• the page fault handler will invoke VOP_GETPAGE
  operation on its vnode
• in s5fs, VOP_GETPAGE is implemented by s5getpage(
  )
• the calling process sleeps until the I/O
  completes
• s5read( ) returns when all data has been read
• the system-independent code
• unlocks the vnode, advanced the offset pointer in
  the file structure, and returns to the user

17
Allocating and Reclaiming Inodes

• An inode remains active as long as its vnode has
  a non-zero reference count
• When the count drops to zero, the
  file-system-independent code invokes the
  VOP_INACTIVE operation which frees the inode
• When an inode becomes inactive, the kernel puts
  it on the free list, but does not invalidate it

18
Analysis of s5fs

• Simple design introduces problems in
• reliability, performance, functionality
• Reliability
• superblock contains vital information about the
  entire file system
• Performance
• s5fs groups all inodes together at the beginning
  of the file system
• accessing a file requires reading the inode then
  the file data, causes a long seek on the disk
• e.g. ls -l causes a random disk access pattern

19
Analysis of s5fs (cont)

• Disk block allocation is also suboptimal
• After the file system has been used for a while,
  the order of blocks in the free block list
  becomes completely random
• This slows down sequential access operations on
  files, since logically consecutive block may be
  very far apart on the disk
• Restricting of file names to 14 characters

20
Berkeley Fast File System

• Address many limitation of s5fs
• Hard disk structure
• platter, disk head, track, sector, cylinder
• head seek, rotational latency
• FFS on-disk organization
• FFS divides the partition into one or more
  cylinder groups, each containing a small set of
  consecutive cylinders
• This allows UNIX to store related data in the
  same cylinder group to minimize disk head movement

21
Berkeley FFS (cont)

• Superblock is divided into two structures
• FFS superblock contains information about the
  entire file system, it does not change unless the
  file system is rebuilt
• Each cylinder group has a data structure
  describing summary information about that group,
  including the free inode and free block lists.
• Each cylinder group contains a duplicate copy of
  the superblock
• FFS maintains there duplicates at different
  offsets in each cylinder group in such as way
  that no single track, cylinder, or platter
  contains all copies of the superblock

22
FFS Blocks

• Blocks and Fragments
• FFS allows each block to be divided into one or
  more fragments
• The number of fragments per block may be set to
  1, 2, 4, or 8, allowing a lower bound of 512
  bytes, the same as the disk sector size
• An FFS is composed entirely of complete blocks,
  except for the last block, which may contain one
  or more consecutive fragments
• This scheme reduces space wastage, but requires
  occasional recopying of file data

23
FFS Disk Allocation

• Allocation policies
• FFS aims to colocate related information on the
  disk and optimize sequential access
• 1. Attempt to place the inodes of all files of a
  single directory in the same cylinder group
• 2. Create each new directory in a different
  cylinder group from it parent, so as to
  distribute data uniformly over the disk
• 3. Try to place the data blocks of the file in
  the same cylinder group as the inode

24
FFS Disk Allocation (cont)

• 4. To avoid filling an entire cylinder group with
  one large file, change the cylinder group when
  the file size reaches 48Kbytes and again at every
  megabyte
• 5. Allocate sequential blocks of a file at
  rotationally optimal positions
• Rotational optimization tries to determine the
  number of sectors to skip so that the desired
  sector is under the disk head when the read is
  initiated.

25
FFS Functionality Enhancements

• Long file names
• maximum size of the filename is 255 characters
• Symbolic links, and atomic rename( )

inode number
7
7
allocation size
4
24
name length
2
2
name plus extra space
f 1 0 0
f 1 0 0
14
padding
8
5
f i l e 2 0 0 0
(a) initial state
(b) after deleting file2
FFS Directory
26
Analysis of FFS

• Substantial performance gains
• read throughput
• 29Kbyte/sec in s5fs ? 221Kbytes/sec in FFS
• CPU utilization 11 ? 43
• write throughput
• 48Kbytes/sec ? 142 Kbytes/sec
• CPU utilization 29 ? 43
• Disk space wastage
• half a block per file in s5fs
• half a fragment per file in FFS
• more space is required to monitor the free blocks
  and fragments

27
Analysis of FFS (cont)

• Modern SCSI disks do not have fixed size
  cylinders
• FFS is oblivious to this
• Overall, FFS provides great benefits
• wide acceptance
• 4.3BSD added two types of caching to speed up
  name lookups

28
Temporary File Systems

• Basic concepts
• Many utilities and applications extensively use
  temporary files to store results of intermediate
  phases of execution
• The synchronous updates are really unnecessary
  for temporary files, because they are not meant
  to be persistent
• Addressed by using RAM disks, which provide file
  systems that reside entirely in physical memory
  (dedicating a large amount of memory)
• RAM disks are implemented by a device driver that
  emulates a disk

29
Temporary File Systems (cont)

• Two implementations
• Memory File System (mfs)
• tmpfs File System
• mfs
• Developed by UC Berkeley
• Entire file system is built in the virtual
  address space of the process that handled the
  mount operation
• This process does not return from the mount call,
  but remains in the kernel, waiting for I/O
  requests to the file system

30
Temporary File Systems (cont)

• Each mfsnode, which is the file-system-dependent
  part of the vnode, contains the PID of the mount
  process, which now functions as an I/O server
• The pages of the mfs files compete with all other
  processes for physical memory
• Using a separate process to handle all I/O
  requires two context switches for each operation
• The file system still resides in a separate
  address space, which means we still need extra
  in-memory copy operations

31
Temporary File Systems (cont)

• tmpfs file system
• Developed by Sun Microsystems
• Combined the powerful facilities of the vnode/vfs
  interface and the new VM architecture
• tmpfs is implemented entirely in the kernel
• All file metadata is stored in non-paged memory,
  dynamically allocated from the kernel heap
• The data blocks are in paged memory and are
  represented using the anonymous pages facility in
  the VM subsystem

32
Temporary File Systems (cont)

• Each page is mapped by an anonymous object
  (struct anon), which contains the location of the
  page in physical memory or on the swap space
• The tmpnode, which is the file-system-dependent
  object for each file, has a pointer to the
  anonymous map (struct anon_map) for the file
• Pages can be swapped out by the paging system and
  compete for physical memory

33
Temporary File Systems (cont)

• Advantages of tmpfs
• does not use a separate I/O server and thus
  avoids wasteful context switches
• holding the metadata in unpaged kernel memory
  eliminates the memory-to-memory copies and some
  disk I/O
• the support for memory mapping allows fast,
  direct access to file data

34
Locating tmpfs pages
swap area on disk
struct anon_map
page
struct anon
struct vnode
struct anon
struct tmpnode
page in memory
35
Special-Purpose File Systems

• The specfs file system
• Provides a uniform interface to device files
• The primary purpose of specfs is to intercept I/O
  calls to device files and translate them to calls
  to the appropriate device driver routines
• The /proc file system
• Provides an elegant and powerful interface to the
  address space of any process
• The processor file system
• Provides an interface to the individual
  processors on a multiprocessor machine

36
Old Buffer Cache

• Background
• Traditional UNIX systems use a dedicated area in
  memory called block buffer cache to cache blocks
  accessed through file system
• Backing store of a cache is the persistent
  location of the data
• A cache can be write-through or write-behind
• write-through cache writes out modified data to
  the backing store immediately
• write-behind modified blocks are simply marked
  as dirty, and written to the disk at a later time

37
Old Buffer Cache (cont)

• Advantages
• Reduce disk traffic and eliminate unnecessary
  disk I/O
• Synchronizes access to disk blocks through the
  locked and wanted flags
• Disadvantages
• The write-behind nature of the cache means the
  data may be lost if the system crashes
• Reducing disk access greatly improves
  performance, but the data must be copied twice
• disk ? buffer, then buffer ? user address space
• e.g. cache wiping problem
