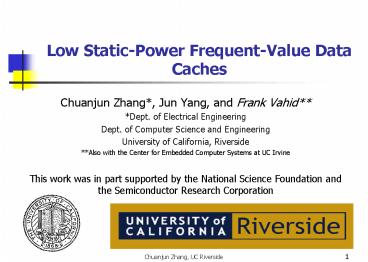

Low Static-Power Frequent-Value Data Caches

1
Low Static-Power Frequent-Value Data Caches

• Chuanjun Zhang, Jun Yang, and Frank Vahid
• Dept. of Electrical Engineering
• Dept. of Computer Science and Engineering
• University of California, Riverside
• Also with the Center for Embedded Computer
  Systems at UC Irvine
• This work was in part supported by the National
  Science Foundation and the Semiconductor Research
  Corporation

2
Leakage Power Dominates

• Growing impact of leakage power
• Increase of leakage power due to scaling of
  transistors lengths and threshold voltages.
• Power budget limits use of fast leaky
  transistors.
• Cache consumes much static power
• Caches account for the most of the transistors on
  a die.
• Related work
• DRGdynamically resizes cache by monitoring the
  miss rate.
• Cache line decay dynamically turns off cache
  lines.
• Drowsy cache low leakage mode.

3
Frequent Values in Data Cache
(J. Yang and R. Gupta Micro 2002)
Microprocessor
data
data
data
data
data
data
data
address
address
address
address
address
address
address
L1 DATA CACHE

• Frequently accessed values behavior

4
Frequent Values in Data Cache
(J. Yang and R. Gupta Micro 2002)

• 32 FVs account for around 36 of the total data
  cache accesses for 11 Spec 95 Benchmarks.
• FVs can be dynamically captured.
• FVs are also widespread within data cache
• Not just accesses, but also stored throughout.
• FVs are stored in encoded form.
• 4 or 5 bits represent 16 or 32 FVs.
• Non-FVs are stored in unencoded form.
• The set of frequent values remains fixed for a
  given program run.

FVs
00000000
00000000
00000000
00000000
00100000
00000000
00000000
00000000
FFFFFFFF
FFFFFFFF
FFFFFFFF
FVs accessed
00000000
00000000
00100000
00000000
FF000000
FFFFFFFF
FFFFFFFF
FFFFFFFF
FVs in D
5
Original Frequent Value Data Cache Architecture

• Data cache memory is separated as low-bit and
  high-bit array.
• 5 bits encodes 32 FVs.
• 27 bits are not accessed for FVs.
• A register file holds the decoded lines.
• Dynamic power is reduced.
• Two cycles when accessing Non-FVs.
• Flag bit 1-FV 0-NFV

6
New FV Cache Design One Cycle Access to Non FV

• No extra delay in determining accesses of the
  27-bit portion
• Leakage energy proportion to program execution
  time
• New driver is as fast as the original by tuning
  the NAND gates transistor parameters
• Flag bit 0-FV 1-NFV

32 bits
driver
27 bits
decoder output
5 bits
Original cache line architecture
new word line driver
original word line driver
7
Low leakage SRAM Cell and Flag Bit

Vdd
Bitline
Gated-Vdd Control
Bitline
Vdd
Bitline
Bitline
Flag bit output
Gated_Vdd Control
Gnd
Gnd
  SRAM cell with a pMOS gated Vdd control.
 Flag bit SRAM cell
8
Experiments

• SimpleScalar.
• Eleven Spec 2000 benchmarks
• Fast Forward the first 1 billion and execute 500M

Configuration of the simulated processor.
9
Performance Improvement of One Cycle to Non-FV
Hit rate of FVs in data cache.

• Two cycles impact performance hence increase
  leakage power
• One cycle access to Non FV achieves 5.5
  performance improvement (and hence impacts
  leakage energy correspondingly)

5.5
Performance (IPC) improvement of one-cycle FV
cache vs. two-cycle FV cache.
10
Distribution of FVs in Data Cache

• FVs are widely found in data cache memory. On
  average 49.2.
• Leakage power reduction proportional to the
  percentage occurrence of FVs

Percentage of data cache words (on average) that
are FVs.
11
Static Energy Reduction

• 33 total static energy savings for data caches.

12
How to Determine the FVs

• Application-specific processors
• The FVs can be first identified offline through
  profiling, and then synthesized into the cache so
  that power consumption is optimized for the hard
  coded FVs.
• Processors that run multiple applications
• The FVs can be located in a register file to
  which different applications can write a
  different set of FVs.
• Dynamically-determined FVs
• Embed the process of identifying and updating FVs
  into registers, so that the design dynamically
  and transparently adapts to different workloads
  with different inputs automatically.

13
Conclusion

• Two improvements to the original FV data cache
• One cycle access to Non FVs
• Improve performance (5.5) and hence static
  leakage
• Shut off the unused 27 bits portion of a FV
• The scheme does not increase data cache miss rate
• The scheme further reduces data cache static
  energy by over 33 on average
