Metapopulations

1
Metapopulations
2
All finite populations are vulnerable to
extinction

• Demographic and environmental stochasticity

Frequency
r

• Even populations with an have some
  probability of going extinct!

3
The probability of extinction, pe, depends on

• The current population size
• The probability with which individuals die (d)
  and give birth (b)

4
Small populations are particularly vulnerable

• For instance, imagine an annual population where
  the probability of giving birth, b, is .1

b .1 d 1
pe()
N

• If the average of offspring produced per
  successful birth is, say 11, the population
  growth rate would be strongly positive
• Yet because of stochasticity, the population
  would still have a very high probability of
  extinction when small!

5
Can we extend this result over time?

• Imagine an endangered population of annual plant
  with
• N 30
• b .1
• d 1

• This population has a probability of extinction,
  pe (1-.1)(1)30 .042, each generation
• As a consequence, if the population size does
  not change (e.g., clutch size is 10), the
  probability that this population survives for t
  years is (1-pe)t (.958)t

Probability of surviving to time, t
Time, t

• This single isolated population is doomed to a
  fairly rapid extinction!

6
Adding multiple populations
N30
N30
N30
N30
N30
N30
N30
N30
How does adding multiple populations alter the
probability of species extinction?
7
Adding multiple populations

• Imagine the plant we considered before now has n
  populations

• The probability that all n populations go
  extinct in a single generation is, pen
• This probability is always lower than the
  probability of a single population going extinct

Probability of species extinction
Number of populations, n

• Thus having multiple populations buffers a
  species from extinction!

8
Metapopulations
N30
N30
N30
N30

• Metapopulation A population of populations
  (Levins, 1970)
• How does movement between populations shape the
  dynamics of extinction and recolonization?

9
A general metapopulation model

• Follow the fraction of occupied sites, f
• Assume that unoccupied sites are colonized at
  rate, I
• Assume that occupied sites go extinct at rate, E
• Then the fraction of occupied sites changes at
  rate

But what are I and E?
10
A general metapopulation model

• Assume that I pi(1-f)
• - Empty patches are colonized at a rate
  proportional to the product of the probability
  of local colonization, pi, and the proportion of
  unoccupied patches, 1-f

• Assume that E pe(f)
• - Occupied patches go extinct at a rate
  proportional to the product of the probability
  of local extinction, pe, and the proportion of
  occupied patches, f

11
A general metapopulation model

• With these assumptions, we can predict the
  change in patch occupancy, f

• This general model can be used to consider
  several specific scenarios

12
The mainland-island scenario

• Immigrants arrive at a constant rate, pi , from
  a mainland source population
• Island populations go extinct at a constant
  rate, pe

13
An example of the mainland-island scenario (The
Bay Checkerspot Butterfly)
Euphydryas editha
Plantago erecta Lives primarily on serpentine
soils
14
An example of the mainland-island scenario (The
Bay Checkerspot Butterfly)
Euphydryas editha
15
The mainland-island scenario

• Using these assumptions, we can predict the
  change in patch occupancy, f

• What is the equilibrium proportion of occupied
  patches for this model?

16
The mainland-island scenario
pi .5
Fraction occupied, f
pi .1
pi .02
Probability of extinction, pe
A small rate of immigration can result in a high
proportion of occupied patches. As long as there
is some immigration, persistence of the
metapopulation is assured!
17
The internal colonization scenario

• Immigrants come only from those sites which are
  currently occupied
• As a consequence, pi i f .
• Here i measures how sensitive immigration is to
  the proportion of occupied patches, f.

18
An example of internal colonization (The
Glanville Fritillary on the Aland Islands)
Glanville fritillary (Melitaea cinxia)
Plantago lanceolata
Veronica spicata
19

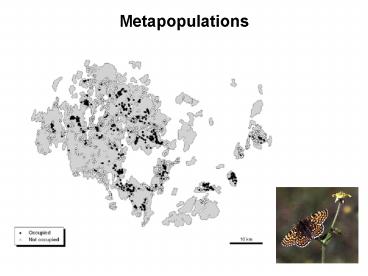

An example of internal colonization (The
Glanville Fritillary on the Aland Islands)
F
N
S
Glanville fritillary (Melitaea cinxia)
20
The internal colonization scenario

• Using these assumptions, we can predict the
  change in patch occupancy, f

• What is the equilibrium proportion of occupied
  patches in this model?

21
The internal colonization scenario
Remember pi i f ? The frequency of immigration
increases with increasing i
Fraction occupied, f
i .4
i .2
i .1
Probability of extinction, pe

• Internal colonization is less effective at
  maintaining the metapopulation than is external
  colonization. Persistence is not assured.
• Nevertheless, internal colonization greatly
  facilitates metapopulation persistence

22
The rescue effect

• To this point we have assumed that the
  probability of extinction is independent of the
  fraction of occupied patches
• If, however, immigration increases the
  population size of existing populations, the
  probability of extinction should decrease as a
  function of the proportion of occupied patches
  (e.g., due to decreased demographic
  stochasticity)

1
e is the maximum extinction probability
e
pe
0
1
0
f

• We can consider this case by setting pe e(1-f)

23
The rescue effect in the mainland-island scenario

• Adding the rescue effect to the mainland-island
  model

• What is the equilibrium of this model?

24
The rescue effect in the mainland-island scenario
pi .4
pi .2
Fraction occupied, f
pi .1
All approach pi
Maximum probability of extinction, e

• The rescue effect facilitates metapopulation
  persistence
• Persistence is assured as long as pi gt 0

25
Why do metapopulations matter? (a hypothetical
conservation scenario and practice problem)

• A 20km2 patch of native prairie exists
• A native species of bird occurs exclusively in
  this native prairie habitat
• This species can readily disperse
• Only 5km2 can be excluded from development
• How should this 5km2 be partitioned?

26
Possibilities for partitioning (a practice
problem)
Five 1km2 preserves
Two 2.5km2 preserves
How could we make a scientifically informed
decision about which is preferable?
27
Available data for the bird species (a practice
problem)

• Previous work has shown that the internal
  colonization rate of this species is pi if
  .3f
• What area do we expect the species to occupy at
  equilibrium with 2 reserves of size 2.5km2?
• What area do we expect the species to occupy at
  equilibrium with 5 reserves of size 1km2?

Probability of extinction (per year)
.3
.2
0
1
5
2.5
Patch size (km2)
28
Conclusions from metapopulations

• Multiple populations spread the risk of
  extinction
• In some cases, multiple small populations have a
  larger probability of survival
• than few large populations
• Dispersal can promote the persistence of
  metapopulations
