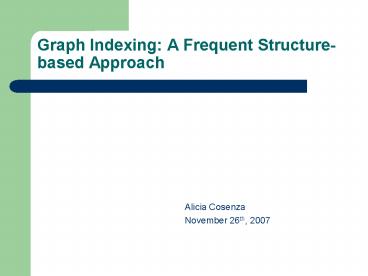

Graph Indexing: A Frequent Structure-based Approach

1
Graph Indexing A Frequent Structure-based
Approach

• Alicia Cosenza
• November 26th, 2007

2
Presentation Outline

• Introduction
• Frequent Fragment
• Discriminative Fragment
• Gindex
• Experimental Result

3
Introduction

• Graphs are used to model complicated structures
  such as proteins, circuits, images and XML
  documents
• Current index approach is path based
• Example GraphGrep
• Advantages
• Paths are easier to handle
• Index space is predefined all the path up to
  maxL length are selected
• Disadvantages
• Path is too simple
• There are too many paths and too many false
  positives

4
Introduction

• Can we use a graph structure instead of a a path
  as the basic index feature?
• gIndex
• Indexes only frequent subgraphs
• Creates a smaller index
• Improves query times

5
Presentation Outline

• Introduction
• Frequent Fragment
• Discriminative Fragment
• Gindex
• Experimental Result

6
Frequent Fragment

• Key concept
• Fragment small subgraph
• minsup minimum support threshold
• A graph is frequent if its support or the number
  of times it appears in the graph database is
  greater than minsup
• Only frequent fragments will be indexed

7
Frequent Fragment

• low minimum support on small fragments (for
  effectiveness)
• Want to index lots of the small subgraphs
• high minimum support on large fragments (for
  compactness)
• Only want to index a large fragment if it appears
  a lot
• Otherwise it will be indexed by the smaller
  subgraphs
• Problem There could be a lot of frequent
  fragments!

8
Presentation Outline

• Introduction
• Frequent Fragment
• Discriminative Fragment
• Gindex
• Experimental Result

9
Discriminative Fragment

• Definition (Redundant Fragment)
• Fragment is redundant with respect to
  feature set if
• Definition (Discriminative Fragment).
• Fragment is discriminative with respect to
  if
• Fragments that are not redundant are called
  discriminative

10
Presentation Outline

• Introduction
• Frequent Fragment
• Discriminative Fragment
• Gindex
• Experimental Result

11
GIndex - Construction

• First generates all frequent fragments while
  taking out redundant ones
• Translates fragments into sequences and holds
  them in a prefix tree
• Each fragment has an id list the ids of the
  graphs containing the fragment
• Graph Sequentialization (DFS Code)
• Labeled edge is a 5-tuple (I,j,li, l(I,j),lj)
• Described in another paper

12
GIndex - Construction

• gIndex Tree
• each fragment can be mapped to an edge sequence
  (DFS code), insert the edge sequences of
  discriminative fragments in a prefix tree called
  the gIndex Tree

13
GIndex - Construction

• gIndex Tree
• Implemented using a hash table
• Both black and white nodes are included in the
  table
• The tree is still an important concept since it
  determines what white nodes will be included

14
GIndex - Search
15
GIndex - Search

• Optimization
• Apriori Pruning
• If a fragment is not in the gIndex tree, we need
  not check its super-graphs

16
GIndex - Search

• Verification
• After getting the candidate answer set, we have
  to verify that the graphs in the set really
  contain the query graph
• perform a subgraph isomorphism test on each graph
  one by one

17
GIndex Maintenance
18
Presentation Outline

• Introduction
• Frequent Fragment
• Discriminative Fragment
• Gindex
• Experimental Result

19
Experimental Result

• The index size of gIndex is more than 10 times
  smaller than that of GraphGrep
• gIndex outperforms GraphGrep by 3 to 10 times in
  various query loads
• the index returned by the incremental maintenance
  algorithm is effective it performs as well as
  the index computed from scratch provided the data
  distribution does not change much.

20
Experimental Result

• Data is from an AIDS Antiviral Screen Dataset

21
Experimental Result
22
The End
