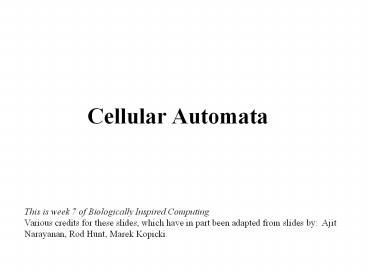

Cellular Automata

This is week 7 of Biologically Inspired
Computing Various credits for these slides, which
have in part been adapted from slides by Ajit
Narayanan, Rod Hunt, Marek Kopicki.
2
Cellular Automata

• A CA is a spatial lattice of N cells, each of
  which is one of k states at time t.
• Each cell follows the same simple rule for
  updating its state.
• The cell's state s at time t1 depends on its own
  state and the states of some number of
  neighbouring cells at t.
• For one-dimensional CAs, the neighbourhood of a
  cell consists of the cell itself and r neighbours
  on either side. Hence, k and r are the parameters
  of the CA.
• CAs are often described as discrete dynamical
  systems with the capability to model various
  kinds of natural discrete or continuous dynamical
  systems

3
SIMPLE EXAMPLE
Suppose we are interested in understanding how a
forest fire spreads. We can do this with a CA as
follows.
Start by defining a 2D grid of cells, e.g.
This will be a spatial representation of our
forest.
4
SIMPLE EXAMPLE continued
Now we define a suitable set of states. In this
case, it makes sense for a cell to be either
empty, ok_tree, or fire_tree meaning
empty no tree here ok_tree there is a
tree here, and its healthy fire_tree there
is a tree here, and its on fire. When we
visualise the CA, we will use colours to
represent the states. In these cases white,
green and red seem the right Choices.
5
SIMPLE EXAMPLE continued
Next we define the neighbourhood structure when
we run our CA, cells will change their state
under the influence of their neighbours, so we
have to define what counts as a neighbour.
Youll see example neighbourhoods in a later
slide, but usually you just use a cells 9
immediately surrounding neighbours. Lets do that
in this case. Next we decide what the
neighbourhood will be like at the boundaries of
the grid.
6
Example of 1-D cellular automaton

• For a binary input N long, are there more 1s than
  0s?
• Set k2 and r1 with the following rule

000 001 010 011 100 101 110 111
0 0 0 1 0 1 1 1
Cell 2 neighbours
Result
That is, the value of a cell at time t1 will
depend on its value and the values of its two
immediate neighbours at time t. This is a form of
majority voting between all three cells.
7
Density classification

• In the above example, we have assumed
  wrap-around, and r1.
• In this case, the CA has reached a limit point
  from which no escape is possible.
• CAs have been used for simulating fluid dynamics,
  chemical oscillations, crystal growth, galaxy
  formation, stellar accretion disks, fractal
  patterns on mollusc shells, parallel formal
  language recognition, plant growth, traffic flow,
  urban segregation, image processing tasks, etc

8
See HIV CA demo My Documents\students\hivca
java Main
4 states Healthy, Infected1, Infected2, Dead
Rule 1 - If an H cell has at least one I1
neighbour, or if has at least 2 I2 neighbours,
then it becomes I1. Otherwise, it stays
healthy.   Rule 2 An I1 cell becomes I2 after 4
time steps (simulated weeks). (to operate this
the CA maintains a counter associated with each
I1 cell).   Rule 3 - An I2 cell becomes D.   Rule
4 A D cell becomes H, with probability
I1, with probability
otherwise, it
remains D
9
Types of neighbourhood
Many more neighbourhood techniques exist - see
http//cell-auto.com and follow the link to
neighbourhood survey
10
Classes of cellular automata (Wolfram)
Class 1 after a finite number of time steps, the
CA tends to achieve a unique state from nearly
all possible starting conditions (limit
points) Class 2 the CA creates patterns that
repeat periodically or are stable (limit cycles)
probably equivalent to a regular grammar/finite
state automaton Class 3 from nearly all starting
conditions, the CA leads to aperiodic-chaotic
patterns, where the statistical properties of
these patterns are almost identical (after a
sufficient period of time) to the starting
patterns (self-similar fractal curves) computes
irregular problems Class 4 after a finite
number of steps, the CA usually dies, but there
are a few stable (periodic) patterns possible
(e.g. Game of Life) - Class 4 CA are believed to
be capable of universal computation
11
John Conways Game of Life

• 2D cellular automata system.
• Each cell has 8 neighbors - 4 adjacent
  orthogonally, 4 adjacent diagonally. This is
  called the Moore Neighborhood.

12
Simple rules, executed at each time step

• A live cell with 2 or 3 live neighbors survives
  to the next round.
• A live cell with 4 or more neighbors dies of
  overpopulation.
• A live cell with 1 or 0 neighbors dies of
  isolation.
• An empty cell with exactly 3 neighbors becomes a
  live cell in the next round.

13
Is it alive?

• http//www.bitstorm.org/gameoflife/
• Compare it to the definitions

14
Glider
15
Sequences
16
More
Sequence leading to Blinkers Clock Barbers pole
17
A Glider Gun
18
Loops

• Assumptions
• Computation universality not required
• Characteristics
• 8 states, 2D Cellular automata
• Needed CA grid of 100 cells
• Self Reproduction into identical copy
• Input tape with data and instructions
• Concept of Death
• Significance Could be modeled through computer
  programs

19
Langtons Loop
0 Background cell state 3, 5, 6 Phases of
reproduction 1 Core cell state 4 Turning arm
left by 90 degrees 2 Sheath cell state
state 7 Arm extending forward cell state
20
Loop Reproduction
21
Loop Death
22
Langtons Loops
Chris Langton formulated a much simpler form of
self-rep structure - Langton's loops - with only
a few different states, and only small starting
structures.
23
There remains debate and interest about the
essentials of life issue with CAs, but their
main BIC value is as modelling techniques.
Weve seen HIV here are some more examples.

• Modelling Sharks and Fish
• Predator/Prey Relationships
• Bill Madden, Nancy Ricca and Jonathan Rizzo
• Graduate Students, Computer Science Department
• Research Project using Departments 20-CPU
  Cluster

24

• This project modeled a predator/prey relationship
• Begins with a randomly distributed population of
  fish, sharks, and empty cells in a 1000x2000 cell
  grid (2 million cells)
• Initially,
• 50 of the cells are occupied by fish
• 25 are occupied by sharks
• 25 are empty

25
Heres the number 2 million

• Fish red sharks yellow empty black

26
Rules

• A dozen or so rules describe life in each cell
• birth, longevity and death of a fish or shark
• breeding of fish and sharks
• over- and under-population
• fish/shark interaction
• Important what happens in each cell is
  determined only by rules that apply locally, yet
  which often yield long-term large-scale patterns.

27
Do a LOT of computation!

• Apply a dozen rules to each cell
• Do this for 2 million cells in the grid
• Do this for 20,000 generations
• Well over a trillion calculations per run!
• Do this as quickly as you can

28
Rules in detail Initial Conditions

• Initially cells contain fish, sharks or are empty
• Empty cells 0 (black pixel)
• Fish 1 (red pixel)
• Sharks 1 (yellow pixel)

29
Rules in detail Breeding Rule

• Breeding rule if the current cell is empty
• If there are gt 4 neighbors of one species, and
  gt 3 of them are of breeding age,
• Fish breeding age gt 2,
• Shark breeding age gt3,
• and there are lt4 of the other species
• then create a species of that type
• 1 baby fish (age 1 at birth)
• -1 baby shark (age -1 at birth)

30
Breeding Rule Before

EMPTY

31
Breeding Rule After



32
Rules in Detail Fish Rules

• If the current cell contains a fish
• Fish live for 10 generations
• If gt5 neighbors are sharks, fish dies (shark
  food)
• If all 8 neighbors are fish, fish dies
  (overpopulation)
• If a fish does not die, increment age

33
Rules in Detail Shark Rules

• If the current cell contains a shark
• Sharks live for 20 generations
• If gt6 neighbors are sharks and fish neighbors
  0, the shark dies (starvation)
• A shark has a 1/32 (.031) chance of dying due to
  random causes
• If a shark does not die, increment age

34
Shark Random Death Before
I Sure Hope that the random number chosen is
gt.031



35
Shark Random Death After
YES IT IS!!! I LIVE ?



36
Sample Code (C) Breeding
37
Results

• Next several screens show behavior over a span of
  10,000 generations

38
Generation 0
39
Generation 100
40
Generation 500
41
Generation 1,000
42
Generation 2,000
43
Generation 4,000
44
Generation 8,000
45
Generation 10,500
46
Long-term trends

• Borders tended to harden along vertical,
  horizontal and diagonal lines
• Borders of empty cells form between like species
• Clumps of fish tend to coalesce and form convex
  shapes or communities

47
Variations of Initial Conditions

• Still using randomly distributed populations
• Medium-sized population. Fish/sharks
  occupy 1/16th of total grid Fish 62,703
  Sharks 31,301
• Very small population. Fish/sharks
  occupy 1/800th of total grid Initial
  population Fish 1,298 Sharks 609

48
Medium-sized population (1/16 of grid)
Generation 100
2000
1000
4000
8000
49
Very Small Populations

• Random placement of very small populations can
  favor one species over another
• Fish favored sharks die out
• Sharks favored sharks predominate, but fish
  survive in stable small numbers

50
Very Small Populations
Gen. 100
4000
6000
1500
8000
10,000
12,000
14,000
Ultimate welfare of sharks depends on initial
random placement of fish and sharks
51
Very small populations

• Fish can live in stable isolated communities as
  small as 20-30
• A community of less than 200 sharks tends not to
  be viable

52
Forest Fire Model (FFM)
Forest Fire Model is a stochastic 3-state
cellular automaton defined on a d-dimensional
lattice with Ld sites. Each site is occupied by
a tree, a burning tree, or is empty.
During each time step the system is updated
according to the rules

1. empty site ? tree with the growth rate
   probability p
2. tree ? burning tree with the lightning rate
   probability f, if no nearest neighbour is burning

3. tree ? burning tree with the probability 1-g, if
   at least one nearest neighbour is burning, where
   g defines immunity.
4. burning tree ? empty site

53
The application
54
Simulation
The average cluster size is small in comparison
to lattice size L.
55
Simulation
forest density 60 first signs of fire
Forest density reaches the critical value 59 -
the percolation threshold for square lattice.
The average cluster size goes to infinity for
infinite lattice size.
56
Simulation
Fire spreads quickly burning down all connected
tree clusters. A variety of global structures
emerges.
The whole process repeats and after some time
forest reaches the steady state in which the
mean number of growing trees equals the mean
number of burning trees.
57
Next time
A bit more CAs, and L systems
