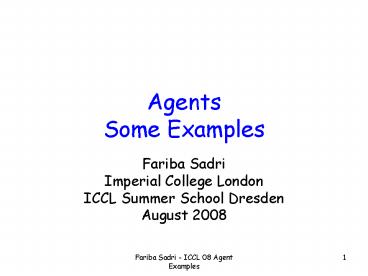

Agents Some Examples

1
AgentsSome Examples

• Fariba Sadri
• Imperial College London
• ICCL Summer School Dresden
• August 2008

2
Contents

• Teleo-Reactive agents
• Agent-0
• BDI/AgentSpeak(L)

3
Teleo-Reactive (TR) Programs

• Some references
• Nilsson, TR Programs for agent control, Journal
  of AI Research, 1994, 139-158
• Nilsson, Teleo-reactive programs and the
  triple-tower architecture, October 2001

4
TR-Programs

• They are named sequences of condition-action
  rules
• Program for Goal G
• G gt nil i.e. do nothing
• C1 gt A1
• C2 gt A2
• ..
• Cn gt An.

5
TR-Programs

• They are intended to
• direct the agent towards a goal, while
• continuously taking into account changing
  perceptions of the environment.
• No declarative semantics
• Only procedural semantics

6
Demo

• http//www.robotics.stanford.edu/users/nilsson/trw
  eb/TRTower/TRTower_links.html
• http//www.robotics.stanford.edu/users/nilsson/trw
  eb/tr.html

7
TR-Programs

• The Ci are tests to be evaluated on the world
  model.
• The Ai are actions the agent can do.
• At each cycle
• observations are made
• the rules are checked from the top.
• The first rule with a true test fires, i.e.
  determines the action to be done next.
• The action is executed.
• Typically actions of later rules are intended to
  eventually result in the test of an earlier rule
  to become true (Regression Property).
• There is always a rule that will fire.

8
TR-Program Examples

• Example (from Nilsson 2001)
• unpile(x) x is a block
• Clear(x) gtnil
• On(y,x) gtmove-to-table(y)
• move-to-table(x) x is a block
• On(x,Ta)gtnil
• Holding(y)gtputdown(y,Ta)
• Clear(x)gtpickup(x)
• Tgtunpile(x)
• Putdown and pickup are primitive actions.

9
TR-Programs Example

• Example (from Nilsson 2001)
• move(x,y)x and y are blocks
• On(x,y)gtnil
• Holding(x) ? Clear(y)gtputdown(x,y)
• Holding(z)gtputdown(z,Ta)
• Clear(x) ? Clear(y)gtpickup(x)
• Clear(y)gt unpile(x)
• Tgt unpile(y)

10
TR Triple Tower Architecture
11
TR Triple Tower ArchitectureExample
?XOn(x,Y)? Holding(Y) ?Clear(Y)
Clear(A) On(A,B) Holding(C)
TR-Program
Sensors
Environment
12
TR-Programs

• The actions Ai may be
• primitive,
• Sets of actions that can be executed
  simultaneously, or
• refer to other TR programs.
• A TR program called will continue until the
  original condition leading to it being called
  remains the highest one in the original program
  that remains true.

13
TR-Programs

• New Info from environment deletes old info (TMS).
• Also forward reasoning to derive all provable
  facts.

14
TR-Programs

• Where do TR-programs fit in within the agent
  classification given in the introduction ?

15
Agent-0

• Reference
• Yoav Shoham,
• Agent0 A simple agent language and its
  interpreter, Proceedings AAAI-91, 1991, 704-709
• One of the early multi-agent models and
  programming languages.
• Fairly simple
• Motivation partly to gain experience from
  implementing an agent model

16
Agent-0

• Agents send messages to each other
• Inform, Request, Unrequest

A1
A2
17
Agent-0 Mental State

• Mental state is made up of
• Capabilities - fixed
• Commitment rules - fixed
• Beliefs - get updated
• Commitments - get updated

18
Agent-0 Capabilities

• cap(time,private action, mental condition)
• e.g.
• cap(T, rotate(Degree1) ,
• not (cmtd(_,do(T,rotate(Degree2)) and
• Degree1\Degree2 ) )
• where Degree1, Degree2, T are variables.
• This says
• The agent is able to rotate (something) by
  Degree1
• degrees at some future time T if it does not
  already have a commitment to any agent to rotate
  (it) by a different number of degrees at the same
  time.

19
Agent-0 Commitment Rules

• commit(messpattern, mentalcond, agent, action)
• The action can be a single or a sequence of
  actions.
• e.g.
• commit( (Ag, REQUEST(Act)), (_,myfriend(Ag), Ag,
  Act)
• This says
• The agent can (perhaps) commit to do Act for
  agent Ag if Ag has just requested Act and agent
  believes Ag is a friend.
• No declarative semantics,
• Just operational semantics.

20
Agent-0 Beliefs

• bel(Ag, F) where Ag is the agent who believes
  Fact F
• AGENT-0 agents trust one another. They believe
  anything they are told, incorporate it in their
  beliefs, and retract any older contradictory
  beliefs.
• Only atomic propositions or their negations are
  held as beliefs. This is to simplify knowledge
  assimilation. It makes consistency checking
  trivial.

21
Agent-0 Commitments

• cmtd(agent, action)
• where the commitment is to agent.
• The set of commitments implicitly defines the
  future actions for the agent.
• Commitments are acted upon, by executing the
  action when its time comes.

22
Agent-0 Time

• Agents measure time as cycle number (number of
  cycle executions) and synchronise their cycle
  executions using a global clock.
• So the time of a committed-to action comes when
  the agents cycle number equals the cycle time
  embedded in the action description.

23
Agent0 Cycle
24
Agent0 Cycle

• Initialisation
• Initialises the Capabilities, Commitment rules,
  Beliefs, and Commitments
• After that the agent is continually involved in
• Updating its beliefs
• Updating its commitments
• Honouring commitments whose time has come

25
Agent-0 Commitments

• Commitments are only to primitive actions. So the
  agent cannot commit to bringing about a state
  that requires any element of planning.

26
Agent-0 Actions

• Private
• Can be anything
• Communicative
• Inform(t a fact)
• Request(t, a, action)
• Unrequest(t, a, action)
• Refrain(action)

27
Agent-0 Actions

• Actions can be
• Conditional
• If mntlcond then action
• If at time t you believe F holds at time t then
  at time t inform a that F holds at t
• Unconditional

28
BDI/AgentSpeak(L)

• References
• A. Roa, AgentSpeak(L)BDI Agents speak out in a
  logical language, Springer LNCS 1038, 1996
• A. Rao, M. Georgeff, An abstarct architecture for
  rational agents, Proceedings of the 3rd
  International Conference on Principles of
  Knowledge Representation and Reasoning, KRR92,
  Boston, 1992
• R. Bordini et al, Programming MAS in AgentSpeak
  using Jason, Wiley, 2007

29
BDI/AgentSpeak(L)

• Motivations
• BDI agents are traditionally specified in a
  modal logic with modal operators to represent BDI
  (Beliefs, Desires and Intentions).
• Their implementations (e.g. PRS, dMARS), however,
  have typically simplified their specifications
  and used non-logical procedural approaches.
• AgentSpeak is a programming language based on
  restricted FOL.
• AgentSpeak attempts to provide operational and
  proof theoretic semantics for PRS and dMARS ( and
  thus by a roundabout way for BDI agents)

30
BDI/AgentSpeak(L)

• Further Motivations
• To incorporate some practical reasoning
• Means ends reasoning, deciding how to achieve
  goals
• Reaction to events, for example when something
  unexpected happens
• Choice deliberation, deciding what we want to
  achieve (our intention) from amongst our desires

31
BDI/AgentSpeak(L)Internal (Mental) State

• A set of beliefs (similar to Agent0 beliefs)
• A set of current desires (or goals)
• typically of the form !b where b is belief
• interpreted as desire for state of the world in
  which b holds.
• A set of pending events
• typically perceptions of messages interpreted as
  belief updates b, -b or as goals to be
  achieved !b
• including request messages from other agents
  usually recorded as new belief events, perhaps as
  a new belief that the request has been made.
• A set of intentions (similar to agent0
  commitments)
• A plan library. A plan has a triggering condition
  (an event), a mental state applicability
  condition, and a collection of sub-goals and
  actions (similar to ECA rules).

32
AgentSpeak(L) Beliefs and Event Terms

• No modal opeartors
• Beliefs a conjunction of ground literals
• adjacent(room1, room2) loc(room1)
  empty(room1)
• Events If b is an atomic belief then the
  following are event terms
• !b represents an achievement goal, e.g.
  !loc(room2)
• ?b represents a test goal, e.g. ?empty(room1)
• b, -b representing events of adding or deleting
  beliefs (events generated by messages)
• !b, -!b
• ?b, -?b
• Agent can have explicit goals, given by events

33
AgentSpeak Agent Cycle
plans
generate new intentions
desires
events
intentions
see
execute next step of some intention
action
beliefs
environment
34
AgentSpeak Agent Cycle

• Notice external/internal changes
• Update belief and record as events in event
  stores
• e.g. !location(robot, b), location(waste, a)
• Choose event (from event store) or desire (from
  desire store for which there is at least one
  plan)
• Select plan this becomes new intention
• Drop intentions no longer believed viable
• Resume intention
• Execute an action, or
• Post subgoal as a new goal event
• Repeat cycle

35
AgentSpeak Plans

• Each agent has its own repertoire of (primitive)
  actions and plan library.
• Plans are ECA rules of the form
• eb1,,bm lt- h1..hk
• e is an event term
• the bi are belief terms b1, , bm is called
  context
• the hi are goals or (primitive) actions
• Plans are used to respond to belief update
  events and new goal events

36
AgentSpeak Plans Examples

• location(waste, X)
• location(robot,X) location(bin,Y) lt-
• pick(waste) !location(robot,Y)
• drop(waste).

37
AgentSpeak Plans Examples

• location(waste, X)
• location(robot,X) location(bin,Y) lt-
• pick(waste) !location(robot,Y)
  drop(waste).
• Context
• Triggering
• Event-
• Addition Body of the plan
• of a fact

38
AgentSpeak Plans Examples

• location(waste, X)
• location(robot,X) location(bin,Y) lt-
• pick(waste) !location(robot,Y)
  drop(waste).
• The intended reading of this is very similar to
  event-condition-action rules (except that the
  action part is more sophisticated)
• On event of noticing waste at X, if robot is at X
  and bin at Y, then (robot) pick waste, make its
  location Y and drop waste.

39
AgentSpeak Plans Examples

• !location(robot, X)
• location(robot,X) lt- true.
• !location(robot, X)
• location(robot,Y) not XY adjacent(Y,Z)
  not location(car,Z) lt-
• move(Y,Z) !location(robot,X).

40
AgentSpeak Plans Examples

• !location(robot, X)
• location(robot,Y) not XY adjacent(Y,Z)
  not location(car,Z) lt-
• move(Y,Z) !location(robot,X).
• The intended reading of this is similar to goal
  reduction rules
• To achieve a goal location(robot,X) .

41
AgentSpeak Plan Example

• !quench_thirsthave_glass lt- !have_soft_drink

• fill_glass, drink
• !have_soft_drinksoft_drink_in_fridge
• lt- open_fridge
• get_soft_drink

42
AgentSpeak Plans Some statements from Anand Rao

• Rules in a pure logic program are not
  context-sensitive as plans.
• ????
• Situation calculus and its many descendents
  - State context
• Event calculus - Temporal context
• Conditions/preconditions of plan provide context

43
AgentSpeak Plans Some statements from Anand Rao

• Rules execute successfully returning a binding
  for unbound variables however, execution of
  plans generates a sequence of ground actions that
  affect the environment.
• compare with Abductive Logic Programs

44

• location(robot, X) ?
• current_location(robot,Y)
• XY
• adjacent(Y,Z)
• current_location(car,Z)
• move(Y,Z)
• location(robot,X).

45
AgentSpeak Plans Some statements from Anand rao

• In a pure logic program there is no difference
  between a goal in the body of a rule and the head
  of a rule. In an agent program the head consists
  of a triggering event, rather than a goal.
• ... allows both goal-directed and data-directed
  invocation of plans.
• compare with Abductive Logic Programs

46

• location(robot, X) ?
• current_location(robot,Y) not XY
  adjacent(Y,Z) not current_location(car,Z)
• move(Y,Z) location(robot,X).
• location(waste, X) Xbin ? pick(waste)
  drop(waste, bin)

47
AgentSpeak Plans Some statements from Anand rao

• While a goal is being queried the execution of
  that query cannot be interrupted in a logic
  program. However, the plans in an agent program
  can be interrupted.
• compare with Abductive logic programs run
  within An Agent Cycle
