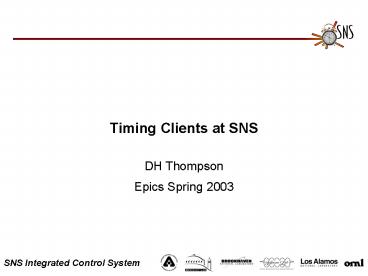

Timing Clients at SNS

1
Timing Clients at SNS

• DH Thompson
• Epics Spring 2003

2
You Think You Have Problems
Your timing system dates from the 16th century
and predicts tides on the Thames
Then your timing system needs updating.
3
Timing Clients

• Timing client hardware
• V124
• Diagnostics
• Machine Protection System
• Systems
• Ion Source and Front End
• Linac RF
• Target Instruments
• Machine Protection System
• Diagnostics
• Timing Master

4
Hardware Clients V124S

• The V124S is based directly on the RHIC Design at
  BNL .
• Receives 17 MHz. EL from timing master.
• 8 programmable gate outputs and one clock output
  with 63 nS clock sync resolution and fine delay.
• FPGA Based design.

5
V108S Utility Module

• V108 Utility module decodes EL and RTDL.
• EL events can be processed as EPICS events by
  processing event records.
• RTDL frames are available as longin records in
  real time at 60 Hz. (Used to set gate widths from
  the timing master.)
• Provides precise time to IOC from timestamp
  frames in the RTDL
• Module also monitors crate voltages, temperature,
  and fan speed.
• Provides 2 bits of I/O.
• Example Beam image camera gets trigger from EL
  in software via V108 I/O

6
Diagnostics Embedded Timing CircuitFeatures of
PCI card (NADS)
Low jitter (10ps) clock circuit
Temporary debug section
Balanced timing system inputs (PECL)
Coax pulse and clock outputs (LVTTL)
Buffered general purpose I/O (68 pin connector
compatible with commercial breakout chassis)
Single gate array- PCI Master/Target with
scatter/gather DMA- Timing functions, real-time
data buffers- 100k gates left for application
specific functions
7
Machine Protection System

• Implemented on PMC Card and I/O Chassis.
• MPS Decodes EL/RTDL to provide 63 NS resolution
  of MPS trips and time stamp MPS database records.
• Used by correlator to find first trip.
• Support added in drvTS so that device support
  could compute time stamps.
• Timing system is essential to MPS health while
  the MPS monitors timing system health.
• 60 Hz cycle start event is required heartbeat.
• Time stamp and other data on RTDL are monitored
  for reasonable changes.
• MPS and timing system are closely coupled
• MPS derives its own clocks from EL
• Auto-Reset and Latched carriers drop on fault.
• Timing system gets fault events and status from
  MPS
• MPS Adapts enabled inputs to beam flavor.

8
MPS Fast Protect Block Diagram
9
Source and Front End

• Uses V124 8 Channel Gate Modules
• The trigger control chassis which is the head
  end of the Machine Protection System. Outputs
  gates for ion source RF, Choppers, bunchers and
  RFQ.

10
Ion Source Control

• Trigger Control Chassis Logic(simplified)

Delayed Source
Source
MPS OK
Beam Enable
To Source
Source Enable
Cycle Start
11
Linac RF

• Primary interface is V124 with optical fanouts to
  HV Converter Modules.
• LLRF Uses several gate outputs including
  pre-pulse and RF on gate.
• Gate start times and rep-rates are on Event Link.
• Gate widths are on RTDL, Utility module records
  set V124 gate width on each LLRF and HPRF
  channel.
• Local variable rep rates and gate widths are
  available at an IOC. This provides independent
  timing for DTL RF testing at same time as Front
  End operations.

12
Ring and Target

• Ring Reference is source of EL clock but actual
  ring phase will sync to the ELs cycle start.
• Neutron beam line instruments at the target will
  have own timing system based on a high speed
  parallel-serial-parallel link.
• Will decode EL/RTDL on PCI card.
• Will manage chopper synchronization to machine
  cycle.
• Will set instrument data acquisition timing and
  transmit both accelerator vetos and chopper vetos
  to instruments.
• Will support neutron time of flight measurements.

13
Timing Master

• Uses 3 V124s to generate hardware timed events
  and generate some timed interrupts for the
  sequencer.
• Sequencer schedules V124 Gates on or off
  according to rep-rate pattern, to fire inputs on
  EL encoder.
• EL will be monitored by EL Monitor as soon as
  driver is available.
• Uses Utility module for environment but not time
  or events.

14
Improvements

• Combine EL and RTDL on single 100/1000 MHz link
  based on Ethernet media devices.
• The SNS Timing Master has few external events and
  no hardware RDTL data, so emphasis would be on
  pre-scheduling link using combination of software
  and table in FPGA. Still allow as many hardware
  events as needed within scheduled windows.
• More of the gate scheduling could be done at the
  gates, fewer events more reliance on cycle
  start and RTDL.
• Gate Generator decodes cycle start RTDL RF
  width, and cycle number
• Sets own delay and width based on data on timing
  link.
• Rep-rate pattern stored in gate and used to
  enable output.
• Special Cycles must still be supported.
• Must maintain availability of the ring sync clock
  and line sync clock scheme.
