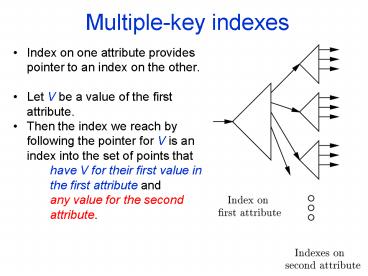

Multiple-key indexes
  • Index on one attribute provides pointer to an
    index on the other.
  • Let V be a value of the first attribute.
  • Then the index we reach by following the pointer
    for V is an index into the set of points that
    have V for their first value in the first
    attribute and
  • any value for the second attribute.

2
Example
  • Who buys gold jewelry (age and salary only).
    Raw data in agesalary pairs
  • (25 60) (45 60) (50 75) (50 100)
  • (50 120) (70 110) (85 140) (30 260)
  • (25 400) (45 350) (50 275) (60 260)
  • Question For what kinds of queries will a
    multiplekey index (age first) significantly
    reduce the number of disk I/O's?

The indexes can be organized as B-Trees.
3
Operations
  • Partial match queries
  • If the first attribute is specified, then the
    access is quite efficient
  • If the first attribute isnt specified, then we
    have to search every sub-index.
  • Range queries
  • Quite well, provided the individual indexes
    themselves support range queries on their
    attribute (e.g. they are B-Trees)
  • Example. Range query is 35?age?55 AND 100?sal?200
  • NN queries
  • Similar to range queries.

Also, the indexes should be primary ones if we
want to support efficiently range queries.
4
KD-Trees
  • Levels rotate among the dimensions, partitioning
    the points by comparison with a value for that
    dimension.
  • Leaves are blocks holding the data records.

5
Geometrically
  • Remember we didnt want the stripes in grid files
    to continue all along the vertical or horizontal
    direction?
  • Here they dont.

6
Operations
  • Lookup in KDTrees
  • Find appropriate leaf by binary search. Is the
    record there?
  • Insert Into KDTrees
  • Lookup record to be inserted, reaching the
    appropriate leaf.
  • If there is room, put record in that block.
  • If not, find a suitable value for the appropriate
    dimension and split the leaf block using the
    appropriate dimension.
  • Example
  • Someone 35 years old with a salary of 500K buys
    gold jewelry.
  • Belongs in leaf with (25 400) and (45 350).
  • Too full split on age. See figure next.

7
Someone 35 years old with a salary of 500K buys
gold jewelry.
Its age turn to be used for split. Split at
35 its the median.
8
Queries
  • Partial match queries
  • When we dont know the value of the attribute at
    the node, we must explore both of its children.
  • E.g. find points with age50
  • Range Queries
  • Sometimes a range will allow us to move to only
    one child of a node.
  • But if the range straddles the splitting value
    then we must explore both children.

9
KD-trees in secondary storage
  • If internal nodes dont fit in main memory group
    them into blocks.

10
Quad trees
  • Nodes split at all dimensions at once
  • For a quad tree of k dimensions, each interior
    node has 2k children.

11
Why quad trees?
  • k-dimensions ? node has 2k children, e.g. k7 ?
    128 children.
  • If 128, or 27, pointers can fit in a block, then
    k7 is a convenient number of dimensions.

12
QuadTree Insert and Queries
  • Insert
  • Find leaf node in which new point belongs.
  • If room, put it there.
  • If not, make the leaf an interior node and give
    it leaves for each quadrant. Split the points
    among the new leaves.
  • Problem may make lots of null pointers,
    especially in highdimensions.
  • QuadTree Queries
  • Single point queries easy just go down the tree
    to proper leaf.
  • Range queries varies by position of range.
  • Example a range like 45ltagelt55 180ltsalarylt220
    requires search of four leaves.
  • Nearest neighbor Problems and strategies similar
    to grid files.

13
R-Trees
  • For regions (typically rectangles) but can
    represent points.
  • Supports NN, whereamI queries.
  • Generalizes Btree to multidimensional case.
  • In place of Btree's keypointer pairs, Rtree
    has regionpointer pairs.

14
Lookup Where Am I?
  • We start at the root, with which the entire
    region is associated.
  • We examine the subregions at the root and
    determine which children correspond to interior
    regions that may contain point P.
  • If there are zero regions we are done P is not
    in any data region.
  • If there are some subregions we must recursively
    search those children as well, until we reach the
    leaves of the tree.

15
Insertion
  • Inserting region R.
  • 1. We start at the root and try to find some
    subregion into which R fits.
  • If more than one we pick just one, and repeat the
    process there.
  • 2. If there is no region, we expand, and we want
    to expand as little as possible.
  • So, we pick the child that will be expanded as
    little as possible.
  • 3. Eventually we reach a leaf, where we insert
    region R.
  • 4. However, if there is no room we have to split
    the leaf.
  • We split the leaf in such a way as to have the
    smallest subregions.

16
Example
  • Suppose that the leaves have room for six
    regions.
  • Further suppose that the six regions are together
    on one leaf, whose region is represented by the
    outer solid rectangle.
  • Now suppose that another region POP is added.

17
Example (Cont ed)
((0,0),(60,50))
((20,20),(100,80))
Road1 Road2 House1
School House2 Pipeline Pop
18
Example (Cont ed)
  • Suppose now that House3 ((70,5),(80,15)) gets
    added.
  • We do have space to the leaves, but we need to
    expand one of the regions at the parent.
  • We choose to expand the one which needs to be
    expanded the least.

19
Which one should we expand?
((0,0),(80,50))
((20,20),(100,80))
Road1 Road2 House1 House3
School House2 Pipeline Pop
Two choices
((0,0),(60,50))
((20,5),(100,80))
Road1 Road2 House1
School House2 Pipeline Pop House3
20
Bitmap Indexes
  • Suppose we have n tuples.
  • A bitmap index for a field F is a collection of
    bit vectors of length n, one for each possible
    value that may appear in the field F.
  • The vector for value v has 1 in position i if the
    i-th record has v in field F, and it has 0 there
    if not.

(30, foo) (30, bar) (40, baz) (50, foo) (40,
bar) (30, baz)
foo 100100 bar 0 baz
21
Graphical Picture
Customer table. We will index Gender and Rating.
Note that this is just a partial list of all the
records in the table
Two bit strings for the Gender bitmap
Five bit strings for the Rating bitmap
Custid Name Gender Rating
112 Joe M 3
115 Sam M 5
119 Sue F 5
112 Wu M 4
1 2 3 4 5
0 0 1 0 0
0 0 0 0 1
0 0 0 0 1
0 0 0 1 0
M F
1 0
1 0
0 1
1 0
22
Bitmap operations
  • Bit maps are designed to support partial match
    and range queries. How?
  • To identify the records holding a random subset
    of the values from a given dimension, we can do a
    binary OR on the bitmaps from that dimension.
  • For example, the OR of bit strings for Age (20,
    21, 22)
  • To identify the partial matches on a group of
    dimensions, we can simply perform a binary AND on
    the ORd maps from each dimension.
  • These operations can be done very quickly since
    binary operations are natively supported by the
    CPU.

23
Bit Map example
M F
1 0
1 0
0 1
1 0
1 2 3 4 5
0 0 1 0 0
0 0 0 0 1
0 0 0 0 1
0 0 0 1 0
SELECT FROM Customer WHERE gender M AND
(rating 3 OR rating 5)
24
Gold-Jewelry Data
  • (25 60) (45 60) (50 75) (50 100)
  • (50 120) (70 110) (85 140) (30 260)
  • (25 400) (45 350) (50 275) (60 260)
  • What would be
  • the bitmap index for age, and
  • the bitmap index for salary?
  • Suppose we want to find the jewelry buyers with
    an age in the range 45-55 and a salary in the
    range 100-200. What do we do?

25
How big do these things get?
  • Assuming each attribute value fits in a 32-bit
    machine word, the bitmap index for an attribute
    with value cardinality 32 takes as much space as
    the base data column.
  • Since a B-tree index for a 32-bit attribute is
    often observed to use 3 or 4 times the space as
    the base data column, many users consider
    attributes with cardinalities less than 100 to be
    suitable for using bitmap indices.
  • However, some other users believe bit map indexes
    are good for attributes with cardinalities more
    than 100. What can be done?

26
Basic Compression
  • Run length encoding is used to encode sequences
    or runs of zeros.
  • Say that we have 20 zeros, then a 1, then 30 more
    zeros, then another 1.
  • Naively, we could encode this as the integer pair
    lt20, 30gt
  • This would work. But what is the problem?
  • On a typical 32-bit machine, an integer uses 32
    bits of storage. So our lt20, 30gt pair uses 64
    bits. The original string only had 52!
  • So we must use a technique that stores our
    run-lengths as compactly as possible.
  • Lets say we have the string 000101
  • This is made up of runs with 3 zeros and 1 zero.
  • In binary, 3 11, while 1 is, of course, just 1
  • This gives us a compressed representation of 111.
  • The problem?
  • How do we decompress this?
  • We could interpret this as 1-11 or 11-1 or even
    1-1-1.
  • This would give us three different strings after
    the decompression.

27
Proper RLE encoding
  • Run of length i has i 0s followed by a 1.
  • So how does RLE store the run lengths?
  • Lets say that that we have a run of length i.
  • We set j the number of bits required to
    represent i.
  • To define a run, we actually use two values
  • The unary representation of j
  • A sequence of j 1 1 bits followed by a zero
    (the zero signifies the end of the unary string)
  • The special cases of j 0 and j 1 use 00 and
    01 respectively.
  • The value i

28
Decoding
  • Lets decode 11101101001011
  • 11101101001011 ? 13
  • 11101101001011 ? 0
  • 11101101001011 ? 3
  • Our sequence of run lengths is 13, 0, 3. Whats
    the bitmap?
  • 0000000000000110001

29
Summary
  • Pros
  • Bitmaps provide efficient storage for low
    cardinality dimensions. On sparse, high
    cardinality dimensions, compression can be
    effective.
  • Bit operations can support multi-dimensional
    partial match and range queries
  • Cons
  • De-compression requires run-time overhead
  • Bit operations on large maps and with large
    dimension counts can be expensive.
