Evolutionary Polynomial Regression EPR

1

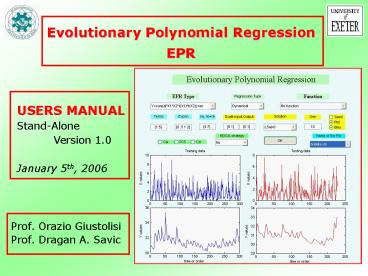

Evolutionary Polynomial RegressionEPR
USERS MANUAL Stand-Alone Version 1.0 January
5th, 2006

• Prof. Orazio Giustolisi
• Prof. Dragan A. Savic

2
Evolutionary Polynomial RegressionUSERS MANUAL
Outline

• Installing the toolbox
• How to construct the input file
• Starting with EPR
• During the execution
• Output data files
• References

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
EPR can work with incomplete output data
record EPR identify the missing value as NaN
(Not a Number) EPR will reconstruct data, by
infilling missing data samples
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
EPR perform a number of sub-runs
one for each different length of the model
structure
14
Coefficient of Determination
Complexity Indicator (px) selected input values
(Xi) total number of available inputs
NO MOGA strategy
15
NO MOGA strategy
Dynamical Modelling
Returned Model
Returned models with different prediction horizons
16
MOGA strategy
PARETO Front
All the other diagrams will be displayed at the
end of the run
17
EPR saves its results as Excel file (.xls)
located in your work directory

• input data file, bridata.xls
• EPR type Ysum(aiX1X2f(X1)f(X2))ao.
• Function type f(X) No function (Field n. 3).
• Objective function SSE (normal).
• No multi-objective search.
• Bias selected.
• Data scaled.
• Coefficient aj evaluated by a Least Square
  approach.

the returned output Excel file name
is brif00t000000SOGAb1s1LSresults.xls
18
Yhat ? model-returned outputs on the training
set
X_scale ? input scale factors
Y_scale ? output scale factors
Ykhat_V ? model-returned outputs on the test set
SSE_V ? SSE value for each model computed on the
Ykhat_V predictions
19
CoD_V ? CoD value for each model computed on the
Ykhat_V predictions
SSE ? SSE values for each model on the training
set (1-step ahead)
SSE_Naivy ? SSE value for the naive model
BIC ? BIC (Best Information Criterion) values
for each model on the training set
COD_Naivy ? CoD value for the naive model
20
MSE ? Mean Squared Error values for each model
on the training set
AIC ? Akaikes Information Theoretic - AIC
values for each model on the training set
FPE ? Final Prediction Error of Akaike - FPE
values for each model on the training set
GCV ? Generalized Cross Validation - GCV values
for each model on the training set
21
CoD ? CoD values for each model on the training
set (1-step ahead)
Y_rec ? Reconstructed data of the training set
Y_V_rec ? Reconstructed data of the test set
Models ? Explicit expression(s) of all the EPR
returned model(s)
22

• Berardi, L., Savic, D.A., and Giustolisi, O,
  Investigation of burst-prediction formulas for
  water distribution systems by evolutionary
  computing, , CCWI International Conference,
  vol.2, pp.275-280, 2005. ISBN 09 5391 403 8
• Davidson, J.W., Savic, D.A., and Walters, G.A.,
  Method for Identification of explicit polynmial
  formulae for the friction in turbulent pipe flow,
  Journal of Hydroinformatics, IAHR-IWA, No.2,
  Vo.1, pp.115-126, 1999.
• Efron, B., Bootstrap Methods. Another Look at the
  Jackknife. The Ann. of Statist., 7, pp. 1-26,
  1979.
• Ljung, L., System Identification Theory for the
  User 2e. Prentice-Hall Inc., UpperSaddle River,
  New Jersey, USA, 1999.
• Giustolisi, O., Using genetic programming to
  determine Chèzy resistance coefficient in
  corrugated channels. Journal of Hydroinformatics,
  IAHR-IWA, Vol. 6, No 3, pp. 158173, 2004.
• Giustolisi, O., and Savic, D.A., A novel strategy
  to perform genetic programming Evolutionary
  Polynomial Regression. 6th Int. Conf. on
  Hydroinformatics, Singapore, Liong, Phoon
  Babovic (eds), World Scientific Publishing
  Company, vol.1, pp.787-794, 2004. ISBN
  981-238-787-0.
• Giustolisi, O., Savic, D.A., and Doglioni, A.,
  Data Reconstruction and Forecasting by
  Evolutionary Polynomial Regression, 6th Int.
  Conf. on Hydroinformatics, Singapore, Liong,
  Phoon Babovic (eds), World Scientific
  Publishing Company, vol.2, pp.1245-1252, 2004a.
  ISBN 981-238-787-0.
• Giustolisi, O., Savic, D.A., Doglioni A., and
  Laucelli, D., Knowledge discovery by Evolutionary
  Polynomial Regression, 6th Int. Conf. on
  Hydroinformatics, Singapore, Liong, Phoon
  Babovic (eds), World Scientific Publishing
  Company, vol.2, pp.1647-1654, 2004b. ISBN
  981-238-787-0.
• Giustolisi, O., Doglioni A., and Savic, D.A., A
  multi-model approach to analysis of environmental
  phenomena, invited in Special issue Complexity
  and Integrated Resources Management of
  Environmental Modelling Software Journal,
  Elsevier Science, Netherlands. In press.
• Giustolisi, O., Doglioni, A., Savic, D. and di
  Pierro, F., A new multi-objective strategy to
  support model selection for environmental
  modelling. Fourth International Workshop on
  Environmental Applications of Machine Learning
  (EAML), Bled, Slovenia, accepted for publication,
  2004d.
• Giustolisi, O., Doglioni A., and Laucelli, D.,
  Experimental determination of friction factor for
  corrugated drains, Water Management, ICE, 2005a
  (submitted for publication).
• Giustolisi, O, Laucelli, D., and Savic, D.A., A
  decision support framework for short-time
  rehabilitation planning in water distribution
  systems, CCWI International Conference, vol.1,
  pp.39-44, 2005b. ISBN 09 5391 402 X.
• Goldberg, D.E., Genetic Algorithms in Search,
  Optimization and Machine Learning. Addison
  Wesley, 1989.
• Golub, G.H., and Van Loan, C.F., Matrix
  Computations, The Johns Hopkins University Press
  Ltd., London, 1993.
• Keijzer, M., and Babovic, V., Dimensionally aware
  genetic programming, in Banzhaf, W., Daida, J.,
  Eiben, A. E., Garzon, M. H., Honavar, V.,
  Jakiela, M., Smith, R. E. (eds.), GECCO-99
  Proceedings of the Genetic and Evolutionary
  Computation Conference, July 13-17, 1999,
• Savic, D.A., Giustolisi, O., and Berardi, L.,
  Sewers failure analysis using evolutionary
  computing, Water Management Journal, ICE, UK,
  2005. In press.
• Tikhonov, A.N., Solution of incorrectly
  formulated problems and the regularization
  method, Doklady Akademii Nauk SSSR, No.151,
  pp.501-504, 1963.
• Van Veldhuizen, D.A., and Lamont, G.B.,
  Multi-objective Evolutionary Algorithms Analyzing
  the State-of-the-Art. Evolutionary Computation.
  Vol. 8(2), pp. 125-144, 2000.
