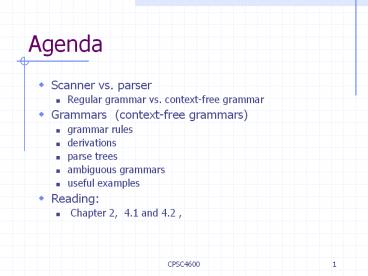

Agenda

1
Agenda

• Scanner vs. parser
• Regular grammar vs. context-free grammar
• Grammars (context-free grammars)
• grammar rules
• derivations
• parse trees
• ambiguous grammars
• useful examples
• Reading
• Chapter 2, 4.1 and 4.2 ,

2
Characteristics of a Parser

• Input sequence of tokens from scanner
• Output parse tree of the program
• parse tree is generated (implicitly or
  explicitly) if the input is a legal program
• if input is an illegal program, syntax errors are
  issued
• Note
• Instead of parse tree, some parsers produce
  directly
• abstract syntax tree (AST) symbol table , or
• intermediate code, or
• object code
• In the following lectures, well assume that
  parse tree is generated.

3
Comparison with Lexical Analysis
Phase Input Output
Lexical Analysis String of characters String of tokens
Syntax Analysis String of tokens Parse tree
4
Example

• The program
• x y z
• Input to parser
• ID TIMES ID PLUS ID
• well write tokens as follows
• id id id
• Output of parser
• the parse tree ?

E
E
E

E
E
id

id
id
5
Why are Regular Grammars Not Enough?

• Write an automaton that accepts strings
• a, (a), ((a)), and (((a)))
• a, (a), ((a)), (((a))), (ka)k

6
What must parser do?

• Recognizer not all strings of tokens are
  programs
• must distinguish between valid and invalid
  strings of tokens
• Translator must expose program structure
• e.g., associativity and precedence
• hence must return the parse tree
• We need
• A language for describing valid strings of tokens
• context-free grammars
• (analogous to regular grammars in the scanner)
• A method for distinguishing valid from invalid
  strings of tokens (and for building the parse
  tree)
• the parser
• (analogous to the state machine in the scanner)

7
Context-free grammars (CFGs)

• Example Simple Arithmetic Expressions Grammar
• In English
• An integer is an arithmetic expression.
• If exp1 and exp2 are arithmetic expressions,
  then so are the following
• exp1 - exp2
• exp1 / exp2
• ( exp1 )
• the corresponding CFG well write tokens as
  follows
• exp ? INTLITERAL E ? intlit
• exp ? exp MINUS exp E ? E - E
• exp ? exp DIVIDE exp E ? E / E
• exp ? LPAREN exp RPAREN E ? ( E )

8
Reading the CFG

• The grammar has five terminal symbols
• intlit, -, /, (, )
• terminals of a grammar tokens returned by the
  scanner.
• The grammar has one non-terminal symbol
• E
• non-terminals describe valid sequences of tokens
• The grammar has four productions or rules,
• each of the form E ? ?
• left-hand side a single non-terminal.
• right-hand side either
• a sequence of one or more terminals and/or
  non-terminals, or
• ? (an empty production)

9
Example, revisited

• Note
• a more compact way to write previous grammar
• E ? INTLITERAL E - E E / E ( E )
• or
• E ? INTLITERAL
• E - E
• E / E
• ( E )

10
A formal definition of CFGs

• A CFG consists of
• A set of terminals T
• A set of non-terminals N
• A start symbol S (a non-terminal)
• A set of productions
• X ? X1 X2 Xn
• where X ? N and Yi ? T U N U ?

11
Notational Conventions

• In these lecture notes
• Non-terminals are written upper-case
• Terminals are written lower-case
• The start symbol is the left-hand side of the
  first production

12
The Language of a CFG

• The language defined by a CFG is the set of
  strings that can be derived from the start symbol
  of the grammar.
• Derivation Read productions as rules
• X ? Y1 Yn
• ? Means X can be replaced by Y1 Yn

13
Derivation key idea

• 1. Begin with a string consisting of the start
  symbol S
• 2. Replace any non-terminal X in the string by a
  the right-hand side of some production
• 3. Repeat (2) until there are no non-terminals in
  the string

14
Derivation an example
derivation

• CFG
• E ? id
• E ? E E
• E ? E E
• E ? ( E )
• Is string id id id in the
• language defined by the grammar?

15
Terminals

• Terminals are called so because there are no
  rules for replacing them
• Once generated, terminals are permanent
• Therefore, terminals are the tokens of the
  language

16
The Language of a CFG (Cont.)

• More formally, write
• X1 X2 Xn ? X1 X2 X i-1 Y1 Y2 Ym X i1 Xn
• if there is a production
• X i ? Y1 Y2 Ym

17
The Language of a CFG (Cont.)

• Write
• X1 X2 Xn ? Y1 Y2 Ym
• if
• X1 X2 Xn ? ? .. ? Y1 Y2 Ym
• in 0 or more steps

18
The Language of a CFG

• Let G be a context-free grammar with start
  symbol S. Then the language of G is
• a1 a2 an S ? a1 a2 an
• where ai, i 1,2, .., n are terminal symbols

19
Examples

• Strings of balanced parentheses
• The grammar

sameas
20
Arithmetic Expression Example

• Simple arithmetic expressions
• Some elements of the language

21
Notes

• The idea of a CFG is a big step. But
• Membership in a language is yes or no
• we also need parse tree of the input!
• furthermore, we must handle errors gracefully
• Need an implementation of CFGs,
• i.e. the parser
• well create the parser using a parser generator
• available generators CUP, bison, yacc

22
More Notes

• Form of the grammar is important
• Many grammars generate the same language
• Parsers are sensitive to the form of the grammar
• Example
• E ? E E
• E E
• intlit
• is not suitable for an LL(1) parser (a common
  kind of parser).

23
Derivations and Parse Trees

• A derivation is a sequence of productions
• S .. ? .. ? ..
• A derivation can be drawn as a tree
• Start symbol is the trees root
• For a production X ? Y1 Y2 add children Y1 Y2
• to node X

24
Derivation Example

• Grammar
• String

25
Derivation Example (Cont.)
E
E
E

E
E
id

id
id
26
Notes on Derivations

• A parse tree has
• Terminals at the leaves
• Non-terminals at the interior nodes
• An in-order traversal of the leaves is the
  original input
• The parse tree shows the association of
  operations, the input string does not

27
Left-most and Right-most Derivations

• The example is a left-most derivation
• At each step, replace the left-most non-terminal
• There is an equivalent notion of a right-most
  derivation

28
Derivations and Parse Trees

• Note that right-most and left-most derivations
  have the same parse tree
• The difference is the order in which branches are
  added

29
Remarks on Derivation

• We are not just interested in whether s e
  L(G)
• We need a parse tree for s, (because we need to
  build the AST)
• A derivation defines a parse tree
• But one parse tree may have many derivations
• Left-most and right-most derivations are
  important in parser implementation

30
Ambiguity(1)

• Grammar
• String

31
Ambiguity (2)

• This string has two parse trees

E
E
E
E
E
E


E
E
id

E
E
id

id
id
id
id
32
Ambiguity(3)

• for each of the two parse trees, find the
  corresponding left-most derivation
• for each of the two parse trees, find the
  corresponding right-most derivation

33
Ambiguity (4)

• A grammar is ambiguous if, for some string of the
  language
• it has more than one parse tree, or
• there is more than one right-most derivation, or
• there is more than one left-most derivation.
• (the three conditions are equivalent)
• Ambiguity Leaves meaning of some programs
  ill-defined

34
Dealing with Ambiguity

• There are several ways to handle ambiguity
• Most direct method is to rewrite grammar
  unambiguously
• Enforces precedence of over

35
Removing Ambiguity

• Rewriting
• Expression Grammars
• precedence
• associativity
• IF-THEN-ELSE
• the Dangling-ELSE problem

36
Handling operator precedence

• Rewrite the grammar
• use a different nonterminal for each precedence
  level
• start with the lowest precedence (MINUS)
• E ? E - E E / E ( E ) id
• rewrite to
• E ? E - T T
• T ? T / F F
• F ? id ( E )

37
Example

• parse tree for id id / id
• E ? E - T T
• T ? T / F F
• F ? id ( E )

E
T
E
-
T
/
T
F
F
F
id
id
id
38
Handling Operator Associativity

• The grammar captures operator precedence, but it
  is still ambiguous!
• fails to express that both subtraction and
  division are left associative
• e.g., 5-3-2 is equivalent to ((5-3)-2) and not
  to (5-(3-2)).

39
Recursion

• A grammar is recursive in nonterminal X if
• X ? X
• ? means in one or more steps, X derives a
  sequence of symbols that includes an X
• A grammar is left recursive in X if
• X ? X
• in one or more steps, X derives a sequence of
  symbols that starts with an X
• A grammar is right recursive in X if
• X ? X
• in one or more steps, X derives a sequence of
  symbols that ends with an X

40
Resolving ambiguity due to associativity

• The grammar given above is both left and right
  recursive in nonterminals E and T
• To correctly expresses operator associativity
• For left associativity, use left recursion.
• For right associativity, use right recursion.
• Here's the correct grammar
• E ? E T T
• T ? T / F F
• F ? id ( E )

41
The Dangling Else ambiguity

• Consider the grammar
• St ? if E then St
• if E then St else St
• other
• This grammar is also ambiguous

42
Resolving the dangling else

• else matches the closest unmatched then
• We can describe this in the grammar
• E ? MIF / all then are
  matched /
• UIF / some then are
  unmatched /
• MIF ? if E then MIF else MIF
• print
• UIF ? if E then E
• if E then MIF else UIF
• Describes the same set of strings

43
Precedence and Associativity Declarationsin
Parser Generators

• Instead of rewriting the grammar
• Use the more natural (ambiguous) grammar
• Along with disambiguating declarations
• Most parser generators allow precedence and
  associativity declarations to disambiguate
  grammars

44
Parsing Approaches

• Top-down parsing
• build parse tree from start symbol (root)
• match terminal symbols(tokens) in the production
  rules with tokens in the input stream
• simple but limited in power
• Bottom-up parsing
• start from input token stream
• build parse tree from terminal symbols (tokens)
  until get start symbol
• complex but powerful

45
Top Down vs. Bottom Up
start here
result
match
start here
result
input token stream
input token stream
Top-down Parsing
Bottom-up Parsing
46
Top-down Parsing

• A top-down parsing algorithm parses an input
  string of tokens by tracing out the steps in a
  leftmost derivation.
• The parse tree associated with the input string
  is constructed using preorder traversal and hence
  the name top-down.

47
Top-down parsers

• There are mainly two kinds of top-down parsers
• 1. Predictive parsers
• - Tries to make decisions about the
  structure of the tree below a node based on a few
  lookahead tokens (usually one!).
• - Weakness Little program structure
  has been seen before predictive decisions must be
  made.
• 2. Backtracking parsers
• - Backtracking parsers solve the
  lookahead problem by backtracking if one decision
  turns out to be wrong and making a different
  choice.
• - Weakness Backtracking parsers are
  slow (exponential time in general).

48
Recursive-descent parsing

• Main idea
• 1. Use the grammar rules as recipes for
  procedure code that parses the rule
• 2. Each non-terminal corresponds to a
  procedure
• 3. Each appearance of a terminal in the
  right hand side of a rule causes a token to be
  matched.
• 4. Each appearance of a non-terminal
  corresponds to a call of the associated
  procedure.

49
Example Recursive-descent Parsing

• F ? (E) num
• Code
• void F()
• if (token num) match(num)
• else
• match(()
• E()
• match())// match token (

50
Example Recursive-descent Parsing (2)

• Observation
• Note how lookahead is not a problem in this
  example if the token is number, go one way, if
  the token is ( go the other, and if the token
  is neither, declare error
• void match(Token expect)
• if (token expect)
• getToken() //get next token




• else error(token,expect)

51
Example Recursive-descent Parsing (3)

• A recursive-descent procedure can also compute
  values or syntax trees
• int F()
• if (token num)
• int temp atoi(lexeme)
• match(number) return temp
• else
• match(() int temp E()
• match()) return temp

52
When Recursive Descent Does Not Work

• E ? E term term
• void E()
• if (token ??)
• E() // uh, oh!!
• match()
• term()
• else term()
• - A left-recursive grammar has a non-terminal A
• A ? A? for some ?
• - Recursive descent does not work in such cases

53
Elimination of Left Recursion

• Consider the left-recursive grammar
• A ? A?b for some sentential forms a and b
• S generates all strings starting with a ? and
  followed by a number of ?
• Can rewrite the grammar using right-recursion
• A ? ? A
• A ? ? A ?
• where A is a new nonterminal

54
Elimination of Left Recursion (2)

• In general
• A ? A ?1 A ?n ?1
  ?m
• All strings derived from A start with one of
  ?1,,?m and continue with several instances of
  ?1,,?n
• Rewrite as
• A ? ?1 A ?m A
• A ? ?1 A ?n A ?

55
General Left Recursion

• The grammar
• S ? A ? ?
• A ? S ?
• is also left-recursive because
• S ? S ? ?
• This left-recursion can also be eliminated
• See book, Section 4.3 for general algorithm

56
Summary of Recursive Descent with backtracking

• Simple and general parsing strategy
• Left-recursion must be eliminated first
• but that can be done automatically
• Unpopular because of backtracking
• Thought to be too inefficient
• In practice, backtracking is eliminated by
  restricting the grammar

57
Predictive Parsers

• Like recursive-descent but parser can predict
  which production to use
• - By looking at the next few tokens
• - No backtracking
• Predictive parsers accept LL(k) grammars
• - L means left-to-right scan of input
• - L means leftmost derivation
• - k means predict based on k tokens of
  lookahead
• In practice, LL(1) is used

58
LL(1) Languages

• In recursive-descent, for each non-terminal and
  input token there may be a choice of production
• LL(1) means that for each non-terminal and token
  there is only one production
• Can be specified via 2D tables
• - One dimension for current non-terminal to
  expand
• - One dimension for next token
• - A table entry contains one production

59
Predictive Parsing and Left Factoring

• Consider the grammar
• E ? T E T
• T ? num num T ( E )
• Hard to predict because
• For T, two productions start with num
• For E, it is not clear how to predict
• A grammar must be left-factored before use for
  predictive parsing

60
Left-Factoring Example

• Recall the grammar
• E ? T E T
• T ? num num T ( E )

Factor out common prefixes of productions E
? T X X ? E ? T ? ( E ) num Y
Y ? T ?
61
LL(1) Parsing Table Example

• Left-factored grammar
• E ? T X X ? E ?

• T ? ( E ) num Y Y ? T ?
• The LL(1) parsing table

62
LL(1) Parsing Table Example (Cont.)

• Consider the E, num entry
• - When current non-terminal is E and next input
  is num, use production E ? T X
• - This production can generate a num in the first
  place
• Consider the Y, entry
• - When current non-terminal is Y and current
  token is , get rid of Y
• Y can be followed by only in a derivation in
  which Y ? ?

63
LL(1) Parsing Tables. Errors

• Blank entries indicate error situations
• Consider the E, entry
• There is no way to derive a string starting with
  from non-terminal E

64
Using Parsing Tables

• Method similar to recursive descent, except
• - For each non-terminal S
• - We look at the next token a
• - And chose the production shown at S,a
• We use a stack to keep track of pending
  non-terminals
• We reject when we encounter an error state
• We accept when we encounter end-of-input

65
LL(1) Parsing Algorithm

• Start nonterminal end-of-input
  symbol
• initialize stack ltS gt and Token nextToken()


• repeat
• case stack of
• ltX, restgt if TX,Token Y1Yn
• then stack ? ltY1 Yn
  restgt
• else error ()
• ltt, restgt if t nextToken
• then stack ? ltrestgt
• else error ()
• until stack lt gt // empty

66
LL(1) Parsing Example

• Stack Input
  Action
• E num num
  T X
• T X num num
  num Y
• num Y X num num
  terminal
• Y X num
  T
• T X num
  terminal
• T X num
  num Y
• int Y X num
  terminal
• Y X
  ?
• X
  ?
•
  ACCEPT

67
Constructing Parsing Tables

• LL(1) languages are those defined by a parsing
  table for the LL(1) algorithm
• No table entry can be multiply defined
• We want to generate parsing tables from CFG

68
Constructing Parsing Tables First and Follow sets

• If A ? ?, where in the row of A we place ? ?
• Answer In the column of t where t can start a
  string derived from ?
• ? ? t ?
• We say that t ? First(?)
• In the column of t if ? is ? and t can follow an
  A
• S ? ? A t ?
• We say t ? Follow(A)

69
Computing First Sets

• Definition First(X) t X ? t? ? ? X
  ? ?
• Algorithm sketch (see book for details)
• for all terminals t do First(t) ? t
• for each production X ? ? do First(X) ? ?
• if X ? A1 An ? and ? ? First(Ai), 1 ? i ? n
  do
• add First(?) to First(X)
• for each X ? A1 An s.t. ? ? First(Ai), 1 ? i ?
  n do
• add ? to First(X)
• repeat steps 3 4 until no First set can be grown

70
First Sets. Example

• Recall the grammar
• E ? T X X ? E
  ?
• T ? ( E ) num Y Y ? T ?
• First sets
• First( ( ) ( First( T )
  num, (
• First( ) ) ) First( E )
  num, (
• First( num) num First( X ) , ?

• First( ) First( Y )
  , ?
• First( )

71
Computing Follow Sets

• Definition
• Follow(X) t S ? ? X t ?
• Intuition
• If S is the start symbol then ? Follow(S)
• If X ? A B then First(B) ? Follow(A) and
• Follow(X) ?
  Follow(B)
• Also if B ? ? then Follow(X) ? Follow(A)

72
Computing Follow Sets (Cont.)

• Algorithm sketch
• 1. Follow(S) ?
• 2. For each production A ? ? X ?
• add First(?) \ ? to Follow(X)
• 3. For each A ? ? X ? where ? ? First(?)
• add Follow(A) to Follow(X)
• repeat step(s) 2 and 3 until no Follow set grows

73
Follow Sets. Example

• Recall the grammar
• E ? T X X ? E
  ?
• T ? ( E ) num Y Y ? T ?
• Follow sets
• Follow( ) num, ( Follow( )
  num, (
• Follow( ( ) num, ( Follow( E )
  ),
• Follow( X ) , ) Follow( T )
  , ) ,
• Follow( ) ) , ) , Follow( Y )
  , ) ,
• Follow( num) , , ) ,

74
Constructing LL(1) Parsing Tables

• Construct a parsing table T for CFG G
• For each production A ? ? in G do
• For each terminal t ? First(?) do
• TA, t ?
• If ? ? First(?), for each t ? Follow(A) do
• TA, t ?
• If ? ? First(?) and ? Follow(A) do
• TA, ?

75
Notes on LL(1) Parsing Tables

• If any entry is multiply defined then G is not
  LL(1)
• If G is ambiguous
• If G is left recursive
• If G is not left-factored
• Most programming language grammars are not LL(1)
• There are tools that build LL(1) tables

76
Review

• For some grammars there is a simple parsing
  strategy
• Predictive parsing
• Next time Bottom-up parsing
