Title: Predictive Modeling of Lithography-Induced Linewidth Variation

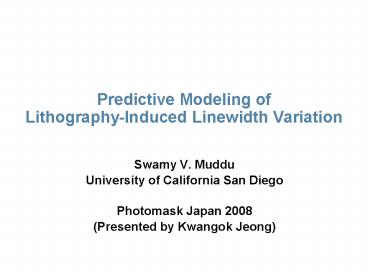

1
Predictive Modeling of Lithography-Induced
Linewidth Variation
  • Swamy V. Muddu
  • University of California San Diego
  • Photomask Japan 2008
  • (Presented by Kwangok Jeong)

2
Modeling Litho-Induced Linewidth (CD) Variation
  • Device layout geometries are no longer regular
  • Design needs litho-simulated layout shapes
  • Device performance/leakage depend on the device
    contour
  • ? Contour of device needed for driving accurate
    design in sub-45nm technologies
  • Sources of lithography-induced systematic
    critical dimension (CD) variation
  • Defocus, exposure dose, topography, mask errors,
    overlay etc.
  • Simulation of litho processes on layout ?
    computationally very expensive

Image source Andrez Strojwas, ASPDAC06
3
Modeling Litho-Induced CD Variability
  • Goal Modeling systematic variation of CD caused
    during lithography by accurately characterizing
    impact of variation sources on representative
    layout patterns
  • Use model drive litho-aware design analysis and
    optimization without OPC and litho simulation
  • ? during iterative litho-aware layout
    optimizations (e.g., detailed placement /
    detailed routing with knowledge of litho impact)
  • ? fast, chip-level analysis of post-litho device
    dimensions and its performance impact

Layout patterns representative of technology
OPC / lithography simulation
Regression/Response Surface Modeling
Linewidth (CD)model
4
Modeling Device CD
  • Performance (on-current Ion) and power
    (leakage/off-current Ioff) depend on the device
    CD
  • ? the main region of interest in polysilicon is
    the gate poly
  • Our work model CD from litho contour of gate poly

Snapshot of a layout in 65nm technologyshowing
the deviation in litho contour fromthe drawn
layout at worst defocus
5
Modeling CD ? Modeling Edge Placement Error
  • EPE deviation of litho contour from device
    edge
  • ? provides reference to the drawn device unlike
    CD
  • Construct model of device EPE variation with
    focus/exposure dose ? predict device EPE at
    design level

Focus (F) and exposure dose (E) are the main
contributors. Other sources of variation can be
translated to F/E variation
Device EPE is not constant along device width ?
sample EPE at multiple locations and capture
their layout dependence
6
Predictive EPE Modeling Methodology
Full-Chip Layout (poly and diffusion)
Layout Parameter Space
Modeling
Prediction
Parameter Screening (parameter reduction)
Device LayoutAnalysis
Exhaustive DOE (w/ reduced parameter set)
Device GeometricParameters
OPC and LithoSim(process window (PW))
Mapping to DOE Configurations
Response SurfaceModeling
Predictive Model of Device EPE
EPE Prediction
Device EPE (at multiple locations)
End goal EPE delta lt 2nm
7
Capturing Layout Parameters
  • Layout geometry shapes determine litho contour
    across PW
  • Capturing device layout parameters important for
    model construction
  • Ground rules for abstracting layout shapes using
    parameters
  • A shape can be defined by a sequence of points in
    x-y plane. The sequence can be clockwise or
    anti-clockwise
  • Any two consecutive points in the shape array
    define an edge
  • Any polygon edge can take four possible
    directions right, left, top or bottom

Basic device layout inManhattan geometryshowing
device body, top and bottom terminations
Representation ofdevice geometry with points
and edges
8
Capturing Layout Parameters Device
Classification
  • Any two isolated devices in the layout differ
    only in their top and bottom terminations ?
    classify devices on this basis
  • Top or bottom termination can be of three types
  • Line end (E)
  • Line corner (C)
  • Line taper (T)
  • Total number of possible device configurations
    36
  • Line end definition
  • If point-after-P2 point-before P3, then
    termination line end
  • Layout parameter of line end
  • Line end extension (LEE) Spacing between gate
    poly boundary and termination of line end

9
Device Classification Line Corner
  • Line corner definition
  • If point-after P2 and point-before P3 are on the
    same side of the device segments (P1P2 and P3P4
    respectively), then the termination is a corner
  • A corner can be oriented left or right (LC or RC)
  • Layout parameter of line corner
  • Left Corner Spacing (LCS) Spacing between gate
    poly boundary and left edge BP3P3
  • Left Corner Extent (LCS) Length of the edge
    BP3P3
  • Right Corner Spacing (RCS) Spacing between gate
    poly boundary and right edge P2AP2
  • Right Corner Extent (RCE) Length of the edge
    P2AP2
  • Similar definitions apply for right corner
  • Left and right corner definitions apply for
    bottom termination also

10
Device Classification Line Taper
  • Line taper definition
  • If point-after P2 and point-before P3 are on the
    different sides of the device segments (P1P2 and
    P3P4 respectively), then the termination is a
    taper
  • Depending on the spacing between gate poly
    boundary and segments BP3P3 and P2AP2, a taper
    can be
  • Left-proximal (left edge closer to boundary) LT
  • Right-proximal (right edge closer to boundary)
    RT
  • Uniform (left and right edges are at uniform
    distance) UT
  • Layout parameter of line taper
  • Left Taper Spacing (LTS) Spacing between gate
    poly boundary and left edge BP3P3
  • Left Taper Extent (LTE) Length of the edge
    BP3P3
  • Right Taper Spacing (RTS) Spacing between gate
    poly boundary and right edge P2AP2
  • Right Taper Extent (RTE) Length of the edge
    P2AP2
  • Similar definitions apply for right corner
  • Left and right corner definitions apply for
    bottom termination also

11
Capturing Layout Parameters Neighbor
Interactions
  • The geometry of field poly surrounding a device
    affects its contour ? optical interactions
  • Capturing neighbor interactions 1D and 2D poly
    in the edge interaction region of a device
  • Number of layout parameters representing a device
    configuration (including those of neighbor poly)
    20
  • Infeasible even for a modest 3-level design of
    experiments ? reduce dimensionality of layout
    parameter space

1D neighbor polyConstituted of vertical field
poly shapes only
2D neighbor polyConstituted of vertical and
horizontal field poly shapes onlyThe figure
shows a convex corner
12
Pruning Layout Parameter Space
  • We utilize observations of litho contour
    variation to filter out unimportant layout
    parameters
  • Observations
  • 1 Poly geometries outside the edge interaction
    region do not affect device contour
  • 2 Only convex corners of neighbor poly affect
    device contour
  • 3 Corners of neighbor poly beyond the first
    neighbor do not affect device contour
  • 4 Beyond the first neighbor, poly affect the
    device contour only if their normals coincide
  • Observations above corroborated with experimental
    data generated from litho simulation across the
    process window
  • Number of layout parameters reduced from 20 to
    10 (depending on the device configuration)

13
Design of Experiments (DOE) for Modeling
  • DOE is a well-studied topic in industrial process
    optimization
  • Optimal DOE exist for 2-level / 3-level,
    multi-factor experiments
  • Study first and second-order dependencies between
    inputs/outputs
  • Proposed setup multi-level, multi-factor ? no
    optimal designs
  • Factors layout parameters
  • Levels samples from the distribution of layout
    parameters
  • For EPE modeling, create DOE for each of the 36
    device configurations
  • Values of layout parameters in each configuration
    obtained from sampling of parameter distributions
  • Sampling criterion
  • Any sampling of parameter distribution must
    include the peaks
  • Include samples from the regions of the
    distribution that contribute to most of the
    variation in output
  • Utilize the knowledge of the trend in response
    w.r.t. a parameter during sampling

14
Layout Parameter Distributions
  • Distribution of device widths taken from a 65nm
    industrial benchmark with 1M devices

15
Layout Parameter Distributions (contd.)
  • Distribution of line end extension (LEE)
    parameter of devices in a 65nm industrial
    benchmark

16
Layout Parameter Distributions (contd.)
  • Distribution of spacing to left corners in the
    top termination of devices in a 65nm industrial
    benchmark

17
EPE Modeling
  • To generate EPE data for modeling, create a DOE
    for each device configuration
  • Perform OPC and litho simulation across process
    window (i.e., different defocus X exposure
    conditions) and extract device EPE at multiple
    locations
  • Bottom, first-quarter (25 of width), center,
    third-quarter (75 of width) and top EPE of the
    device
  • Analyze EPE at each location w.r.t. each
    parameter

EPE variation with LCS
EPE variation with Defocus
EPE variation with ExposureDose
18
EPE Modeling Model Selection
  • One dimensional analysis not sufficient to
    capture interactions between parameters
  • Use response surface analysis to guide
    multi-dimensional fitting
  • EPE response with each dimension can be modeled
    with a low-order polynomial
  • Linear regression can be used for fitting
    (function is linear in the unknown parameters of
    the model)

View of multi-dimensional data set in rstool
(MATLAB)
EPE variation across 6 layout and 2 litho
dimensions
19
Experimental Methodology
  • Layout parameter extraction
  • To generate parameter distributions for sampling
  • Performed using GDSII shape analysis routines
    (OpenAccess)
  • Parameter sampling and DOE construction
  • Parameters obtained from sampling distributions
  • DOE generated using scripted interfaces to Mentor
    Calibre
  • OPC and process window lithography simulation
  • OPC recipes in 90nm and 65nm optimized for
    minimum (0nm) EPE variation at nominal process
    conditions
  • Defocus optical models generated for litho
    simulation
  • Data analysis and regression
  • EPE data obtained from analysis of device
    contours in DOE
  • Response surface analysis performed in MATLAB
  • Linear regression performed with R (statistical
    analysis tool)

20
Experimental Methodology (contd.)
  • Experiments performed with TSMC 90nm and 65nm
    layouts
  • Process window litho simulation
  • 90nm 27 defocus, exposure dose conditions
  • Defocus range (-100nm, 100nm), dose range
    (-3, 3)
  • 65nm 21 defocus, exposure dose conditions
  • Defocus range (-75nm, 75nm), dose range (-4,
    4)

Number of DOE configurations for model
generation (Config representation top, bottom
termination)
OPC / Litho model parameters
21
Modeling Results
  • EPE model fit based on the analysis of response
    surface
  • Quality of fit evaluated with R2 (coefficient of
    determination), root mean-squared error (RMSE)
    and residual plots
  • Fit improved until RMSE lt 1nm

Results of linear regression for bottom, first
quarter (25 of width), center, third quarter
(75 of width), top EPE of left (_l) and right
(_r) device edges in 90nm technology
22
EPE Prediction Scatter Plot
  • EPE models used for prediction at the chip layout
    level in 90/65nm technologies
  • Testcases c432, c880, c3540 with 710, 1152 and
    3464 devices
  • Predicted EPE compared with actual EPE across the
    process window

90nm c432 Distribution of prediction error Mean
-0.11nm 95 of errors within 1.6nm
90nm c432 Scatter plot of actual versus
predicted EPE at 145923 data points
23
EPE Prediction Results
Statistics of the discrepancy between actual EPE
and predicted EPE in 90nm and 65nm technologies
24
Conclusions
  • Drivers for predictive modeling approach are
  • Fast, chip-level analysis of post-litho layout
    dimensions
  • Use in iterative layout optimizations (without
    the need for incremental litho simulations)
  • Proposed predictive model cannot replace a
    sign-off quality litho simulator, but is a fast
    approximation
  • EPE prediction error (i.e., EPEactual
    EPEpredicted) is spread within (-3nm,3nm) with ?
    1nm
  • ? 70 of prediction errors lt 1nm
  • This accuracy is acceptable during fast layout
    analysis / iterative litho-aware optimizations
Write a Comment
User Comments (0)
About PowerShow.com
