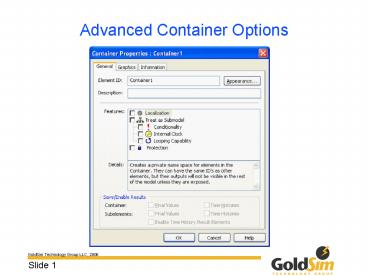

Advanced Container Options

1
Advanced Container Options
2
Overview

• The Information Tab
• Localizing Containers
• Protecting Containers
• Conditional Containers
• Looping Containers
• Cloning Containers
• Adding an Internal Clock
• Saving Results Using Containers
• Controlling Graphics Using Containers

3
Localizing Containers (Defining New Scopes)

• Element IDs can only be duplicated if they are
  within different scopes.
• You create different scopes by localizing
  Containers (using context menu).
• You can recognize a localized Container
• the is red
• default symbol in graphics pane is closed
• icon in browsers is closed
• Can only globalize a Container if it causes no
  naming conflicts

4
Referencing Outputs in a Localized Container

• Outputs can only be seen inside the Container,
  unless they are exposed
• Once exposed, it is referenced as
  ContainerID.OutputID
• You can expose an output in four ways
• any outputs referenced outside the Container when
  it is localized are exposed (automatic)
• Using the Link Cursor (automatic)
• Using the Insert Link dialog (verified)
• Manually using the Outputs context menu

5
Nesting Localized Container
6
Defining an Alias for an Exposed Output

• Since the output is referenced as
  ContainerID.OutputID, what if there are two
  elements of the same type in the Container whose
  outputs you wish to expose?
• GoldSim solves this by defining an alias for each
  exposed output
• default alias is the OutputID
• if there is a conflict, alias is OutputID_n
• you can customize the alias

7
Search Logic for Linking to an Output Present in
Multiple Scopes

• Although outputs from an element in a localized
  Container can only be referenced if they are
  exposed, inputs to an element in a localized
  Container can come from anywhere in the upward
  search path

8
Example Localization

• Create a Container called X
• Localize it
• Inside the Container, add a Expression element
  named A ( 1 m3/yr)
• Inside the Container, add two Reservoirs (R1 and
  R2)
• Give each an upper bound of 10 m3 and an inflow
  rate of 10 m3/day
• Outside of X
• Create an Expression element named A (2 m3/yr)
• Create a Sum element named B
• Sum the Expressions and the two Overflow Rates

9
Sealing Containers

• Lowest level of protection you can use
• No security
• Intended to be used as a mechanism to help you
  check off those parts of your model have been
  QAd
• When a Container is sealed
• The user, the date/time, and a comment are added
  to the Containers property dialog
• Cosmetic changes can be made
• In order to make any other kind of change, you
  must break the seal

10
Sealing Containers (cont.)

• A seal is broken by making any (non-cosmetic)
  change inside the Container
• When a seal is broken
• The original user who sealed the Container, the
  user who broke the seal, and the date/time the
  seal was broke are added to the Containers
  property dialog
• You can also remove a seal directly through the
  Containers property dialog

11
Sealing Containers (cont.)

• When you seal a Container that contains other
  Containers, all of the child Containers are
  sealed also
• When you break a seal of a child Container, seal
  of parent is also broken
• When you remove a seal of a child Container, the
  parent seal remains intact
• Making a change inside a child Container that is
  not sealed does not break the seal of the parent

12
Locking Containers

• Highest level of protection
• Can secure through a password
• Intended to be used as a mechanism to prevent
  parts of a model from being modified
• When a Container is locked
• The user, the date/time, and a comment are added
  to the Containers property dialog
• No changes at all can be made to the contents of
  the Container

13
Locking Containers (cont.)

• To unlock a Container you must provide a password
• A Container can be locked with no password also
• If you have forgotten the password to a
  Container, we can provide a skeleton key if you
  provide
• The filename
• The Container name
• Date and Time you want the key to become active
  (it remains active for 24 hours)

14
Conditional Containers

• Containers can be conditional
• A conditional container can be active or inactive
• If inactive, all of its contents are inactive
• Before becoming active, an element propagates its
  Initial Value (if it has one), its actual value
  (if the element is static), or zero (most other
  elements)
• After becoming inactive, an element continues to
  propagate its last output value(s)
• Conditional Containers have local variables
• Duration
• Num_Activations

15
Looping Containers

• You can specify that a Container is a looping
  Container
• Looping Containers carry out calculations
  repeatedly every timestep
• The number of loops carried out is determined by
  a specified Loop While or Loop Until
  condition
• Often used in conjunction with Previous Value
  element
• Can reference local variable
• LoopCount

16
Cloning Containers

• When a Container is cloned,
• All contents are cloned
• Adding a new element to one Container adds it to
  the Containers clones
• Deleting an element to one Container deletes it
  from the Containers clones
• Cloned Containers can be used to reuse algorithms
  at multiple places in a model
• You only need to change the algorithm in one
  location

17
Using Cloned Containers
Localized
Localized
A
B
A
B
Clone2
Clone1
X f(A,B)
X f(A,B)
18
Adding an Internal Clock
19
Saving Results Using Containers
20
Controlling Graphics Using Containers
