Graphical Models: An Introduction

1

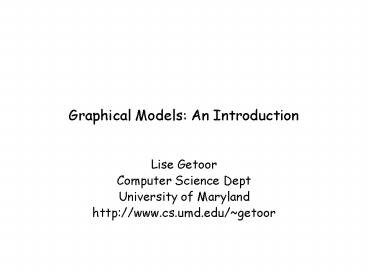

Graphical Models An Introduction

• Lise Getoor
• Computer Science Dept
• University of Maryland
• http//www.cs.umd.edu/getoor

2
Reading List for Next Lecture

• Learning Probabilistic Relational Models, L.
  Getoor, N. Friedman, D. Koller, A. Pfeffer.
• Invited contribution to the book Relational Data
  Mining, S. Dzeroski and N. Lavrac, Eds.,
  Springer-Verlag, 2001.
• http//www.cs.umd.edu/getoor/Publications/lprm-c
  h.ps http//www.cs.umd.edu/class/spring2005/cmsc82
  8g/Readings/lprm-ch.pdf
• Probabilistic Models for Relational Data, David
  Heckerman, Christopher Meek and Daphne Koller
• http//www.cs.umd.edu/projects/srl2004/Papers/hec
  kerman.pdfftp//ftp.research.microsoft.com/pub/tr/
  TR-2004-30.pdf

3
Graphical Models

• e.g. Bayesian networks, Bayes nets, Belief nets,
  Markov networks, HMMs, Dynamic Bayes nets, etc.
• Themes
• representation
• reasoning
• learning
• Materials based on upcoming book by Nir Friedman
  and Daphne Koller.
• Slides based on material from Nir Friedman.

4
Probability Distributions

• Let X1,,Xp be discrete random variables
• Let P be a joint distribution over X1,,Xp
• If the variables are binary, then we need O(2p)
  parameters to describe P
• Can we do better?
• Key idea use properties of independence

5
Independent Random Variables

• Two variables X and Y are independent if
• P(X xY y) P(X x) for all values x, y
• That is, learning the values of Y does not change
  prediction of X
• If X and Y are independent then
• P(X,Y) P(XY)P(Y) P(X)P(Y)
• In general, if X1,,Xp are independent, then
• P(X1,,Xp) P(X1)...P(Xp)
• Requires O(n) parameters

6
Conditional Independence

• Unfortunately, most of random variables of
  interest are not independent of each other
• A more suitable notion is that of conditional
  independence
• Two variables X and Y are conditionally
  independent given Z if
• P(X xY y,Zz) P(X xZz) for all values
  x,y,z
• That is, learning the values of Y does not change
  prediction of X once we know the value of Z
• notation I ( X , Y Z )

7
Example Naïve Bayesian Model

• A common model in early diagnosis
• Symptoms are conditionally independent given the
  disease (or fault)
• Thus, if
• X1,,Xp denote whether the symptoms exhibited by
  the patient (headache, high-fever, etc.) and
• H denotes the hypothesis about the patients
  health
• then, P(X1,,Xp,H) P(H)P(X1H)P(XpH),
• This naïve Bayesian model allows compact
  representation
• It does embody strong independence assumptions

8
Graphical Models

• Graph is language for representing independencies
• Directed Acyclic Graph -gt Bayesian Network
• Undirected Graph -gt Markov Network

9
DAGS Markov Assumption
Ancestor

• We now make this independence assumption more
  precise for directed acyclic graphs (DAGs)
• Each random variable X, is independent of its
  non-descendents, given its parents Pa(X)
• Formally,I (X, NonDesc(X) Pa(X))

Parent
Non-descendent
Descendent
10
Markov Assumption Example

• In this example
• I ( E, B )
• I ( B, E, R )
• I ( R, A, B, C E )
• I ( A, R B,E )
• I ( C, B, E, R A)

11
I-Maps

• A DAG G is an I-Map of a distribution P if the
  all Markov assumptions implied by G are satisfied
  by P
• (Assuming G and P both use the same set of random
  variables)
• Examples

12
Factorization

• Given that G is an I-Map of P, can we simplify
  the representation of P?
• Example
• Since I(X,Y), we have that P(XY) P(X)
• Applying the chain ruleP(X,Y) P(XY) P(Y)
  P(X) P(Y)
• Thus, we have a simpler representation of P(X,Y)

13
Factorization Theorem
Thm if G is an I-Map of P, then

• From assumption

• Since G is an I-Map, I (Xi, NonDesc(Xi) Pa(Xi))

• We conclude, P(Xi X1,,Xi-1) P(Xi Pa(Xi) )

14
Factorization Example

• P(C,A,R,E,B) P(B)P(EB)P(RE,B)P(AR,B,E)P(CA,R
  ,B,E)

versus P(C,A,R,E,B) P(B) P(E) P(RE) P(AB,E)
P(CA)
15
Consequences

• We can write P in terms of local conditional
  probabilities
• If G is sparse,
• that is, Pa(Xi) lt k ,
• ? each conditional probability can be specified
  compactly
• e.g. for binary variables, these require O(2k)
  params.
• ? representation of P is compact
• linear in number of variables

16
DAGS Summary

• The Markov Independences of a DAG G
• I (Xi , NonDesc(Xi) Pai )
• G is an I-Map of a distribution P
• If P satisfies the Markov independencies implied
  by G
• if G is an I-Map of P, then

17
Conditional Independencies

• Let Markov(G) be the set of Markov Independencies
  implied by G
• The factorization theorem shows
• G is an I-Map of P ?
• We can also show the opposite
• Thm
•
  ? G is an I-Map of P

18
Implied Independencies

• Does a graph G imply additional independencies as
  a consequence of Markov(G)?
• We can define a logic of independence statements
• Some axioms
• I( X Y Z ) ? I( Y X Z )
• I( X Y1, Y2 Z ) ? I( X Y1 Z )

19
d-seperation

• A procedure d-sep(X Y Z, G) that given a DAG
  G, and sets X, Y, and Z returns either yes or no
• Goal
• d-sep(X Y Z, G) yes iff I(XYZ) follows
  from Markov(G)

20
Paths

• Intuition dependency must flow along paths in
  the graph
• A path is a sequence of neighboring variables
• Examples
• R ? E ? A ? B
• C ? A ? E ? R

21
Paths

• We want to know when a path is
• active -- creates dependency between end nodes
• blocked -- cannot create dependency end nodes
• We want to classify situations in which paths are
  active.

22
Path Blockage

• Three cases
• Common cause

23
Path Blockage

• Three cases
• Common cause
• Intermediate cause

24
Path Blockage

• Three cases
• Common cause
• Intermediate cause
• Common Effect

25
Path Blockage -- General Case

• A path is active, given evidence Z, if
• Whenever we have the configurationB or one
  of its descendents are in Z
• No other nodes in the path are in Z
• A path is blocked, given evidence Z, if it is not
  active.

A
C
B
26
Example

• d-sep(R,B)?

E
B
A
R
C
27
Example

• d-sep(R,B) yes
• d-sep(R,BA)?

E
B
A
R
C
28
Example

• d-sep(R,B) yes
• d-sep(R,BA) no
• d-sep(R,BE,A)?

E
B
A
R
C
29
d-Separation

• X is d-separated from Y, given Z, if all paths
  from a node in X to a node in Y are blocked,
  given Z.
• Checking d-separation can be done efficiently
  (linear time in number of edges)
• Bottom-up phase Mark all nodes whose
  descendents are in Z
• X to Y phaseTraverse (BFS) all edges on paths
  from X to Y and check if they are blocked

30
Soundness

• Thm
• If
• G is an I-Map of P
• d-sep( X Y Z, G ) yes
• then
• P satisfies I( X Y Z )
• Informally,
• Any independence reported by d-separation is
  satisfied by underlying distribution

31
Completeness

• Thm
• If d-sep( X Y Z, G ) no
• then there is a distribution P such that
• G is an I-Map of P
• P does not satisfy I( X Y Z )
• Informally,
• Any independence not reported by d-separation
  might be violated by the underlying distribution
• We cannot determine this by examining the graph
  structure alone

32
I-Maps revisited

• The fact that G is I-Map of P might not be that
  useful
• For example, complete DAGs
• A DAG is G is complete is we cannot add an arc
  without creating a cycle
• These DAGs do not imply any independencies
• Thus, they are I-Maps of any distribution

33
Minimal I-Maps

• A DAG G is a minimal I-Map of P if
• G is an I-Map of P
• If G ? G, then G is not an I-Map of P
• Removing any arc from G introduces
  (conditional) independencies that do not hold in P

34
Minimal I-Map Example

• If is a
  minimal I-Map
• Then, these are not I-Maps

35
Constructing minimal I-Maps

• The factorization theorem suggests an algorithm
• Fix an ordering X1,,Xn
• For each i,
• select Pai to be a minimal subset of X1,,Xi-1
  ,such that I(Xi X1,,Xi-1 - Pai Pai )
• Clearly, the resulting graph is a minimal I-Map.

36
Non-uniqueness of minimal I-Map

• Unfortunately, there may be several minimal
  I-Maps for the same distribution
• Applying I-Map construction procedure with
  different orders can lead to different structures

Original I-Map
Order C, R, A, E, B
37
Choosing Ordering Causality

• The choice of order can have drastic impact on
  the complexity of minimal I-Map
• Heuristic argument construct I-Map using causal
  ordering among variables
• Justification?
• It is often reasonable to assume that graphs of
  causal influence should satisfy the Markov
  properties.

38
P-Maps

• A DAG G is P-Map (perfect map) of a distribution
  P if
• I(X Y Z) if and only if d-sep(X Y Z, G)
  yes
• Notes
• A P-Map captures all the independencies in the
  distribution
• P-Maps are unique, up to DAG equivalence

39
P-Maps

• Unfortunately, some distributions do not have a
  P-Map

40
Bayesian Networks

• A Bayesian network specifies a probability
  distribution via two components
• A DAG G
• A collection of conditional probability
  distributions P(XiPai)
• The joint distribution P is defined by the
  factorization
• Additional requirement G is a minimal I-Map of P

41
Bayesian Networks

• A Bayesian network specifies a probability
  distribution via two components
• A DAG G
• A collection of conditional probability
  distributions P(XiPai)
• The joint distribution P is defined by the
  factorization
• Additional requirement G is a minimal I-Map of P

42
DAGs and BNs

• DAGs as a representation of conditional
  independencies
• Markov independencies of a DAG
• Tight correspondence between Markov(G) and the
  factorization defined by G
• d-separation, a sound complete procedure for
  computing the consequences of the independencies
• Notion of minimal I-Map
• P-Maps
• This theory is the basis for defining Bayesian
  networks

43
Undirected Graphs Markov Networks

• Alternative representation of conditional
  independencies
• Let U be an undirected graph
• Let Ni be the set of neighbors of Xi
• Define Markov(U) to be the set of
  independenciesI( Xi X1,,Xn - Ni - Xi
  Ni )
• U is an I-Map of P if P satisfies Markov(U)

44
Example

• This graph implies that
• I(A C B, D )
• I(B D A, C )
• Note this example does not have a directed P-Map


A
B
D
C
45
Markov Network Factorization

• Thm if
• P is strictly positive, that is P(x1, , xn ) gt 0
  for all assignments
• then
• U is an I-Map of P
• if and only if
• there is a factorization
• where C1, , Ck are the maximal cliques in U
• Alternative form

46
Relationship between Directed Undirected Models
Chain Graphs
Directed Graphs
Undirected Graphs
47
CPDs

• So far, we focused on how to represent
  independencies using DAGs
• The other component of a Bayesian networks is
  the specification of the conditional probability
  distributions (CPDs)
• Here, well just discuss the simplest
  representation of CPDs

48
Tabular CPDs

• When the variable of interest are all discrete,
  the common representation is as a table
• For example P(CA,B) can be represented by

49
Tabular CPDs

• Pros
• Very flexible, can capture any CPD of discrete
  variables
• Can be easily stored and manipulated
• Cons
• Representation size grows exponentially with the
  number of parents!
• Unwieldy to assess probabilities for more than
  few parents

50
Continuous CPDs

• When X is a continuous variables, we need to
  represent the density of X, given any value of
  its parents
• Gaussian
• Conditional Gaussian

51
CPDs Summary

• Many choices for representing CPDs
• Any statistical model of conditional
  distribution can be used
• e.g., any regression model
• Representing structure in CPDs can have
  implications on independencies among variables

52
Inference in Bayesian Networks
53
Inference

• We now have compact representations of
  probability distributions
• Bayesian Networks
• Markov Networks
• Network describes a unique probability
  distribution P
• How do we answer queries about P?
• inference is name for the process of computing
  answers to such queries

54
Queries Likelihood

• There are many types of queries we might ask.
• Most of these involve evidence
• An evidence e is an assignment of values to a set
  E variables in the domain
• Without loss of generality E Xk1, , Xn
• Simplest query compute probability of
  evidence
• This is often referred to as computing the
  likelihood of the evidence

55
Queries A posteriori belief

• Often we are interested in the conditional
  probability of a variable given the evidence
• This is the a posteriori belief in X, given
  evidence e
• A related task is computing the term P(X, e)
• i.e., the likelihood of e and X x for values
  of X
• we can recover the a posteriori belief by

56
A posteriori belief

• This query is useful in many cases
• Prediction what is the probability of an outcome
  given the starting condition
• Target is a descendent of the evidence
• Diagnosis what is the probability of
  disease/fault given symptoms
• Target is an ancestor of the evidence
• Note the direction between variables does not
  restrict the directions of the queries
• Probabilistic inference can combine evidence form
  all parts of the network

57
Queries MAP

• In this query we want to find the maximum a
  posteriori assignment for some variable of
  interest (say X1,,Xl )
• That is, x1,,xl maximize the probability P(x1,
  ,xl e)
• Note that this is equivalent to
  maximizing P(x1,,xl, e)

58
Queries MAP

• We can use MAP for
• Classification
• find most likely label, given the evidence
• Explanation
• What is the most likely scenario, given the
  evidence

59
Queries MAP

• Cautionary note
• The MAP depends on the set of variables
• Example
• MAP of X
• MAP of (X, Y)

60
Complexity of Inference

• Thm
• Computing P(X x) in a Bayesian network is
  NP-hard
• Not surprising, since we can simulate Boolean
  gates.

61
Hardness

• Hardness does not mean we cannot solve inference
• It implies that we cannot find a general
  procedure that works efficiently for all networks
• For particular families of networks, we can have
  provably efficient procedures

62
Approaches to inference

• Exact inference
• Inference in Simple Chains
• Variable elimination
• Clustering / join tree algorithms
• Approximate inference
• Stochastic simulation / sampling methods
• Markov chain Monte Carlo methods
• Mean field theory

63
Inference in Simple Chains
X1
X2

• How do we compute P(X2)?

64
Inference in Simple Chains (cont.)
X1
X2
X3

• How do we compute P(X3)?
• we already know how to compute P(X2)...

65
Inference in Simple Chains (cont.)
...

• How do we compute P(Xn)?
• Compute P(X1), P(X2), P(X3),
• We compute each term by using the previous one

• Complexity
• Each step costs O(Val(Xi)Val(Xi1))
  operations
• Compare to naïve evaluation, that requires
  summing over joint values of n-1 variables

66
Inference in Simple Chains (cont.)
X1
X2

• Suppose that we observe the value of X2 x2
• How do we compute P(X1x2)?
• Recall that we it suffices to compute P(X1,x2)

67
Inference in Simple Chains (cont.)
X1
X2
X3

• Suppose that we observe the value of X3 x3
• How do we compute P(X1,x3)?
• How do we compute P(x3x1)?

68
Inference in Simple Chains (cont.)
...
X1
X2
X3
Xn

• Suppose that we observe the value of Xn xn
• How do we compute P(X1,xn)?
• We compute P(xnxn-1), P(xnxn-2), iteratively

69
Inference in Simple Chains (cont.)
...
...
X1
X2
Xk
Xn

• Suppose that we observe the value of Xn xn
• We want to find P(Xkxn )
• How do we compute P(Xk,xn )?
• We compute P(Xk ) by forward iterations
• We compute P(xn Xk ) by backward iterations

70
Elimination in Chains

• We now try to understand the simple chain example
  using first-order principles
• Using definition of probability, we have

71
Elimination in Chains

• By chain decomposition, we get

72
Elimination in Chains

• Rearranging terms ...

73
Elimination in Chains

• Now we can perform innermost summation
• This summation, is exactly the first step in the
  forward iteration we describe before

X
74
Elimination in Chains

• Rearranging and then summing again, we get

X
X
75
Elimination in Chains with Evidence

• Similarly, we understand the backward pass
• We write the query in explicit form

76
Elimination in Chains with Evidence

• Eliminating d, we get

X
77
Elimination in Chains with Evidence

• Eliminating c, we get

X
X
78
Elimination in Chains with Evidence

• Finally, we eliminate b

X
X
X
79
Variable Elimination

• General idea
• Write query in the form
• Iteratively
• Move all irrelevant terms outside of innermost
  sum
• Perform innermost sum, getting a new term
• Insert the new term into the product

80
A More Complex Example

• Asia network

81

• We want to compute P(d)
• Need to eliminate v,s,x,t,l,a,b
• Initial factors

82

• We want to compute P(d)
• Need to eliminate v,s,x,t,l,a,b
• Initial factors

Eliminate v
Note fv(t) P(t) In general, result of
elimination is not necessarily a probability term
83

• We want to compute P(d)
• Need to eliminate s,x,t,l,a,b
• Initial factors

Eliminate s
Summing on s results in a factor with two
arguments fs(b,l) In general, result of
elimination may be a function of several variables
84

• We want to compute P(d)
• Need to eliminate x,t,l,a,b
• Initial factors

Eliminate x
Note fx(a) 1 for all values of a !!
85

• We want to compute P(d)
• Need to eliminate t,l,a,b
• Initial factors

Eliminate t
86

• We want to compute P(d)
• Need to eliminate l,a,b
• Initial factors

Eliminate l
87

• We want to compute P(d)
• Need to eliminate b
• Initial factors

Eliminate a,b
88
Variable Elimination

• We now understand variable elimination as a
  sequence of rewriting operations
• Actual computation is done in elimination step
• Exactly the same computation procedure applies to
  Markov networks
• Computation depends on order of elimination

89
Dealing with evidence

• How do we deal with evidence?
• Suppose get evidence V t, S f, D t
• We want to compute P(L, V t, S f, D t)

90
Dealing with Evidence

• We start by writing the factors
• Since we know that V t, we dont need to
  eliminate V
• Instead, we can replace the factors P(V) and
  P(TV) with
• These select the appropriate parts of the
  original factors given the evidence
• Note that fp(V) is a constant, and thus does not
  appear in elimination of other variables

91
Dealing with Evidence

• Given evidence V t, S f, D t
• Compute P(L, V t, S f, D t )
• Initial factors, after setting evidence

92
Dealing with Evidence

• Given evidence V t, S f, D t
• Compute P(L, V t, S f, D t )
• Initial factors, after setting evidence
• Eliminating x, we get

93
Dealing with Evidence

• Given evidence V t, S f, D t
• Compute P(L, V t, S f, D t )
• Initial factors, after setting evidence
• Eliminating x, we get
• Eliminating t, we get

94
Dealing with Evidence

• Given evidence V t, S f, D t
• Compute P(L, V t, S f, D t )
• Initial factors, after setting evidence
• Eliminating x, we get
• Eliminating t, we get
• Eliminating a, we get

95
Dealing with Evidence

• Given evidence V t, S f, D t
• Compute P(L, V t, S f, D t )
• Initial factors, after setting evidence
• Eliminating x, we get
• Eliminating t, we get
• Eliminating a, we get
• Eliminating b, we get

96
Complexity of variable elimination

• Suppose in one elimination step we compute
• This requires
•
  multiplications
• For each value for x, y1, , yk, we do m
  multiplications
• additions
• For each value of y1, , yk , we do Val(X)
  additions
• Complexity is exponential in number of variables
  in the intermediate factor!

97
Understanding Variable Elimination

• We want to select good elimination orderings
  that reduce complexity
• We start by attempting to understand variable
  elimination via the graph we are working with
• This will reduce the problem of finding good
  ordering to graph-theoretic operation that is
  well-understood

98
Undirected graph representation

• At each stage of the procedure, we have an
  algebraic term that we need to evaluate
• In general this term is of the formwhere Zi
  are sets of variables
• We now plot a graph where there is undirected
  edge X--Y if X,Y are arguments of some factor
• that is, if X,Y are in some Zi
• Note this is the Markov network that describes
  the probability on the variables we did not
  eliminate yet

99
Chordal Graphs

• elimination ordering ? undirected chordal graph
• Graph
• Maximal cliques are factors in elimination
• Factors in elimination are cliques in the graph
• Complexity is exponential in size of the largest
  clique in graph

100
Induced Width

• The size of the largest clique in the induced
  graph is thus an indicator for the complexity of
  variable elimination
• This quantity is called the induced width of a
  graph according to the specified ordering
• Finding a good ordering for a graph is equivalent
  to finding the minimal induced width of the graph


101
General Networks

• From graph theory
• Thm
• Finding an ordering that minimizes the induced
  width is NP-Hard
• However,
• There are reasonable heuristic for finding
  relatively good ordering
• There are provable approximations to the best
  induced width
• If the graph has a small induced width, there are
  algorithms that find it in polynomial time

102
Elimination on Trees

• Formally, for any tree, there is an elimination
  ordering with induced width 1
• Thm
• Inference on trees is linear in number of
  variables

103
PolyTrees

• A polytree is a network where there is at most
  one path from one variable to another
• Thm
• Inference in a polytree is linear in the
  representation size of the network
• This assumes tabular CPT representation

104
Approaches to inference

• Exact inference
• Inference in Simple Chains
• Variable elimination
• Clustering / join tree algorithms
• Approximate inference
• Stochastic simulation / sampling methods
• Markov chain Monte Carlo methods
• Mean field theory

105
Learning Bayesian Networks
106
Learning Bayesian networks
Inducer
107
Known Structure -- Complete Data
E, B, A ltY,N,Ngt ltY,Y,Ygt ltN,N,Ygt ltN,Y,Ygt .
. ltN,Y,Ygt
Inducer

• Network structure is specified
• Inducer needs to estimate parameters
• Data does not contain missing values

108
Unknown Structure -- Complete Data
E, B, A ltY,N,Ngt ltY,Y,Ygt ltN,N,Ygt ltN,Y,Ygt .
. ltN,Y,Ygt
Inducer

• Network structure is not specified
• Inducer needs to select arcs estimate
  parameters
• Data does not contain missing values

109
Known Structure -- Incomplete Data
E, B, A ltY,N,Ngt ltY,?,Ygt ltN,N,Ygt ltN,Y,?gt .
. lt?,Y,Ygt
Inducer

• Network structure is specified
• Data contains missing values
• We consider assignments to missing values

110
Known Structure / Complete Data

• Given a network structure G
• And choice of parametric family for P(XiPai)
• Learn parameters for network
• Goal
• Construct a network that is closest to
  probability that generated the data

111
Learning Parameters for a Bayesian Network

• Training data has the form

112
Learning Parameters for a Bayesian Network

• Since we assume i.i.d. samples,likelihood
  function is

113
Learning Parameters for a Bayesian Network

• By definition of network, we get

114
Learning Parameters for a Bayesian Network

• Rewriting terms, we get

115
General Bayesian Networks

• Generalizing for any Bayesian network
• The likelihood decomposes according to the
  structure of the network.

i.i.d. samples
Network factorization
116
General Bayesian Networks (Cont.)

• Decomposition
• ? Independent Estimation Problems
• If the parameters for each family are not
  related, then they can be estimated independently
  of each other.

117
From Binomial to Multinomial

• For example, suppose X can have the values
  1,2,,K
• We want to learn the parameters ? 1, ? 2. , ? K
• Sufficient statistics
• N1, N2, , NK - the number of times each outcome
  is observed
• Likelihood function
• MLE

118
Likelihood for Multinomial Networks

• When we assume that P(Xi Pai ) is multinomial,
  we get further decomposition

119
Likelihood for Multinomial Networks

• When we assume that P(Xi Pai ) is multinomial,
  we get further decomposition
• For each value pai of the parents of Xi we get an
  independent multinomial problem
• The MLE is

120
Bayesian Approach Dirichlet Priors

• Recall that the likelihood function is
• A Dirichlet prior with hyperparameters ?1,,?K
  is defined as
• for legal
  ? 1,, ? K
• Then the posterior has the same form, with
  hyperparameters ?1N 1,,?K N K

121
Dirichlet Priors (cont.)

• We can compute the prediction on a new event in
  closed form
• If P(?) is Dirichlet with hyperparameters ?1,,?K
  then
• Since the posterior is also Dirichlet, we get

122
Prior Knowledge

• The hyperparameters ?1,,?K can be thought of as
  imaginary counts from our prior experience
• Equivalent sample size ?1?K
• The larger the equivalent sample size the more
  confident we are in our prior

123
Conjugate Families

• The property that the posterior distribution
  follows the same parametric form as the prior
  distribution is called conjugacy
• Dirichlet prior is a conjugate family for the
  multinomial likelihood
• Conjugate families are useful since
• For many distributions we can represent them with
  hyperparameters
• They allow for sequential update within the same
  representation
• In many cases we have closed-form solution for
  prediction

124
Bayesian Prediction(cont.)

• Given these observations, we can compute the
  posterior for each multinomial ? Xi pai
  independently
• The posterior is Dirichlet with parameters
• ?(Xi1pai)N (Xi1pai),, ?(Xikpai)N
  (Xikpai)
• The predictive distribution is then represented
  by the parameters

125
Learning Parameters Summary

• Estimation relies on sufficient statistics
• For multinomial these are of the form N (xi,pai)
• Parameter estimation
• Bayesian methods also require choice of priors
• Both MLE and Bayesian are asymptotically
  equivalent and consistent
• Both can be implemented in an on-line manner by
  accumulating sufficient statistics

126
Learning Structure from Complete Data
127
Benefits of Learning Structure

• Efficient learning -- more accurate models with
  less data
• Compare P(A) and P(B) vs. joint P(A,B)
• Discover structural properties of the domain
• Ordering of events
• Relevance
• Identifying independencies ? faster inference
• Predict effect of actions
• Involves learning causal relationship among
  variables

128
Why Struggle for Accurate Structure?
Adding an arc
Missing an arc

• Cannot be compensated by accurate fitting of
  parameters
• Also misses causality and domain structure

• Increases the number of parameters to be fitted
• Wrong assumptions about causality and domain
  structure

129
Approaches to Learning Structure

• Constraint based
• Perform tests of conditional independence
• Search for a network that is consistent with the
  observed dependencies and independencies
• Pros Cons
• Intuitive, follows closely the construction of
  BNs
• Separates structure learning from the form of the
  independence tests
• Sensitive to errors in individual tests

130
Approaches to Learning Structure

• Score based
• Define a score that evaluates how well the
  (in)dependencies in a structure match the
  observations
• Search for a structure that maximizes the score
• Pros Cons
• Statistically motivated
• Can make compromises
• Takes the structure of conditional probabilities
  into account
• Computationally hard

131
Likelihood Score for Structures

• First cut approach
• Use likelihood function
• Recall, the likelihood score for a network
  structure and parameters is
• Since we know how to maximize parameters from now
  we assume

132
Likelihood Score for Structure (cont.)

• Rearranging terms
• where
• H(X) is the entropy of X
• I(XY) is the mutual information between X and Y
• I(XY) measures how much information each
  variables provides about the other
• I(XY) ? 0
• I(XY) 0 iff X and Y are independent
• I(XY) H(X) iff X is totally predictable given
  Y

133
Likelihood Score for Structure (cont.)

• Good news
• Intuitive explanation of likelihood score
• The larger the dependency of each variable on its
  parents, the higher the score
• Likelihood as a compromise among dependencies,
  based on their strength

134
Likelihood Score for Structure (cont.)

• Bad news
• Adding arcs always helps
• I(XY) ? I(XY,Z)
• Maximal score attained by fully connected
  networks
• Such networks can overfit the data ---
  parameters capture the noise in the data

135
Avoiding Overfitting

• Classic issue in learning.
• Approaches
• Restricting the hypotheses space
• Limits the overfitting capability of the learner
• Example restrict of parents or of parameters
• Minimum description length
• Description length measures complexity
• Prefer models that compactly describes the
  training data
• Bayesian methods
• Average over all possible parameter values
• Use prior knowledge

136
Bayesian Inference

• Bayesian Reasoning---compute expectation over
  unknown G
• Assumption Gs are mutually exclusive and
  exhaustive
• We know how to compute P(xM1G,D)
• Same as prediction with fixed structure
• How do we compute P(GD)?

137
Posterior Score
Using Bayes rule P(D) is the same for all
structures G Can be ignored when comparing
structures
Prior over structures
Marginal likelihood
Probability of Data
138
Marginal Likelihood

• By introduction of variables, we have that
• This integral measures sensitivity to choice of
  parameters

139
Marginal Likelihood for General Network

• The marginal likelihood has the form
• where
• N(..) are the counts from the data
• ?(..) are the hyperparameters for each family
  given G

Dirichlet Marginal Likelihood For the sequence of
values of Xi when Xis parents have a particular
value
140
Priors

• We need prior counts ?(..) for each network
  structure G
• This can be a formidable task
• There are exponentially many structures

141
BDe Score

• Possible solution The BDe prior
• Represent prior using two elements M0, B0
• M0 - equivalent sample size
• B0 - network representing the prior probability
  of events

142
BDe Score

• Intuition M0 prior examples distributed by B0
• Set ?(xi,paiG) M0 P(xi,paiG B0)
• Note that paiG are not the same as the parents of
  Xi in B0.
• Compute P(xi,paiG B0) using standard inference
  procedures
• Such priors have desirable theoretical properties
• Equivalent networks are assigned the same score

143
Bayesian Score Asymptotic Behavior

• Theorem If the prior P(? G) is well-behaved,
  then

144
Asymptotic Behavior Consequences

• Bayesian score is consistent
• As M ?? the true structure G maximizes the
  score (almost surely)
• For sufficiently large M, the maximal scoring
  structures are equivalent to G
• Observed data eventually overrides prior
  information
• Assuming that the prior assigns positive
  probability to all cases

145
Asymptotic Behavior

• This score can also be justified by the Minimal
  Description Length (MDL) principle
• This equation explicitly shows the tradeoff
  between
• Fitness to data --- likelihood term
• Penalty for complexity --- regularization term

146
Scores -- Summary

• Likelihood, MDL, (log) BDe have the form
• BDe requires assessing prior network.It can
  naturally incorporate prior knowledge and
  previous experience
• BDe is consistent and asymptotically equivalent
  (up to a constant) to MDL
• All are score-equivalent
• G equivalent to G ? Score(G) Score(G)

147
Optimization Problem

• Input
• Training data
• Scoring function (including priors, if needed)
• Set of possible structures
• Including prior knowledge about structure
• Output
• A network (or networks) that maximize the score
• Key Property
• Decomposability the score of a network is a sum
  of terms.

148
Heuristic Search

• We address the problem by using heuristic search
• Define a search space
• nodes are possible structures
• edges denote adjacency of structures
• Traverse this space looking for high-scoring
  structures
• Search techniques
• Greedy hill-climbing
• Best first search
• Simulated Annealing
• ...

149
Heuristic Search (cont.)

• Typical operations

Add C ?D
Reverse C ?E
Delete C ?E
150
Exploiting Decomposability in Local Search

• Caching To update the score of after a local
  change, we only need to re-score the families
  that were changed in the last move

151
Greedy Hill-Climbing

• Simplest heuristic local search
• Start with a given network
• empty network
• best tree
• a random network
• At each iteration
• Evaluate all possible changes
• Apply change that leads to best improvement in
  score
• Reiterate
• Stop when no modification improves score
• Each step requires evaluating approximately n new
  changes

152
Greedy Hill-Climbing Possible Pitfalls

• Greedy Hill-Climbing can get struck in
• Local Maxima
• All one-edge changes reduce the score
• Plateaus
• Some one-edge changes leave the score unchanged
• Happens because equivalent networks received the
  same score and are neighbors in the search space
• Both occur during structure search
• Standard heuristics can escape both
• Random restarts
• TABU search

153
Search Summary

• Discrete optimization problem
• In general, NP-Hard
• Need to resort to heuristic search
• In practice, search is relatively fast (100 vars
  in 10 min)
• Decomposability
• Sufficient statistics
• In some cases, we can reduce the search problem
  to an easy optimization problem
• Example learning trees

154
Graphical Models Intro Summary

• Representations
• Graphs are cool way to put constraints on
  distributions, so that you can say lots of stuff
  without even looking at the numbers!
• Inference
• GM let you compute all kinds of different
  probabilities efficiently
• Learning
• You can even learn them auto-magically!
