Graphical User Interfaces (Part I)

1

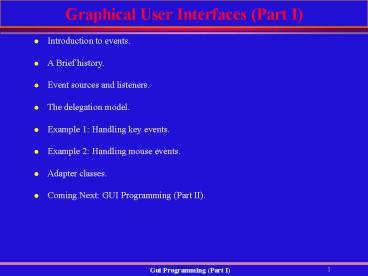

Graphical User Interfaces (Part I)

• Introduction to events.
• A Brief history.
• Event sources and listeners.
• The delegation model.
• Example 1 Handling key events.
• Example 2 Handling mouse events.
• Adapter classes.
• Coming Next GUI Programming (Part II).

2
Introduction to Events

• GUI applications are event-driven. User
  interaction with the GUI results in events being
  generated to inform the application of user
  actions. Clicking a button, closing a window, or
  hitting a key results in an appropriate event
  being sent to the application
• Events can be generated as a consequence of a
  person interacting with graphics components of a
  program. Examples
• Keyboard events (key up, key down)
• Mouse events (mouse move, mouse drag, button up,
  button down).
• Button events (user presses a button)
• TextField events (user presses a return)
• Menu events (user selects an item from a
  pull-down menu)
• Events can also happen in cases where there is no
  direct user interaction. For example, an event
  may be generated when a timer expires, a counter
  exceeds a value, a software or hardware failure
  occurs, or an application is completed.

3
Introduction to Events (Contd)

• When studying events and events handling, there
  are three main categories of classes to deal
  with
• Event classes.
• Event source classes.
• Event listener classes.
• Event classes represent events and provide a
  consistent, easy-to-use means of encapsulating
  events.
• Event sources are graphics components (like
  Buttons, Scollbar, Window) which generate and
  manage event listeners. For example, you receive
  key and mouse events from an applet (see Examples
  1 and 2 in this lecture)
• Listener classes are classes that implement one
  or more listener interfaces defined by the
  java.awt.event package.

• Event class (e.g. MouseEvent). Contains
  information about the event (e.g. mouse
  location).
• Event listener. Knows what to do when the event
  occurs. Implements listener interface (e.g.
  MouseListener).
• Event source. Keeps a list of listeners and
  notifies them when the event occurs.

4
A Brief History

• The original AWT (Abstract Windowing Toolkit)was
  suitable for Java applets but not for
  full-fledged application development.
• AWT 1.1 (JDK 1.1) had better event handling but
  did not have enough GUI components and was too
  dependent on (nonportable) native code,.
• In 1997 Netscape and Sun developed a set of GUI
  classes written entirely in Java. The Java
  Foundation Classes (JFC), including the Swing
  component set, were released with JDK 2.0.
• A Swing program can have the same look and feel
  on a Mac, Windows, or Unix platform.

5
Event Classes Source classes
6
Java Events Classes

• At the root of the Java event class hierarchy is
  EventObject, which is in java.util (also see
  Horstmann Chapter 10).
• The EventObject contains two methods getSource()
  and toString() which return the source event and
  the string equivalent of the event respectively.
• Event classes contain methods for getting
  information on the event, for example the
  MouseEvent class has methods getX() and getY()
  returning the coordinates of the mouse when the
  event occurs.
• Here are some of the event classes which subclass
  EventObject
• ActionEvent A component-defined action
  occurred.
• ComponentEvent A component moved, changed size,
  or changed visibility.
• FocusEvent A component has gained or lost the
  keyboard focus.
• KeyEvent A keystroke occurred in a Component.
• MouseEvent A mouse action occurred in a
  Component.
• TextEvent An objects text changed.
• WindowEvent A window has changed its status.

7
Event Sources and Listeners

• An object that generates an event is called a
  source. A source may generate more than one
  event.
• When an event occurs (or is "fired"), it is
  received by one or more "listeners" which act on
  the event.
• Note that an event source and the place where the
  event is handled can be separate.
• Each event listener is an object of a class that
  implements a particular type of listener
  interface.
• A listener class must implement the appropriate
  interface and all the event handling logic will
  go inside the listener class.
• The most commonly handled events are those
  generated by the mouse, the keyboard, and various
  controls, such as a push button.

8
Event Sources and Listeners (Contd)

• A source must register listeners in order for the
  listeners to receive notifications about a
  specific event.
• The source object maintain la list of listener.
  example. keyboard event implements KeyListener
  interface
• Registration methods are dependent on event type
  . Example KeyListener is addKeyListener .
  ActionEvent is addActionEvent
• Each component type has the following pair of
  methods for registering and unregistering
  listeners
• public void addTypeListener (TypeEvent t) throws
  java.util.TooManyListnersException
• public void removeTypeListener (TypeEvent t)
• Here, Type is the name of the event and t is a
  reference to the event listener. the
  TooManyListenersException is thrown in case of
  sources that allow only one listener to register.

• Notifying many registered listeners for an event
  is called broadcasting the event. Event
  notification in sources that can have only one
  listener sources is called unicasting.

9
The Delegation Model
mouseEvent keyEvent windowEvent
Listener implements specific event handling method
Events are sent from single source object
1 Define a class that implements the appropriate
listener interface your class provides the
handler by implementing the methods that that are
declared by the interface. Ex public class K
implements KeyListenerMouseLisenerWindowListener
. Implement? keyPressed,keyReleased,
keyTyped 2-Register an instance of the class with
the component affected by the event Ex. void
addxxxListener(xxListener object).
10
Example 1 Handling Key Events

• In order to handle keyboard events, we must
  implement the KeyListener interface
• void keyPressed(KeyEvent ke)
• void keyReleased(KeyEvent ke)
  void
  keyTyped(KeyEvent ke)
• Note that when a key is pressed a KEY_PRESSED
  event is generated which results in calling the
  keyPressed() event handler.
• When the key is released a KEY_RELEASED event is
  generated which results in calling the
  keyReleased() event handler.
• If a character is generated by the keystroke,
  then a KEY_TYPED event is sent and the keyTyped()
  handler is invoked.
• Thus, you will notice that, each time the user
  presses a key, at least two and often three
  events are generated. If you are interested in
  all these events then you must put the
  appropriate code in all these methods to achieve
  the behavior you desire.

11
Example 1 Handling Key Events (Contd)
public void init() // pass the ref this to add
itself as // a key listener
addKeyListener(this) //The following method
requests that //this component gets the input
focus. //The component must be visible on the
//screen for this request to be granted
requestFocus() public void
paint(Graphics g) g.drawString(msg,startX,
startY)
import java.applet.Applet import
java.awt. import java.awt.event. public class
KeyEventHandler extends Applet implements
KeyListener private String msg ""
private int startX 10, startY 10 public
void keyPressed(KeyEvent ke)
showStatus("Key Down") public void
keyReleased(KeyEvent ke) showStatus("Key
Up") public void keyTyped(KeyEvent ke)
msg ke.getKeyChar() repaint()

12
Example 2 Handling Mouse Events

• In order to handle mouse events, we must
  implement the MouseListener interface which has
  these five methods
• void mouseClicked(MouseEvent me)
• void mouseEntered(MouseEvent me)
• void mouseExited(MouseEvent me)
• void mousePressed(MouseEvent me)
• void mouseReleased(MouseEvent me)
• If mouse is clicked and released at the same
  point, mouseClicked() is invoked. When the mouse
  enters a component, the mouseEntered() method is
  called. When it leaves, mouseExited() is called.

• The mousePressed() and mouseReleased() are
  invoked when the mouse is pressed and released
  respectively

13
Example 2 Handling Mouse Events (Contd)
import java.applet.Applet import
java.awt.event.MouseEvent import
java.awt.event.MouseListener public class
MouseEventHandler extends Applet implements
MouseListener public void mouseClicked(MouseEv
ent me) System.out.println("Clicked at
("me.getX()", "me.getY()")") public
void mouseEntered(MouseEvent me)
System.out.println("Entered at ("me.getX()",
"me.getY()")") public void
mouseExited(MouseEvent me)
System.out.println("Exited at ("me.getX()",
"me.getY()")") public void
mousePressed(MouseEvent me)
System.out.println("Pressed at ("me.getX()",
"me.getY()")") public void
mouseReleased(MouseEvent me)
System.out.println("Released at ("me.getX()",
"me.getY()")") public void init()
addMouseListener(this)
14
Mouse Event Example
15
Introduction to Adapter Classes
In order to make the button work, we need a
WindowEvent listener. The obvious way to get such
a listener is to write a listener class that
implements the WindowListener interface. That
turns out to be a bad idea., though. Implementing
this interface requires writing seven
methods(windowActivated()windowclosed(),
windowIconified,windowOpened.., one for each type
of window event. Were interested in just one of
these events, so wed end up writing six methods
for events that we dont need. The java.awt.event
package contains a class named WindowAdapter.
This class implements the WindowListener
interface, although the methods that it provides
are all empty. All we have to do is extend the
WindowAdapter class and override the
WindowClosing method, which is the only one were
interested in. WindowAdapter is an example of an
adapter class . A class that we can extend
instead of implementing an interface. Java
provides matching adapter classes for most
interfaces that have two or more methods.
16
Introduction to Adapter Classes (Contd)

• When an interface contains only one method,
  theres no need for an adapter class
• Adapter classes save programmers time by
  providing an empty implementation of Listeners
  methods
• To use an Adapter you need to subclass it and
  override only the methods which you wish to use.
• You can define an Adapter class as an inner,
  anonymous inner or as an external class.
• Some adapter classes are
• java.awt.event.ComponentAdapter
• java.awt.event.FocusAdapter
• java.awt.event.KeyAdapter
• java.awt.event.MouseAdapter
• java.awt.event.MouseMotionAdapter
• java.awt.event.WindowAdapter
