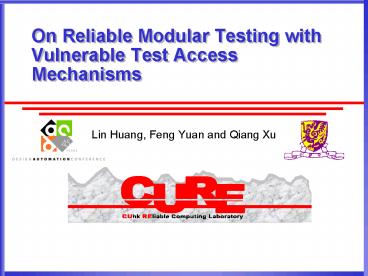

1On Reliable Modular Testing with Vulnerable Test
Access Mechanisms
- Lin Huang, Feng Yuan and Qiang Xu
2Purpose
- Is on-chip data transmission reliable?
- What is the solution?
- Correction
- Retransmission
- Hybrid schemes
- They are helpful in normal functional mode
- However, how about modular testing?
Cross talk
Yield loss
IR drop
Yield loss
and even alpha particle hits
3Agenda
- Introduction to Modular Testing
- Test Data Transmission Error-Free Assumption
- Impact of Fault-Tolerant Schemes
- The Proposed Solution
- Jitter-Aware Test Wrapper Design
- Jitter-Transparent ATE Interface Design
- Experimental Results
- Conclusion
4Introduction to Modular Testing
- Divide and conquer manner
- test wrapper
- test access mechanisms (TAMs)
- ATE Interface basic
- TAM designs classification
- dedicated bus-based access scheme
- functional access scheme
5Reuse On-Chip Network as TAM
6Error-Free Assumption is Questionable
- Existing work assumes test data transmission to
be error-free - It is questionable when at-speed functional
interconnects are reused as TAMs
7Fault Tolerance Schemes
- Retransmission and hybrid schemes are mainstream
techniques to achieve fault-tolerant
communication - Retransmission brings problems
- Test traffic jitter
- Test bandwidth mismatch
8The Impact of Retransmission Scheme
9The Significance of These Problems
- Given the number of flits in the entire test data
volume , the flit error rate , the
potential yield loss can be expressed as - When and flit size is 32 bits, the test
yield loss for the chip containing 21.5M gates
1 is
11.47 !
1 C. Barnhart et al, Extending OPMISR Beyond
10x Scan Test Efficiency.
IEEE Design Test of Computers, 19(5)65-73,
Sep.-Oct. 2002
10Buffer-Only Solution
- Given the flit injection rate is 0.1 flits per
cycleand the extra delay caused by one
retransmission is 40 cycles
st
The
1
nd
The
2
retransmission
retransmission
Shortage of
reserved flits
5
reserved flits
1
reserved flits
11Jitter-Aware Test Wrapper Design
- Two extra states
- HALTIN
- HALTOUT
Input
HALT
IN
Blocked
CAPTRUE
SHIFT
Output
Blocked
HALT
OUT
IEEE 1500
Finite State Machine
12Wrapper Architecture
13Control Logic of Test Wrapper
14Jitter-Transparent ATE Interface
- If the ATE operate in a stream mode
- Minimum buffer size that is able to tolerate the
extra delay caused by one retransmission - Given the flit error rate and the number of
flits , the test yield loss can be computed as
follows
Without Buffer
15Jitter-Transparent ATE Interface
- We propose to divide the entire input test data
flow into segments and insert a small section
of dont-care bits
Data transmission direction
16Test Yield Improvement
- Given the flit error rate , the number of
flits , and the number of segments , the
test yield loss can be computed as follows
Without Buffer
With Minimum Buffer Size
17Experimental Setup
- Commercial 90nm CMOS technology
- Area overhead
- 838 two-input NAND equivalent gates
- An industrial circuit 2
- Number of gates 2.6M
- Number of scan cells 274K
- Compressed scan test data volume 106M
- System parameters
- Flit injection rate 0.25 flit per cycle
- Flit size 32 bits
- Retransmission delay 40 cycles
2 C. Barnhart et al, OPMISR The Foundation for
Compressed ATPG Vectors.
In Proc. IEEE International Test Conference, pp.
748-757, Nov. 2001
18Test Yield Loss for a Core with 2.6M Gates
Flit Error Rate 10-7
Yield Loss 28.20
Cost Testing Time Penalty 0.15
19Proposed Technique vs. Buffer-Only Solution
nb Buffer size for buffer-only solution
? Flit error rate
np Buffer size for the proposed design
?Tp Testing time extension ratio of the
proposed design
20Conclusion
- The error-free assumption of existing work is
questionable - Fault-tolerant schemes may lead to traffic jitter
and variable test bandwidth - We propose a jitter-aware test wrapper and an
on-chip jitter-transparent ATE interface to
achieve reliable modular testing - Experimental results demonstrate the effectiveness
21Thank you !
