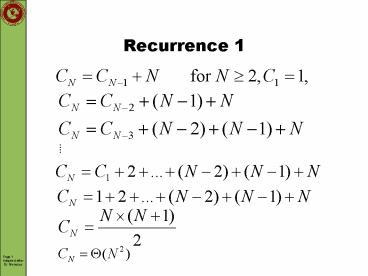

Recurrence 1

1
Recurrence 1
.
2
Recurrence 2

3
Understanding Recurrences

• But where do these recurrences come from?
• How can we derive one from a real recursive
  problem?
• Let's collectively think about a problem.
• Try first to come up with any algorithm
  (brute-force)
• Then try to improve it and possibly define a
  recursive solution for it.
• After we have a recursive solution we'll derive
  the recurrence for the algorithm
• What is the problem?
• Pancake Flipping
• This problem has been posed by Harry Dweighter on
  American Mathematical Monthly, 1975

4
Flipping Pancakes
5
Two-Flips method(aka Bringing to the top method)

• The problem above can be solved by doing the
  following
• Bring the largest pancake to the top of the pile
  with one flip
• With another flip place the largest pancake at
  the bottom of the pile
• Bring the second largest pancake to the top of
  the pile with one flip
• With another flip place the second largest
  pancake at the second position from the bottom of
  the pile ... and so on.
• The problem above is intrinsicaly recursive and
  can be stated as
• If the pile has size (n) 1 then stop
• Otherwise, perform a two-flip operation on the
  nth pancake
• Solve the flip problem for (n-1) pancakes
• Recurrence relation for this problem is T(n)
  T(n-1) 2
• The worst case number of raised pancake is T(n)
  T(n-1) 2n-1

6
Recurrence 3
first remember that
7
Recurrence 4

8
Data Structures

• A data structure is the building block of
  programming
• It defines how data is organized (and
  consequently) how data is allocated in a computer
  memory
• The importance of data structures for algorithm
  efficiency cannot be overemphasized.
• The efficiency of most algorithms is directly
  linked to the data structure choice
• Some algorithms are basically a data structure
  definition (plus the operations associated with
  the structure)
• For the same amout of data, different data
  structures can take more or less space in the
  computer memory

9
Abstract Data Types (ADT)

• A formal specification defines a system
  independently of implementation by describing its
  internal state as Abstract Data Types (objects),
  characterized only by the operations allowed on
  them.
• There are 2 types of specifications
• the algebraic specifications (OBJ) leading to
  an algebraic structure (an algebra)
• a data set
• a set of operations (functions)
• a set of properties (axioms) characterizing the
  operations
• the constructive approach (VDM Vienna
  Development Method)
• explicit specification of operation (e.g. using
  the set theory)

10
Abstract Data Types (ADT)

• Algebraic specifications follow the pattern
• obj ltname objectgt
• obj
• important sub-objects, objects parameters of
  functions
• mode
• complete specification of this data type e.g.
  with parameters for templates
• funct
• specify functions associated with the object
• vars
• specify universally quantified variables used in
  the following equations, e.g. forall bool x
• eqns
• specify axioms associated with the object
• jbo

11
Data Structures

• We mentioned above the operations associated with
  the structure. What are these?
• A data structure is not passive, it consists of
  data and operations to manipulate the data
• They are implementation of (ADTs)

12
Elementary Data Structures
Elementary Data Structures
Linear
Nonlinear
Sequential Access
Direct Access
Set
FIFO
LIFO
General
Heterogeneous Components
Homogeneous Components
Array
Record
List
Stack
Queue
13
Linear vs. Nonlinear

• For a structure to be linear all of the above has
  to be true
• There is a unique first element
• There is a unique last element
• Every component has a unique predecessor (except
  the first)
• Every component has a unique successor (except
  the last)
• If one or more of the above is not true, the
  structure is nonlinear

14
Direct vs. Sequential Access

• In any linear data structure we have two methods
  of access the stored data
• Sequential structures are such that we can only
  access the Nth element we have to accessed all
  element preceding N.
• This means that all elements from 1 to N-1 will
  have to be accessed first.
• You can see this as trying to access a song
  recorded in a cassette tape
• Direct access structures are such that any
  element of the structure can be accessed in
  directly.
• There is no need to access any other object
  besides the element required.
• Rather than a cassette tape, think CD player.
• Can we say that one is better than another?

15
Arrays

• One of the most common types of data structures
• Normally pre-defined in most programming
  languages
• Has the advantages
• Direct access to elements
• But also disadvantages
• Fixed size
• Homogeneous elements
• Normally implemented by using contiguous
  allocation of memory cells
• This is not however required in the ADT
  definition of an array.
• The array implementation may give the impression
  of contiguousness.

16
Arrays as ADTs

• Domain
• A collection of fixed number of components of the
  same type
• A set of indexes used to access the data stored
  in the array.
• There is a one-to-one relation between index and
  objects stored.
• Operations
• valueAt(i) Index i is used to access the value
  stored in the corresponding position of the array
• Most languages use the i as the index of an
  array
• store(i,v) Stores the value v into the array
  position i
• Most languages use the operator

17
Sieve of Eratosthenes(Prime Testing)
public class Sieve public static void main
(String args) int n Integer.parseInt(arg
s0) boolean numbers new booleann1
for (int i 2 i lt n i)
numbersi true for (int i 2 i lt
n i) if (numbersi) for
(int j i ji lt n j) if ((ji)
lt n) // takes care of overflow in ji
numbersji false
for (int i 2 i lt n i)
if (numbersi) System.out.println(i)

18
Coin Flipping Simulation(simulation of Bernoulli
trials)
public class CoinFlippingSimulation private
static boolean heads() return
(Math.random() lt 0.5) public static void
main (String args) int cnt 0, j
int n Integer.parseInt(args0) int m
Integer.parseInt(args1) int result new
intn1 for (int i 0 i lt m i)
cnt 0 for (j 0 j lt n j)
if (heads()) cnt resultcnt
for (j 0 j lt n j) if
(resultj 0) System.out.print(".")
for (int i 0 i lt resultj
i10) System.out.print("")
System.out.println()
19
Reading Work

• Required
• Chapter 2 Sections 2.1 to 2.5
• Highly recommended
• Chapter 2 Sections 2.6 to the end of the chapter

20
Bibliography(used to produce these slides)

• Sedgewick 2003. Algorithms in Java. Parts 1-4.
• Cormen et al. Introduction to Algorithms.
