Title: Racing Engine Technology


1

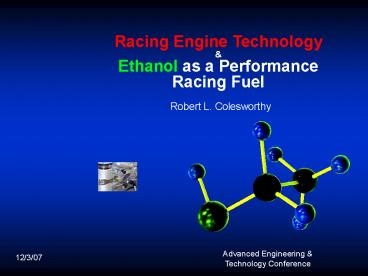

Racing Engine Technology Ethanol as a
Performance Racing Fuel
Robert L. Colesworthy
Advanced Engineering Technology Conference
12/3/07
2
Racing Engine Technology
  • Speaker, Robert L. Colesworthy
  • Does rod length really affect engine torque?
  • Are aluminum blocks better than cast iron?
  • Are aluminum heads better than cast iron?
  • Are gear camshaft drives better than chain or
    belt drives?
  • Is fuel injection better than carburetion?
  • What makes horsepower?
  • Where to spend your money

800-597-9747 www.iqlearningsystems.com
3
Does rod length really affect engine torque?
800-597-9747 www.iqlearningsystems.com
4
Are aluminum blocks better than cast iron?
  • Positives
  • Weight
  • Repairablity
  • Heat dissipation
  • Negatives
  • Expansion rate differentials
  • Lower strength
  • Cylinder sleeves

Dart Big M ferrous block
800-597-9747 www.iqlearningsystems.com
5
Are aluminum heads better than cast iron?
  • Positives
  • Weight
  • Ease of porting
  • Repairablity
  • Negatives
  • Expansion rate differentials
  • Lower strength
  • Heat dissipation

Reher-Morrison Raptor BBC Head
800-597-9747 www.iqlearningsystems.com
6
Are gear camshaft drives better than chain or
belt drives?
  • Positives
  • Durability
  • Negatives
  • Power loss
  • Noise
  • Time consumingto change timing

800-597-9747 www.iqlearningsystems.com
7
Is fuel injection better than carburetion?
  • Fuel Injection Advantages
  • Fuel Mileage
  • Lower Emissions
  • Cold Startup/Driveablity
  • Carburetor Advantages
  • More Horsepower (nat. asp.)
  • Lower Cost
  • Easier to Adjust Service

800-597-9747 www.iqlearningsystems.com
8
What Makes Horsepower?
  • Formula
  • HPTorque x RPMs/5252
  • Increasing Torque
  • Increase Engine Displacement
  • Increase Cylinder Pressures
  • Reduce Parasitic Losses
  • Increasing RPMs
  • Speed Costs Money!
  • Component Selection/Matching

800-597-9747 www.iqlearningsystems.com
9
Where to Spend Your Money
  • Buy
  • Quality matched components
  • Great cylinder heads
  • Titanium valves
  • Stiff valve springs
  • Avoid
  • Titanium Rods
  • Extrusion Hone or Home Portingof heads
    manifolds
  • Bigger is Better syndrome

800-597-9747 www.iqlearningsystems.com
10
Cool New Stuff!
Beehive Valve Springs
Oval PortRaptor Heads
Heart-Shaped Combustion Chamber
800-597-9747 www.iqlearningsystems.com
11
Ethanol as a Racing Fuel
  • Winning on Ethanol - Why it works and what is
    driving racing to go to it
  • Different blends, availability, and how E85 will
    fit the future
  • Application specifics, a review of compatibility
    of parts, corrosion, etc.
  • How to optimize for effective use of ethanol as a
    performance fuel

800-597-9747 www.iqlearningsystems.com
12
Winning on Ethanol - What is Driving Racing to Go
to It?
  • Environmentally-friendly fuel
  • Favorable political climate
  • Safety
  • Low cost and increasing availability
  • Power-making potential

800-597-9747 www.iqlearningsystems.com
13
800-597-9747 www.iqlearningsystems.com
14
Ethanol Blends Significantly Reduce Greenhouse
Gas Emissions Argonne National Labs.
800-597-9747 www.iqlearningsystems.com
15
Michael Wang Argonne National Laboratory, Aug.
2005
800-597-9747 www.iqlearningsystems.com
16
Power Making Fuel Characteristics
  • Octane Rating
  • Burning Rate
  • Latent Heat of Vaporization
  • Energy Value

800-597-9747 www.iqlearningsystems.com
17
1. Octane
  • Measures fuels resistance to pre-ignition and
    detonation, commonly called knocking
  • Three common octane ratings for motor fuels
  • Research Octane Number (RON)
  • Motor Octane Number (MON)
  • (RM/2) method

800-597-9747 www.iqlearningsystems.com
18
1. Octane
  • MON rating is most useful to racers because it is
    measured under high loads and at high RPMs
  • High MON rated fuels allow the use of higher
    compression and advanced spark timing

800-597-9747 www.iqlearningsystems.com
19
1. Octane
  • E85 delivers MON octane ratings equal to, or
    better than, most gasolines

800-597-9747 www.iqlearningsystems.com
20
2. Burning Rate
  • The speed at which fuel burns and releases its
    heat energy
  • There is less time for fuel to burn at high
    RPMs, so rapid burning fuel is a must in racing

800-597-9747 www.iqlearningsystems.com
21
2. Burning Rate
  • Peak horsepower and engine efficiency are
    realized if fuel is almost completely burned by
    20 degrees after Top Dead Center (TDC)

800-597-9747 www.iqlearningsystems.com
22
3. Latent Heat of Vaporization
  • Measures a fuels ability to cool the intake
    charge and combustion chamber
  • Measured in BTUs per gallon
  • Higher rated fuels remove heat better

800-597-9747 www.iqlearningsystems.com
23
3. Latent Heat of Vaporization
  • E85 promotes better cooling
  • Making the intake charge more dense, thereby
    packing more energy (per volume) into the engine
  • Helping to control detonation
  • Reducing temperatures in the engine and oiling
    system components

800-597-9747 www.iqlearningsystems.com
24
4. Energy Value
  • The total heat energy contained in a given amount
    of fuel BTUs/lb.
  • Horsepower generation depends on Net Energy
    Value - Equal to the energy value multiplied by
    the amount of fuel that can be burned

800-597-9747 www.iqlearningsystems.com
25
4. Energy Value
  • A fuels stoichiometric defines its ideal
    air/fuel ratio
  • Lower stoichiometric fuels allow more fuel to be
    burned which, in turn, increases the Net Energy
    Value of the fuel

800-597-9747 www.iqlearningsystems.com
26
4. Energy Value
  • The lower stoichiometric of E85 provides the
    fuel with a higher Net Energy Value than most
    gasolines

800-597-9747 www.iqlearningsystems.com
27
Fuel Comparison Chart
Fuel Octane (MON) Burning Rate (ms_at_stoic.) Latent Heat (BTU/gal) Energy Value BTU/lbs Power Stoic. Net Energy Value (MJ/kg)
Pure Ethanol 102 .39 396 12,800 6.5/1 3.00
Pure Methanol 103 .43 503 9,750 5/1 3.08
Pump Gasoline 80-90 .34 150 (avg.) 18,700- 19,100 12.5/1 2.92
Racing Gasoline 99 N/A 160 (est.) 18,500 (est.) 12.5/1 2.90
E30 87-94 .36 337 17,178 10.7/1 2.94
E85 99-100 .38 359 14,021 7.4/1 2.99

800-597-9747 www.iqlearningsystems.com
28
Fuel Rankings
Fuel Octane (MON) Burning Rate (ms_at_stoic.) Latent Heat (BTU/gal) Net Energy Value (MJ/kg)
Pure Ethanol 2 5 2 2
Pure Methanol 1 6 1 1
Pump Gasoline 6 2 6 5
Racing Gasoline 4 1 5 6
E30 5 3 4 4
E85 3 4 3 3
800-597-9747 www.iqlearningsystems.com
29
Dave Slatten 540 CID Drag Race Engine Dyno
Results
800-597-9747 www.iqlearningsystems.com
30
Dave Slatten 540 CID Drag Race Engine Dyno
Results
800-597-9747 www.iqlearningsystems.com
31
Different Blends, Availability, and How E85 will
Fit the Future
  • E10
  • E85
  • E100 (E-98)

800-597-9747 www.iqlearningsystems.com
32
Application Specifics, a Review of Compatibility
of Parts, Corrosion, etc.
  • E10
  • Passenger car-compliant for decades. A simple
    replacement fuel
  • Reduced emissions/oxygenate
  • MTBE replacement
  • Promotes clean fuel injectors
  • Octane booster

800-597-9747 www.iqlearningsystems.com
33
  • E85
  • Requires vehicle modifications
  • Flex Fuel vehicle (FFV) identified by a gas
    cap insignia
  • Ethanol-compatible fuel tank, pump, lines, etc.
  • Modified air/fuel ratio enriched air/fuel ratio
    (approx. 25-28) or specialized sensors and
    computer programming
  • Additional changes and race car handling
    considerations

800-597-9747 www.iqlearningsystems.com
34
  • E100 (E98)
  • Contains 98 ethanol and 2 denaturing chemical
  • Race-only fuel (IRL series)
  • Extremely hygroscopic
  • May require top oil and post-race pickling
    procedures.

800-597-9747 www.iqlearningsystems.com
35
How to Optimize for Effective Use of Ethanol as a
Performance Fuel
  • Know Your Fuel Determine Actual Ethanol Content
  • Fuel System Modifications
  • Engine Modifications
  • Handling and Storage
  • Racing E85 Fuel

800-597-9747 www.iqlearningsystems.com
36
  • Know Your Fuel Determine Actual Ethanol Content
  • The actual ethanol content of E85 varies widely
    by the time of year and pump-to-pump. For our
    easy Four-Step Titration Method, you will need
  • 1. 100 ml. graduated cylinder stopper
  • 2. Sample of test E85 fuel
  • 3. Distilled water

800-597-9747 www.iqlearningsystems.com
37
Six-Step Water Titration Method, for E85
  • Step 1
  • Fill the cylinder to the 50 ml. mark with the
    test fuel.

800-597-9747 www.iqlearningsystems.com
38
Six-Step Water Titration Method, for E85
  • Step 2
  • Add 48 ml. of distilled water.

800-597-9747 www.iqlearningsystems.com
39
Six-Step Water Titration Method, for E85
  • Step 3
  • Put stopper in top of cylinder. Shake vigorously
    to mix the water and fuel. Allow it to stand.

800-597-9747 www.iqlearningsystems.com
40
Six-Step Water Titration Method, for E85
  • Step 4
  • Pull stopper out slightly to allow pressure
    buildup to escape. Reseal and allow to stand for
    15 min.

800-597-9747 www.iqlearningsystems.com
41
Six-Step Water Titration Method, for E85
  • Step 5
  • Write down the overall Volume A and the
    separation line Volume B.

800-597-9747 www.iqlearningsystems.com
42
  • Step 6
  • Apply this formula to determine gasoline content
  • Percent Gasoline 2.1 1.94 (Volume A Volume
    B)
  • 2.1 1.94 (93-86)
  • 2.1 1.94 (7)
  • 2.1 13.58
  • Percent Gasoline 15.68
  • To find the ethanol content, subtract the
    percentage gasoline content (15.68) from 100
  • 100 15.68 84.32 or approx. E85

800-597-9747 www.iqlearningsystems.com
43
Four-Step Water Titration Method
The ethanol/water level reads 88 ml. Subtract 10
ml. for the true ethanol content of 78, or E78.
  • Step 4
  • Read the level of the ethanol/water at the
    bottom. Subtract 10 ml. (the amount of added
    water). This is your true ethanol percentage.

800-597-9747 www.iqlearningsystems.com
44
Four-Step Water Titration Method
  • Step 3
  • Put stopper in top of cylinder. Shake vigorously
    to mix the water and fuel. Allow it to stand. The
    ethanol/water mix will fall to the bottom of the
    cylinder.

800-597-9747 www.iqlearningsystems.com
45
Four-Step Water Titration Method
The ethanol/water level reads 88 ml. Subtract 10
ml. for the true ethanol content of 78, or E78.
  • Step 4
  • Read the level of the ethanol/water at the
    bottom. Subtract 10 ml. (the amount of added
    water). This is your true ethanol percentage.

800-597-9747 www.iqlearningsystems.com
46
  • Fuel System Modifications
  • To make your race vehicle E85 compatible, you
    must inspect the following and make any needed
    changes
  • Correct fuel tank type size
  • Vented gas cap
  • Compatible fuel pump correct type and capacity
  • Compatible carburetor/injectors

800-597-9747 www.iqlearningsystems.com
47
  • Engine Modifications
  • Protect your engine and take full advantage of
    the power-making capability of E85 fuel
  • 1. Utilize ethanol-compatible motor oil
  • 2. Increase engine static compression ratio
  • 3. Increase engine dynamic compression
  • 4. Adjust air/fuel ratio
  • 5. Adjust spark timing
  • 6. Experiment with spark timing correction

800-597-9747 www.iqlearningsystems.com
48
  • Handling Storage
  • Ethanol blends are hygroscopic. Once water has
    been introduced, corrosion will develop. Be sure
    to
  • Store the fuel only in approved containers and
    keep it tightly capped at all times.
  • All alcohols are very drying to skin. Avoid
    contact with skin and eyes.
  • Follow all other normal fuel handling and storage
    recommendations.
  • Inspect your motor oil for milking and change
    frequently.
  • After racing, pickle the engine and vehicle.
    Drain all fuel from lines and use an appropriate
    anti-corrosive agent.

800-597-9747 www.iqlearningsystems.com
49
  • Racing with E85
  • Not only does E85 vary in ethanol content by the
    time of year and from pump to pump, but the 15
    gasoline portion also affects engine performance
    and fuel system requirements.
  • While pump E85 has a nominal octane rating of
    105 (RM/2 method), we strongly recommend that
    you find a supplier of E85 Racing Fuel. The
    fuel should have a consistent and high (85)
    ethanol content and the gasoline should also be a
    high grade racing fuel. This will protect your
    engine from varying octane levels and air/fuel
    mixture requirements.

800-597-9747 www.iqlearningsystems.com
50
Contact Information
Robert L. Colesworthy IQ Learning Systems,
Inc. 1833 Scherer Parkway Saint Charles, MO
63303 800-597-9747 www.iqlearningsystems.com
12/3/07
Write a Comment
User Comments (0)
About PowerShow.com
