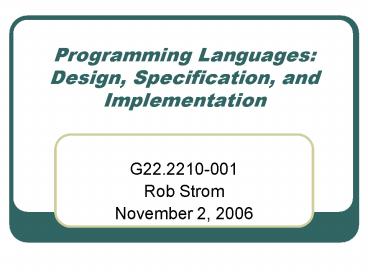

Programming Languages: Design, Specification, and Implementation

1
Programming LanguagesDesign, Specification, and
Implementation

• G22.2210-001
• Rob Strom
• November 2, 2006

2
Administrative

• Alternative mailing address for me
  robstrom_at_us.ibm.com
• Everyone should subscribe to the class mailing
  list http//www.cs.nyu.edu/mailman/listinfo/g22_2
  110_001_fa06
• Reading
• Pierce, ch 9, simple typing 11 extended typing,
  22 type inference, especially 22.4 unification.
• DONT DO THIS AT THE LAST MINUTE!!! Its VERY
  formal.
• Useful online tutorial A Gentle Introduction to
  ML
• http//www.dcs.napier.ac.uk/course-notes/sml/manua
  l.html
• Bring up your grade Resubmit programming
  projects
• Simple Homework (due next class)
• Convert doubly linked list implementation into a
  GENERIC one that will take multiple types
• Prof. Schonberg will give next weeks lecture (ML
  and Type Inferencing)
• Homework assignment for ML will be posted on the
  website
• Polymorphism Project (due 2 weeks after now) BUT
  START NOW!!!!
• Come to office hours for help!

3
Polymorphic Programming Project (2 weeks)

• This project builds a system exploiting
  polymorphism. Choose one of the 3 languages C,
  Ada, or Java to do it.
• This system models a world composed of the
  following kinds of objects
• rooms they have doors to neighboring rooms, and
  access to factories
• factories (they create objects)
• solids (coins, keys, bags, pots), some of which
  are containers (bags, pots, jars)
• liquids (water, juice) must be in a container,
  can only be transferred with a funnel
• doors (they transfer solid objects from one room
  to a neighbor)
• funnels (they transfer liquids from one container
  to another)
• Objects have attributes (weight, mass), and
  different kinds enforce different restrictions.
• You manipulate things by repeatedly choosing a
  room, and giving it a script that can do any of
  these things in that room
• Ask factories in the room for things by name
  e.g., you can ask for 10 keys different
  factories might return different weight keys, or
  might return them in a bag inside a package, etc.

• You can ask containers whats inside them.
• You can remove solid things from inside
  containers you have in the room with you. You can
  insert solid things from the room into
  containers. A container will complain if its
  capacity is exceeded, or if you are trying to mix
  solids and liquids in the same container.
• You can transfer x amount of liquid from one
  container to another, by invoking a method on a
  funnel It will complain if there is too little
  liquid in the source container or if the
  receiving container doesnt accept that kind of
  liquid. Usually containers will not accept
  liquid if they are also holding solids.
• You can ship a container (and by implication,
  everything in it) from a room to a neighbor by
  invoking a method on one of the rooms doors.
• Use polymorphic programming to
• Configure a network of at least 5 rooms with
  doors between them, and different kinds of
  factories in each
• Design different kinds of solid objects,
  containers, and liquids, with different
  properties (at least 3 of each). Example pot1
  can hold solid up to 5 pounds or liquid up to 10
  ounces, but not both solid and liquid.
• Write a variety of scripts to obtain things from
  factories, extract their contents from
  containers, repackage them and ship them to
  neighboring rooms, and then go to the neighboring
  rooms and unpackage them again.

4
Programming Languages Core Exam

• Syntactic issues regular expressions,
  context-free grammars (CFG), BNF.
• Imperative languages program organization,
  control structures, exceptions
• Types in imperative languages strong typing,
  type equivalence, unions and discriminated types
  in C and Ada.
• Block structure, visibility and scoping issues,
  parameter passing.
• Systems programming and weak typing exposing
  machine characteristics, type coercion, pointers
  arrays in C.
• Run-time organization of block-structured
  languages static scoping, activation records,
  dynamic and static chains, displays.
• Programming in the large abstract data types,
  modules, packages and namespaces in Ada, Java,
  and C.
• Functional programming list structures, higher
  order functions, lambda expressions, garbage
  collection, metainterpreters in Lisp and Scheme.
  Type inference and ML.
• Object-Oriented programming classes,
  inheritance, polymorphism, dynamic dispatching.
  Constructors, destructors and multiple
  inheritance in C, interfaces in Java.
• Generic programming parametrized units and
  classes in C, Ada and Java.
• Concurrent programming threads and tasks,
  communication, race conditions and deadlocks,
  protected methods and types in Ada and Java.

5
Java Interfaces

• A reference can have interface type rather than
  class type.
• Classes not only inherit their behavior and
  interface from their superclasses, but also they
  may explicitly declare that they obey one or more
  additional interfaces, e.g.
• / This interface defines a method any "SMILE
  Timer Handler" must support
• public interface ISMILETimerHandler
• public void processTimeout(long / TimerID /
  timerID)...
• Lots of different classes can implement
  ISMILETimerHandler, even if they have no
  inheritance relationship among them. For
  instance,
• public class SMILECollectionService extends
  SomeSuperClass implements ISMILETimerHandler, ...
  ...
• public class OutstandingSync extends
  SomeOtherSuperClass implements ISMILETimerHandler,
  ... ...
• At any time, an object of type SMILECollectionServ
  ice, or OutstandingSync, or any other class that
  implements ISMILETimerHandler, can be stored in a
  reference variable of (interface) type
  ISMILETimerHandler, e.g.
• ISMILETimerHandler foo new SMILECollectionServic
  e(...)
• Reference foo can be stored, copied, passed to an
  object, and later, methods on reference foo can
  be invoked, e.g. foo.processTimeout(nnn)
• The caller of foo has no idea what class of
  object is going to be called. The call is
  completely polymorphic. All that is known at
  compile time is that whatever class will
  implement the call, it will be a class that
  implements the interface.The actual dispatch will
  happen at run-time, based on the class of the
  object referenced by foo.
• Security exposure If you have an interface, and
  you can guess the class name, you can cast the
  interface to the class and have access to other
  operations!!! ?

6
But Ada doesnt have interfaces!How can you get
the effect?
type X is private procedure a() procedure
b() procedure c(...) procedure d()
type Y is private procedure c() procedure
d() procedure e() procedure f()

• Given 2 unrelated classes, X and Y

• Generate a class for interface CDInt. It is the
  root of a class hierarchy for different actual
  classes

type CDInt is abstract tagged private
procedure C(arg CDIntClass) procedure D(arg
CDIntClass)
type CDIntForX is new CDInt with private
private type CDIntForX is new CDInt with
record theX access X procedure C(arg
CDIntClass) is begin C(theX.all) end

• Generate classes for an object which delegates C
  or D calls to X or Y. These classes inherit from
  CDInt

• At runtime, get an instance of CDIntForX or
  CDIntForY, by calling a method on an X or Y.
  Assign it to a polymorphic variable intRef.

anX X intRef CDIntClass
getCDInt(anX) C(intRef)
7
How this looks at runtime
Caller C(intRef)
A CDIntForX object anX access X
An actual instance of type X
8
Exceptions

• Builtin, e.g.
• Running out of memory
• Division by zero
• User-defined, e.g.
• NoSuchEntry
• BufferFull
• Raising an exception causes a block or procedure
  to abnormally terminate, and to signal the
  particular exception (possibly with a message)
• A containing block or caller in the dynamic chain
  will catch the exception and either take
  alternative action or reraise it
• Advantages
• If a function is supposed to return something, or
  a procedure is supposed to initialize or modify
  something, and it doesnt do it, it should not be
  able to return to a context where it is assumed
  it has done its job.
• Simply returning a return code is not enough,
  because programmers will forget to check it.
• Differences Ada-C exceptions not on
  interfaces, Java puts them on interfaces, except
  RuntimeExceptions Ada exceptions are not
  objects. Java try-finally block to allow contexts
  to do context-specific finalization

9
Exceptions example

• public class Caller
• void run()
• Callee foo new Callee()
• try
• PrintStream s foo.open()
• try
• double a Math.random()
• double b Math.random()
• double c Math.random()
• double root foo.getRoot(a, b, c)
• s.print(The answer is root)
• System.out.println("The answer is " root)
• finally
• s.close()
• catch (Callee.NoRealRoot e)
• System.out.println("Had to give up because "

• e . getMessage())

• public class Callee
• public static class NoRealRoot extends Exception

• NoRealRoot(String reason) super(reason)
• double getRoot (double a, double b, double c)
  throws NoRealRoot
• double discriminant bb - 4ac
• if (discriminant lt 0)
• throw new NoRealRoot ("Negative
  Discriminant")
• return (-b Math.sqrt (discriminant))/2a

10
Generics/Templates motivation

• public class Test
• void run()
• List foo new ArrayList() // List of
  WHAT???? Bad documentation! ?
• Widget w WidgetFactory.getWidget()
• foo.add(w) // intended to be a list of
  Widget but no compile-time check here ?
• for (Iterator it foo.iterator()
  it.hasNext )
• Widget aWidget (Widget) it.next() // cast
  and run-time check here ?
• aWidget.doSomethingToIt()
• // The problem is that I want to reuse the
  implementation of List,
• // not build separate implementations for List
  of Widget, List of PrintStream, etc.
• // But I dont want to lie and pretend that my
  List is a List of Object if it isnt

11
Alternatives

• Macros/preprocessors
• This would allow List to be written once, but
• Would require each List type to be a separate
  instantiation of the macro
• You could get type errors from the generated code
• Extend the type system with true polymorphic
  classes (hard, but see ML, C)
• Generics/Templates
• No change in the run-time type system, but
• Compile-time type checking of proper use

12
Simplest Case

• public interface List ltEgt // This DEFINES two
  new generic interfaces
• void add(E x)
• Iteratorlt E gt iterator()
• public interface Iterator lt E gt
• E next()
• boolean hasNext()
• public class ArrayList lt E gt implements Listlt E gt
  // This defines a generic class that uses
• // the generic interface
• ListltWidgetgt foo new ArrayListltWidgetgt() //
  properly documented ? instance of generic class
• Widget w WidgetFactory.getWidget()
• foo.add(w) // properly type-checked ?
• for (IteratorltWidgetgt it foo.iterator()
  it.hasNext )
• Widget aWidget it.next() // no cast ?
• aWidget.doSomethingToIt()

13
Gotchas

• When reading the code, you can
• Imagine that there is a (potential) class ListltEgt
  for every possible value of E. (Ada and C will
  actually do this)
• Use subtyping to infer relationships, e.g.
  ArrayListltWidgetgt is a subtype of ListltWidgetgt
• But, when executing the code,
• There are no actual classes like
  ArrayListltWidgetgt (there would be in C)
• So you can not, for example cast things to
  ArrayListltWidgetgt and get run-time checks
• Only classes corresponding to erasures of
  parametrized types are really there at runtime.
• The erasure is the type without the parameters,
  e.g. ArrayList.

14
Other features

• All instances of the Java generic can share the
  same code
• Side effect static class variables/methods are
  shared, so the image of each instance of a
  template defining a new class is shattered
• Any reflection, e.g. obj.getClass() sees the same
  class.
• Each Java generic has an interface (not called
  that here I will call it a contract) that
  specifies what kind of parameters it can have
  when it is instantiated
• Unlike C, where each instance can have
  specialization, but where each instantiation
  can fail for reasons that can only be determined
  by looking inside the generic
• Unlike Ada, where generics can be parameterized
  with objects and functions as well as with types

15
The Contract Bounds

• Suppose I need my generic class to invoke a run()
  method on its argument of type E. That is
• public class Foo lt E gt
• public doRun(E x)
• x.run() // Error! We dont know that E has a
  run() method

extends Runnable gt
// Now it is known to be safe

• Uses of the generic must obey the contract
• FooltRunnablegt y // OK
• FooltBargt w // OK provided that Bar implements
  or extends Runnable
• FooltObjectgt z // not OK Object doesnt
  implement Runnable

16
Why wildcard types

• Suppose ColoredPoint is a subclass of Point. Can
  I pass an object of ListltColoredPointgt to a
  formal parameter of type ListltPointgt?
• No! Because I might add objects of type Point
  into a ListltPointgt, but not into a
  ListltColoredPointgt
• ListltColoredPointgt is not a subtype of
  ListltPointgt
• But suppose the method is not going to add
  objects into the list, just get objects from the
  list using an iterator?
• Then the formal parameter should be of type
  Listlt? extends Pointgt. This type stands for all
  classes Listltigt where i extends Point.
  Polymorphism without inheritance!
• An attempt to call add(x) where x is a Point will
  fail, because Listlt ? extends Pointgt doesnt
  guarantee an add method that takes a Point.
• But you may call an iterate() method whose next()
  returns something of type Listlt? extends Pointgt,
  which is assignable to a Point.
• The most inclusive wildcard type for List is
  Listlt?gt. At least you can do operations like
  size() which are applicable to any list!

17
Use of methods with Wildcard Types

• Interface Collection lt E gt
• public containsAll(Collection lt?gt c) // just
  needs iterate, equals
• public addAll(Collectionlt? extends E gt //
  needs to make sure that // everything
  thats added is an E or a subclass

18
What are generic methods and why do we need them?

• Just as generic classes/interfaces are multiple
  parameterized instances of a class or interface
  (that share a definition)
• Generic methods (which could be static methods,
  non-static methods, or constructors) are multiple
  parameterized instances of methods within a class
  or interface (that share a definition)
• Example
• class Collections   public static ltA extends
  ComparableltAgtgt A max(Collectionlt A gt xs)
  Iteratorlt A gt xi xs.iterator() // exploits xs
  being a CollectionltAgt
•     A w xi.next() // exploits the fact
  that next() on IteratorltAgt returns an A    while
  (xi.hasNext())       A x xi.next()
  if (w.compareTo(x) lt 0) w x // exploits that
  w extends ComparableltAgt
•         return w
• It says that for every class A that supports the
  operations of ComparableltAgt, there exists a
  method max taking one parameter of type
  CollectionltAgt, and returns a value of type A.
• So if class Foo implements ComparableltFoogt, you
  can validly declare an object of type
  CollectionltFoogt, and invoke Collection.max on it.
• But if class Bar does not implement
  ComparableltBargt, you may not validly declare an
  object of type CollectionltBargt and invoke
  Collection.max on it.

19
So classes with generic methods really have an
infinite number of methods?

• Yes. But all the methods defined with one
  generic method definition share the same
  implementation!
• Really means as viewed by the compiler. At
  run-time, if you use reflection, theyll still
  look like one method
• This is overloading, not polymorphism!
• When the method is analyzed at compile-time, the
  compiler will find an instance of each type
  parameter and check that the constraints of the
  contract are observed.

20
What cant you do with Java generics

• Parameterized types play the role of types, not
  classes, therefore, inside a class FooltTgt
• Cant do new T()
• Cant do T.staticMethod()
• All type information is erased at runtime,
  therefore
• Inside the static context of FooltTgt, cant
  declare variables of type T, or use T in any way
  -- because the static context of FooltTgt is the
  same for all T.
• The static context means static initializers,
  static methods, static (class) variables
  anything that is shared by every instance of the
  class.
• Cant use reflection to build appropriate calls
  to constructors or methods of type FooltTgt, since
  all reflection tells me is that its a Foo.
• Cant cast to type FooltTgt.

21
Other gotchas

• Because Java didnt put generics in from the
  start,
• They need to deal with legacy code dealing with
  unparameterized collection classes coexisting
  with new code.
• This has led to introducing an UNCHECKED
  CONVERSION. ?
• But, the pain of the above is limited to
  generating ClassCastExceptions where no visible
  class casts exist. (Still type-safe.)

22
Generics in Ada

• Explicit instantiation with new
• Parameters may include objects and functions as
  well as types
• Smaller range of contracts
• generic
• type LIMPRIV is limited private -- Limited
  private type
• type PRIV is private -- Private type
• type DISCRETE_TYPE is (ltgt) -- Discrete type
• type INT_TYPE is range ltgt -- Integer type
• type MOD_TYPE is mod ltgt -- Modular type
• type FLOAT_TYPE is digits ltgt -- Floating point
  type
• type FIXED_TYPE is delta ltgt -- Fixed point type
  type
• DECIMAL_TYPE is delta ltgt digits ltgt -- Decimal
  type
• procedure AllGener
• procedure AllGener is begin end AllGener

23
Templates in C

• Simple case is similar
• template ltclass Tgt
• class Stack
• public
• Stack(int 10)
• Stack() delete stackPtr
• int push(const T)
• int pop(T)
• int isEmpty()const return top -1
• int isFull() const return top size - 1
• private
• int size // number of elements on Stack.
• int top
• T stackPtr
• ...
• typedef Stackltfloatgt FloatStack

24
But there are differences in C templates

• Each instantiation is a different class instance
• Each class can be specialized e.g.
  StackltStringgt can use different logic
• Each class generated from a template has its own
  static
• The generic language is Turing complete
• But not so easy to see the contract!

25
A Generic that does Factorial?

• template ltint Ngt // notice that parameter is a
  number, not a type
• struct Factorial
• enum value N FactorialltN - 1gtvalue

• // here were re-invoking the template
  recursively
• template ltgt
• struct Factoriallt0gt enum value 1
• // Factoriallt0gt
• // matches both Factoriallt0gt in templateltgt
• // and Factoriallt0gt in template ltint Ngt. The
• // second definition overrides the first one.
• // Thats how the recursion terminates.
• // Factoriallt4gtvalue 24
• // Factoriallt0gtvalue 1
• void foo()
• int x Factoriallt4gtvalue // 24
• int y Factoriallt0gtvalue // 1
