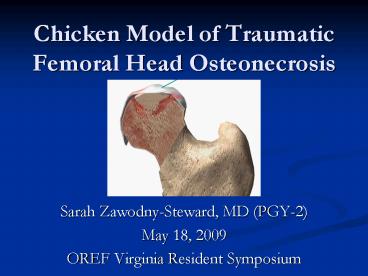

Chicken Model of Traumatic Femoral Head Osteonecrosis

1
Chicken Model of Traumatic Femoral Head
Osteonecrosis

• Sarah Zawodny-Steward, MD (PGY-2)
• May 18, 2009
• OREF Virginia Resident Symposium

2
Osteonecrosis

• Ischemic death of cellular elements in the
  epiphyses of bone
• Deterioration of subchondral bone and loss of
  mechanical integrity

3
Etiology

• No discrete agent or pathologic mechanism
  identified, just theories
• Altered blood flow
• Direct cellular toxicity
• Impaired mesenchymal cellular differentiation
• Factors
• Corticosteroids
• Coagulation abnormalities
• Alcohol use
• Genetic polymorphisms
• Trauma (dislocation or fracture)

4
Femoral Head Arterial Supply

• Proximal epiphyseal region is encased in
  avascular cartilage
• Increased risk of ischemia when periosteal and
  endosteal blood supply is interrupted

5
Clinical Relevance

• Unrelenting course of pain and dysfunction
  leading to femoral head collapse
• Relatively young, active patients
• Mean age of presentation 38 years
• 20,000 new cases diagnosed annually
• Approximately 10 of all THAs
• Not optimal for young patients
• Conservative treatment options currently delay,
  but do not halt progression
• core decompression, osteotomy, nonvascularized
  bone matrix grafting, free vascularized fibular
  grafts, resurfacing procedures

6
Animal Model of Osteonecrosis

• Experimental techniques must mimic clinical
  situations
• Regardless of where circulation is initially
  impeded (arteries, veins, capillaries,
  sinusoids), the endpoint is interruption of
  arterial flow
• The lack of effective treatments for ON is mainly
  due to the lack of an ideal animal model.

7
Why Chickens?

• Existing models
• Rat
• Piglet
• Emu
• Sheep
• Quadruped animal models have failed to produce
  the human form of ON.
• Majority do not progress to collapse of the
  femoral head
• Biomechanical environment of the hip joint in
  bipedal animals is similar to humans.
• Chickens treated with glucocorticoid steroids
  have demonstrated the human form of ON in our
  research laboratory (Dr. Cui et al.)

8
Traumatic Model of ON

• Surgical hip dislocation and disruption of the
  vascular supply to the femoral head
• Left hip is experimental side, Right serves as
  control.

9

• Procedure

• 2 cm longitudinal incision over the greater
  trochanter
• Fascia of gluteus maximus incised to expose the
  greater trochanter
• Joint capsule detached and Ligamentum teres cut
• Femoral head dislocated from the acetabulum

10
Procedure

• Periosteum of the femoral neck scored and
  surrounding periosteal vessels severed
• Femoral head relocated
• Surgical incision closed in layers

Microfil (orange) injected into arterial system
of chickens to map vessels supplying the femoral
head.
11
Methods

• Total of 24 chickens
• 18wk female white leghorn
• 6 euthanized for tissue harvest at 4 time points
  4, 8, 12, and 20 weeks
• Femoral head and neck samples fixed in Formalin
• MicroCT
• Histological analysis
• Decalcification with 0.25M EDTA for 4-5 weeks
• Embedded in paraffin
• 7 µm coronal sections stained with HE

12
Quantitative µCT imaging analysis
13
(No Transcript)
14
(No Transcript)
15
Histology of Human Osteonecrosis

• Loss of thickness of trabecular bone
• Empty lacuna due to osteocyte death
• Appositional new bone formation on necrotic
  trabeculae
• Subchondral collapse, fracture, and/or cysts
• Marrow edema and/or necrosis
• Depletion of hematopoietic cells
• Fat cells are necrotic in the marrow
• Marrow space filled with eosinophilic fibrinoid
  material

16
Control (10x)
8R (2x)
8L (2x)
Empty Lacunae
Normal Osteocytes
20 wk Experimental (10x)
17
20 wk (8L) at 40x Necrotic Bone
New appositional bone formation
Dead Osteocytes
18
Macroscopic Findings
Collapse
Subchondral Fracture
Necrotic Bone
Subchondral Cyst
Human specimen collected at time of Total Hip
Arthroplasty
19
20 week (10L) Subchondral cyst formation
20
20 week (9L) Collapse of subchondral bone, void
filled by fibrous tissue
21
Conclusions

• Histologic changes consistent with Osteonecrosis
  seen as early as 4 weeks
• Trabecular bone loss, empty osteocyte lacunae,
  new bone formation on existing trabeculae
• Progression to human form of disease
• Cyst formation and collapse by 20 weeks
• MicroCT analysis shows decreased bone volume and
  increased porosity compared to controls.
• Successful traumatic model of osteonecrosis can
  be used to develop innovative treatments
• Tissue Engineering

22
Core Decompression

• Most commonly used head preserving procedure for
  pre-collapse osteonecrosis
• Performed with or without bone graft or bone
  graft substitute

Core decompression performed on chicken femoral
head a 1.6 mm k-wire and a 2 mm drill bit were
used for testing under the fluoroscopic guidance,
the femurs were then dissected to examine the
position of the core tracts.
23
Bone Graft Substitute

• Osteoconductive PLAGA sintered microsphere
  scaffold
• Osteoinductive and Angiogenic Stem cells
  expressing BMP and VEGF concurrently

SEM images of D1 cells on the PLAGA sintered
microsphere scaffolds at day 21(C 80)
24
