Open Croquet

1

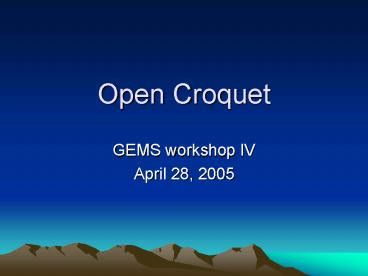

Open Croquet

• GEMS workshop IV
• April 28, 2005

2
Overview

• Explore Open Croquet
• Create cool 3D models from 2D using Open Croquet
• Discussions

3
Lets get started!

• Open Open Croquet
• Locate the icon Croquet.exe
• Double click on it to open

4
Lets get started

• This is the Open Croquet window
• Squeak is in Open Croquet!!!!
• Left click on the box First Steps
• Its at first box to the right

5
Lets get started

• Left click on the TeaPot icon and drag it
  anywhere outside the green box
• and WAIT
• Be patient
• It takes a while to load Open Croquet

6
What is Open Croquet?

• Graphical Squeak
• Its built on Squeak
• Mouse actions, navigations, very similar to
  Squeak

7
What is Open Croquet?

• 3D Environment
• Squeak usually deals with 2D graphics
• Open Croquet deals with 3D and 2D graphics!!!

8
What is Open Croquet?

• Allows Real-Time Peer to Peer Collaboration
  (eventually)
• People from different places can interact with
  each other on Open Croquet

9
What is Open Croquet?

• Free!!!
• Thats why its called OPEN Croquet
• You can get it at www.opencroquet.org

10
A Few Things

• Graphics always run slow on computers
• Be patient with Open Croquet
• Sometimes the computer freezes/crashes
• Dont Panic! Wait a while.
• You can always re-start Open Croquet ?

11
Loading

• Its done loading when you see ALL the windows
  are showing and the clouds are moving

12
Moving Clouds

• When the clouds are not moving
• Open Croquet is still running
• Do not do anything, just wait until the clouds
  start moving again
• Or you can re-start Open Croquet (remember to
  close it first)

13
Explore Open Croquet

• Lets call the world Alice world

14
Explore Open Croquet

• If you do not see the full window, you can move
  the window
• Just like Squeak
• Hold Alt and left click anywhere inside the Alice
  world
• Left click and drag the icon

15
Oops..?!

• If you see this window
• To get rid of the window
• Move your mouse to the top of the window until
  you see
• Left click on it
• Do NOT click on Exit
• This will close Open Croquet

16
Explore Open Croquet

• Sometimes you will see this icon
• Its at the top left corner
• Left-clicking it brings up the windows halo

17
Explore Open Croquet

• You will also see this camera icon
• Its at the top right corner
• Left-clicking it taking a snapshot
• remembers your current location
• Its like a bookmark

18
Where can I find the bookmark?

• is like a bookmark
• Move your mouse to the bottom left corner of the
  world window
• Navigator Dock shows a list of tools

19
Where can I find the bookmark?

• is like a bookmark
• Navigator Dock ? Left click on Snapshots
• You will see a list of snapshots

20
Where can I find the bookmark?

• is like a bookmark
• Left clicking on any of the snapshots will take
  you directly to that place

21
Where can I find the bookmark?

• To go back to the Navigator Dock, left click on
  the

22
Navigator Dock

• Access Squeak
• Find your snapshots

• Create 3D models
• Find 3D models

23
Explore Open Croquet

• You will see the telephone icon
• Its a chatting tool
• The current Open Croquet version doesnt support
  it

24
Different Views

• Hold Ctrl and A together
• changes how you can view the world
• Hold Ctrl and R together
• gives you a rear view

25
Pyramids

• In Alice world, theres a pyramid
• Left click and drag spins the pyramid
• Left click on it again stops the spin

26
Pyramids

• Left click on it
• Type a number from 1 to 6 and see how the pyramid
  changes

27
Moving in Open Croquet

• You are Alice in the Alice world
• To Move Right click and drag the mouse

28
Moving in Open Croquet

• To Move Right click and drag the mouse
• Notice the yellowish crosshair in the middle of
  the window
• The closer you are to the cross hair, the slower
  you will move
• Its always in the middle

29
Moving in Open Croquet
30
That window again

• If you have left clicked instead of right, you
  will get a new blue window
• To get rid of the window
• Move your mouse to the top of the window until
  you see
• Left click on the icon

31
Croquet Windows

• In Croquet, you will see blue rectangles
• They are croquet windows
• They are also portals to another worlds

32
Croquet Windows

• All Croquet windows have these 5 icons at the top
• Move Mouse to the top frame of a blue window
• The blue color will change to yellow
• The icons will show up

33
Croquet Windows

• Left clicking on it deletes the window
• Do NOT do this unless you really want to delete
  the window!
• If you accidentally delete it, re-start Open
  Croquet

34
Croquet Windows

• Left clicking on it takes a snapshot
• If the window is not a portal, it doesnt work

35
Croquet Windows

• Left clicking on it takes you to the front of the
  window
• Or you can right click at the top frame of the
  window

36
Croquet Windows

• Left clicking on it makes the window follow you
  wherever you are
• You can left click on it again to stop the window
  following you

37
Croquet Windows

• Left clicking on it either opens or closes the
  window
• Open we can see whats inside the window
• Close we cannot see whats inside the window

38
Croquet Windows

• You can move the windows
• Move mouse to the top or bottom of the window
  (not the corner)
• Left click on the top or bottom frame to move

39
Croquet Windows

• You can resize the windows
• Move mouse to the any one corner of the window
• Left click at the corner

40
Croquet Windows

• You can rotate or spin the windows
• Move mouse to the side frame of the window
• Left click on the side frame
• If its spinning, you can left click on the side
  frame again to stop it

41
To be on the same page

• Close Open Croquet and start it again

42
Portals

• Portals are like doors
• They connect us from one place to another
• In Open Croquet, portals take us from one world
  to another world
• To open the portal left click inside the portal
  window or left click on the thats at the top of
  the window

43
Portals

• Well explore different portals in Open Croquet
• If you get lost, use the snapshots to remember
  your locations
• Navigator Dock ? Left click on Snapshots

44
Flags

• The Flags portal is near the pyramid, at the edge
  of Alice world
• Open the portal by left clicking inside the
  window
• Move Alice inside the portal

45
Flags

• You can change how the flag is moving
• Left click and drag on the flag

46
Flags

• Go back to Alice world
• you can go through the Alice portal or use
  snapshots (if you have taken a snapshot of Alice
  world earlier)

47
Mars

• From Alice world

48
Mars

• Open the Mars portal by left clicking inside the
  portal window
• Move Alice inside the portal

49
Mars
50
Mars

• In the Mars world, there is a rover you can
  control
• Left click on the rover, then type on your
  keyboard
• f Forward
• b Backward
• l Left
• r Right

51
Mars

• Go back to Alice world
• you can go through the Alice portal or use
  snapshots (if you have taken a snapshot of Alice
  world earlier)

52
Deep Sea

• From Alice world

53
Deep Sea

• Open the Deep Sea portal by left clicking inside
  the portal window
• Move Alice inside the portal

54
Deep Sea

• In Deep Sea
• You are a fish, not Alice

55
Deep Sea

• To go back to Alice world
• you can go through the Alice portal or use
  snapshots (if you have taken a snapshot of Alice
  world earlier)

56
Take a Break

• Next
• Learn how to create your own 3D model!

57
Locating the Painter Tool
Appearance of Dock once located on the Croquet
window

• First Locate your Painter tool. To do this move
  your mouse at the bottom of the Croquet window,
  called the Dock
• Click on the tools section

Click on the Tool section.
58
TPainter

• From the tools section click on the TPainter
• Now you are ready to paint!
• Notice that some tools that you have is a brush,
  eraser, and different colors

59
Drawing Your Own Fish

• Now draw a fish of your choice. Using the tools
  given

60
Giving the Fish Direction

• The program does not know which direction you
  have drawn the fish.
• You need to give it orientation.
• If you have drawn the fish with its head facing
  to the left that is forward. Click on forward.

61
Keeping your Fish

• To insert your fish into the enviorment press
  KEEP
• Now you are done!
• You can make other cool stuff with the painter!

62
Questions???
63
Open Croquet References

• http//www.opencroquet.org
• http//c2.com/cgi/wiki/wiki?OpenCroquet
• http//minnow.cc.gatech.edu/croquet/3
