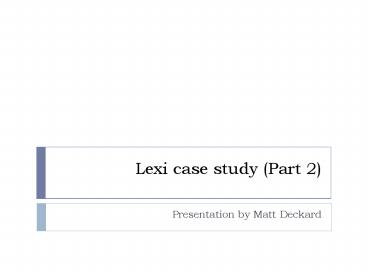

Lexi case study (Part 2)

• Presentation by Matt Deckard

2
User Operations

• Support different operations
• Cut, copy, paste
• Formatting
• Printing
• Etc.
• Support different Uis
• Menus
• Buttons
• Keyboard shortcuts
• Etc.

3
User Operations

• Avoid coupling operations and UIs
• Use multiple UIs for single operations
• Change UIs in the future
• Avoid creating dependencies to classes operations
  are defined in
• Undo and Redo
• Want some, but not all operations to be undoable
• Un-undoable operations
• Saving
• Creating new documents
• Printing
• Dont want arbitrary limit on levels of undo

4
User Operations

• Encapsulate user operations
• GUI menus are just glyphs that perform actions in
  response to user interaction
• Create subclass of Glyph called MenuItem
• But dont want to make each operation a subclass
  of MenuItem (avoid decoupling!)
• Parameterize menu items by uper operations
• How?

5
User Operations

• How should user operations be parameterized?
• Simple function call has drawbacks
• Doesnt address undo/redo
• Hard to associate state with function
• Difficult to extend, reuse
• Use objects instead
• Can store state, implement undo/redo
• Use inheritance to extend, reuse

6
Command class

• Command abstract class representing user
  operation
• Based on abstract method Execute()
• Subclasses will implement Execute() according to
  the operation they represent
• Subclasses can delegate parts of user operation
  to other objects
• Command objects are treated uniformly by
  requestor
• MenuItem will store instance of Command object to
  encapsulate its associated user operation

7
Command class

• Undoability
• Add abstract Unexecute() method
• During Execute(), Commands will store whatever
  information they need to undo later
• Add abstract Reversible() method
• Returns true if and only if this Command is
  undoable
• Allows Commands to determine undoability at
  runtime
• i.e. redundant or vacuous Commands shouldnt be
  undoable
• Command history
• Need list of Commands to support multiple undos
• Traverse back and forth through list to undo and
  redo
• Call Unexecute() when undoing, Execute() when
  redoing

8
Command class
9
Command class
10
Command Pattern

• Encapsulates a request (user operation)
• Prescribes uniform interface for requests
• Shields clients from requests implementation
• Allows delegation of request to other objects
• Provides centralized access to functionality
• Allows to queue or log requests
• Supports undo, redo
• AKA Action, Transaction
• Similar to functor (but not quite the same)

11
Command Pattern

• Related patterns
• Use with Composite and youve got macros!
• Use with Memento to remember state (for undo)
• Use Prototype to copy command before putting in
  undo list, to distinguish multiple invocations of
  same command

12
Spellchecking and Hyphenation

• Textual analysis
• Want to support multiple algorithms, addition of
  new ones in future
• Avoid coupling to document structure
• Add other types of analysis in future
• i.e. search, word count, etc.
• Two pieces
• Accessing information to be analyzed
• Performing the analysis

13
Accessing scattered information

• Data access
• Glyphs may be stored in different ways
• Need mechanism to access all of them
• Traversal
• Different analyses may access Glyphs in different
  ways (i.e. forward vs. reverse search)
• Issues
• Only Glyphs know their data structure
• Glyph interface shouldnt be biased toward one
  structure over another
• i.e. using integer index biased us toward arrays
• Want to provide multiple access and traversal
  methods

14
Accessing scattered information

• One approach adding methods to Glyph
• void First(Traversal) initializes specified
  traversal
• void Next() advances to next Glyph in traversal
• bool IsDone() reports if traversal is over
• Glyph GetCurrent() accesses current glyph
• Replaces Child()
• void Insert(Glyph) inserts Glyph at current
  pos
• Replaces Insert(Glyph, int)

15
Accessing scattered information

• Issues with this approach
• Must extend Traversal enumeration to support new
  traversals
• Would also have to change lots of subclasses
• Difficult to reuse mechanism for other object
  structures
• Doesnt support multiple traversals in parallel

16
Iterator class

• Better approach encapsulate access and traversal
• Iterator
• Abstract class
• Defines interface for access and traversal
• Subclass contains reference to structure it
  traverses
• CreateIterator()
• By default, will return NullIterator
• Subclasses can override, based on their structure
• Iterators can use CreateIterator() on their root
  glyphs to support different traversal

17
Iterator class

• Example PreorderIterator
• First()
• Calls CreateIterator() on root
• Calls First() on returned Iterator
• Pushes Iterator onto stack
• CurrentItem()
• Calls CurrentItem() on Iterator at top of stack
• Returns result
• Next()
• Calls CreateIterator() on top Iterator
• Calls First() on returned Iterator
• Pushes Iterator onto stack
• Calls IsDone() on latest Iterator. If true, pops
  it off and repeats

18
Iterator class
19
Iterator Pattern

• Abstracts traversal algorithm
• Shields clients from internal structure of
  objects traversed
• Gain flexability, usability
• Easy to extend
• Easy to reuse by parameterizing object type
• Can perform multiple traversals in parallel

20
Performing the analysis

• Want to distinguish analysis from traversal
• Flexibility, reusability
• Different analyses might require same traversal
• Want to distinguish different types of glyphs
• Different analyses consider different glyphs
• Could abstract in Glyph, have subclasses
  implement
• Drawbacks to this approach
• Have to change multiple subclasses
• Obscures basic glyph interface

21
Performing the analysis

• Encapsulate the analysis
• Create analysis classes
• For now, lets consider a SpellChecker class
• Iterator has instance of SpellChecker
• Uses SpellChecker instance as it traverses
• SpellChecker accumulates information as it is used

22
Performing the analysis

• How to distinguish glyphs?
• SpellChecker treats different glyph types
  differently
• Dont want to resort to type tests or casting
  (gross)
• Instead, have the glyph object tell SpellChecker
  to check it
• Glyph has abstract CheckMe() method
• SpellChecker has methods for every glyph
  subclass, i.e. CheckCharacter(), CheckRow(),
  CheckImage(), etc.
• Glyph sublcasses will override CheckMe() to call
  the appropriate method in SpellChecker

23
Performing the analysis
24
Performing the analysis

• Adding new analyzers
• Will be difficult if we define them as separate
  classes
• Instead, abstract it as a Visitor class
• CheckMe() becomes the Accept() method
• Takes any Visitor as parameter, so dont have to
  touch glyph subclasses when adding new analyzers
• CheckCharacter(), etc become the Visit() method
• Overloaded, takes visited subclass as parameter
• Need one for every subclass that implements
  Accept()

25
Visitor Pattern

• Can be applied to any object structure
• Visitees neednt have common parent class
• Tradeoff
• When you add Visitors you dont have to update
  object structure, BUT
• When you add subclasses to object structure, you
  DO have to update your Visitor classes
• Sometimes can provide default do nothing
  operation in Visitor
• Helps avoid polluting classes with many
  operations
• Helps to separate groups of common operations
• Can accumulate state as they visit elements
• Sometimes compromises encapsulation of visitee
• elements

26
Summary

• Needed to support different user operations
• Encapsulate the concept that varies (Command)
• Needed to support different methods of accessing
  and traversing data
• Encapsulate the concept that varies (Iterator)
• Needed to support different analysis algorithms
• Encapsulate the concept that varies (Visitor)
• (Are we seeing a pattern here?)
