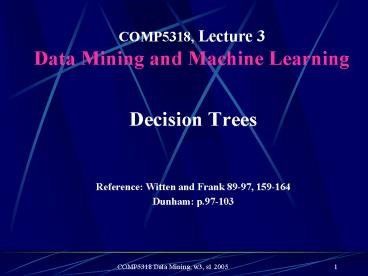

COMP5318, Lecture 3Data Mining and Machine
Learning

• Decision Trees
• Reference Witten and Frank 89-97, 159-164
• Dunham p.97-103

2
Outline of the Lecture

• DT example
• Constructing DTs
• DTs Decision Boundary
• Avoiding Overfitting the Data
• Dealing with Numeric Attributes
• Alternative Measures for Selecting Attributes
• Dealing with Missing Attributes
• Handling Attributes with Different Costs

3
Decision Trees (DTs)

• DTs are supervised learners for classification
• most popular and well researched ML/DM technique
• divide-and-conquer approach
• developed in parallel in ML by Ross Quinlan
  (USyd) and in statistics by Breiman, Friedman,
  Olshen and Stone Classification and regression
  trees 1984
• Quinlan has refined the DT algorithm over years
• ID3, 1986
• C4.5, 1993
• C5.0 (See 5 on Windows) commercial version of
  C4.5 used in many DM packages
• In WEKA - id3 and j48
• Many other software implementations available on
  the web for free and not for free (USD 50 - 300
  000 A. Moore)

4
DT Example

• DT representation (model)
• each internal node test an attribute
• each branch corresponds to an attribute value
• each leaf node assigns a class

DT for the tennis data

• A DT is a tree-structured plan for testing the
  values of a set of attributes in order to predict
  the output A. Moore

• Another interpretation
• Use all your data to build a tree of questions
  with answers at the leaves. To answer a new
  query, start from the tree root, answer the
  questions until you reach a leaf node and return
  its answer.

• What would be the prediction for
• outlooksunny, temperaturecool, humidityhigh,
  windytrue

5
Building a DT Example First Node
Example created by Eric McCreath
6
Second Node
Example created by Eric McCreath
7
Final Tree
Wage gt 22K
dependents lt 6
Example created by Eric McCreath
8
Stopping Criteria Again

• In fact the real stopping criterion is more
  complex
• 4. Stop if in the current sub-set
• a) all instances have the same class gt make a
  leaf
  node corresponding to this class or else
• b) there are no remaining attributes that can
  create non-empty children (no attribute can
  distinguish) gt make a leaf node and label it
  with the majority class

Think about when case b) will occur!
9
Constructing DTs (ID3 algorithm)

• Top-down in recursive divide-and-conquer fashion
• 1. Attribute is selected for root node and branch
  is created for each possible attribute value
• 2. The instances are split into subsets (one for
  each branch extending from the node)
• 3. The procedure is repeated recursively for each
  branch, using only instances that reach the
  branch
• 4. Stop if
• all instances have the same class, make a
  leaf node
  corresponding to this class

10
Expressiveness of DTs

• DTs can be expressed as a disjunction of
  conjunctions
• Extract the rules for the tennis tree

• Assume that all attributes are Boolean and the
  class is Boolean. What is the class of Boolean
  functions that we can represent using DTs?
• Answer
• Proof

11
How to find the best attribute?

• A heuristic is needed!

• Four DTs for the tennis data which is the best
  choice?

• We need a measure of purity of each node, as
  the leafs with only one class (yes or no) will
  not have to be split further
• gt at each step we can choose the attribute
  which produces the purest children node such
  measure of purity is called ...

12
Entropy

• Entropy (also called information content)
  measures the homogeneity of a set of examples it
  characterizes the impurity (disorder, randomness)
  of a collection of examples wrt their
  classification hi entropyhi disorder
• It is a standard measure used in signal
  compression, information theory and physics

• Entropy of data set S
• Pi - proportion of examples that belong to
  class i
• The smaller the entropy, the greater the purity
  of the set
• Tennis data - 9 yes 5 no examples gt the
  entropy of the tennis data set S relative to the
  classification is
• log to the base 2 information is measured in
  bits

13
Range of the Entropy for Binary Classification

• p - proportion of positive examples in the data
  set

• note that

• 0 gt all members of S belong to the same class
  (no disorder)
• 1 gt equal number of yes no (entropy is
  maximized S is as disordered as it can be)
• ? (0,1) if S contains unequal number of yes no

14
Another Interpretation of Entropy - Examplefrom
http//www.cs.cmu.edu/awm/tutorials

• Suppose that X is a random variable with 4
  possible values A, B, C and D P(XA)P(XB)P(XC
  )P(XD)1/4.
• You must transmit a sequence of X values over a
  serial binary channel. You can encode each symbol
  with 2 bits, e.g. A00, B01, C10 and D11
• ABBBCADBADCB
• 000101011000110100111001

• Now you are told that the probabilities are not
  equal, e.g. P(XA)1/2, P(XB)1/4,
  P(XC)P(XD)1/8.
• Can you invent a coding that uses less than 2
  bits on average per symbol, e.g. 1.75 bits?
• A? C?
• B? D?

0 110 10 111

• What is the smallest possible number of bits per
  symbol?

15
Another Interpretation of Entropy - General
Casefrom http//www.cs.cmu.edu/awm/tutorials

• Suppose that X is a random variable with m
  possible values V1Vm P(XV1)P1, P(XV2)P2,,
  P(XVm)pm.
• What is the smallest possible number of bits per
  symbol on average needed to transmit a stream of
  symbols drawn from Xs distribution?

• High entropy the values of X are all over place
• The histogram of the frequency distribution of
  values of X will be flat
• Low entropy the values of X are more
  predictable
• The histogram of the frequency distribution of
  values of X have many lows and one or two highs

16
Information Theory

• Information theory, Shannon and Weaver 1949
• Given a set of possible answers (messages)
  Mm1,m2,,mn) and a probability P(mi) for the
  occurrence of each answer, the expected
  information content (entropy) of the actual
  answer is

• Shows the amount of surprise of the receiver by
  the answer based on the probability of the
  answers (i.e. based on the prior knowledge of the
  receiver about the possible answers)
• The less the receiver knows, the more information
  is provided (the more informative the answer is)

17
Information Content - Examples

• Example 1 Flipping coin
• Case 1 Flipping an honest coin
• Case 2 Flipping a rigged coin so that it will
  come heads 75
• In which case an answer telling the outcome of a
  toss will contain more information?

• Example 2 Basketball game outcome
• Two teams A and B are playing basketball
• Case 1 Equal probability to win
• Case 2 Michael Jordan is playing for A and the
  probability of A to win is 90
• In which case an answer telling the outcome of
  the game will contain more information?

18
Information Content - Solutions

• Example 1 Flipping coin
• Case 1 Entropy(coin_toss) I(1/2,
  1/2)-1/2log1/2 - 1/2log1/2 1 bit
• Case 2 Entropy(coin_toss) I(1/4,
  3/4)-1/4log1/4 - 3/4log3/4 0.811 bits
• Example 2 Basketball game outcome
• Case 1 Entropy(game_outcomes) I(1/2, 1/2) 1
  bit
• Case 2 Entropy(game_outcome) I(90/100,
  10/100)
• -90/100log90/100 - 10/100log10/100
• -.9log.9 - .1log.1 lt 1 bit

19
Information Gain

• Back to DTs
• Entropy measures
• the disorder of a collection of training examples
  with respect to their classification
• the smallest possible number of bits per symbol
  on average needed to transmit a stream of symbols
  drawn from Xs distribution
• shows the amount of surprise of the receiver by
  the answer based on the probability of the
  answers
• We can use it to define a measure of the
  effectiveness of an attribute in classifying the
  training data Information gain
• Information gain is the expected reduction in
  entropy caused by the partitioning of the set of
  examples using that attribute

20
DT Learning as a Search

• DT algorithm searches the hypothesis space for a
  hypothesis that fits the training data
• What does the hypotheses space consist of?
• What is the search strategy?

• simple to complex search (starting with an empty
  tree and progressively considering more elaborate
  hypotheses)
• hill climbing with information gain as evaluation
  function
• Information gain is an evaluation function of how
  good the current state is (how close we are to
  the goal state, i.e. the tree that classifies
  correctly all training examples)

21
Hill Climbing - Revision

• Hill climbing using the h-cost as an evaluation
  function
• Expanded nodes ABGL
• Solution path AL

22
Information Gain - Definition

• Information gain is the expected reduction in
  entropy caused by the partitioning of the set of
  examples using that attribute
• Gain(S,A) is the information gain of an attribute
  A relative to S
• Values(A) is the set of all possible values for A
• Sv is the subset of S for which A has value v

called also Reminder
entropy of the original data set S
expected value of the entropy after S is
partitioned by A (it is the ? of the entropies of
each subset Sv, weighed by the fraction of
examples that belong to Sv)
23
More on Information Gain First Term

• Information gain is an evaluation function of how
  good the current state is (how close we are to
  the goal state, i.e. the tree that classifies
  correctly all training examples)
• Before any attribute is tested, an estimate of
  this is given by the entropy of the original data
  set S
• S contains p positive and n negative examples
• e.g. tennis data 9 yes and 5 no at the
  beginning gt entropy(S)I(p,n)0.940 bits
• an answer telling the class of a randomly
  selected example will contain 0.940 bits

24
More on Information Gain Second Term

• After a test on a single attribute A we can
  estimate how much information is still needed to
  classify an example
• - A divides the training set S into subsets Sv

• Sv is the subset of S for which A has value v
• - each subset Sv has pv positive and nv negative
  examples
• - if we go along that branch we will need in
  addition entropy(Si)I(pv,nv) bits to answer the
  question
• - a random example has the v-th value for A with
  probability
• gt on average , after testing A , the number of
  bits we will need to classify the example

25
Computing the Information Gain

• split based on outlook

26
Computing the Information Gain cont.
27
Continuing to Split
Gain(S, temperature)0.571 bits
Gain(S, humidity)0.971 bits
Gain(S, windy)0.020 bits
Final DT
28
DT Decision Boundary
Example taken from 6.034 AI, MIT

• DTs define a decision boundary in the feature
  space
• For a binary DT

2 attributes R ratio of earnings to
expenses L number of late payments on credit
cards over the past year
29
1NN Decision Boundary
Example taken from 6.034 AI, MIT

• What is the decision boundary of 1-NN algorithm?
• The space can be divided in regions that are
  closer to each given data point than to the
  others Voronoi partitioning of the space
• In 1-NN a hypothesis is represented by the edges
  in the Voronoi space that separate the points of
  the two classes

30
Overfitting

• ID3 typically grows each branch of the tree
  deeply enough to perfectly classify the training
  examples
• but difficulties occur when there is
• noise in data
• too small a training set - cannot produce a
  representative sample of the target function
• gt ID3 can produce DTs that overfit the training
  examples

• More formal definition of overfitting
• given H - a hypothesis space, a hypothesis h?H,
• D - entire distribution of instances, train -
  training instances
• h is said to overfit the training data if there
  exist some alternative hypothesis h?H
• errortrain(h)lterrortrain(h) errorD(h)gt
  errorD(h)

31
Overfitting
32
Overfitting - Example

• How can it be possible for tree h to fit the
  training examples better than h but to perform
  worse over subsequent examples?

• Example. Noise in the labeling of a training
  instance
• - adding to the original tennis data the
  following positive example that is incorrectly
  labeled as negative outlooksunny,
  temperaturehot, humiditynormal, windyes,
  playTennisno

33
Overfitting - cont.

• Overfitting is a problem not only for DTs

• Tree pruning is used to avoid overfitting in DTs
• pre-pruning - stop growing the tree earlier,
  before it reaches the point where it perfectly
  classifies the training data
• post-pruning fully grow the tree (allowing it
  to overfit the data) and then post-prune it (more
  successful in practice)
• Tree post-pruning
• sub-tree replacement
• sub-tree raising
• Rule post-pruning (convert the tree into a set of
  rules and prune them)

34
When to Stop Pruning?

• How to determine when to stop pruning?
• Solution estimate the error rate using
• validation set
• training data - pessimistic error estimate based
  on training data (heuristic based on some
  statistical reasoning but the statistical
  underpinning is rather weak)

35
Error Rate Estimation Using Validation Set

• Available data is separated into 3 sets of
  examples
• training set - used to form the learned model
• validation set - used to evaluate the impact of
  pruning and decide when to stop
• test data to evaluate how good the final tree is

• Motivation
• even though the learner may be misled by random
  errors and coincidental regularities within the
  training set, the validation set is unlikely to
  exhibit the same random fluctuations gt the
  validation set can provide a safety check against
  overfitting of the training set
• the validation set should be large enough
  typically 1/2 of the available examples are used
  as training set, 1/4 as validation set and 1/4 as
  test set

• Disadvantage the tree is based on less data
• when the data is limited, withholding part of it
  for validation reduces even further the examples
  available for training

36
Tree Post-pruning by Sub-Tree Replacement

• Each node is considered as a candidate for
  pruning
• Start from the the leaves and work toward the
  root
• Typical error estimate - validation set
• Pruning a node
• remove the sub-tree rooted at that node
• make it a leaf and assign the most common label
  of the training examples affiliated with that
  node
• Nodes are removed only if the resulting pruned
  tree performs no worse than the original tree
  over the validation set
• gt any leaf added due to false regularities in
  the training set is likely to be pruned as these
  coincidences are unlikely to occur in the
  validation set
• Nodes are pruned iteratively, always choosing the
  node whose removal most increases the tree
  accuracy on the validation set
• Continue until further pruning is harmful, i.e.
  decreases accuracy of the tree over the
  validation set

37
Sub-Tree Replacement - Example
38
Effect of tree pruning by sub-tree replacement

• The accuracy on test data increases as nodes are
  pruned
• (accuracy over validation set used for pruning
  is not shown)

39
Post-pruning Sub-Tree Raising

• more complex operation than sub-tree replacement

• sub-tree raising is potentially time consuming
  operation gt it is restricted to raising the
  sub-tree of the most popular branch
• e.g. raise C only if the branch from B to C has
  more training examples than the branches from B
  to 4 or from B to 5 otherwise, if (for example)
  4 were the majority daughter of B, consider
  raising 4 to replace B and re-classifying all
  examples under C, as well as the examples from 5,
  into the new node

40
Rule Post-Pruning - Example

• Grow the tree until the training data is fit
• Convert the tree into an equivalent set of rules
  by creating 1 rule for each path from the root
  to a leaf

if (outlooksunny) AND (humidityhigh) then
PlayTennisNo ...

• Prune each rule by removing any preconditions
  that result in improving its estimated accuracy
• consider removing (outlooksunny) and then
  (humidityhigh)
• select the pruning which produces the greatest
  improvement
• no pruning if it reduces the estimated rule
  accuracy
• Sort the pruned rules by their estimated
  accuracy, and consider them in this sequence when
  classifying subsequent instances
• To estimate accuracy 1) a validation set of
  examples or 2) a pessimistic error estimate based
  on the training data set (C4.5)

41
Rule Post-Pruning - cont.

• Why convert DT to rules before pruning?

• Bigger flexibility
• when trees are pruned only 2 choices - to remove
  the node completely or retain it
• when rules are pruned - less restrictions
• preconditions (not nodes) are removed
• each branch in the tree (i.e. each rule) is
  treated separately
• removes the distinction between attribute tests
  that occur near the root of the tree and those
  near the leaves
• Advantage of rules over trees - easier to read
  rules than a tree

42
Numeric Attributes

• ID3 works only when all the attributes are
  nominal but most real data sets contain numeric
  attributes need for discretization

• for a numerical attribute we restrict the
  possibilities to a binary split (e.g. templt60)
• difference to nominal attributes every numerical
  attribute offers many possible split points

• The solution is a straightforward extension
• sort the examples according the values of the
  attribute
• identify adjacent examples that differ in their
  target classification and generate a set of
  candidate splits (split points are placed
  halfway)
• evaluate Gain (or other measure) for every
  possible split point and choose the best split
  point
• Gain for best split point is Gain for the
  attribute

43
Numeric Attributes - example

• values of temperature
• 64 65 68 69 70 71 72 73 74
  75 80 81 83 85
• yes no yes yes yes no no no yes
  yes no yes yes no

• 7 possible splits consider split between 70 and
  71
• Information gain for - 1) temperature lt 70.5
  4 yes 1 no
• - 2) temperature gt70.5 4 yes 5 no

44
Alternative Measures for Selecting Attributes

• Problem if an attribute is highly-branching
  (with a large number of values), Information gain
  will select it!

• imagine using ID code (extreme case) the
  training examples will be separated into many and
  very small subsets
• gt highly-branching attributes are more likely to
  create pure subsets
• Information gain is biased towards choosing
  attributes with a large number of values
• this will result in overfitting

45
Highly-Branching Attributes - Example
46
Highly-Branching Attributes - Example cont.

• split based on IDcode

• the weighted sum of entropies
• entropy at the root
• Gain

47
Gain Ratio

• Gain ratio a modification of the Gain that
  reduces its bias towards highly branching
  attributes
• it takes the number and size of branches into
  account when choosing an attribute
• it penalizes highly-branching attributes by
  incorporating SplitInformation
• SplitInformation is the entropy of S wrt the
  values of A
• Gain ratio

48
Gain Ratio

• Gain ratios for tennis data
• outlook - Gain0.247, InformationSplit1.577,
  GainRatio0.156
• temperature - Gain0.029, InformationSplit1.362,
  GainRatio0.021
• humidity - Gain0.152, InformationSplit1.000,
  GainRatio0.152
• windy - Gain0.048, InformationSplit0.985,
  GainRatio0.049
• gt outlook still comes out on top but humidity is
  now much closer as it splits the data into 2
  subsets instead of 3
• however, IDcode will still be preferred (although
  its advantage is greatly reduced)

49
Gain Ratio - Problem

• Problem with GainRatio may overcompensate
• may choose an attribute just because its
  SplitInformation is much lower than for the other
  attribute
• standard fix only consider attributes with
  greater Gain than the average Gain (for all the
  attributes examined)

50
Handling Examples with Missing Values

• Missing attribute values in the training data
• (x,class(x)) is a training example in S
• attribute value A for example x A(x) is unknown
• When building DT, what to do with the missing
  attr.value A(x)?
• Gain(S,A) has to be calculated at node n to
  evaluate if to split on A

• treat missing values as simply another possible
  value of the attribute this assumes that the
  absence of a value is significant
• ignore all instances with missing attribute value
  - tempting solution! But
• instances with missing values often provide a
  good deal of information
• sometimes the attributes whose values are missing
  play no part in the decision, in which case these
  instances are as good as any other

51
Handling Examples with Missing Values - 2

• 3) A(x)most common value for A among the
  training examples at n
• 4) A(x)most common value among the training
  examples at n with class(x)

52
Handling Examples with Missing Values - 3

• more sophisticated solution (used in C4.5)
• assign probability to each of the possible values
  of A calculate these prob. using the frequencies
  of the values of A among the examples at n

• example A is the Boolean attribute wind
• instance x with missing value for wind
• node n contains 6 examples with windtrue and
  4 with windfalse
• gt P(A(x)true)0.6, P(A(x)false)0.4
• 0.6 of instance x is distributed down the
  branch for windtrue and
• 0.4 of instance x down the branch for
  windfalse
• these fractional examples are used to compute
  Gain and can be further subdivided at subsequent
  branches of the tree if another missing attribute
  value must be tested
• the same fractioning strategy can be used for
  classification of new instances with missing
  values

53
Handling Attributes with Different (External)
Costs

• Consider medical diagnosis and the following
  attributes
• temperature, biopsyResult, pulse, bloodTestResult
• attributes vary significantly in their costs
  (monetary cost and patient comfort)
• prefer DTs that use low-cost attributes where
  possible, relying on high-cost attributes only
  when needed to produce reliable classification
• How to learn a consistent tree with low expected
  cost?
• One approach favour low-cost attribute by
  replacing Gain with
• Tan Schlimmer (90)
• Nunez (88) where
  w?? 0,1 determines cost importance
•

•


54
Components of DT

• Model (structure)
• Tree (not pre-specified but derived from data)
• Preference (score function) preference criteria
  used to measure the quality of the tree
  structures
• number of misclassifications over all examples
  (loss function)
• Search method (how the data is searched by the
  algorithm)
• hill climbing search over tree structure (2
  phases grow and prune)

55
DTs - Summary

• Very popular ML technique
• Easy to implement
• Efficient
• Cost of building the tree O(mn log n),
  n-instances and m attributes
• Cost of pruning the tree with sub-tree
  replacement O(n)
• Cost of pruning by subtree lifting O(n (log n)2)
• gt the total cost of tree induction O(mn log n)
  O(n (log n)2)
• Reference Witten and Frank pp.167-168
• The resulting hypothesis is easy to interpret by
  humans
