Criticality Safety Limits and Controls

1

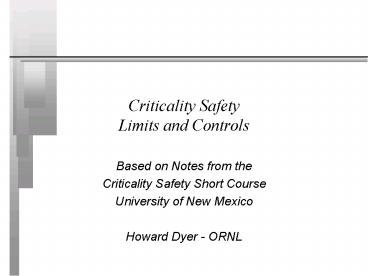

Criticality SafetyLimits and Controls

• Based on Notes from the
• Criticality Safety Short Course
• University of New Mexico
• Howard Dyer - ORNL

2
Overview - Scope of Topic

• Difference between a limit and a control
• Identification of limits (parameters)
• Physical
• Nuclear
• Safety Margin
• Identfication of controls
• Administrative
• Engineered
• Implementation of limits and controls

3
Limits and Controls

• A limit is (usually) the numerical value of a
  parameter that must be controlled within a
  defined allowable range
• Example limits with numerical values
• Max. 1000 g U
• Max. 1 liter container
• Min. 24 in. E-T-E separation
• H/U lt 0.088

4
Limits and Controls

• Example limits without numerical values
• For solutions only
• Performed only on day shift
• Verify .... before starting
• Provide drain holes in plastic bags
• A control is the apparatus, instructions,
  process, actions, etc., by which the limit is
  maintained within its allowable range.

5
Limits

• Subcritical limits vs. actual process limits
• Subcritical limits (from ANS Standards)
• Just subcritical
• No contingencies considered
• No margin of safety
• About 1 margin of subcriticality (beyond the
  uncertainties)
• Actual process limits
• Must account for contingencies
• Usually must define a safety margin in terms of
  margin of safety or margin of subcriticality
• Many parameters may need to be limited
• Usually permits an increase in the ANS Standards
  subcritical value because multiple parameters are
  being controlled

6
Actual process limits

• What is available to be limited?
• What value should it be limited to?
• How to determine the value of the limit?
• What safety margin should be included?
• margin of safety
• margin of subcriticality
• How to proceed from identifying limits to
  identifying controls?

7
Nine parameters for control
1. Mass 2. Density 3. Assay 4. Geometry -
Volume - Dimensions 5. Reflection 6.
Interaction 7. Moderation - Internal -
Interstitial 8. Composition 9. Neutron absorbers
amount of fissile material ( n
generation) neutron escape ( n
leakage) neutron absorption ( absorption)
physical characteristics
nuclear characteristics
8
Parameters are not independent variables

• A change in MASS causes a change in VOLUME
• A change in DENSITY causes a change in
  COMPOSITION and GEOMETRY
• A change in INTERNAL MODERATION causes a change
  in COMPOSITION, DENSITY, and VOLUME
• A change in any parameter will probably cause
  changes in at least one other parameter
• A single parameter may impact more than one
  nuclear characteristic, e.g. INTERNAL MODERATION
  changes absorption generation

9
Nuclear characteristics are not independent

• A change in the rate of neutron production will
  cause a change in the rate of neutron absorption
  and leakage
• A change in the rate of neutron leakage will
  cause changes in the rate of neutron production
  and absorption
• A change in the rate of neutron absorption will
  cause changes in the rate of neutron production
  and escape

10
Calculating keff
The calculation of keff is determined from the
nuclear characteristics of the system, which are
influenced by the physical parameters
rate of n prod
keff
rate of n abs rate of n leakage
kinf

1 (M2)(Bg2)
11
Crit. Safety Analysts Responsibility
The criticality safety analyst (you) must
understand the interdependency of changes in a
parameter upon the other parameters, and the
effect these changes will have upon the nuclear
characteristics of the system.
12
Parameter studies

• Parametric study - how keff changes as a
  parameter changes
• Two aspects to be considered
• Sensitivity of keff to the change
• Selection of the value (may be impacted by the
  method of control)

keff
f( )
13

14
Parameter studies...

• Key fix as many of the parameters as possible
  remember that other parameters may not be
  independent
• Example A 4-liter beaker is to be used to
  dissolve oxide in acid.
• What is/can be fixed (non-variable)?
• Assume 100 assay 3
• GEOMETRY (vol. and dims.) 4
• Assume full REFLECTION 5
• Single unit, no INTERACTION 6
• Assume no NEUTRON POISONS 9
• COMPOSITION (oxide and acid) 8

Relative proportions of oxide and acid will
vary will be considered in MODERATION or DENSITY
15
Parameter studies...

• Example What is variable?
• MASS 1
• DENSITY 2
• INTERNAL MODERATION 7

For this example, DENSITY f(
MODERATION) MODERATION f( DENSITY)
16
Example Full Beaker
Mass U varies VOLUME constant
x
keff
x
x
0
high
H/U
Density U
low
high
17
Example Fixed Mass Beaker
Mass U constant VOLUME varies
10 kg
keff
5 kg
1 kg
0
high
H/U
high
Density U
low
18
Safety Margin

• What safety margin (in terms of margin of safety
  or margin of subcriticality) should be included?
• Examples
• Reference to facility guides and handbooks
• Y-1272, GAT-225, etc. (with margin of safety
  included in data)
• Use of standard hand calculational techniques
  (solid angle, limiting surface density, etc.)
• Computer code calculations (keff, with parameters
  limited to satisfy some margin of subcriticality
  criteria)
• Normal conditions, keff 2s lt 0.90
• Accident conditions, keff 2s lt 0.95

19
Safety Margin

• Examples, cont
• Comparison to critical or subcritical data
• ANS Standards, TID-7016, TID-7028, LA-10860-MS,
  ARH-600, etc.
• Safety margin?

20
Selecting the parameter limit
21
Controls

• Nuclear criticality safety is achieved by
  exercising control over
• the mass and distribution of the fissile
  material, and
• the mass and distribution of all other materials
  associated with the fissile material
• Parametric study (comparison to critical or
  subcritical data, reference to safety guides,
  keff calculations, etc.) identifies
• what to control (the parameters) and
• the limits (values) of the parameters, but
• not how to control them

22
Types of controls

• Engineered controls
• Active - Elec./Mech./Hyd./Pneu. actuated hardware
  that senses a process variable and provides an
  automatic response.
• Passive - Constructed such that
  human/Elec./Mech./Hyd./Pneu. intervention is not
  needed to maintain subcriticality during
  off-normal conditions
• Administrative controls
• Any action(s) required which is dependent upon
  operator performance

23
Controls

• Active Engineered Controls (sensor
  activated)Examples
• thermostat turns heater off
• liquid level sensor starts pump
• load cell closes supply line
• pressure switch starts pump
• computer controlled

24
Controls

• Active Engineered ControlsConcerns
• the sensor (tolerance, drift, calibration)
• the actuator (motive force, time response)
• pre-operational verification
• importance to subcriticality (redundancy)
• detection of malfunction or failure (of the
  sensor and of the actuator)
• maintenance and configuration control

25
Controls

• Passive Engineered Controls (fixed by
  design)Examples
• favorable (safe) geometry
• rigid/fixed spacing
• fixed poisons (Raschig-rings)
• equipment limitations
• natural forces gravity (vacuum breaks), physical
  chemistry

26
Controls

• Passive Engineered ControlsConcerns
• initial design
• correct installation
• pre-operational verification
• continued effectiveness
• detection of change

27
Controls

• Administrative Controls (operator
  actions)Examples
• mass limits
• spacing limits
• composition limits
• product piece count
• instructions, signs, training

28
Controls

• Administrative ControlsConcerns
• requires operator thought and action each time
  control function is needed
• difficult to detect non-adherence
• difficult to declare unlikely (re Double
  Contingency)

29
Controls

• Order of preference
• 1st - Passive Engineered Controls (minimum
  human intervention)
• 2nd - Active Engineered Controls (moderate
  human intervention)
• 3rd - Administrative Controls (total human
  intervention)

30
Controls

• Controls must fit the need (for subcriticality)
• accuracy of controlling the parameter value
• sensitivity of keff to changes in the value
• ability to limit the parameter
• Controls must be functionally achievable
• mass scales, records and logs
• composition, H/U lab analyses
• spacing fixed racks, painted spots
• Temp/pressure T P indicators
• fixed poisons visual lab analysis
  concentration control

31
Controls

• Controls must be identified (usually negotiated
  with operations personnel)
• in criticality evaluation
• in operating procedures
• in OSR/TSR/SAR
• Controls must be understood by operators

32
Operating Limits and Controls (SUMMARY)

• Difference between a limit and a control
• Identification of limits
• Physical parameters
• Nuclear characteristics
• Safety Margin
• Margin of safety
• Margin of subcriticality
• Identification of controls
• Engineered
• Administrative
• Implementation of limits and controls
