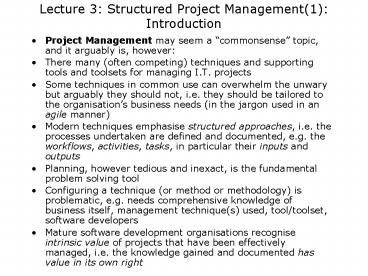

1Lecture 3 Structured Project Management(1)
Introduction
- Project Management may seem a commonsense
topic, and it arguably is, however - There many (often competing) techniques and
supporting tools and toolsets for managing I.T.
projects - Some techniques in common use can overwhelm the
unwary but arguably they should not, i.e. they
should be tailored to the organisations business
needs (in the jargon used in an agile manner) - Modern techniques emphasise structured
approaches, i.e. the processes undertaken are
defined and documented, e.g. the workflows,
activities, tasks, in particular their inputs and
outputs - Planning, however tedious and inexact, is the
fundamental problem solving tool - Configuring a technique (or method or
methodology) is problematic, e.g. needs
comprehensive knowledge of business itself,
management technique(s) used, tool/toolset,
software developers - Mature software development organisations
recognise intrinsic value of projects that have
been effectively managed, i.e. the knowledge
gained and documented has value in its own right
2Structured Project Management(2)
- Structured project management requires a software
project management plan - 2. Software Project is
- The combination of all technical and managerial
activities that enable a clients deliverables to
be developed. - Software projects have a defined duration,
consume resources and produce work products. - Forms of work to be managed during a software
project include Tasks, Activities and Functions - Simple example of project components
3Structured Project Management(3)
- Another, more realistic example of project
components
4Structured Project Management(4)
5Structured Project Management(5)
- 3. Software project management plan is a
- reference document for controlling a software
project. - Specifies both technical and managerial
approaches to obtaining software product - Is allied to requirements analysis document
- Plan is as important as requirements
documentation - Change in either document may require change in
the other document, i.e. documents have a
dependency relationship - The Software project management plan may be part
of the Project Agreement. - 4. Project Agreement
- Document written for a client that defines
- Scope, duration, cost and deliverables for
project. - Exact items, quantities, delivery dates, delivery
location. - Client Individual or organization that specifies
requirements and accepts project deliverables. - Can be contract, statement of work, business
plan, or a project charter. - Deliverables Work Products that will be
delivered to the client - Documents
- Demonstrations of function
- Demonstration of nonfunctional requirements
- Demonstrations of subsystems
-
6Structured Project Management(6)
- There are standards for Software Project
Management Plans, e.g. IEEE Std 1058 Standard
for Software Project Management Plans (SPMP) - Standard
- Specifies format and contents of software project
management plans. - Provides standard set of abstractions for project
manager or whole organization to construct own
set (c.f. agile tailored to organisations
business needs) of practices and procedures for
developing software project management plans - Abstractions include Project, Function,
Activities, Tasks - Standard does NOT
- Specify procedures or techniques to be used in
development of plan - Provide examples
7Structured Project Management(7)
- Example template for software project management
plan - 0. Front Matter
- Title Page
- Revision sheet (update history)
- Preface Scope and purpose
- Tables of contents, figures, tables
- 1. Introduction
- 1.1 Project Overview
- Executive summary description of project,
product summary - 1.2 Project Deliverables
- All items to be delivered, including delivery
dates and location - 1.3 Evolution of the SPMP
- Plans for anticipated and unanticipated change
- 1.4 Reference Materials
- Complete list of materials referenced in SPMP
- 1.5 Definitions and Acronyms
- 2. Project Organization
- 3. Managerial Process
- 4. Technical Process
8Structured Project Management(8)
- 2. Project Organisation
- 2.1 Process Model
- Relationships among project elements
- 2.2 Organizational Structure
- Internal management, organization chart
- Example organisation chart
9Structured Project Management(9)
- 2.3 Organizational Interfaces
- Relations with other entities (subcontractors,
commercial software) - 2.4 Project Responsibilities
- Major functions and activities nature of each
whos in charge - Matrix of project functions/activities versus
responsible individuals - 3. Managerial Process
- 3.1 Management Objectives and Priorities
- Describes management philosophy, priorities
among requirements, schedule and budget - 3.2 Assumptions, Dependencies and Constraints
- External events the project depends on,
constraints under which the project is to be
conducted - 3.3 Risk Management
- Identification and assessment of risk factors,
mechanism for tracking risks, implementation of
contigency plans - 3.4 Staffing Plan
- Numbers and types of personnel required to
conduct the project - 3.5 Monitoring and Controlling Mechanisms
- Frequency and mechanisms for reporting
10Structured Project Management(10)
- Example Risk Factors
- Contractual risks
- e.g. What does vendor do if client becomes
bankrupt and vice versa - Size of the project
- Action plan for over-large project
- Complexity of the project
- Action plan for requirements creep
- Personal
- Plan for staff recruitment and retention
- Client acceptance
- Plan if client rejects system
11Structured Project Management(11)
- 4. Technical Process
- 4.1 Methods, Tools and Techniques
- Specifies methods, tools and techniques to be
used during project - 4.2 Software Documentation
- Describes documentation plan
- 4.3 Project Support Functions
- Plans for (at least) three project support
functions. - To ensure quality assurance
- Configuration management plan (e.g. IEEE Std
1042) - Verification and validation plan
- Plans can be included in this section or this
may be reference to a separate document - 5. Description of Work Packages
- 5.1 Work Breakdown Structure (WBS)
- Hierarchical decomposition of the project into
activities and tasks - 5.2 Dependencies between tasks
- An important temporal relation, i.e. defines
what must be proceeded by what follows - Dependency graphs indicate time-ordered
dependencies of activities
12Structured Project Management(12) Work
Breakdown Structures (WBS) and Work Package (WP)
- Simple Concept Divide and conquer
- Use Work Breakdown Structures (WBS) and Work
Package (WP) definitions to identify and manage
logical units of work. - Mini-milestones
- When planning, identify binary milestones
which are either complete/not complete. - Communication
- Ensure all stakeholders are identified and
understand their responsibilities. - Ensure stakeholders attend necessary meetings,
workshops, etc. and approve the appropriate
project deliverables. - Include stakeholders from the customer and all
IT areas impacted by the project.
13 Structured Project Management(13) A Project
Management Method(ology) Prince21
- PRINCE (PRojects IN Controlled Environments) is a
project management method covering the
organisation, management and control of projects.
- Reference http//www.prince2.org.uk/web/site/home
/Home.asp - First developed by Central Computer and
Telecommunications Agency (CCTA) now part of the
Office of Government Commerce (OGC) in 1989 as a
UK Government standard for IT project management. - Has become widely used in both the public and
private sectors and is now the UK's de facto
standard for project management. - Although originally developed for the needs of IT
projects, the method has also been used on many
non-IT projects. - Latest version of the method, PRINCE2, is
designed to incorporate the requirements of
existing users and to enhance the method towards
a generic, best practice approach for the
management of all types of project.
1 Practical PRINCE 2 (ISBN 0117028533).
14 Structured Project Management(14) Work
Breakdown Structure
- As with any widely-used method(ology), Prince2
has Work Breakdown Structure - WBS is a divide and conquer" approach to
breaking a large project into manageable units
with respect to discipline, subsystem, etc. - WBS has a Product-Based Planning Rationale
- - Identify products to determine activities
needed to produce them. - - Quality of product can be measured and thus
planned, quality of an activity can only be
measured by quality of its outcome, i.e. the
product. - Product-Based Planning Components
- - Product Breakdown Structure
- Hierarchy of required products including
management and quality products. - - Product Descriptions
- For each product, at all levels of PBS
refinement - a) Description of the product suitable for
planning its production - b) Quality criteria Degree and kind of quality
checking - - Product Flow Diagram Indicates how product is
derived from another product (or group of
products).
15 Structured Project Management(15) Work Package
- WP defines logical units of work.
- - Determine who is to undertake the work.
- - What is required.
- - What standards are to be used.
- - How it will be tested.
- Work Packages are mechanism for Project Manager
to collate details of and pass responsibility for
work or delivery to a Team Manager, team member,
external supplier. - WP may be informal or formal, e.g. verbal
instruction, written instruction, formal
specification, contractual agreement. - WP contains
- Product Description(s)
- Techniques, processes, procedures to be used
- Interfaces to be satisfied by work
- Interfaces to be maintained during work
- Quality checking arrangements
- Reporting requirements
16Structured Project Management(16) Measurement
- Measurement Rationale (why it is done).
- - Raises project visibility.
- - Supports corrective measures.
- Measurement What to measure.
- - Effort by activity.
- - Number of milestones achieved.
- - Number of requirements and features developed.
- Measurement What not to measure and Software
Metrics. - - Arguably a problematic discipline (but 30
years old too!). - - Involves defining the actual measures
(numerical metrics some success here!) and
also determining how to collect, manage and
exploit measurements made (still a fundamental
research topic) - - Results of metrics research have been
criticised as being unable to support
decision-making for risk assessment and reduction
(e.g. 1) due to emphasis on regression-based
models for cost estimation and defects
prediction. - Reference 1 "The Future of Software
Engineering" , Anthony Finkelstein (Ed.), ACM
Press 2000, Order number is 592000-1, ISBN
1-58113-253-0. ACM E-Store http//store.acm.org/a
cmstore -
17Structured Project Management(17)
- Problems not addressed include causality,
uncertainty and usefully combining different
(often subjective) evidence. - Some limited success with Bayesian Belief
Networks (e.g. BBNs underpin help wizards in
MSOffice) but - BBNs limited Bayes rule assumes that all
hypotheses are mutually exclusive - Also assumes that findings are conditionally
independent, and the occurrence of one finding
does not influence the occurrence of another,
hence other research on belief networks, etc
18Structured Project Management(18) Risk
- Risk If outcomes will occur with known or
estimable probability the decision maker faces a
risk. Certainty is a special case of risk in
which this probability is equal to zero or one. -
- For a software development project Any threat
to the delivery of a project. - Risk is inherent in any activity you are
unfamiliar with, makes that activity difficult to
accurately estimate, effectively plan and
systematically control. - Must have definitive approach to risk, i.e. to
risk assessment and risk control. - Involves accepting initially that whole or part
of project involves work of a kind unfamiliar to
developers involved.
19 Structured Project Management(19) Risk
Assessment
- Must identify component(s) that are risk
candidates. - Assign a risk level to each risk candidate
based on - Estimate of work involved.
- Number of other components affected by design of
each (dependency relationships) - Risk Candidate component (e.g. due to changes
to interface or expected behaviour). - Number of other components that depend on each
risk candidate (directly or indirectly, i.e.
dependency relationships). - Novelty of technology involved.
- Availability of existing knowledge, e.g.
- - Design patterns (more in later lecture)
- - Off-the-shelfcomponents
- - Knowledge Base articles, e.g. MSDN
- - Even books, research papers!
- Possibly using a logarithmic scale!
20 Structured Project Management(20) Risk Control
- Resolve and Monitor risk candidates
recurrence of problems most likely due to risk
candidates and ineffective resolution. - Prototype risk candidates first (but assume
prototypes will have limited potential for
re-use). - Dont amplify risk Use known technology to
build risk candidate prototypes - Feedback
- Feedback is critical to achieving control and
improvement of a process. - Enables a process to be refined as experience
increases. - Example NASA Software Engineering Laboratory
21 Structured Project Management(22) Feedback
and Experimentation
- NSL has conducted many hundreds of experiments
on critical software products. - Experiments have yielded extensive set of
empirical studies. - Studies have guided evolution of standards,
policies, management practices, technologies and
training. - Between 1987 and 1993 raw error rates in
completed software fell by 75, cost of software
reduced by 50, cycle time to produce equivalent
software products reduced by 40. - Exploits a process improvement paradigm (three
phase model) with three main steps
Understanding, assessing, packaging. - Software defect analysis tool(s) provide support
for analysing data (that is continuous on
attribute to be examined to find correlations) - Error Resolution
- When problems arise
- 1. Stop development immediately.
- 2. Investigate cause of problem.
- 3. Re-plan and re-estimate.
- 4. Start development again.
- Sacrifice some aspects of the project to the
benefit of others - - Reduce the feature set, e.g. "de-scope.
- - Adjust the schedule.
- - Increase the cost.
22Structured Project Management(23)
- Using Structured Project Management
- Benefits include
- Clear risk and issue identification, management
and ownership.- Clear roles and
responsibilities.- Clear definition of WBS's and
WP's.- Effective measurement and control of time
and cost. - Repeatable levels of development performance
- Evolving maturity and recognition of intrinsic
value of what is documented - Not Using Structured Project Management
- - The reverse of the above!
23Structured Project Management(24) PRINCE2
Critique
- Strengths
- Produces highly standardised projects which share
a common approach, vocabulary and documents.
Consequently it is a transferable skill and
anyone familiar with a method can quickly be
brought up to speed on a properly applied PRINCE2
project. - It is a method which embodies best (known)
practise in project management. - It enshrines management by exception as a guiding
rule, which allows the Project Manager to do
their job without undue interference, while at
the same time involving higher level managers
when things go badly off plan or in PRINCE terms
out of tolerance. - It provides a controlled start, middle and end of
projects. - Each type of document required by PRINCE2 is
supplied as a template, which includes required
sub-headings which produces easily
comprehensible, standardised and complete
documentation. - Weaknesses
- A number of organisations suffer from PINO
(Prince In Name Only), carelessly picking and
choosing from the methodology, thereby failing to
abide by its key principles. - PRINCE2 is strongly document centric in order to
provide good control. However, in some
organisations the documents become ends in
themselves, and the actual projects themselves
falter. - Similiarly PRINCE2 stresses the need for good
organisation and regular meetings between
stakeholders. In some organisations this has
degenerated into too many meetings and too little
work. - PRINCE2 provides no explicit treatment of
requirements analysis. It is an implementation
methodology, which can lead to projects being
adopted on false premises, and thereby inevitably
failing. - If too strictly applied PRINCE2 can be far too
heavy duty an approach for small projects.
24Structured Project Management(25)Managing
Requirements
- Primary measure of a software systems success is
degree to which it meets the purpose for which it
was intended. - Developing descriptions of a systems
requirements involves discovering the systems
purpose by identifying stakeholders and their
needs, and documenting these in a form which is
suitable for analysis, communication and
implementation. -
- Requirements must be elicited, modelled and
analysed, communicated, agreed and evolved. - Problems are caused by stakeholders (paying
customers, users and developers) who are numerous
and distributed, whose goals vary and conflict
depending on their perspectives of the
environment in which they work and the tasks they
wish to accomplish. - - Stakeholders goals problematic as they may
be implicit, difficult to articulate, difficult
to accomplish due to constraints imposed by a
variety of factors outside their control.
25Structured Project Management(26)
- In the Real-World, goals (business, technical)
motivate the development of software systems,
i.e. few systems are developed simply as
experiments - Requirements link Real-World goals with
software systems which enable those goals to be
achieved. - Descriptions of requirements provide basis for
analysing requirements, validating that
requirements are what stakeholders want, defining
what designers and developers have to build and
verifying that what is built has been built
correctly when delivered. - Developing such descriptions is a
multi-disciplinary human-oriented process tools
and techniques used come from computer science,
cognitive psychology, anthropology, sociology,
linguistics and (ultimately) philosophy. - Requirements evolve and must be managed minimal
solution involves techniques and tools for
configuration management and version control that
enable monitoring and control of the impact of
changes to requirements documentation.
26Structured Project Management(27)
- Some techniques for effectively managing
requirements- - Employ a (Lightweight) Requirements Management
Tool - Automate the management (i.e. at least the
shared collective storage of) requirements
(including their shared updating) and determine
their impact on architecture, design, user
interface, etc. - Recognise different types of requirement
- Examples stakeholder requests, functional
requirements (involve data modelling,
behavioural modelling, domain modelling),
non-functional (or q uality) requirements
(safety, security, reliability, useability). - Identify Your Stakeholders
- Ensure the key decision-makers are identified
and kept in the loop.
27Structured Project Management(28)
- Eliciting Requirements Use appropriate
techniques - Traditional/general purpose data gathering
techniques - e.g. questionnaires, interviews, surveys,
analysis of existing documentation e.g.
structure/organisation charts, process
models/standards, existing systems
documentation - Group techniques e.g. brainstorming, focus
groups, workshops -
- Problem analysis1 e.g.
- Ishikawa diagrams Cause-and-effect diagram
(or tree diagram, or fishbone diagram) that
displays factors that affect a particular quality
characteristic, outcome, or problem. - Pareto Analysis Used to determine priorities
for quality improvement activities via a bar
chart (bars in decreasing order or relative
frequency) that displays the relative frequency
of problems in a process or operation. Pareto
principle A small subset of problems affecting
a common outcome tend to occur much more
frequently than the remainder. - Prototyping (i.e. executable modelling)
- Model-driven techniques e.g. goal based,
scenario based - Cognitive techniques e.g. protocol analysis
- Contextual techniques e.g. observation,
conversation analysis - 1 http//support.sas.com/rnd/app/qc/qcparish.htm
l
28Structured Project Management(29)
- Do Modelling
- - Where possible, use techniques for modelling
the problem domain, e.g. prototypes, simulations,
(executable) graphical models. - Constrain Your Requirements
- Avoid "feature creep".
- Employ a (formal) change control process
- Determines the impact of change on the project
(time / cost / quality / etc.), allowing a
controlled decision to go / no go with the
change. - Measure Your Requirements (n.b. more advanced)
- Monitor the change in requirements over the
duration of projects (n.b. plural) to determine
how the initial requirements set correspond to
the final requirements set. - Adjust requirements process to minimise change.
29Structured Project Management(30)
- State the Problem Define the "mission statement"
or "vision" for the project and get it agreed. - The problem of
- Affects
- The impact of which is
- A successful solution would
- Employ Specialist Roles Allocate a
Requirements Manager to perform the process. - Use Industry Standards - UML has become the
de-facto standard for modelling, Use Cases are
generally used for functional requirements. - Ensure requirements are can be tested (develop
test specification at same time as requirements
specification). - Ensure requirements are precise ("high-level" is
not the same as "imprecise"). - Ensure requirements are bounded (particularly
for non-functional requirements, ensure a
definite start and end point is defined)
30Structured Project Management(31)
- Modelling construction of (abstract)
descriptions that are amenable to interpretation
(n.b. also supports elicitation) - Levels/kinds of modelling
- - Enterprise-level modelling
- - Behavioural modelling
- - Domain modelling
- - Quality (non-functional requirements)
modelling - Exploit automated support
- - Animators
- - Automated (analogical, case-based) reasoning
- - Consistency (model) checkers
- - Validation and verification checkers
-
31Structured Project Management(32) Summary
- Early SE techniques not directly concerned with
requirements emphasis was on formal
specification of systems functionality
independent of (many possible) implementations,
e.g. using Formal Methods such as VDM, Z. - Other techniques emphasised executional
(formal) specifications, e.g. specifications of
ADTs1. - Modern process-oriented approaches emphasise need
for communication (equally important as
discovering and specifying). - Managing requirements (descriptions) now seen as
essential e.g. documentation standards/guideline
s for structuring documents. - Such techniques (and tools that support them e.g.
for creating completing templates) enable
traceability, integrity and completeness as
requirements evolve. - Resulting descriptions then suitable for
validating evolving requirements establishing
that requirements and their models provide
accurate account of stakeholders needs/goals. - 1 The Computer Journal, Volume 32, Issue 5, pp.
413-421 UMIST OBJ a language for executable
program specifications, R M Gallimore, D Coleman
and V Stavridou.
32Structured Project Management(33)
- Inspection/analysis of requirements for coherence
(consistency and structural completeness) is
still problematic. - Validation is very problematic, ultimately it
involves determining if something is true, i.e.
it is true that software fullfils its purpose.. - (a) Philosophical considerations Question of
truth and what is knowable, i.e. many
philosophical meanings for truth as defined by
e.g. - 1Correspondence Theory
- It is true that P ("P" stands for a
proposition) iff P corresponds with the facts
(or more simply), It is true that P iff it is a
fact that P, or even more simply (Redundancy
Theory) It is true that P iff P. - or
- 2 Coherence theory It is true that P iff P
is part of a coherent system of propositions. - or, arguably more pragmatically,
- 3 It is true that P iff P is agreed upon in
the consensus achieved at the ideal limit of
inquiry. - (b) Social considerations problems agreeing
(c.f. consensus) among different stakeholders,
conflicting goals. - Evolving requirements cause inherent problems and
require systematic approach to their management.
33Structured Project Management(34)
- More generally, it is now accepted that
requirements - Cannot be effectively modelled and analysed in
isolation from organisational and social context
in which any new system will have to operate. - Requirements process should concentrate on
modelling of indicative properties and users
wishes for the environment that system will be
used within to effectively model its purpose. - Generating complete and consistent models of
requirements is impossible, i.e. need techniques
for- - Analysing and resolving conflicting requirements
- Supporting stakeholder negotiation
- Reasoning (ultimately reasoning formally) about
incomplete and inconsistent models of evolving
requirements -
34Structured Project Management(35)Questions and
Exercises
- Explain, briefly, the eight processes in PRINCE2
and how the various PRINCE2 management products
might be reduced to those necessary for a
small-scale project involving a small team of
software developers. - Explain the importance of the Business Case in
PRINCE2 and identify the components of a minimum
Business Case. - Explain the importance of roles, responsibilities
and line of authority in PRINCE2 and how the
project organisation structure can be tailored to
suit small and larger-scale projects. - Explain how the three elements of PRINCE2s
control enable both technical and managerial
activities to be organised. - Explain the purpose of the Project Plan in
PRINCE2 how it is refined into stage plans, team
plans and exception plans.
35Structured Project Management(36)
- Explain, with the aid of simple examples, the
headings under which a customers quality
expectations might be considered in PRINCE2 and
hence how the approach chosen for the provision
of the end product influences the way in which a
project can plan to meet a customers quality
expectations. - Explain PRINCE2s approach to risk management and
hence the terms risk log, risk tolerance, risk
responsibilities, risk ownership and risk
analysis. - Explain what is meant by the term configuration
management in PRINCE2, the role of the
Configuration Management Plan and the terms
product identification, product attributes,
product submission and issue procedures,
baseline, release package, configuration status
accounting and configuration auditing. - Identify the causes of change in a project and
explain the role of the issue log and the three
types of project issues in PRINCE2.
36Structured Project Management(37)
- Explain, briefly what is meant by the term
product-based planning technique in PRINCE2 and
hence, with the aid of examples, the terms
product breakdown structure, product description
and product flow diagram. - What are the main aims of quality review in
PRINCE2, who should be considered for attendance
at quality reviews and what distinct phases are
there in a PRINCE2 quality review procedure? - What factors influence the choice of a formal or
informal quality review and how would these
factors themselves be influenced by the size of
the project to be undertaken?
37Structured Project Management(38)
- What data is there to justify the view that
requirements errors are the most common kind of
error and also the most expensive to fix during a
typical software development project? - What relationship exists between the relative
costs of various kinds of error and the cost of
fixing such errors at different stages in the
software lifecycle? - What is the justification for stating that a
requirement is a capability that is imposed on
the system? - What is the significance of the statement that
the requirements challenge is understanding a
users problems in their culture and their
language, and to build systems that meet their
needs? - Why does an iterative approach to software
development reflect the view that requirements
cannot be completely identified and fully
documented in advance of actual software
development?
38Structured Project Management(39)
- Why does effective requirements management
require an effective software team? - Why and how do requirements have an affect on the
work of all team members? - What team skills must be acquired for effective
requirements management? - Why do users needs dominate all other
considerations during problem analysis? - How does identifying stakeholders and arriving at
a collective agreed stakeholder judgement enable
the boundaries of the solution to be identified
and the constraints and degrees of freedom
available when solving the problem to be
determined?
39Structured Project Management(40)
- What purpose does a business model fulfil and
how can such a model be best represented? - How do software-intensive systems differ
fundamentally from IS/IT applications and how
does systems engineering deal with such
differences? - What problems are encountered when eliciting
requirements that enable user and stakeholder
needs to be met? - What technique enable problems encountered when
eliciting requirements to be resolved? - What is the role of use cases in defining a
systems requirements? - Who develops the use cases, what format do such
use cases take and can test case development be
driven by use cases?
40Structured Project Management(41)
- How can requirements be effectively organised?
- What purpose does a vision document fulfil?
- Why role does a project champion or champion team
play? - How do product functionality, project resources
and available time combine to define the scope of
a project? - How do a systems requirements enable effort to
be reconciled with available resources and
over-scoped projects to be reduced in scope? - How can a customer be effectively engaged in the
management of their requirements so that they
own the results of such management and be
provided with sufficient functionality at the
correct time to meet their real needs? - Explain how use cases can be systematically
refined and supplementary specifications
developed. - What is the significance of ambiguity and
specificity? - What technical methods are available for
specifying requirements?
41Structured Project Management(42)References
- Practical PRINCE 2 (ISBN 0117028533).
- Managing Software Requirements A Use Case
Approach (ISBN 032112247X).
