Terrestrial Broadcasting Plans in the LFMFHFVHFUHF Bands

1

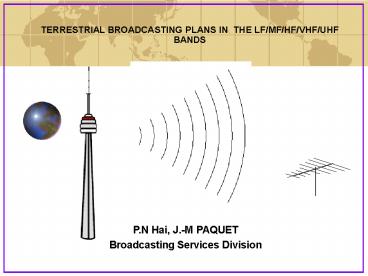

TERRESTRIAL BROADCASTING PLANS IN THE
LF/MF/HF/VHF/UHF BANDS
P.N Hai, J.-M PAQUET Broadcasting Services
Division
2
Broadcasting in theLF/ MF/ HF/ VHF/ UHF bands

• 1. Bands allocated to Broadcasting.
• 2. Broadcasting Agreements and Plans.
• 3. Time-limits for comments to proposed
  modifications.

3
1. Bands allocatedto broadcasting.

• w Kilometric frequencies
• Frequency bands BC/BT Region Plan
• LF 148.5- 283.5 kHz BC 1 GE75
• w Hectometric frequencies
• Frequency bands BC/BT Region Plan
• MF 526.5- 1606.5 kHz BC 1 3 GE75
• 525 - 1605 kHz BC 2 RJ81
• 1605 - 1705 kHz BC 2 RJ88

4

• w Decametric frequencies
• Frequency bands BC/BT Region Planning
• Trop. 2300-2498 kHz BC 1
  - 2300-2495 kHz BC 2,3 - 3200-3400
  kHz BC 1,2,3 - 4750-4995
  kHz BC 1,2,3 - 5005-5060 kHz BC 1,2,3 -
• Non Trop. 3900-4000 kHz BC 3 - 3950-4000
  kHz BC 1 -
• __________________________________________________
  _____
• HF 5950-26100 kHz BC 1,2,3 Art. 12

5

• w Broadcasting in the VHF/ UHF bands
• Frequency bands BC/BT Region Plan
• VHF 47 - 68 MHz BC,BT 1 ST61, GE89
• 87.5 - 100 MHz BT 1 ST61
• 87.5 - 108 MHz BC 1 GE84
• 174 - 230 MHz BT 1 ST61, GE89
• 230 - 254 MHz BT 1 ST61, GE89 ¹
• UHF 470 - 960 MHz BT 1 ST61, GE89

¹ Certain African countries according to RR 5.252
6
1.2 Regional Agreements and notification under
Article 11
7
Plan modification procedure (according to Article
4 of each Agreement)
Administration T0.. Notification forms
BR
Pre-coordinations (if necessary)
Part A
Part B
Part C
Agreements
Time-limit of ...daysafter publicationin Part A
Objections of concernedadministrations
Confirmation offinal parameters and request for
publication inPart B
PLAN
8
2. List of the different Regional Agreements and
corresponding Plans

• v 2.1. GE75 Plan
• v 2.2. RJ81 Plan
• v 2.3. RJ88 Plan
• v 2.4. Decametric waves
• v 2.5. ST61 Plan
• v 2.6. GE84 Plan
• v 2.7. GE89 Plan

9

GE75 Plan
GE75 Plan
Regions 1 and 3
10
2.1. GE75 Agreement and Plan
GE75 Plan

• Q Geneva Agreement ,1975
• LF 15 channels
• MF 120 channels
• LPC 3 channels (1485, 1584 and 1602
  kHz)
• q Technical characteristics
• s HF protection ratio
• s adjacent channel, bandwidth BF
• s protected contour

11
Modifications to GE75 Plan ( Article 4 )
GE75 Plan

• l procedure for LPC (Low Power Channel)
• l procedure for channels other than LPC
• l acceptance criteria usable field strength
  increase lt0.5 dB

12
GE75 Plan
Currently 11 290 daytime stations
No. of modifications processed per year
(2004 figures are up to 30 June only)
13
RJ81 Plan
RJ81 Plan
Region 2
14
2.2. RJ81 Agreement and Plan
RJ81 Plan

• r Rio de Janeiro Agreement 1981
• List A and List B ( Res. 2 )
• Classes of station and protected contours
• Plan Stations not put into operation after
• 4 years (para.4.6.3) no longer considered.
• r Modifications to Plan RJ81
• RJ81 Special Sections
• Assignments in Part A for more than 180 days no
  longer protected

15
RJ88 Agreement and Plan
RJ88 Plan

• t Rio de Janeiro Agreement,1988
• s 1605 - 1705 kHz ( 10 channels )
• s Normalized station characteristics
• t RJ88 allotment Plan
• s Plan principes
• s Plan modification procedure

16
Channel No. and assigned frequency
RJ88 Plan
17
RJ81 Plan
12096 day stations and 9 773 night
No. of modifications processed per year
(2004 figures are up to 30 June only)
18
Allotments of Haïti and Dominican Republic
RJ88 Plan
19
RJ88 Plan
Allotments of Haïti and Dominican Republic
20
Example of Agreement procedure
RJ88 Plan
21
Decametric waves
HF Coverage whole Earth (separate
presentation)
22
ST61 Plan
ST61 Plan

• European Broadcasting Area

23
Just how many ST61 Frequency Plans are there?
ST61 Plan

• TV stations 41-68 MHz
• Sound broadcasting stations 41-68 MHz
• Sound broadcasting stations 87.5-100 MHz
• TV stations 87.5-100 MHz
• TV stations 162-230 MHz (Band III)
• TV stations 470-960 MHz (Bands IV-V)

24
Frequency band decides on the procedure used
ST61 Plan

• Old Exclusive bands
• 41-68 MHz
• 87.5-100 MHz
• 174-216 MHz
• 470-582 MHz
• 606-790 MHz

• Old Shared bands
• 162-174 MHz
• 216-230 MHz
• 582-606 MHz
• 790-960 MHz

25
Modification - Exclusive bands
ST61 Plan

• Consult affected administrations
• Distances from the stations to the nearest points
  of the boundaries
• Provide proposed technical characteristics so
  that affected administration can assess the
  probability of harmful interference
• Affected administrations to reply within ten
  weeks
• If not, notifying administration will send a
  reminder

26
Modification - Exclusive bands (2)
ST61 Plan

• Affected administrations to reply within two (2)
  weeks
• If not, considered to have agreed to the proposed
  change
• No agreement is reached, BR may be requested to
  make technical examination and inform
  administrations of the results

27
Modification - Exclusive bands (3)
ST61 Plan

• Modifications without consulting if
• Reduction in power or changes that would reduce
  the probability of harmful interference
• OR
• Distances to nearest points of the boundaries are
  equal or greater than the coordination distance
  limits

28
Modification - Exclusive bands (4)
ST61 Plan

• Notifying administration informs BR
• Proposed modifications
• Names of administrations consulted, where
  appropriate.
• BR publishes in Part B of a Special Section

29
Modification - Shared bands
ST61 Plan

• Notifying administration informs BR of technical
  information
• BR publishes in Part A of a Special Section
• Comment period 12 weeks
• Comment should be sent DIRECTLY to notifying
  administration
• NO COMMENT AGREEMENT

30
Modification - Shared bands (2)
ST61 Plan

• Notifying administration informs BR if no comment
  received at the end of 12 weeks or agreement
  reached
• Must Request publication in Part B for recording
  into the ST61 Plan (TB3 notice)

31
ST61 Plan
Currently 67664 stations
No. of modifications processed per year
(2004 figures are up to 30 June only)
32
GE84 Plan
GE84 Plan

• Region 1 Part of Region 3

33
GE84 Plan modification procedure
GE84 Plan

• Coordination required with
• sound broadcasting stations (4.2.2 a)
• ST 61 television 87.5-100 MHz (4.2.2 b)
• fixed mobile service (4.2.2 c,d,e)
• aeronautical radionavigation service gt 108 MHz
  (4.2.2 f)

34
GE84 Plan modification procedure
GE84 Plan

• Coordination between administrations based on a
  table of distances (Annex 4)
• Normal acceptance based on technical criteria
• resulting Eu lt 54 dBu or
• increase in Eu lt 0.5 dB

35
GE84 Plan modification procedure
GE84 Plan

• No agreement required if modification
• is reduction of ERP or interference level
• Distance less than Annex 4 limits
• Moves station less than a given distance

36
Features of the GE84 Plan modification procedure
GE84 Plan

• Publication in Part A of a Special Section
• 100 days comment period
• BR reminders at 50 70 days
• No comment AGREEMENT
• Must request publication in Part B
• Unused frequencies never removed

37
GE84 Plan
Currently 60771 stations
No. of modifications processed per year
(2004 figures are up to 30 June only)
38
GE89 Plan
GE89 Plan
African B. Area neighbours
39
GE89 Frequency bands
GE89 Plan

• 41-68 MHz but limited use (RR5.169)
• 174-230 MHz (Band III)
• 230-238 MHz 246-254 MHz (RR5.252)
• 470-862 MHz (Bands IV-V)

40
GE89 Plan modification procedure
GE89 Plan

• Coordination required with
• other TV stations (4.2.2)
• fixed service (4.2.3)
• mobile service (4.2.4)

41
GE89 Plan modification procedure
GE89 Plan

• No agreement required if modification
• is reduction of ERP or interference level
• Limits of 4.2.2 - 4.2.4 not exceeded
• Moves station less than a given distance

42
GE89 Plan modification procedure
GE89 Plan

• Normal acceptance based on technical criteria
• Nuisance field lt 47 dBu for Band I
• Nuisance field lt 53 dBu for Band III
• Nuisance field lt 62 dBu for Band IV
• Nuisance field lt 67 dBu for Band V

43
Features of the GE89 Plan modification procedure
GE89 Plan

• Publication in Part A of a Special Section
• 100 days comment period
• BR reminders at 50 70 days
• No comment AGREEMENT
• Must request publication in Part B
• Unused frequencies removed after 465 days

44
GE89 Plan
Currently 11 202 stations
No. of modifications processed per year
(2004 figures are up to 30 June only)
45
3. Why are there time-limits for comments on
proposed modifications?

• To permit all other possibly affected
  administrations to verify impact of the new
  station on their operations.
• ST61 time-limits.
• GE84 and GE89 time-limits.
• GE75 time-limits.

46
ST61 time limits
47
GE84 and GE89 time-limits
48
GE75 time-limits
49
BCD CONTACTS
