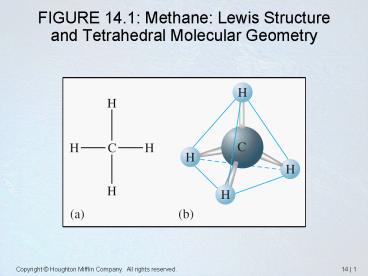

FIGURE 14'1: Methane: Lewis Structure and Tetrahedral Molecular Geometry

1
FIGURE 14.1 Methane Lewis Structureand
Tetrahedral Molecular Geometry
2
FIGURE 14.2 ValenceOrbitals on Free C Atom
3
FIGURE 14.3 Formation of sp3 Orbitals
4
FIGURE 14.4 Cross Sectionof an sp3 Orbital
Generated from a program by Robert Allendoerfer
on Project SERAPHIM disk PC 2402 reprinted with
permission.
5
FIGURE 14.5 Energy-Level Diagram Showing
Formation of 4 sp4 Orbitals
6
FIGURE 14.6 SharingOrbitals to Form CH4
7
FIGURE 14.7 N Atom inAmmonia is sp3 Hybridized
8
FIGURE 14.8 Hybridizationto Form sp2 Orbitals
9
Energy-Level Diagramfor sp3 Hybridization
10
FIGURE 14.10 Combination of One s and Two p
Orbitals to Form Three sp2 Orbitals
11
FIGURE 14.11 SigmaBonds in Ethylene
12
FIGURE 14.12 C-C Bond Consistsof One Sigma and
One Pi Bond
13
FIGURE 14.13 (a) Orbitals Used to Form Bondsin
Ethylene, (b) Lewis Structure for Ethylene
14
FIGURE 14.14 Two sp Orbitalsin a Linear
Arrangement Formed byHybridization of One s and
One p Orbital
15
FIGURE 14.15 Hybrid Orbitals in CO2
16
FIGURE 14.16 Energy-Level Diagram for Formation
of sp Hybrid Orbitals of C
17
FIGURE 14.17 Orbitals of sp Hybridized C Atom
18
FIGURE 14.18 Orbital Arrangementof sp2
Hybridized O Atom
19
FIGURE 14.19 (a) Orbitals Predicted by LEModel
for CO2 Bonds, (b) Lewis Structure for CO2
20
FIGURE 14.20 (a) sp HybridizedN Atom, (b) Sigma
Bonds in N2,(c) Pi Bonds in N2, (d) Total
Bonding in N2
21
FIGURE 14.21 dsp3 HybridOrbitals on P Atom
22
FIGURE 14.22 Orbitals Usedto Form Bonds in PCl5
23
FIGURE 14.23 Octahedral Setof d2sp3 Orbitals on
S Atom
24
Bonding in XeF4
25
FIGURE 14.24 Effective Pairs, Their Spatial
Arrangement, and Required Hybridization
26
Bond Arrangement in CO
27
Bond Arrangement in BF4-
28
Bond Arrangement in XeF2
29
FIGURE 14.25 Combinationof H 1s Atomic Orbitals
to Form MOs.
30
FIGURE 14.26 (a) MO Energy-Level Diagram for H2,
(b) Shapes of MOs
31
FIGURE 14.27 Bonding and Antibonding MOs
32
FIGURE 14.28MO Energy-Level Diagram for H2
33
FIGURE 14.29MO Energy-Level Diagram for He2
34
FIGURE 14.30MO Energy-Level Diagram for He2 Ion
35
FIGURE 14.31MO Energy-Level Diagram for H2 Ion
36
FIGURE 14.32MO Energy-Level Diagram for H2- Ion
37
FIGURE 14.33 Relative Sizesof Li 1s and 2s
Atomic Orbitals
38
FIGURE 14.34MO Energy-Level Diagram for Li2
39
FIGURE 14.35 Three Mutually Perpendicular 2p
Orbitals on Boron
40
FIGURE 14.36 Sigma Bonding and Antibonding
Orbitals on Boron
41
FIGURE 14.37 Expected MO Energy-Level Diagram
for the Combination of the 2p Orbitals on Boron
42
FIGURE 14.38 Expected MOEnergy-Level Diagram
for B2
43
FIGURE 14.40 Correct MOEnergy-Level Diagram for
B2
44
FIGURE 14.41 MO Energy-LevelDiagrams, Bond
Orders, Bond Energies,and Bond Lengths for
Diatomic Molecules B2 to F2
45
FIGURE 14.43 MO Energy-Level Diagram for NO
46
FIGURE 14.44 MO Energy-Level Diagram for NO and
CN- Ions
47
FIGURE 14.45 Partial MOEnergy-Level Diagram for
HF
48
FIGURE 14.46 Electron Probability Distribution
in the Bonding MO of HF
